Q0, Grey, Hotswap

SKU: 38885
Sale price$99.99 CAD
Sold out
5.0
Switch Type: Barebone

The Q0 is a mini custom number pad, it’s designed as a number pad or it can act as an extra key set of macros. With its all-metal CNC machined body, screw-in stabs, hot-swappable function, RGB LEDs, pre-lubed switches, and QMK/VIA support, the Q0 is the best customizable number pad for you.

Premium Aluminum Body

The mini metal body is crafted with 6063 aluminum that is processed through CNC machines, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the Q0 a beautifully crafted gadget for your desk.

Fully Customizable Number Pad

To build a fully customizable number pad, every component has been designed to be easily assembled so you can customize and adjust each element as you wish.

Hot-Swappable PCB

The Q0 hot-swappable PCB allows you to easily swap out switches without disassembly and de-soldering, so you can use your favorite switches or try out new switches without the risk of damaging the number pad. The PCB supports both 3-pin and 5-pin MX mechanical switches.

Gateron Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easy for changes and upgrades. More precise craftsmanship makes the silver-plated stabilizers more stable and less wobbly. Typing experience is more stable and smooth and rattling is significantly reduced. The Q0 also support third-party stabilizers including Cherry or Durock.

South Facing RGB

A unique RGB feature where the LED’s are located at the bottom of the switch rather than the top, which make them appear brighter because they are facing the typer. It’s also good for the PBT, Cherry profile, and non-shine-through keycaps which are popular for customized keycaps.

Sound Absorbing Foam

The Q0 features a sound-absorbing form that reduces vibration and drastically improves sound signature.

QMK and VIA Support

If customizing the looks and feel of your Q0 is not custom enough, with full QMK and VIA support, you can program and remap each key on the number pad with ease. The open-source firmware means endless possibilities for layouts, shortcuts, backlight effects, and more.

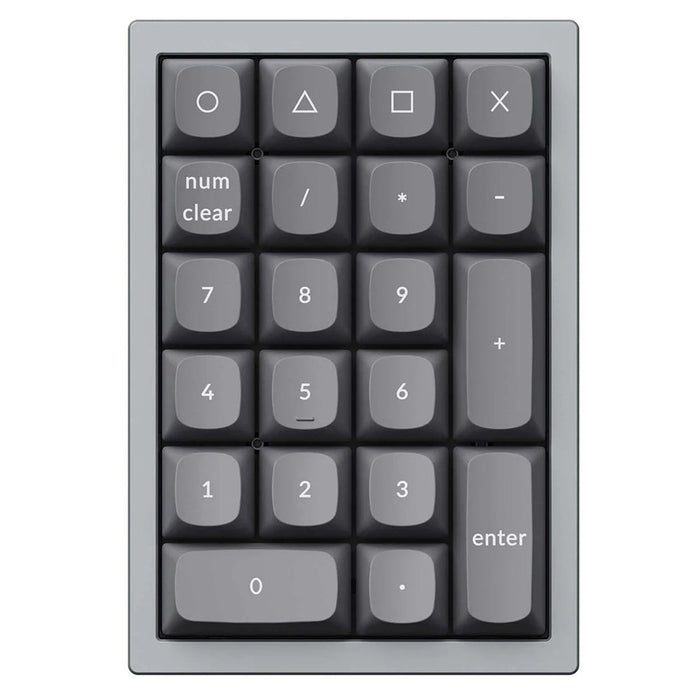

OSA Profile Double-Shot PBT Keycaps (Fully Assembled Version Only)

The fully-assembled version of the Keychron Q0 comes pre-built with Double Shot PBT keycaps and it includes additional Mac and Windows-specific keycaps. The OSA profile has a similar height to that of the OEM profile and has an SA-like shape. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

**Only the fully assembled version comes with keycaps, the barebone version does not include keycaps**

Pre-Lubed Gateron G Pro Switches (Fully Assembled Version Only)

Every detail counts when it comes to a premium typing experience. The factory pre-lubed Gateron G Pro switches deliver a great feel and sound:   **Only the fully assembled version comes with switches, the barebone version does not include switches**

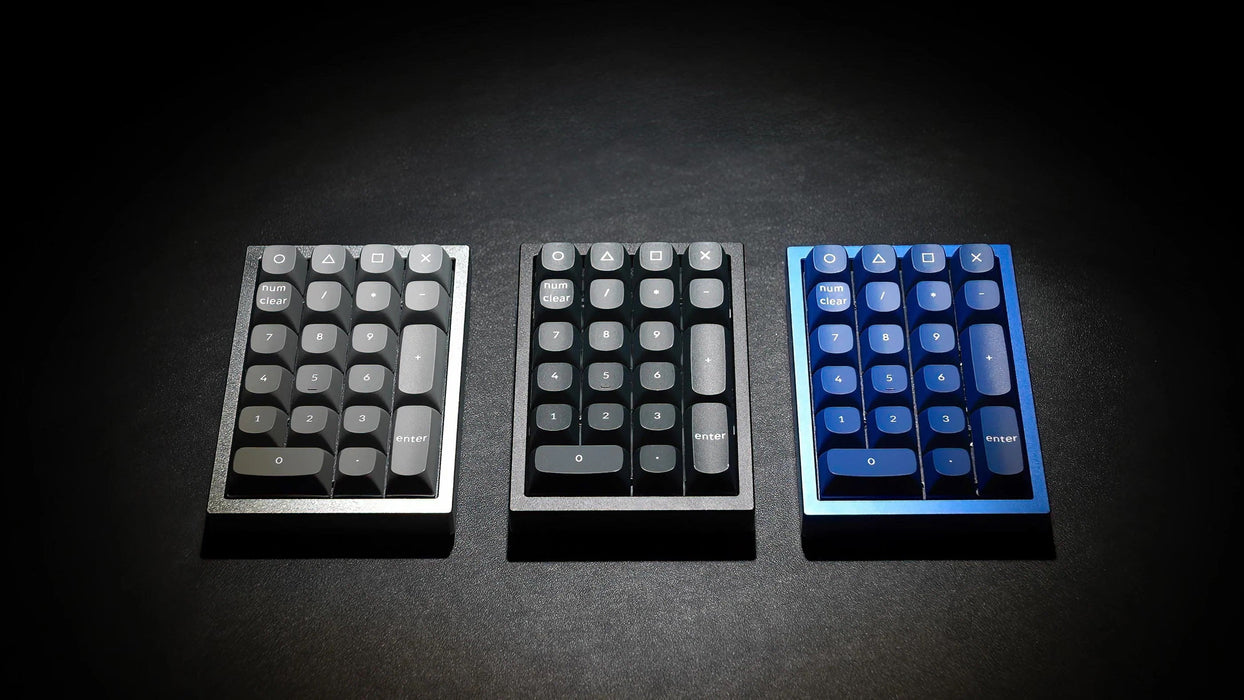

Available in Three Colorways

The Keychron Q0 is available in three colors: Black, Grey, Blue

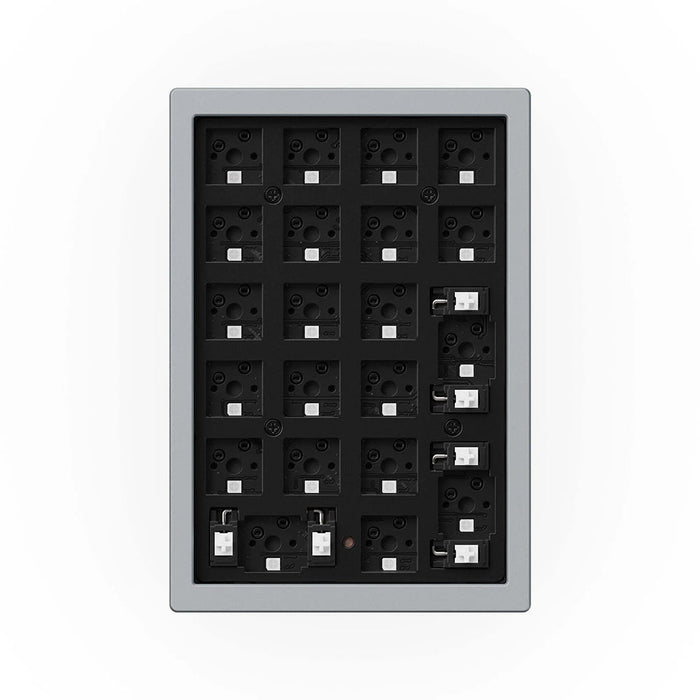

Cases Available in Three Colors (Barebone)

The cases are also available in three colors: Black, Grey, Blue

Specifications.

**The barebone edition does not come with switches or keycaps**

**This Numberd Pad does not have wireless connectivity**

Width: 128.8 mm
Length: 88.8 mm
Front Height: 18.2 mm (without keycaps)
Back Height: 29.3 mm (without keycaps)
Feet Height: 2.4mm
Angle: 5.2°
Weight: 500 g ± 10g (Fully Assembled Version)
Body Material: Full CNC machined aluminum
Plate Material: Steel
Polling Rate: 1000 Hz
Keycaps (Fully Assembled Version): Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU: Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Switches: Gateron G Pro (Fully Assembled Version)
Backlight: South-facing RGB LED
Switch Support: Hot-swappable (5 pin & 3 pin)
Stabs: Screw-in PCB stabs
Connectivity: Type-C
Cable: Type-C cable + Type-A to Type-C adapter
Operating Environment: -10℃ to 50℃
