Neo80 Cu WK Copper Bottom Keyboard

Sale price$310.00 CAD
Sold out
Notes
  1. The extra tri-mode PCB includes a PE sheet, a plate foam, and a USB dongle, but does not come with batteries.
  2. Shipping is free for extra parts on this page when purchased together with the Neo65 Core Plus.
  3. Parts orders without any outstanding unfulfilled Neo65 Core Plus orders under the same account will be canceled and buyers are subject to all the related fees incurred.
Layout & Bottom: WL Copper
Top Case: Anodized Silver
Weight: Brass
Don't forget any Addons & Accessories!
00
Days
:
00
Hours
:
00
Minutes
:
00
Seconds

Neo 80 Cu — The Fusion of Elegance, Acoustics, and Performance

Experience the Neo 80 Cu, a premium 80% mechanical keyboard that blends precision engineering with luxury design. Featuring a solid copper base, tri-mode connectivity (USB-C, Bluetooth, 2.4 GHz), and customizable mounting systems for tailored acoustics, the Neo 80 Cu redefines what a compact keyboard can be. Built with aerospace-grade materials, VIA/QMK programmability, and a signature “floating planet” aesthetic, it’s a statement piece that delivers both form and function for discerning creators, gamers, and enthusiasts alike.

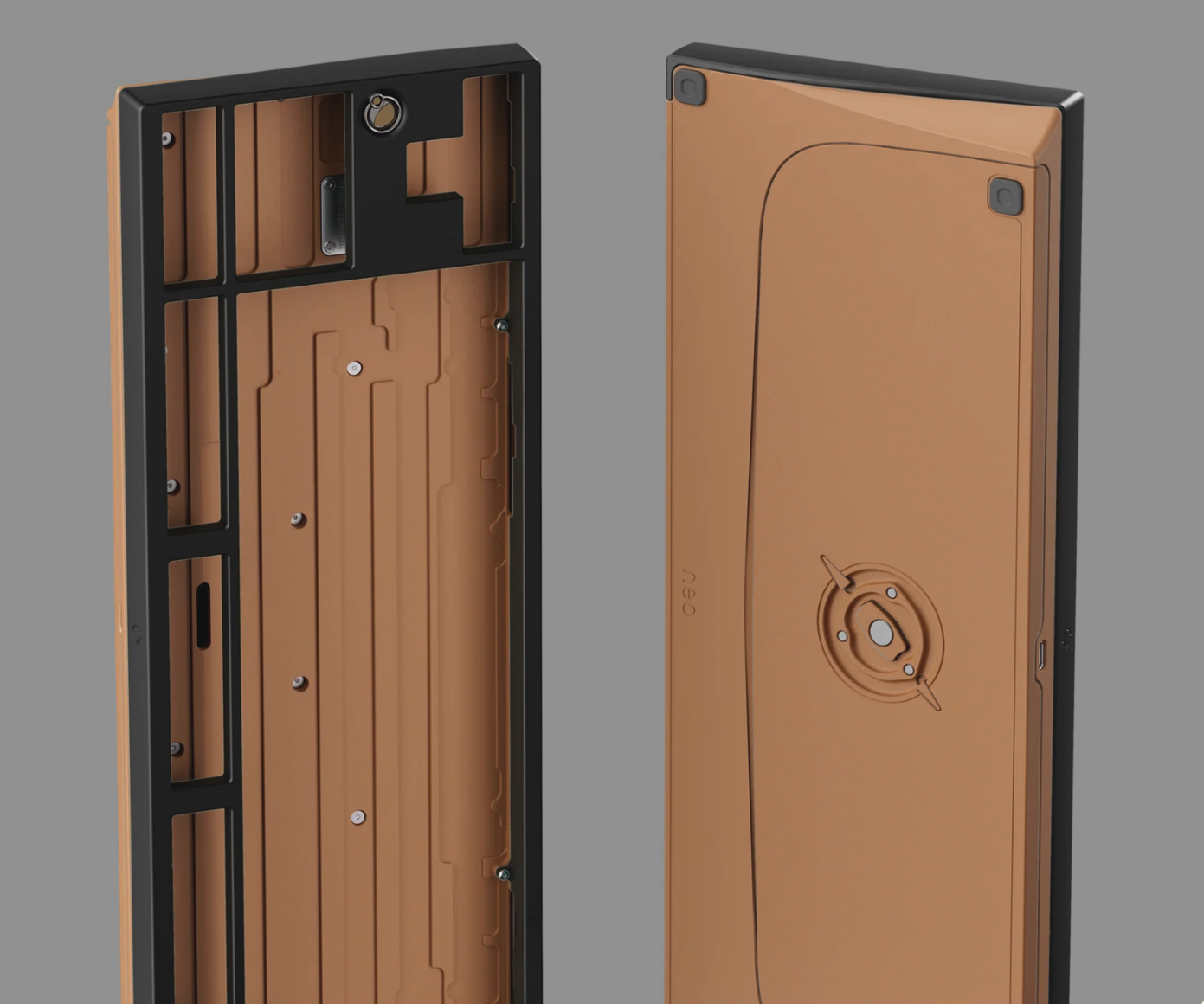

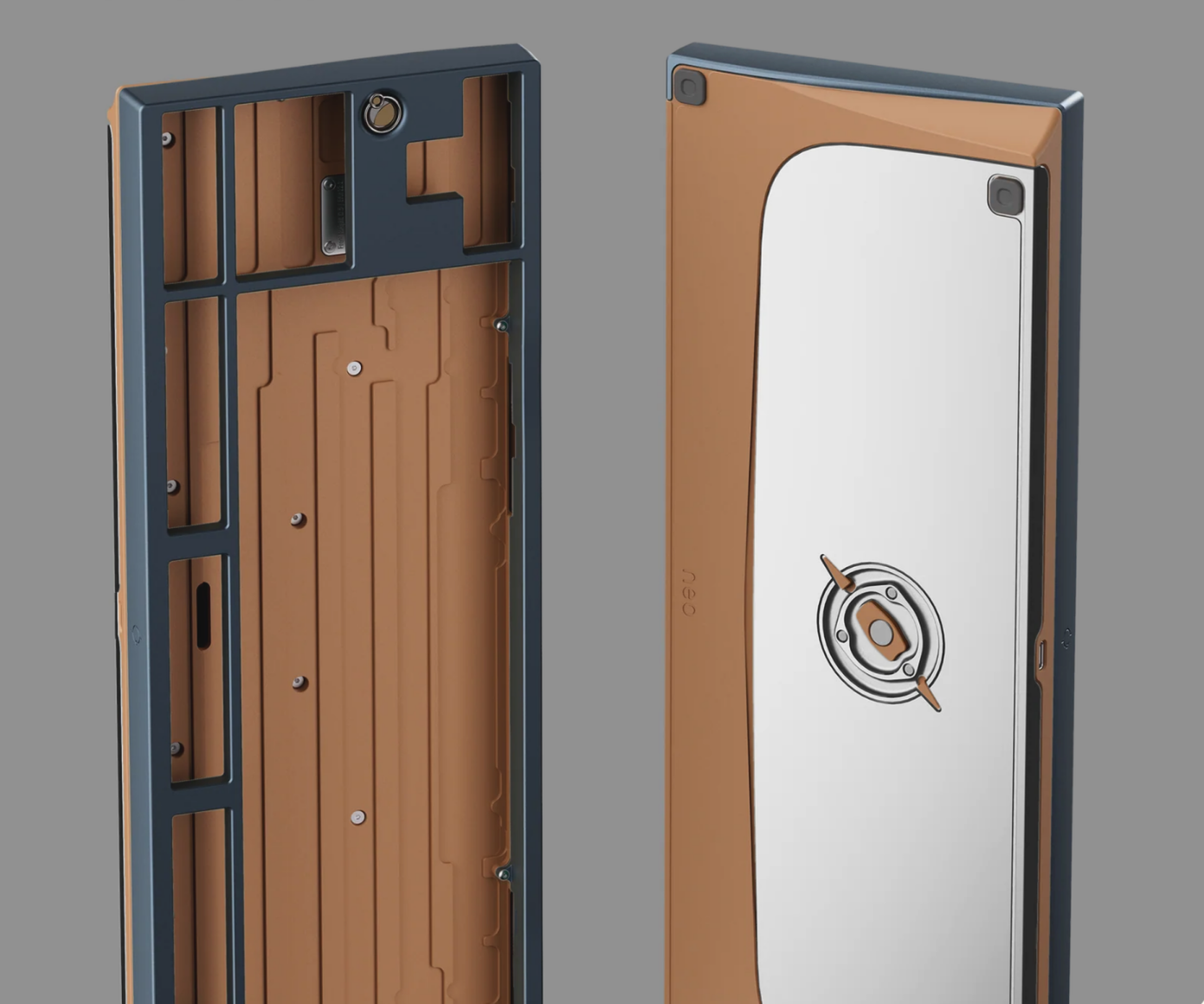

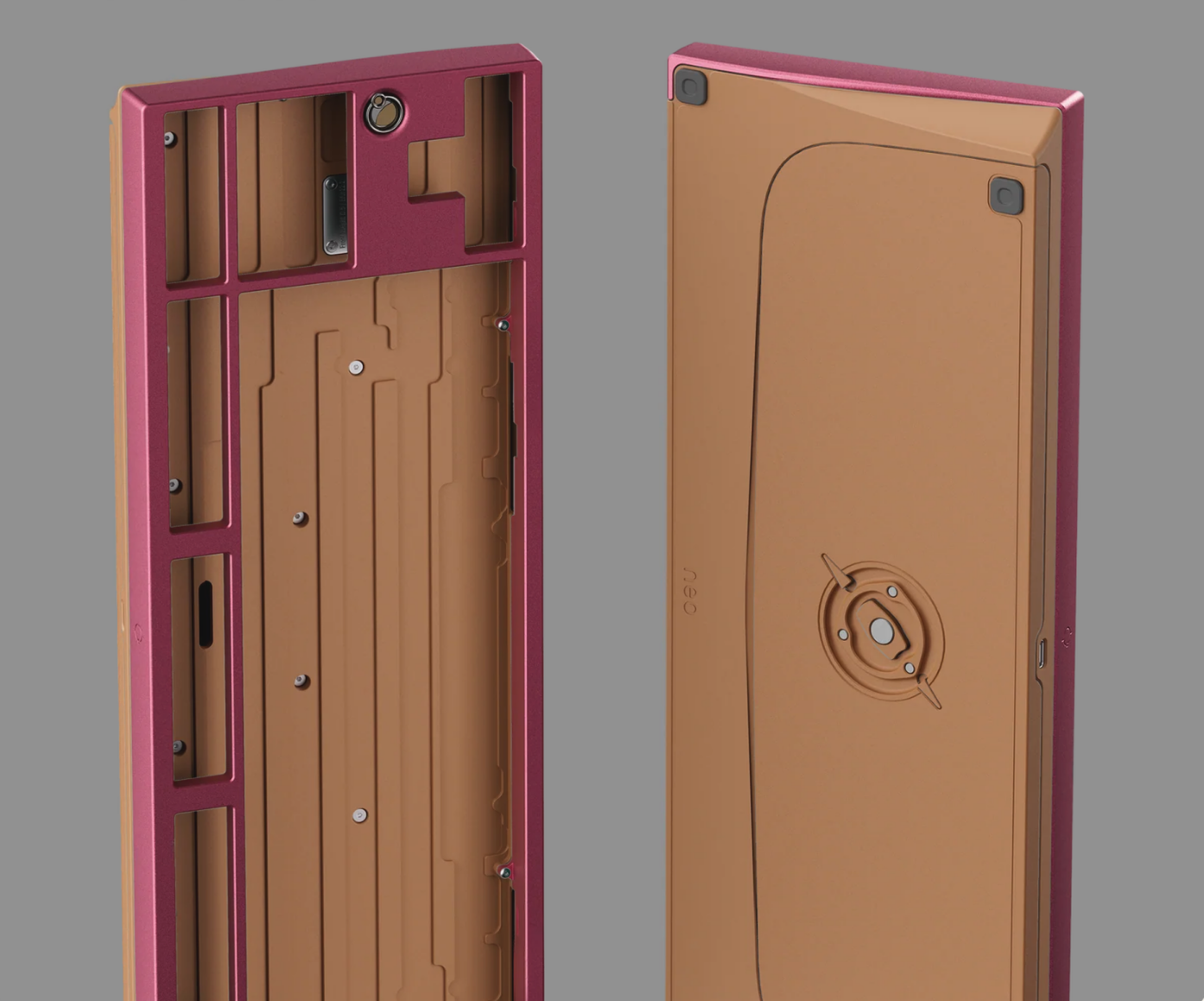

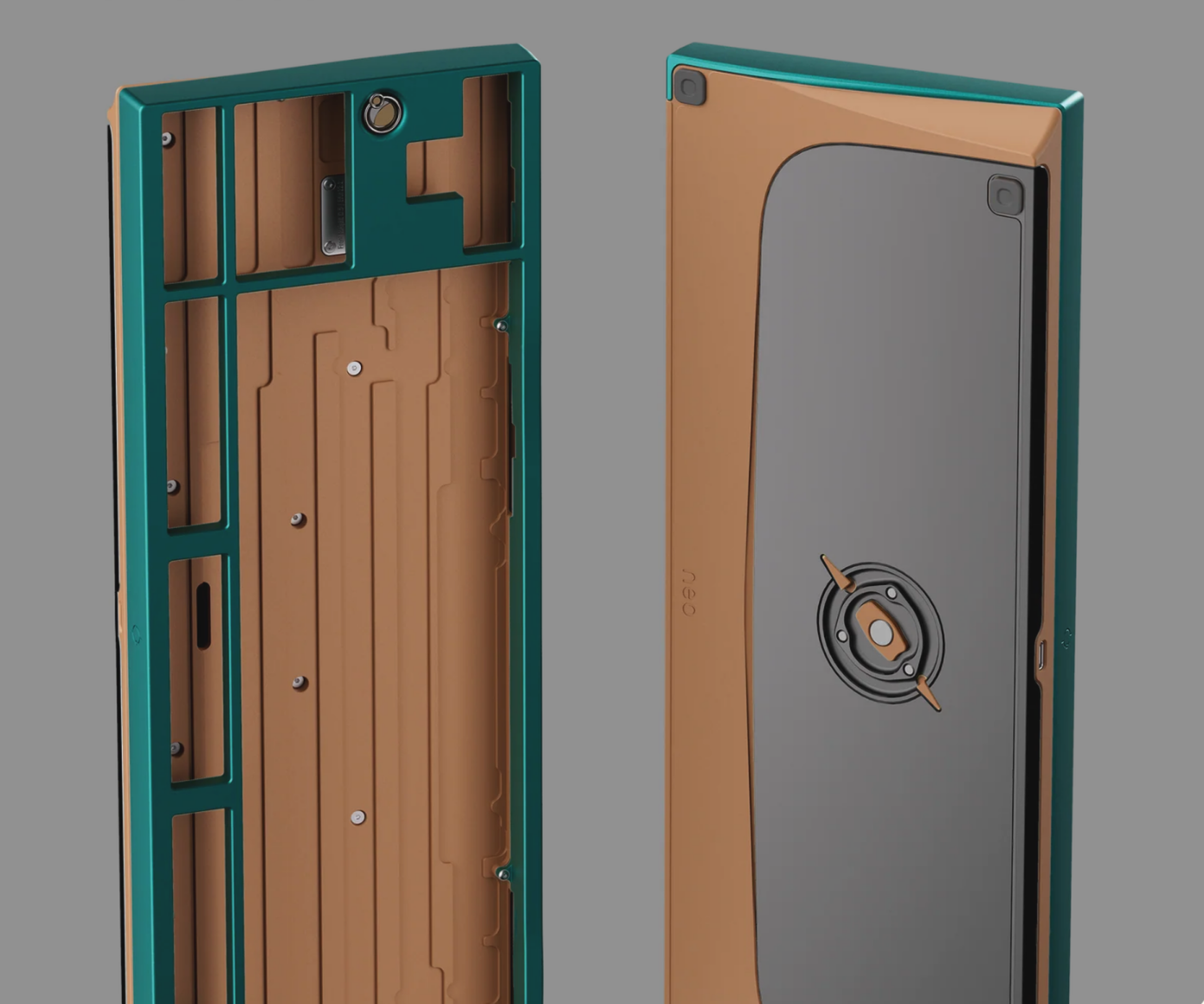

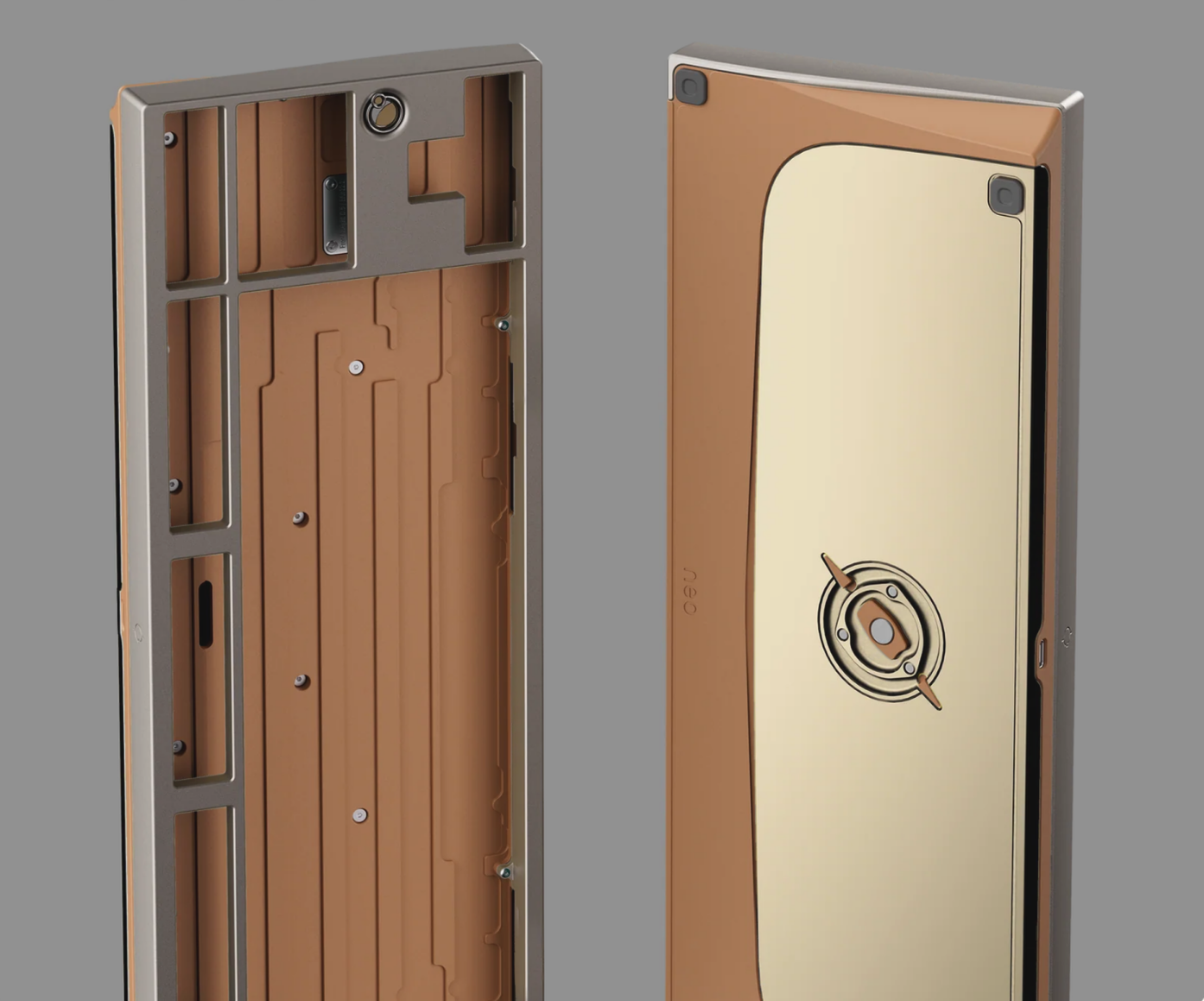

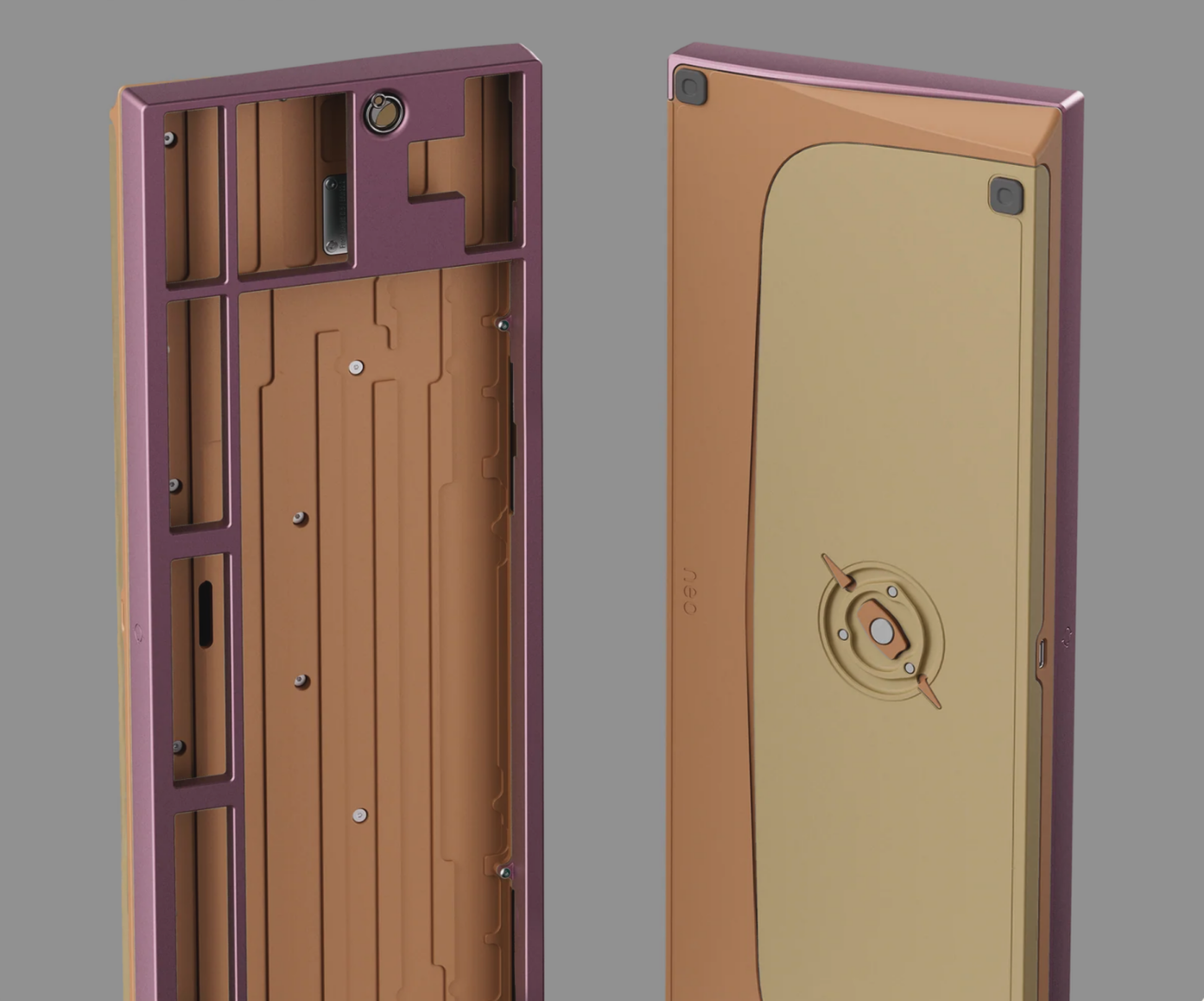

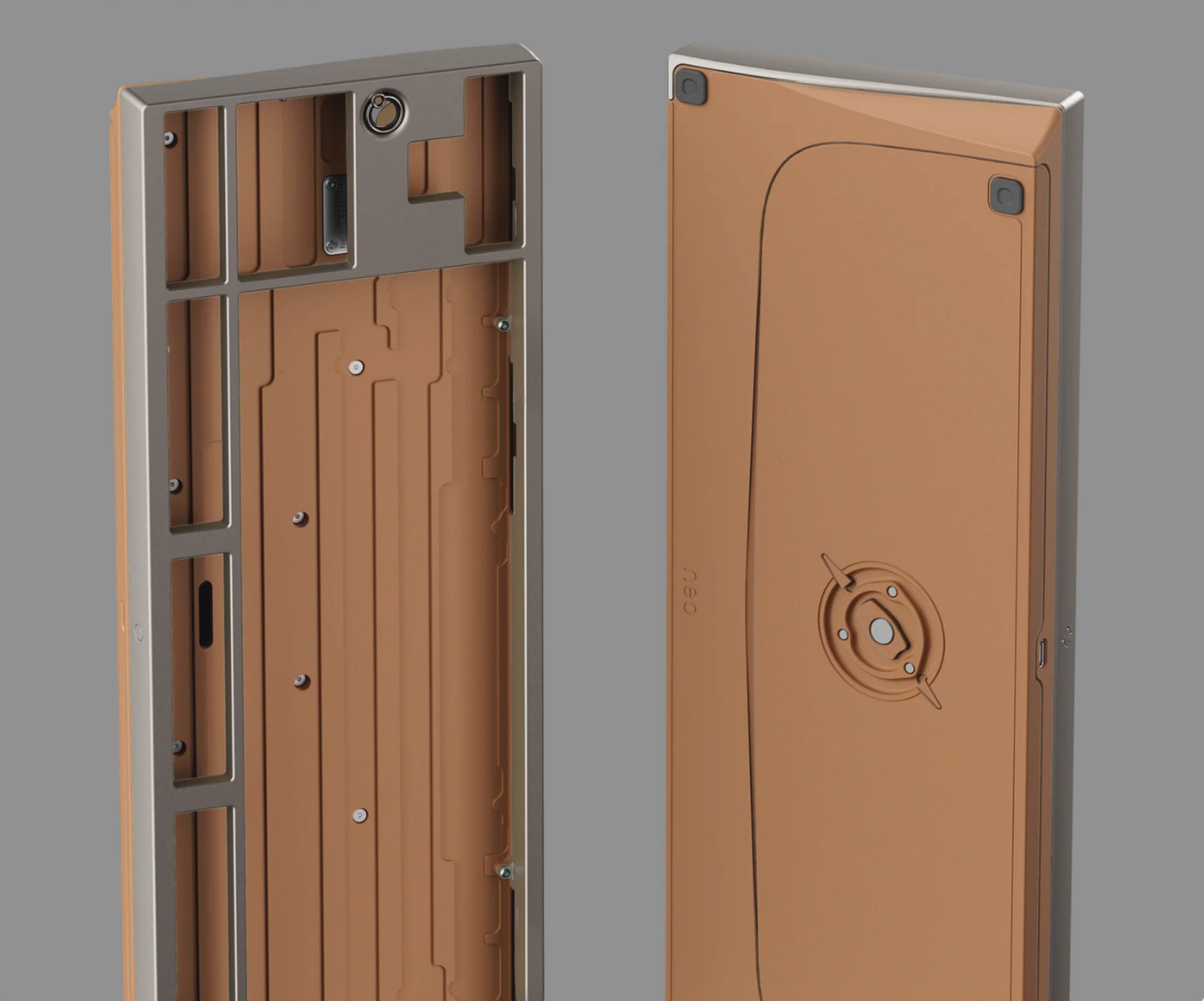

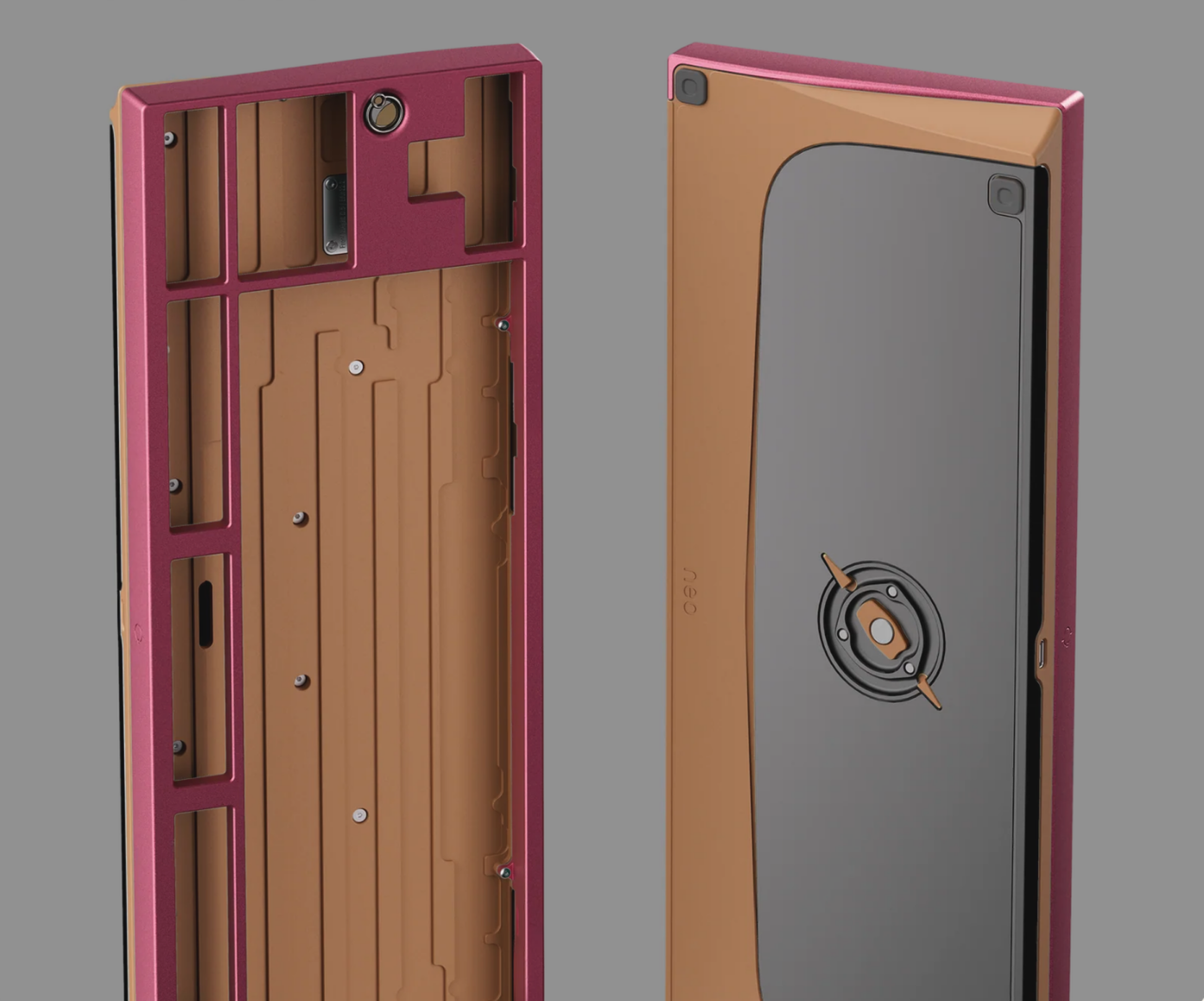

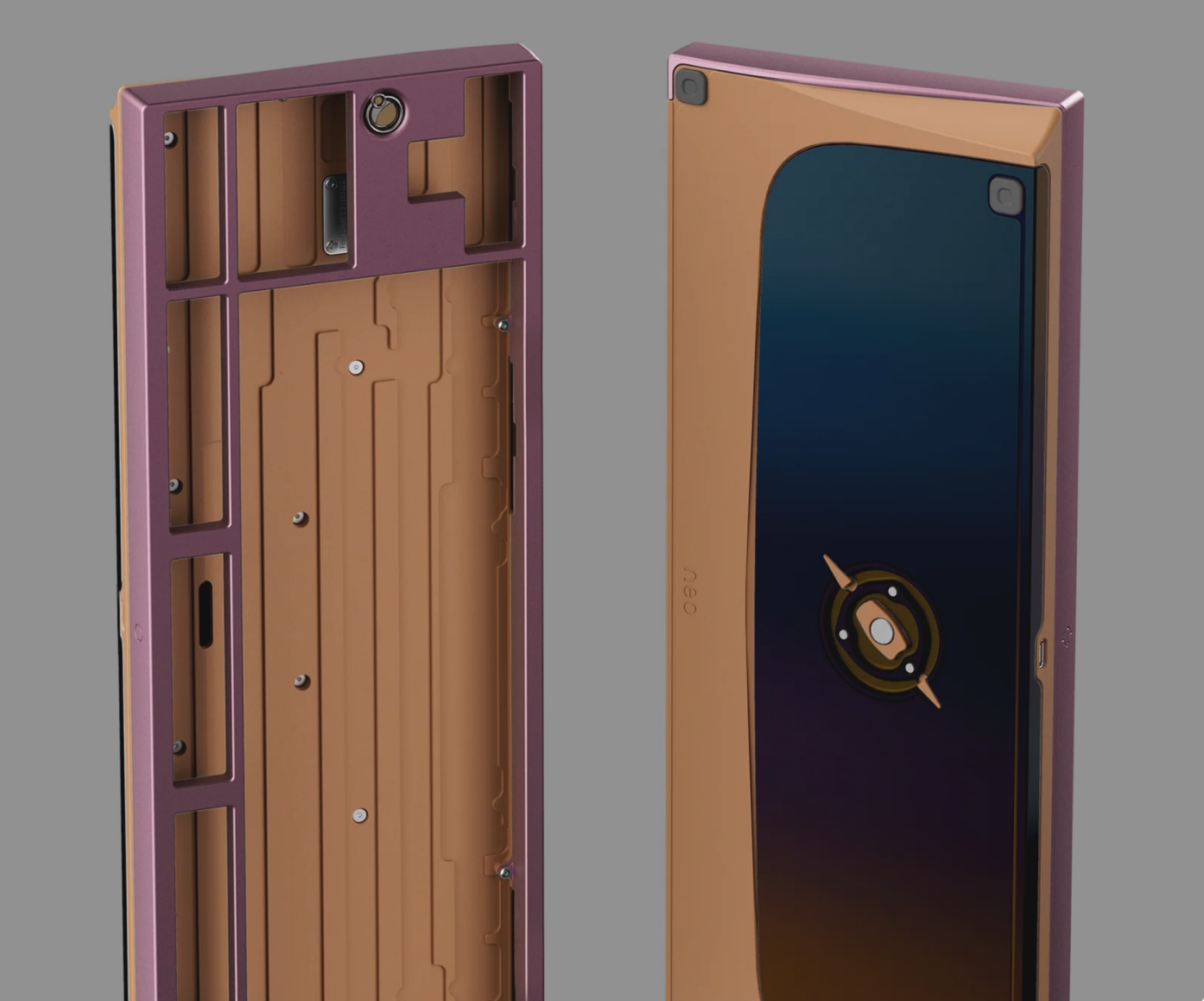

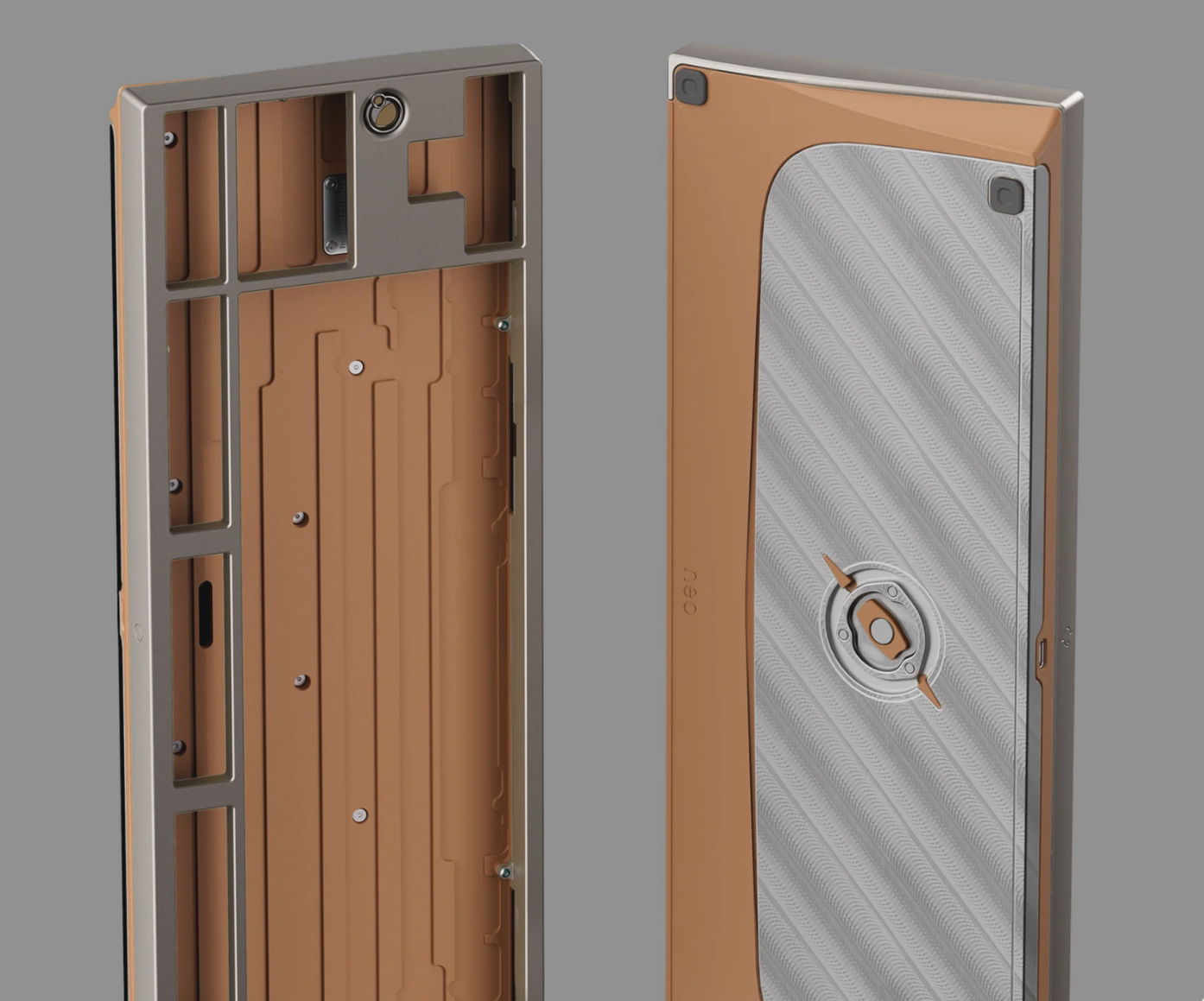

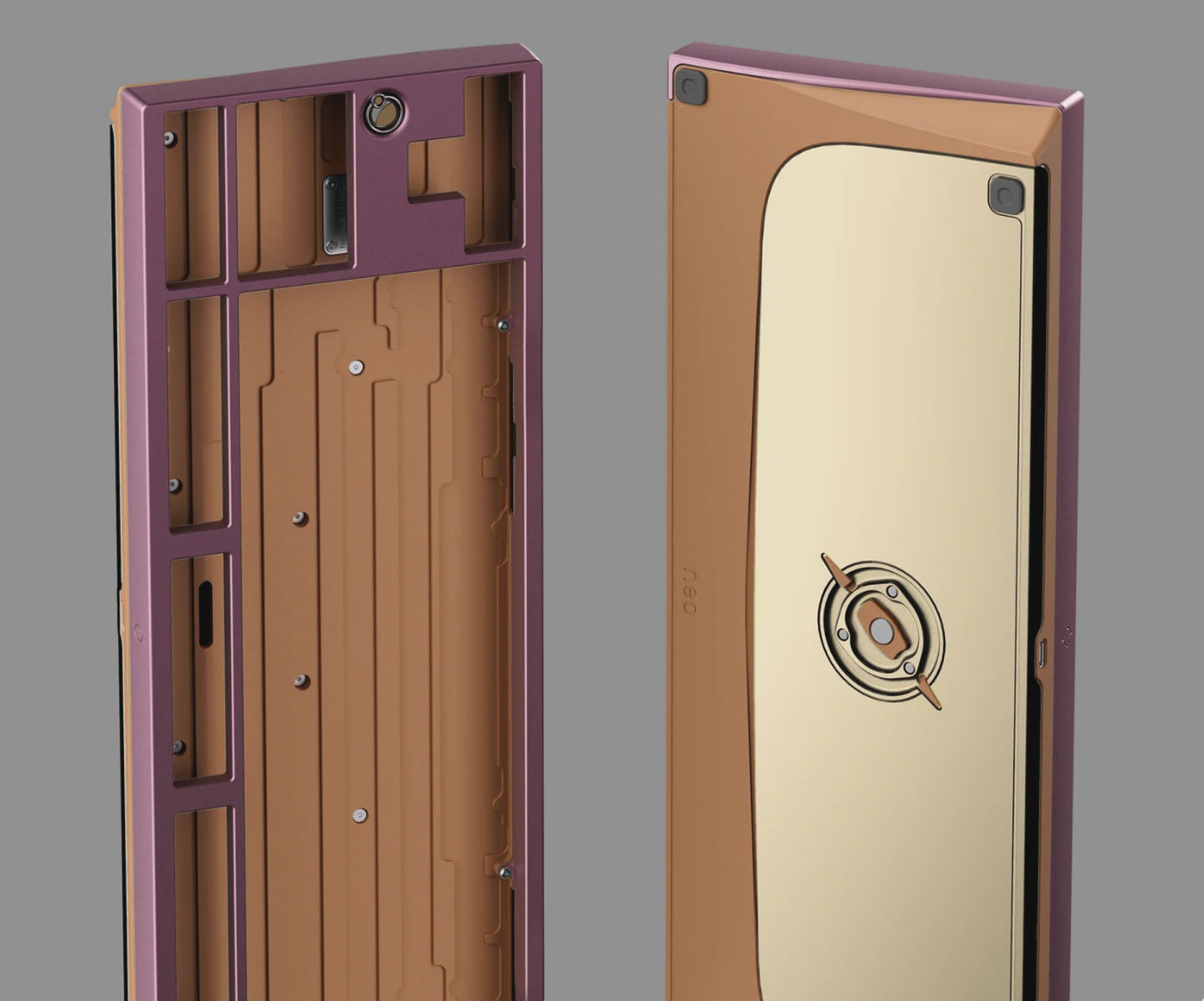

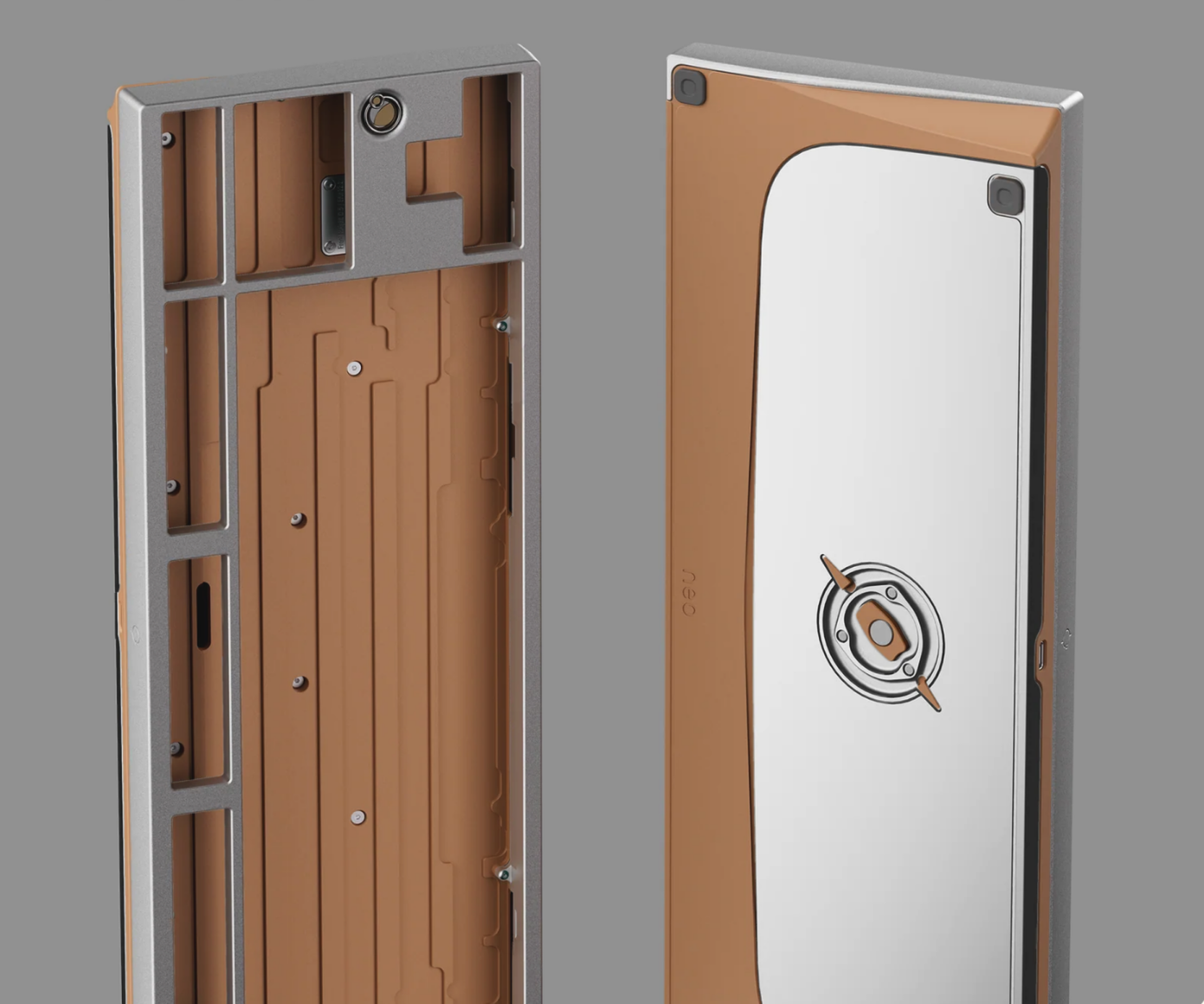

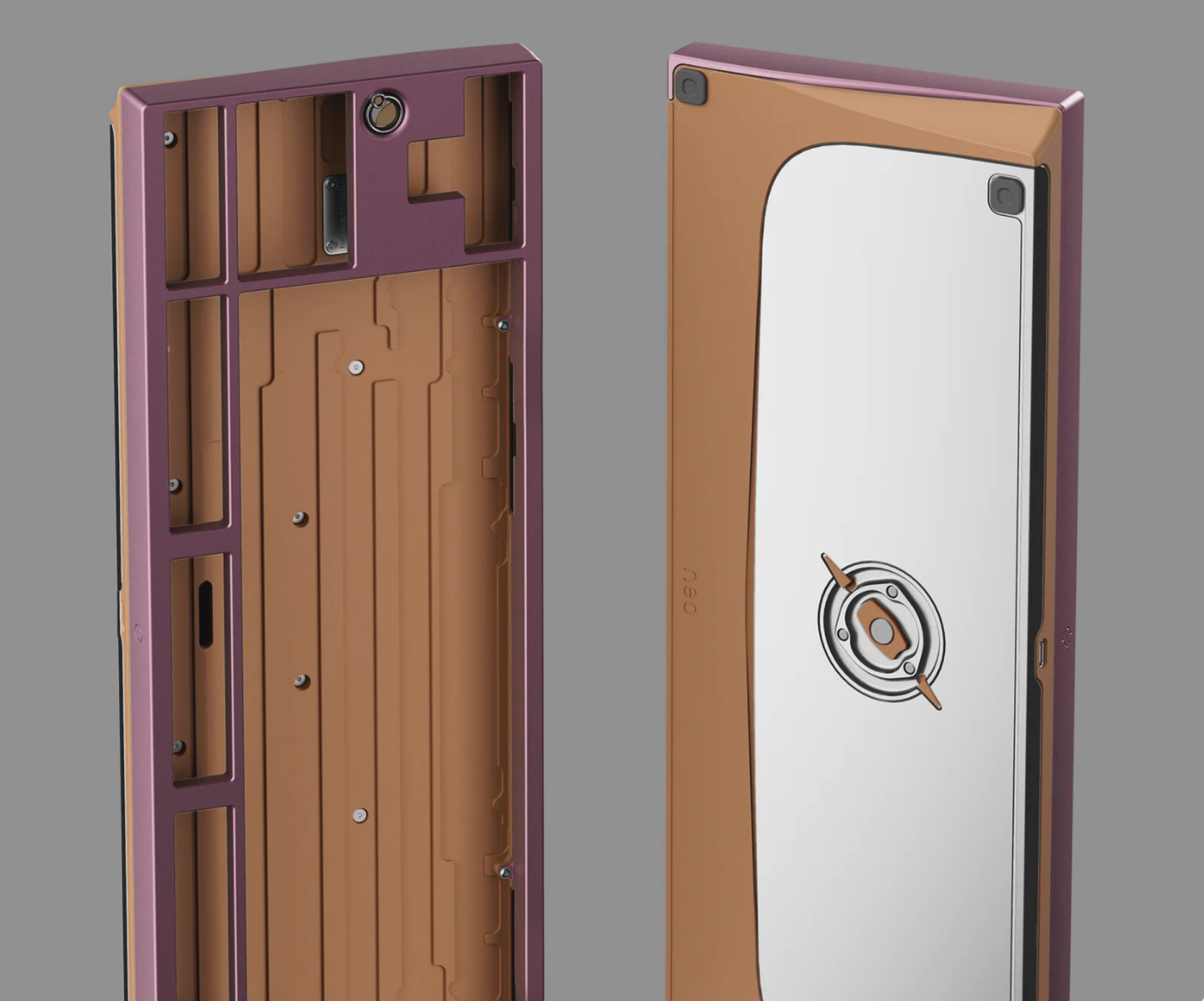

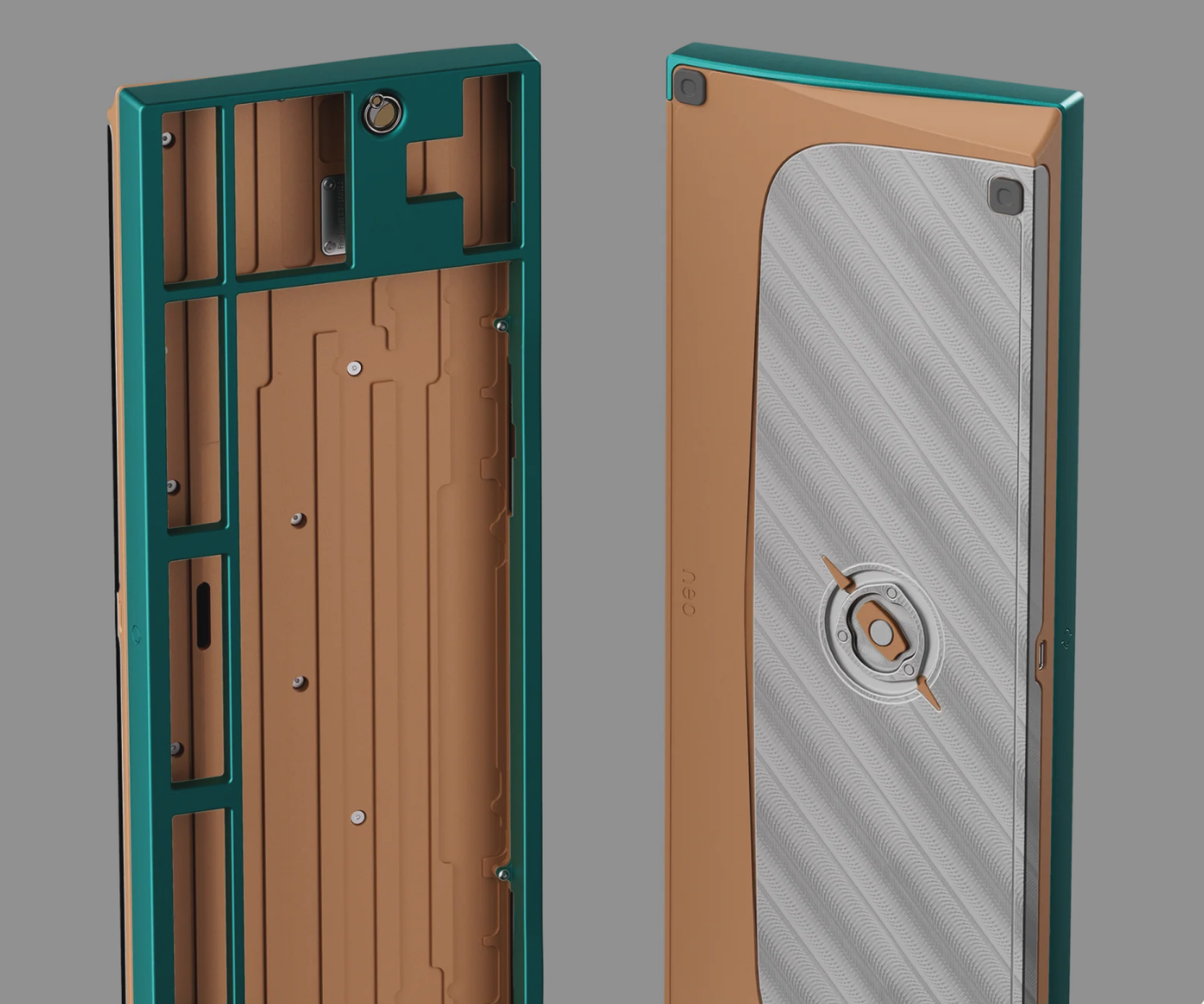

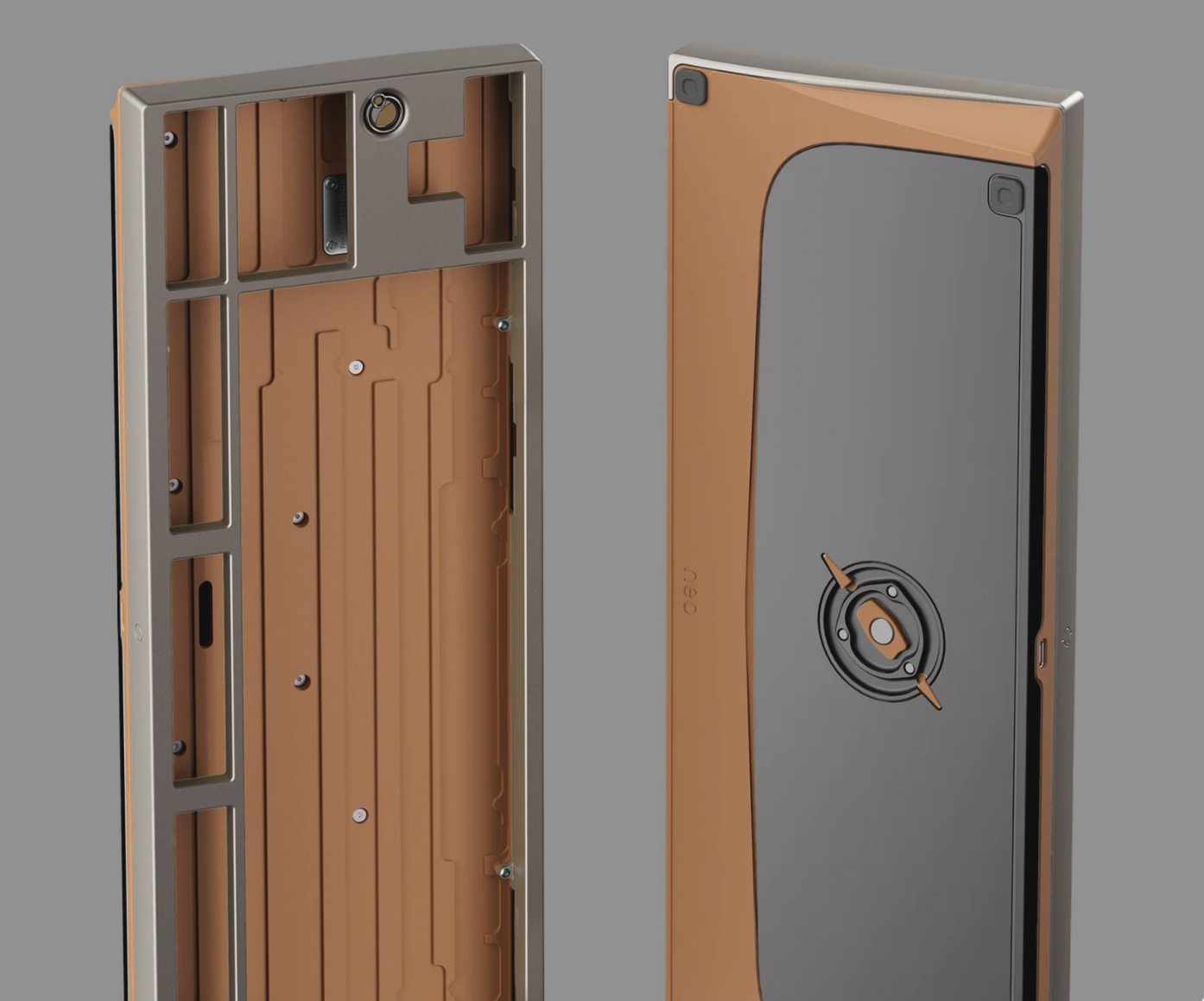

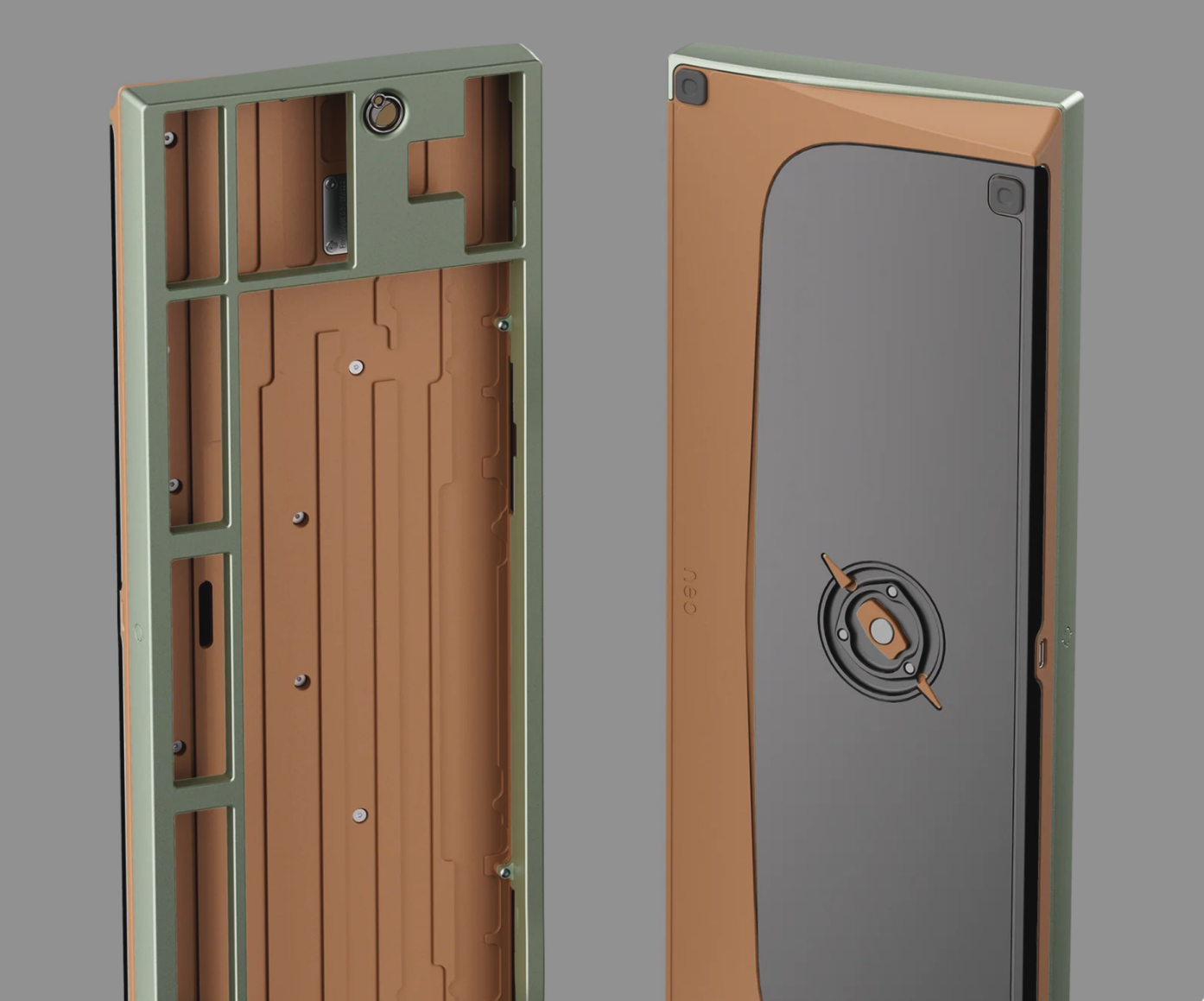

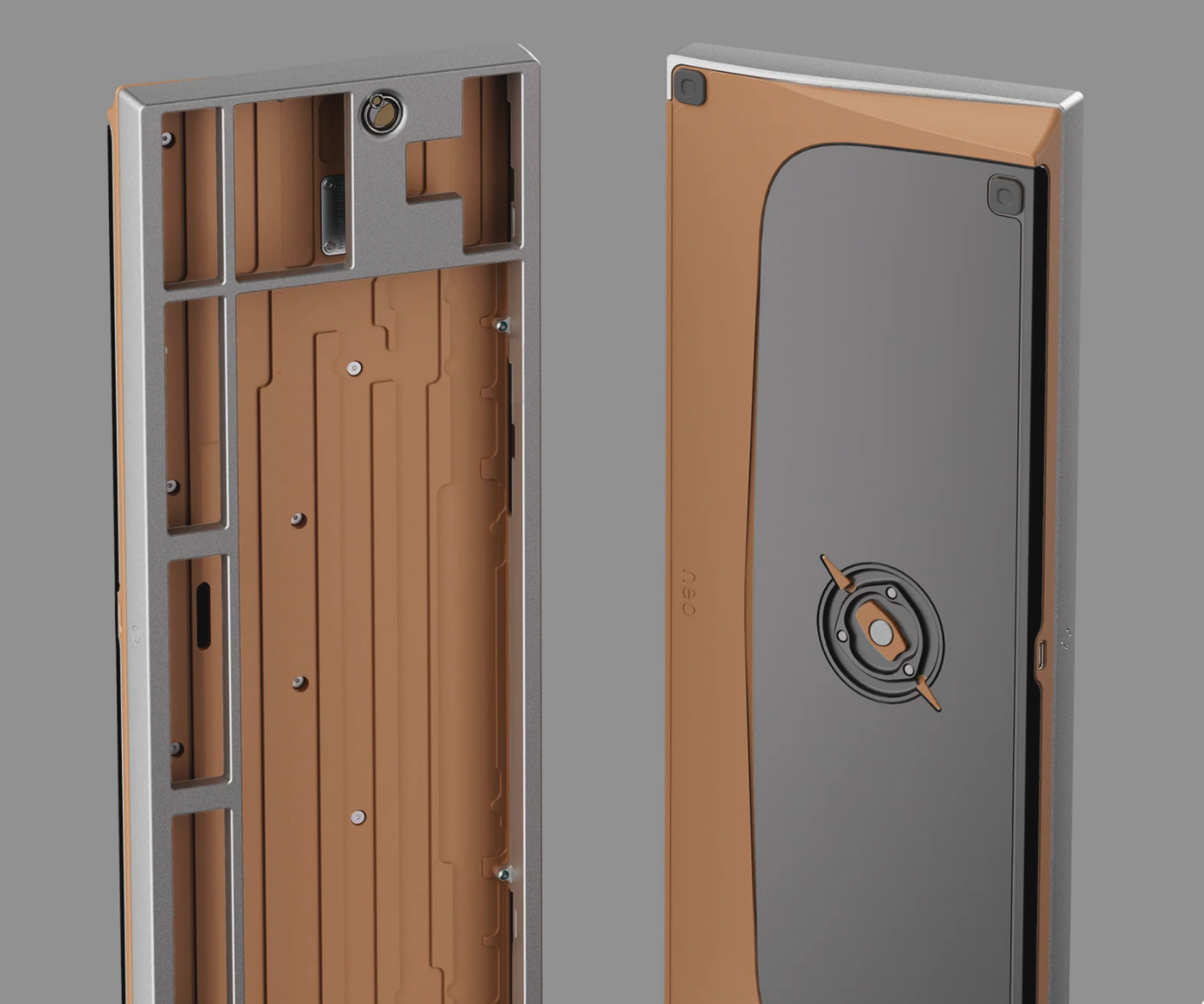

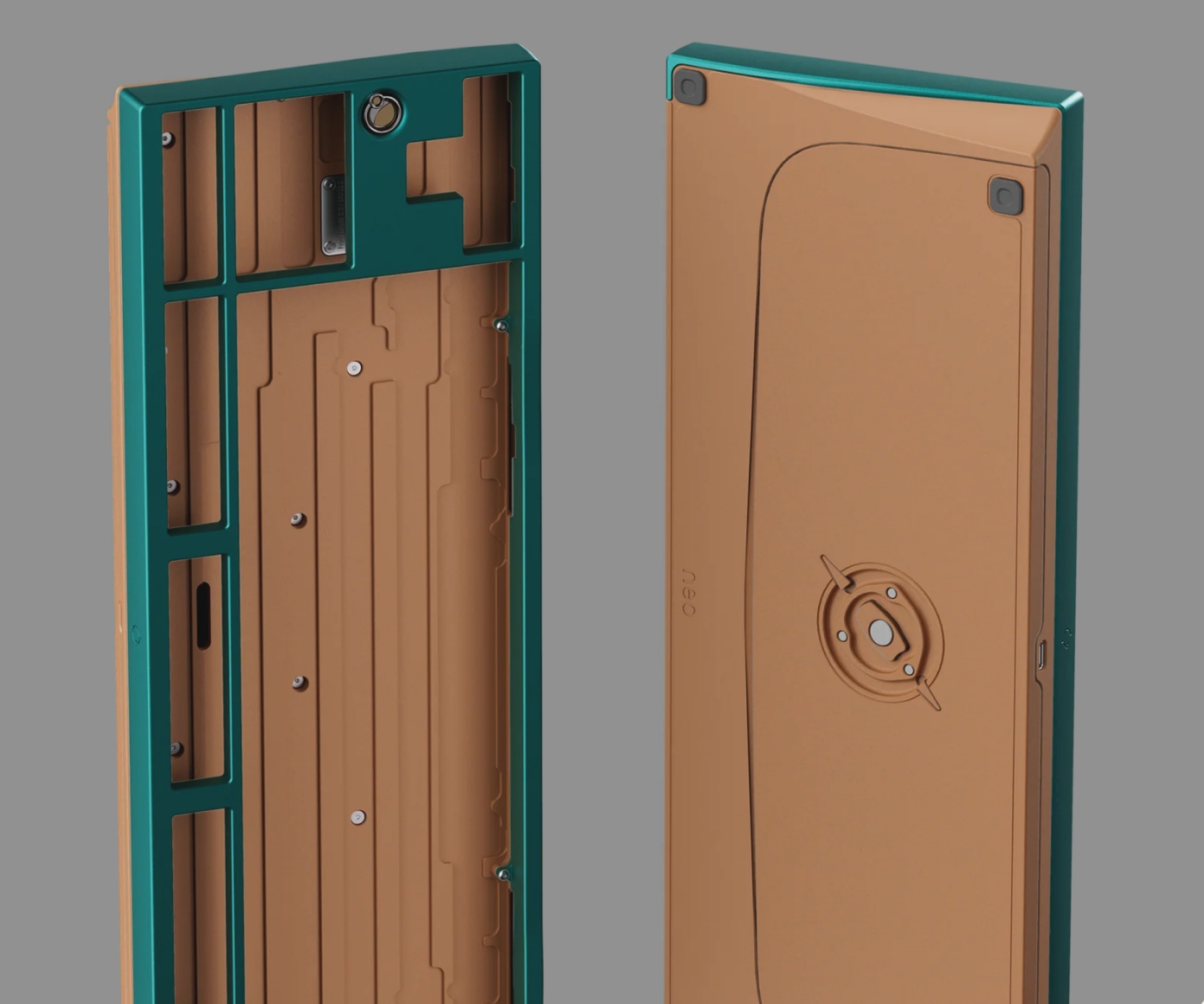

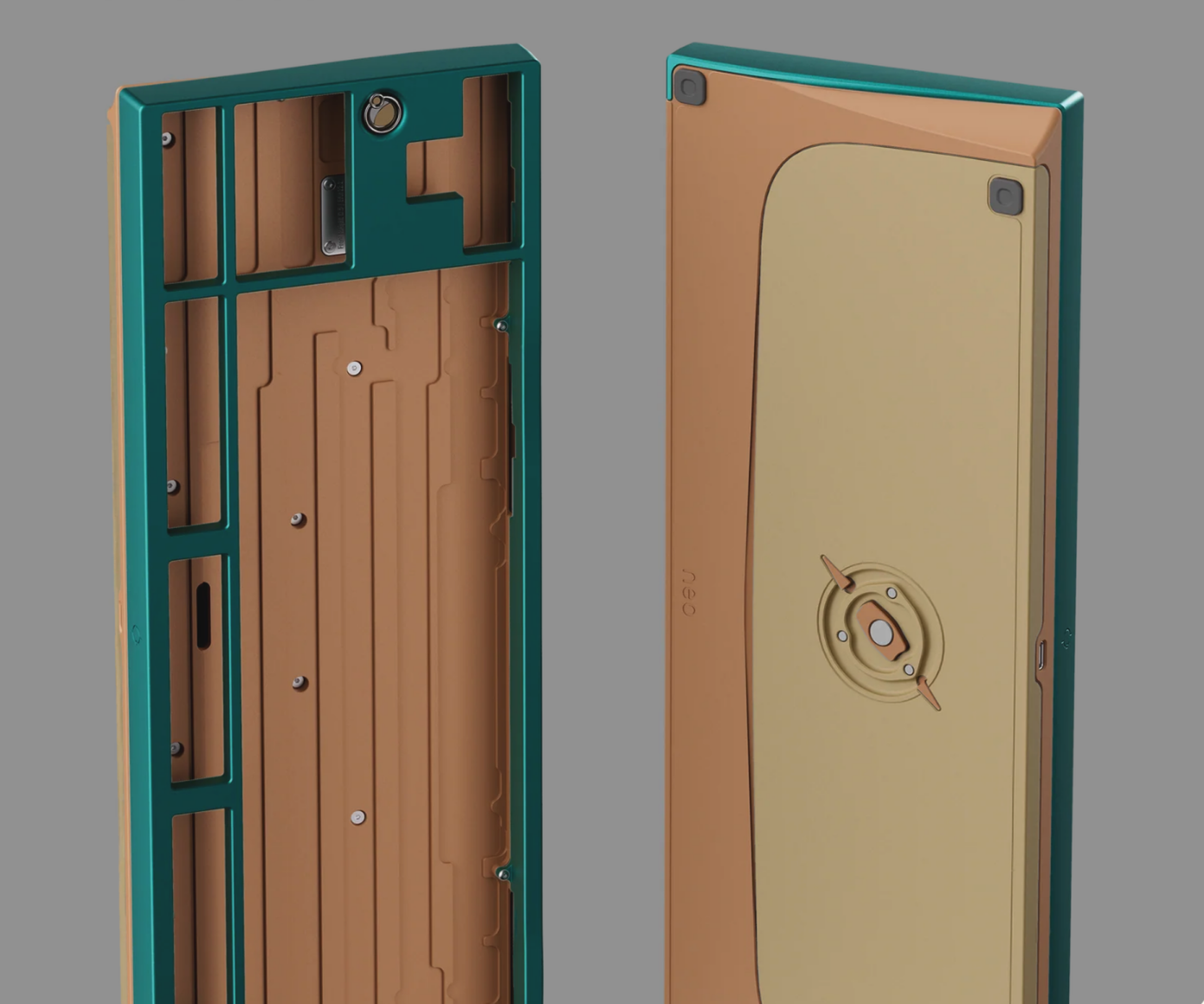

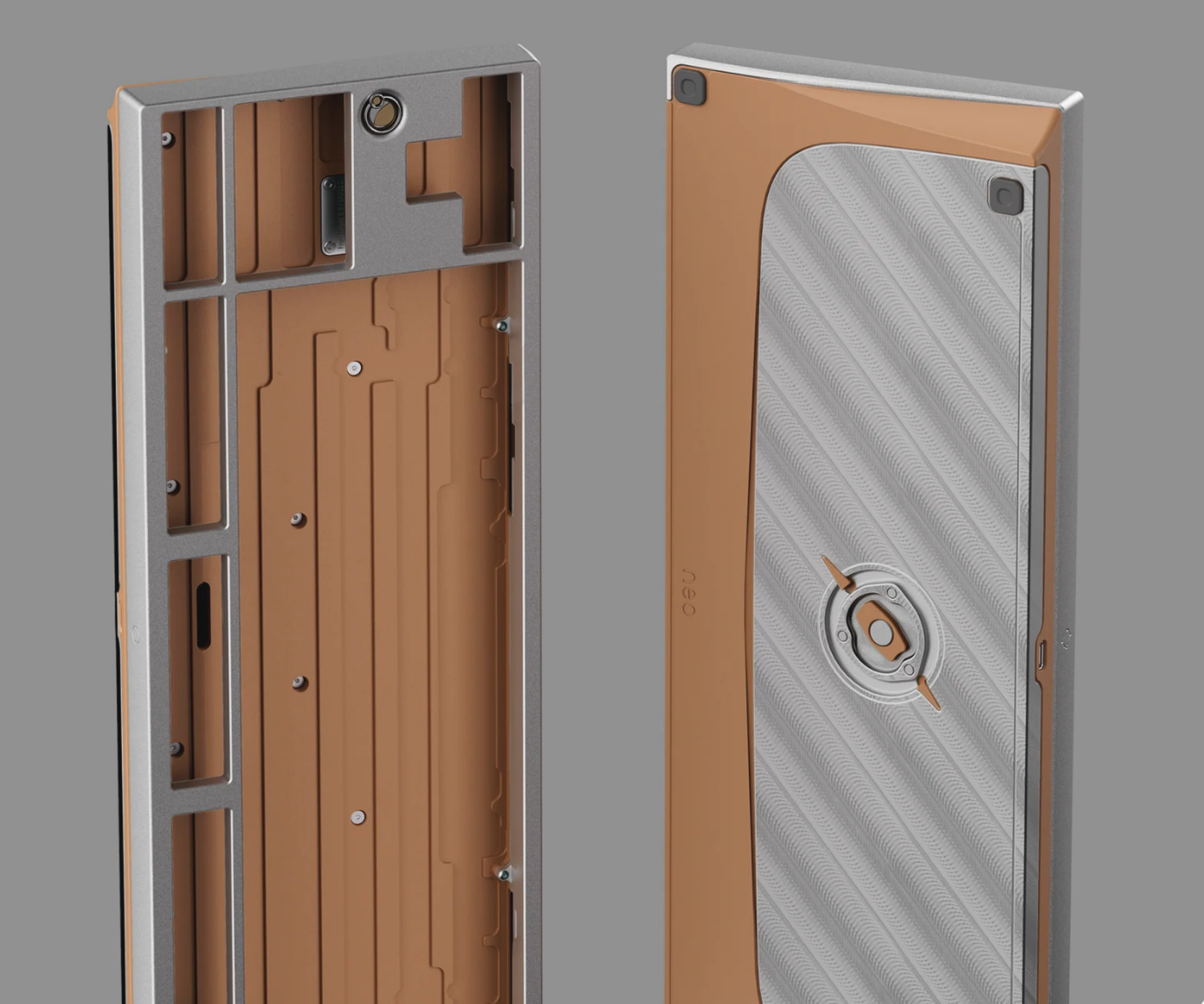

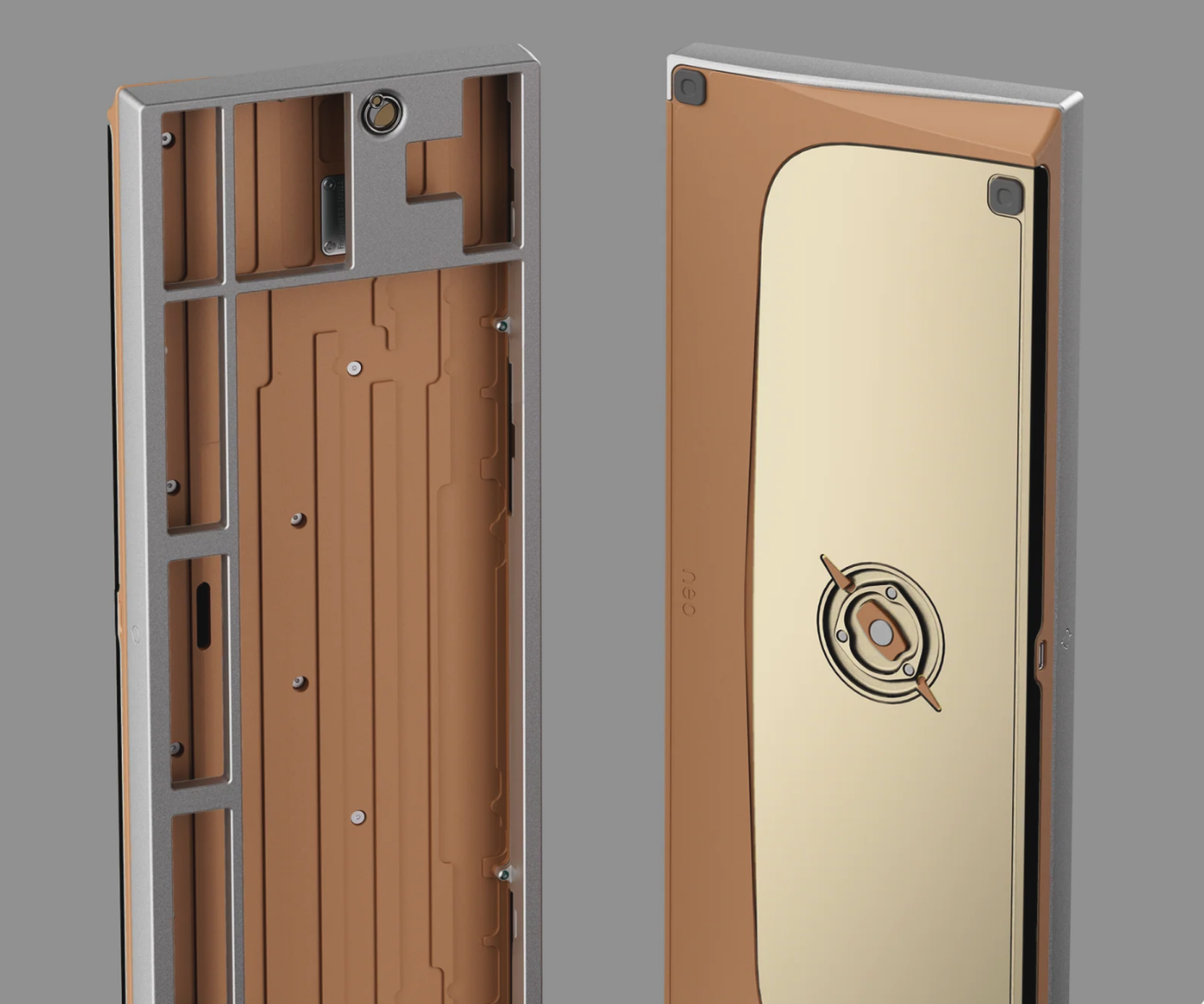

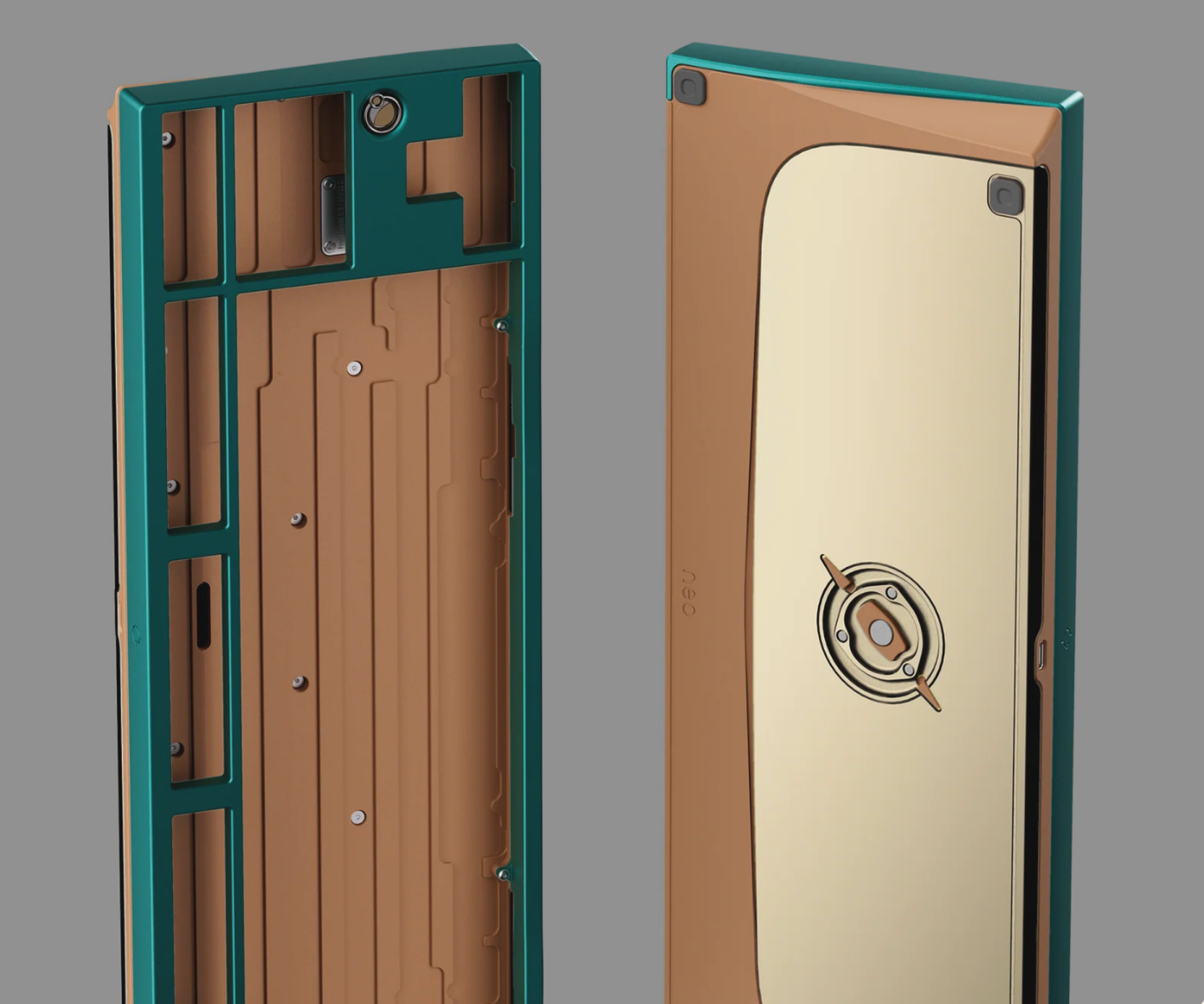

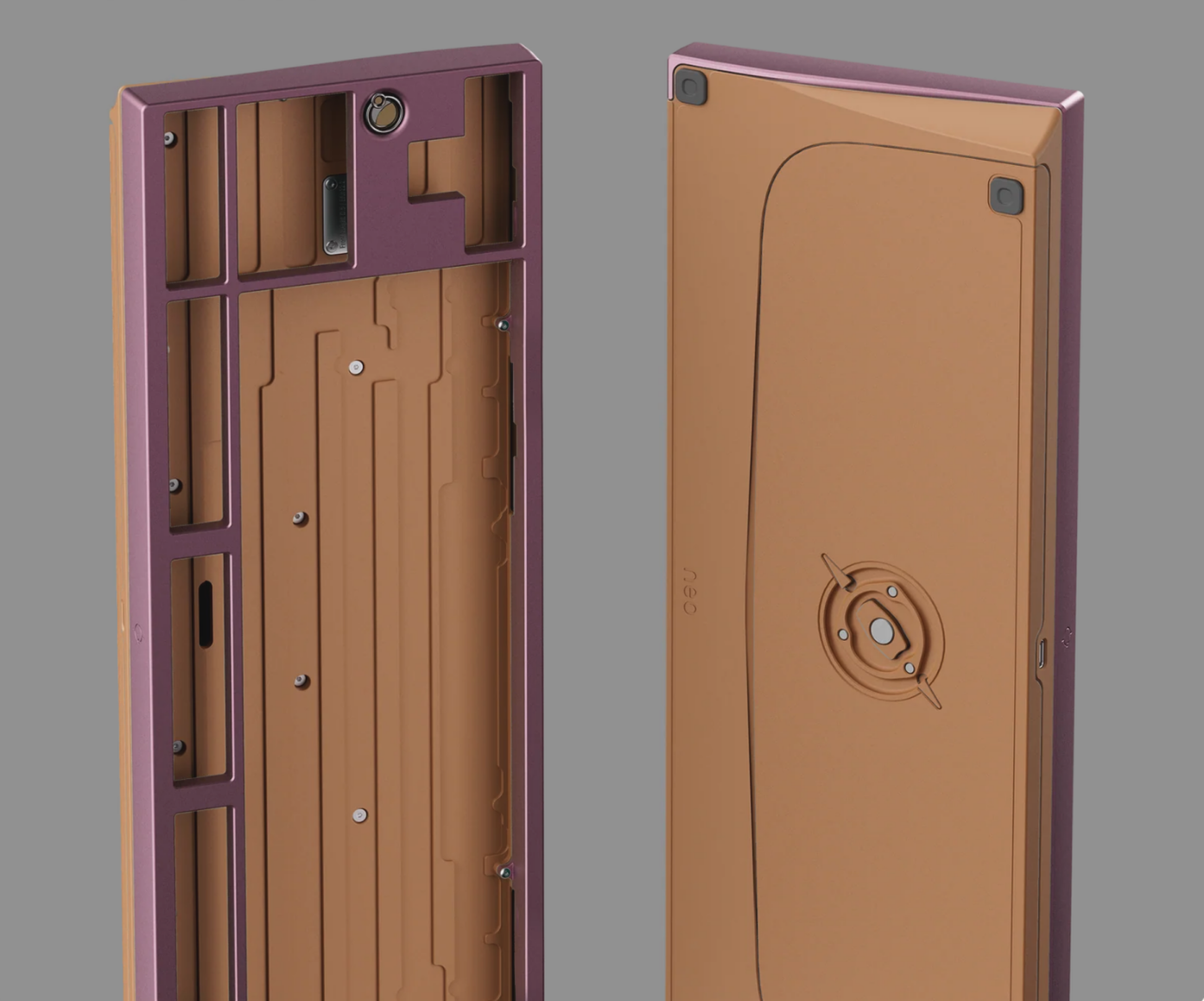

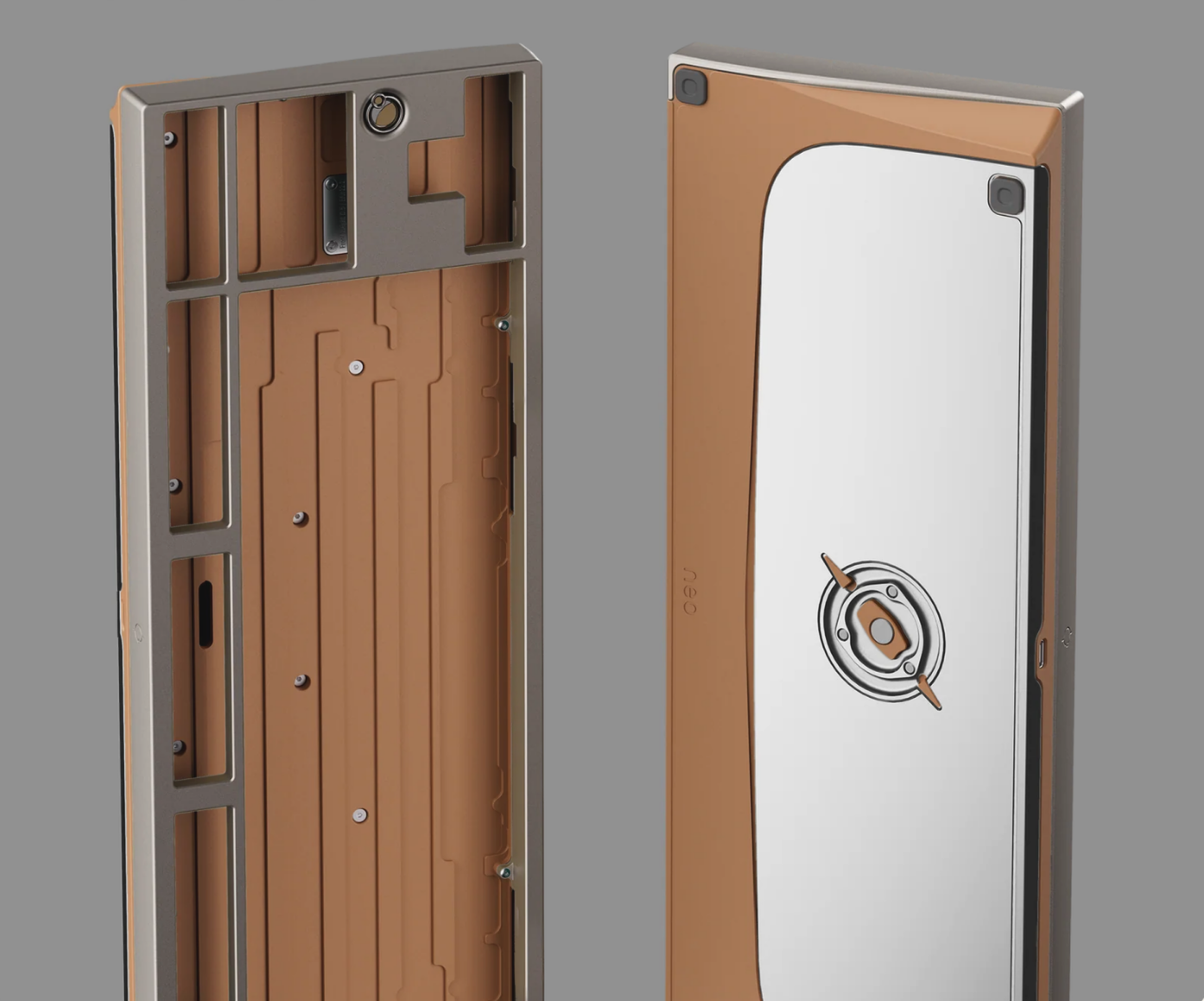

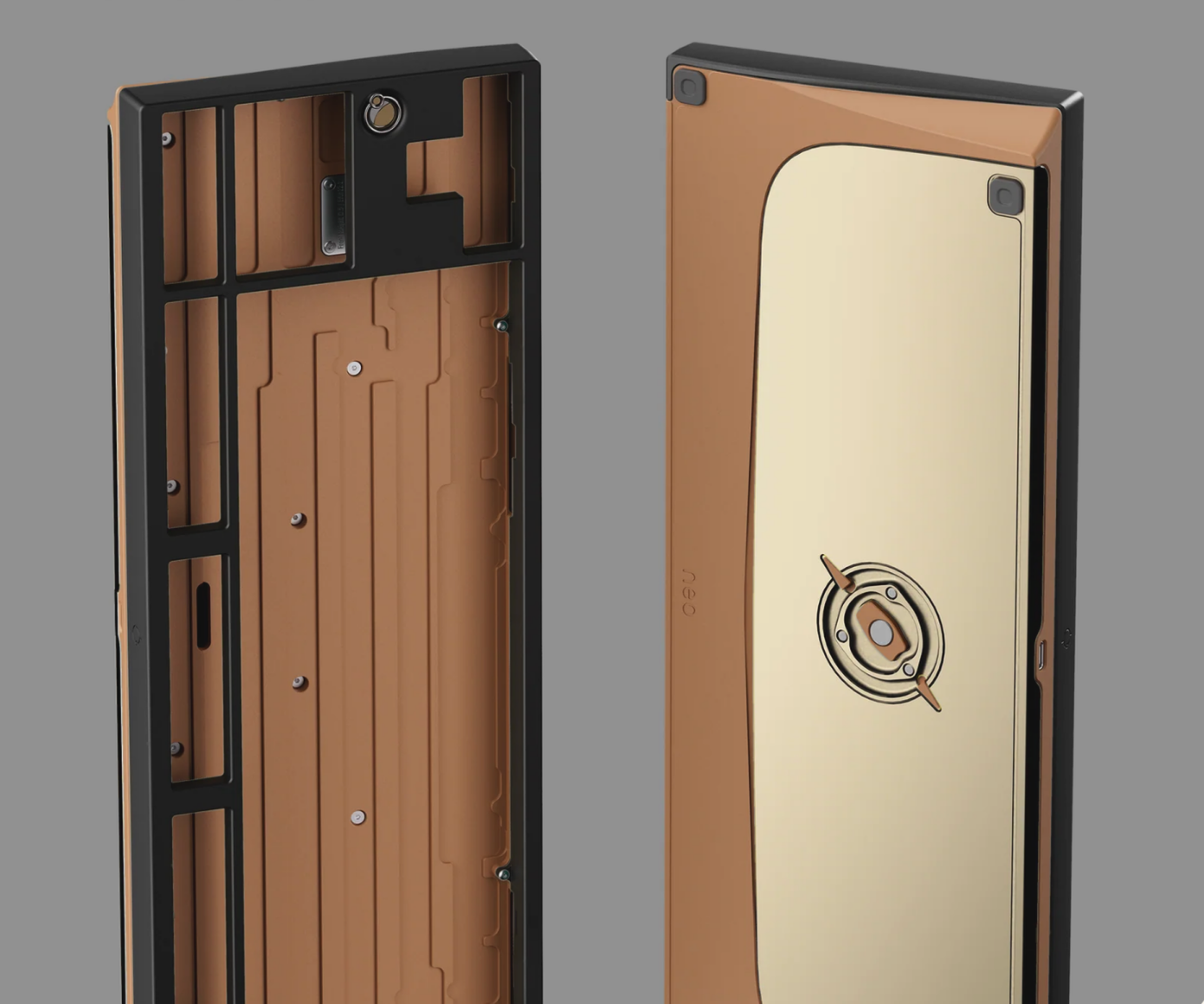

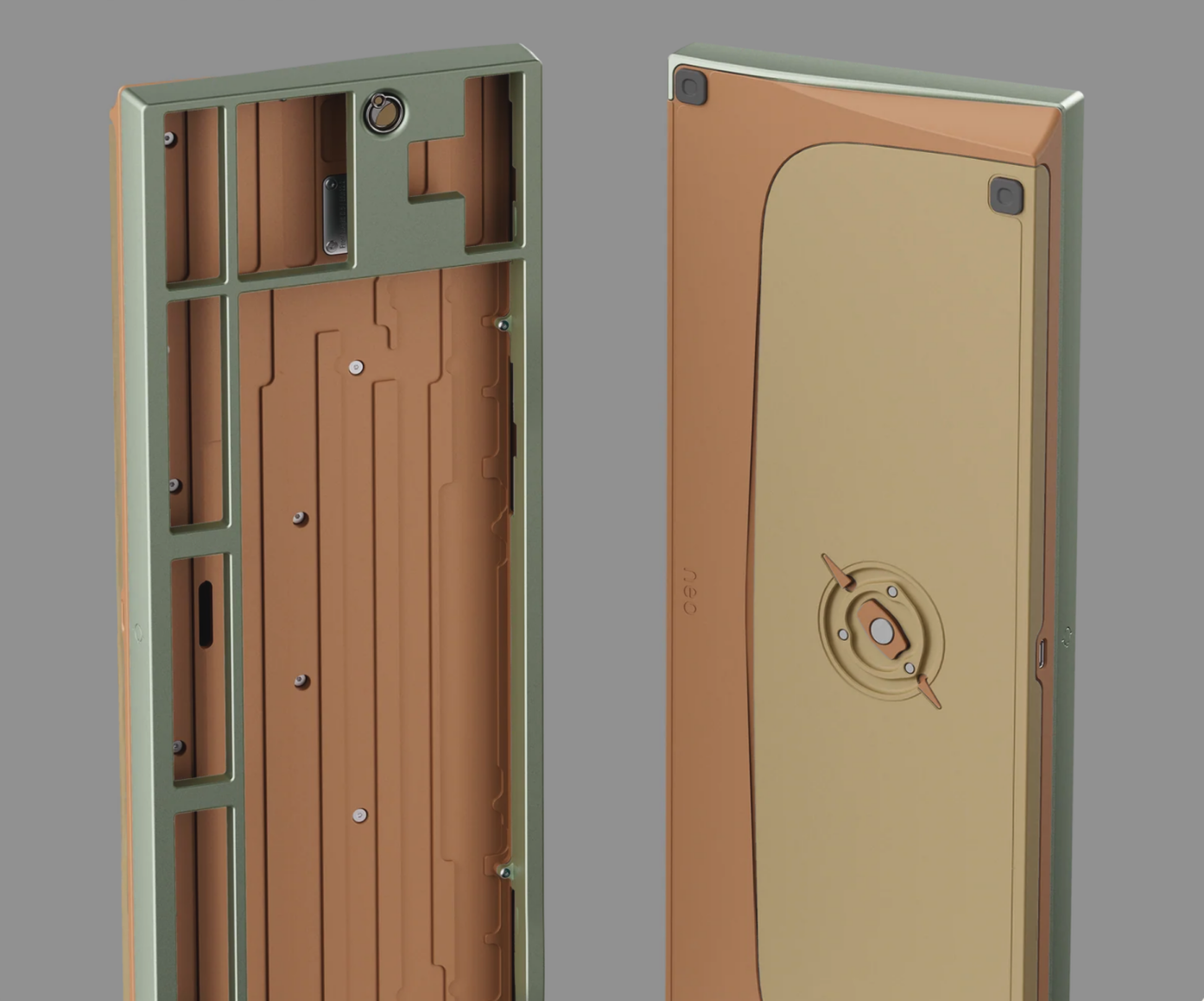

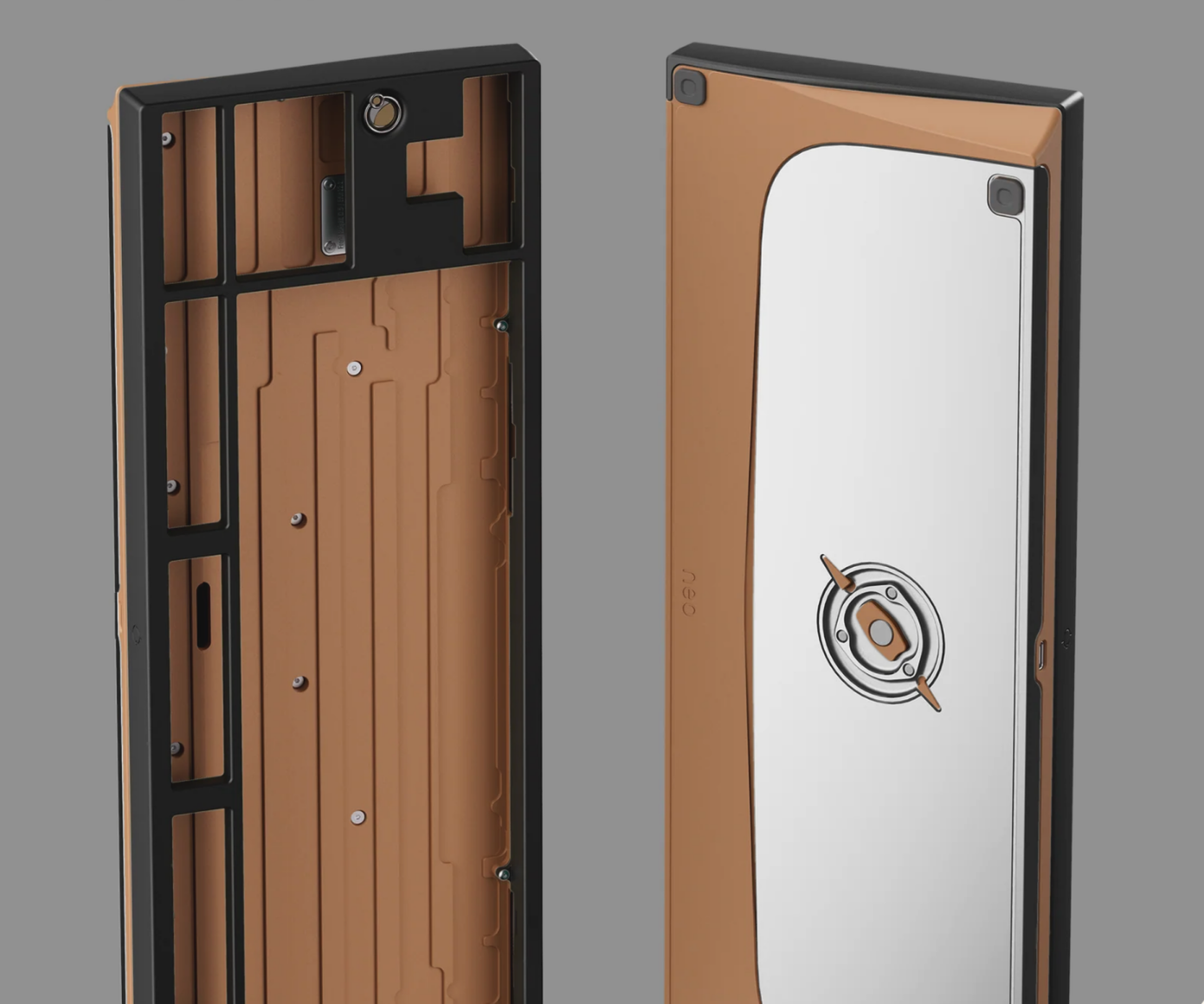

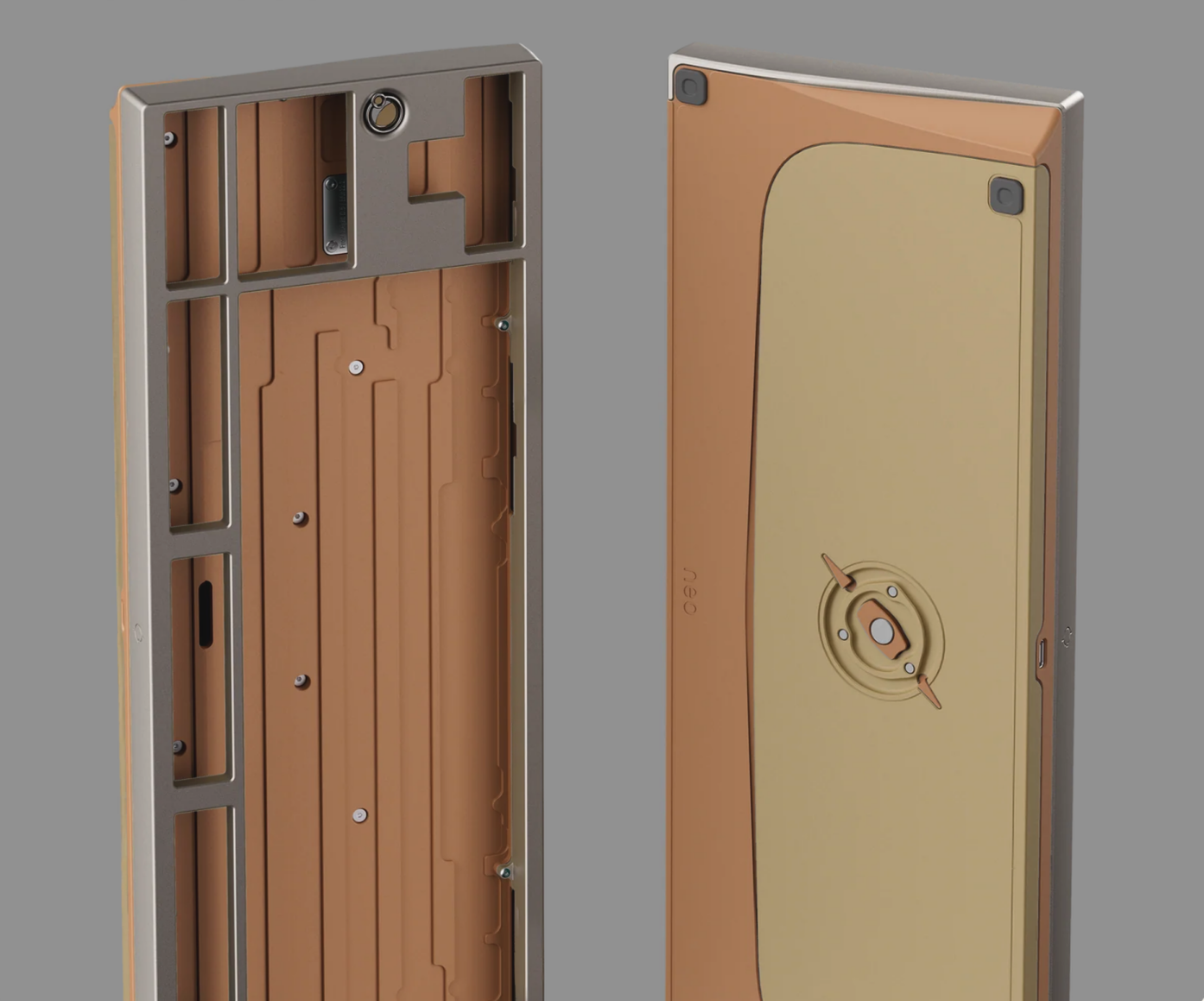

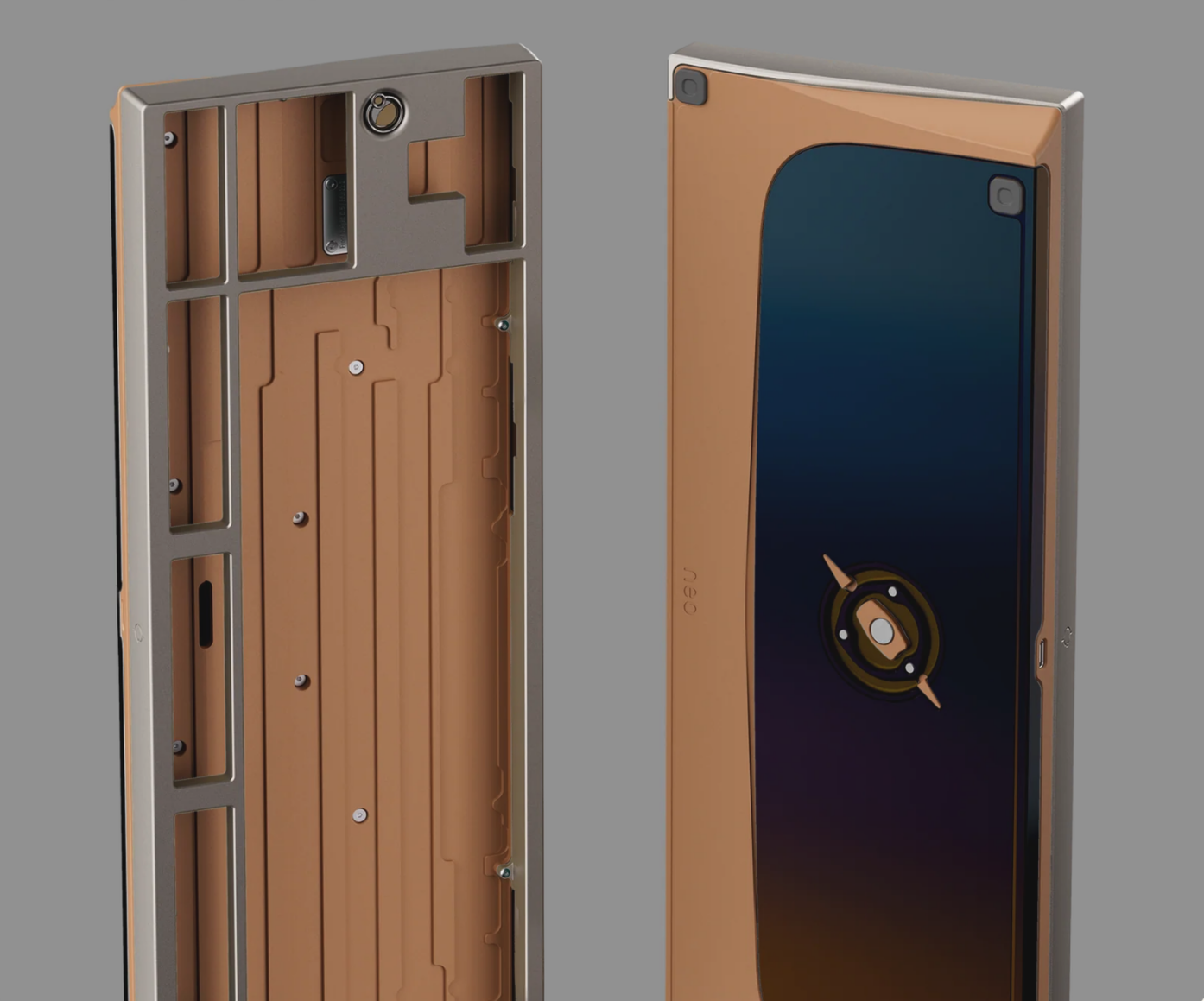

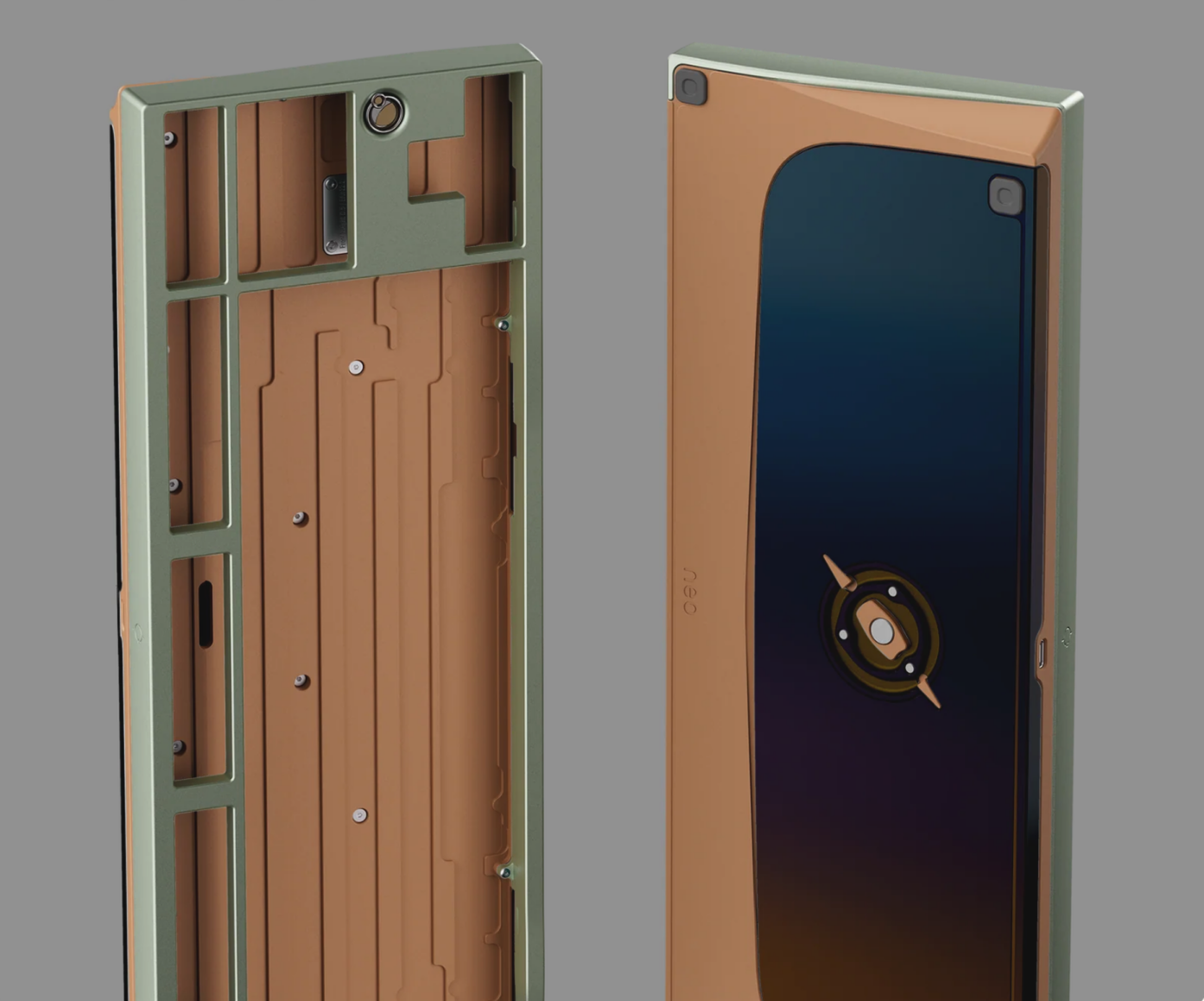

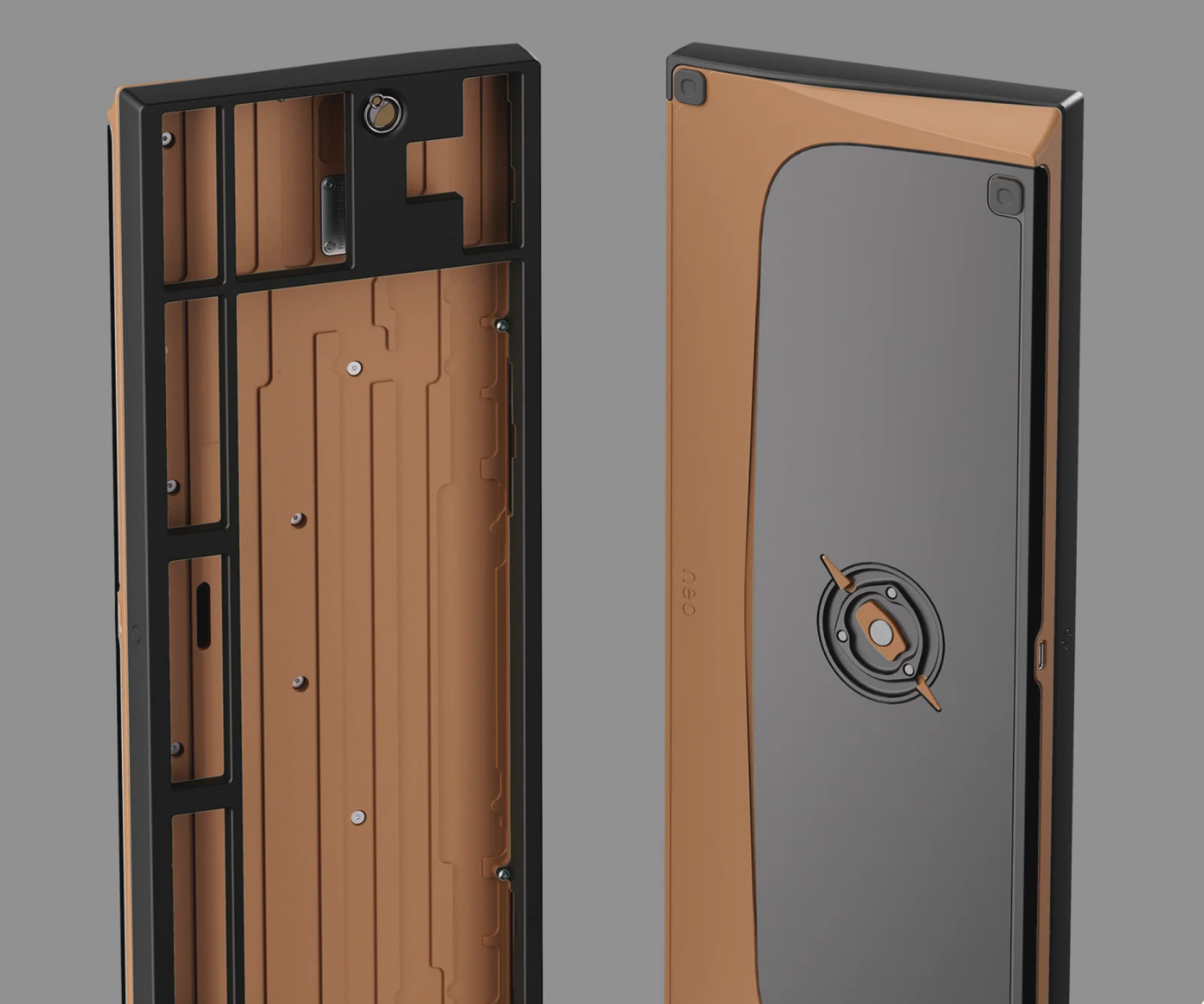

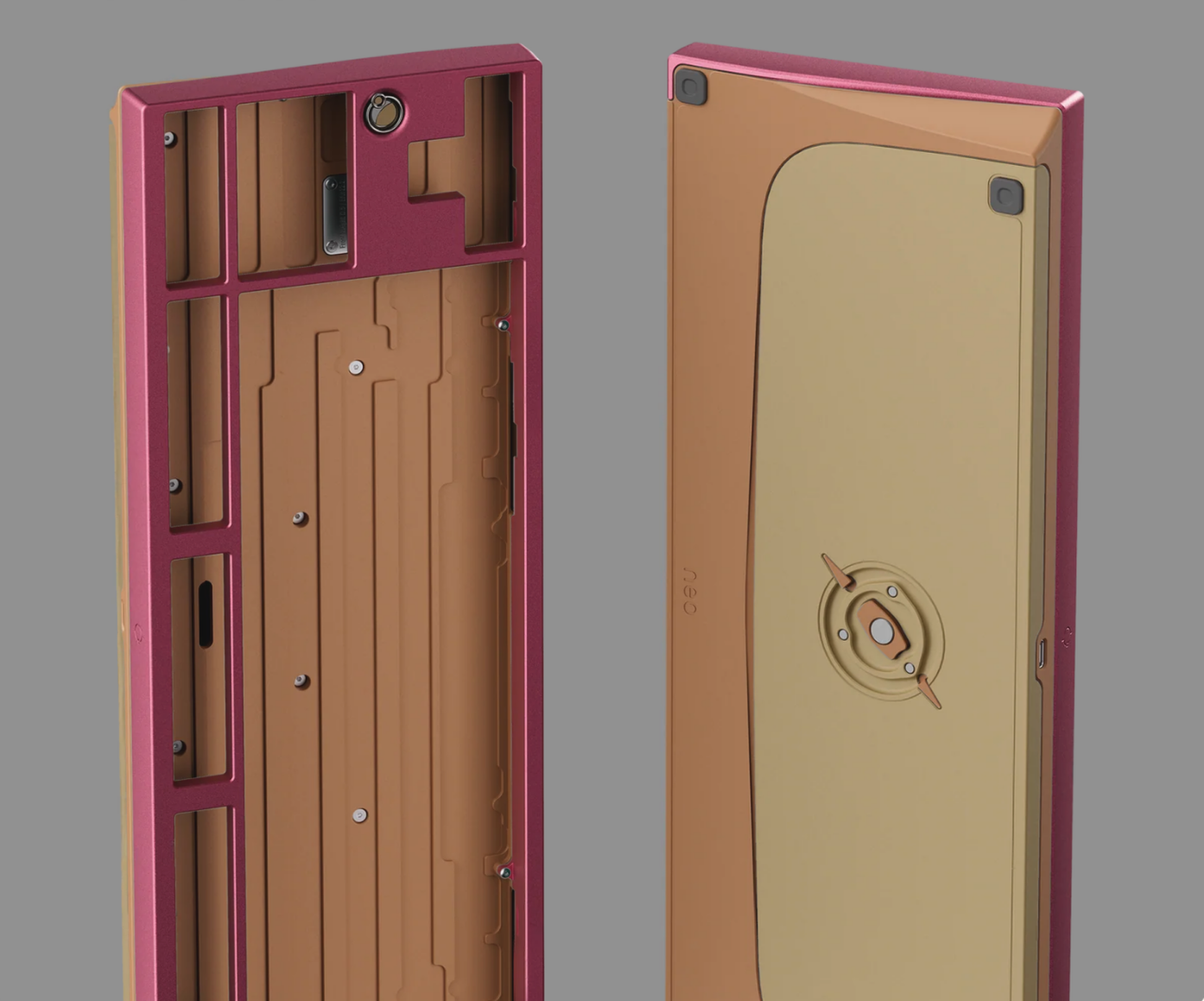

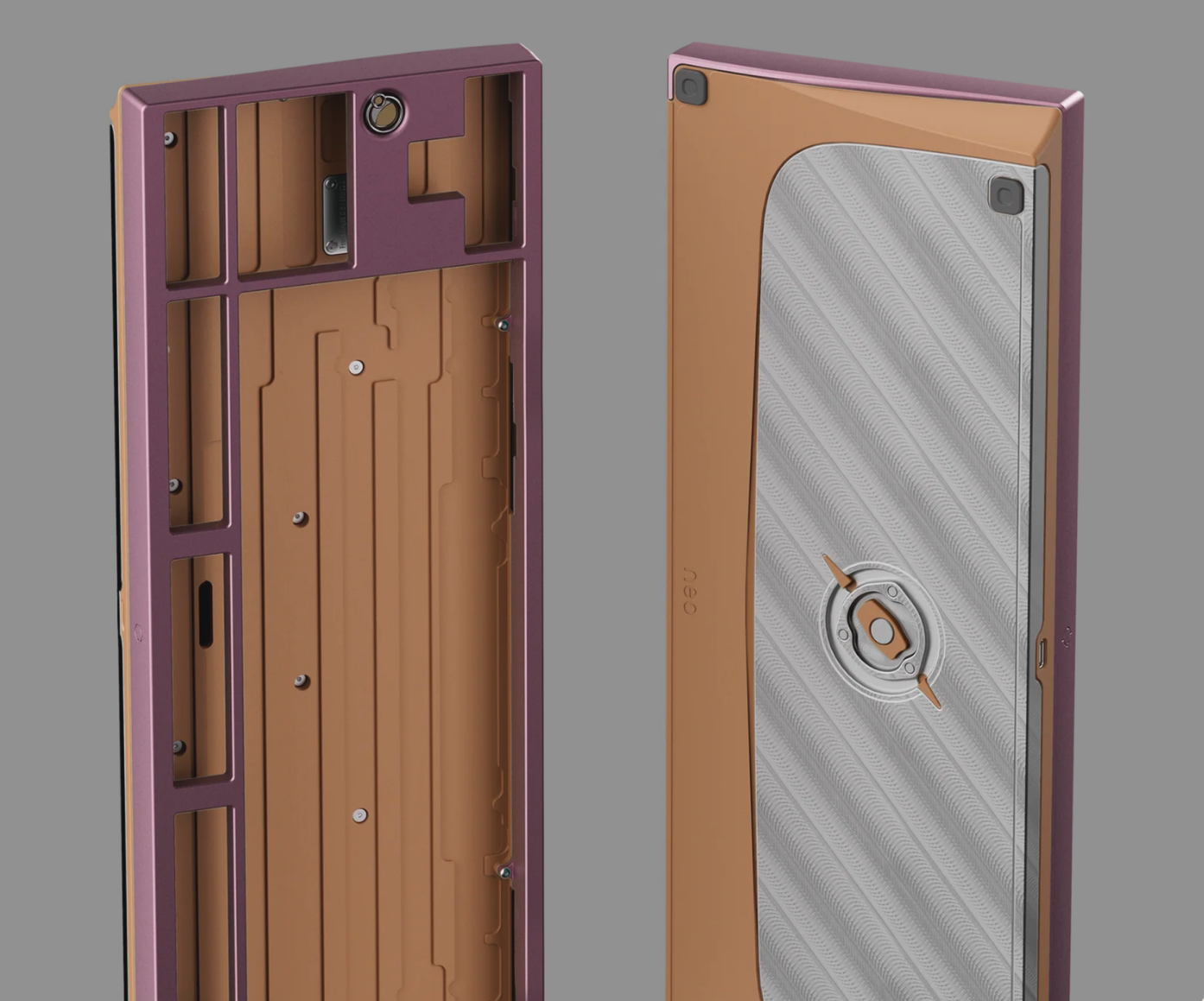

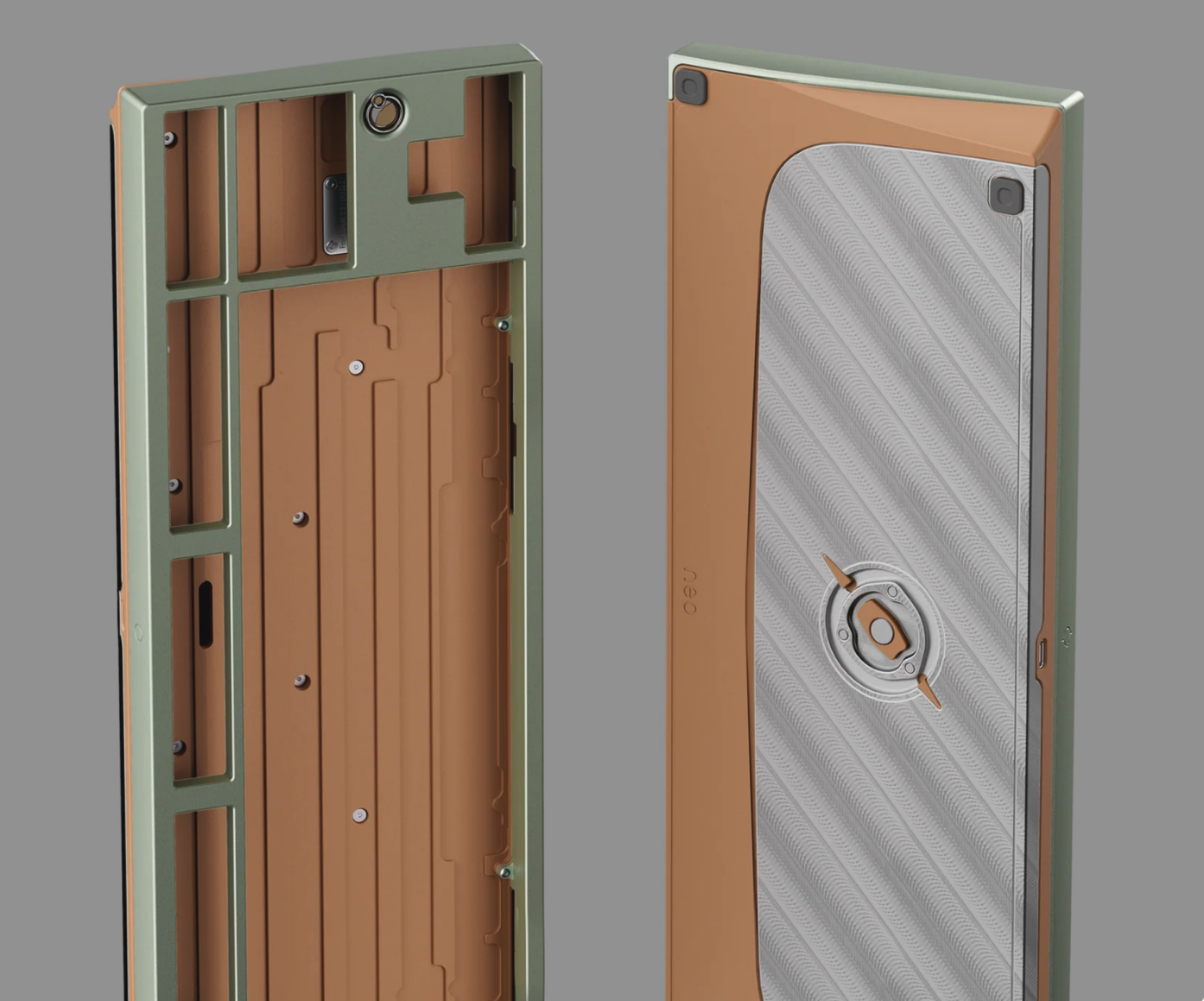

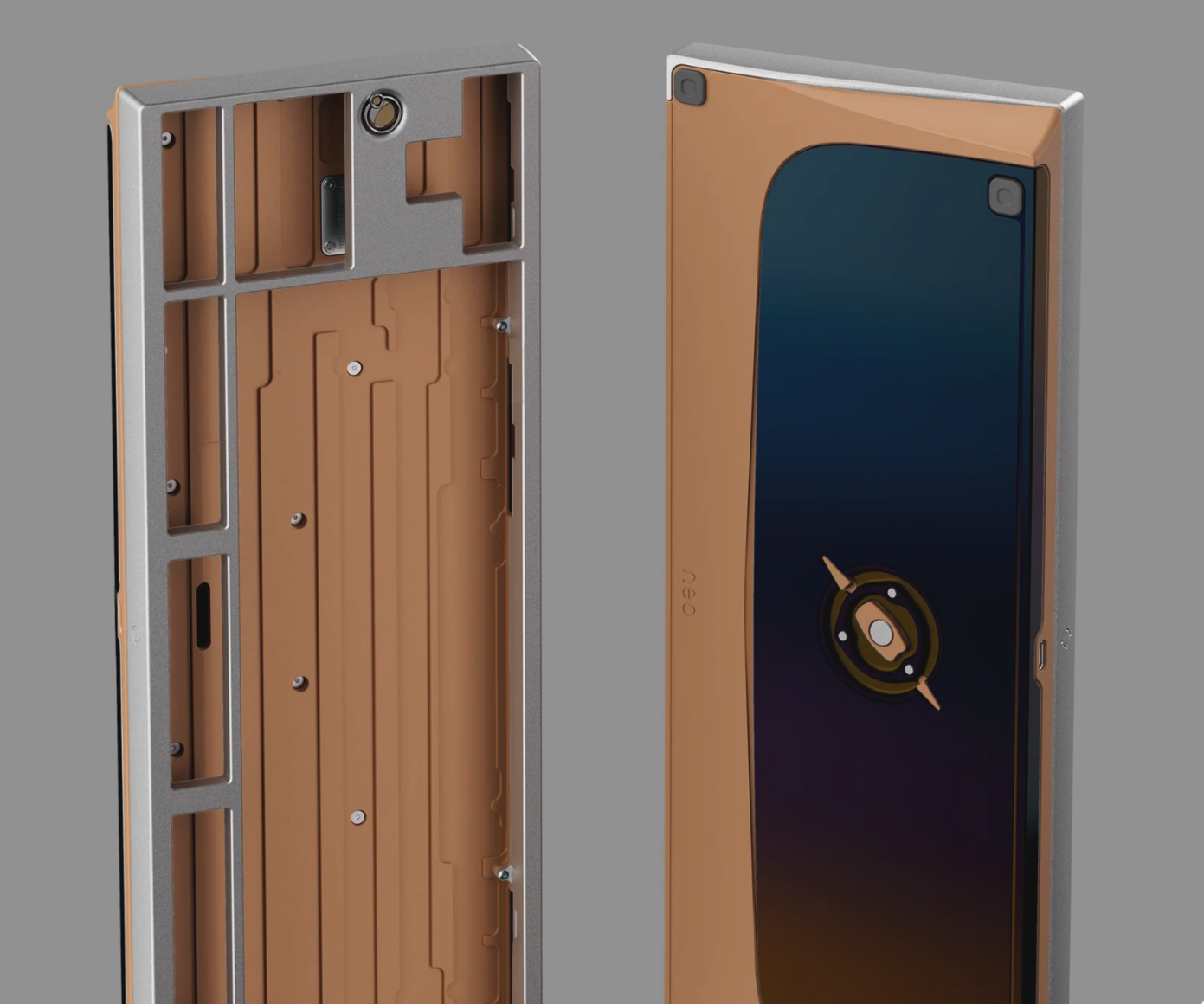

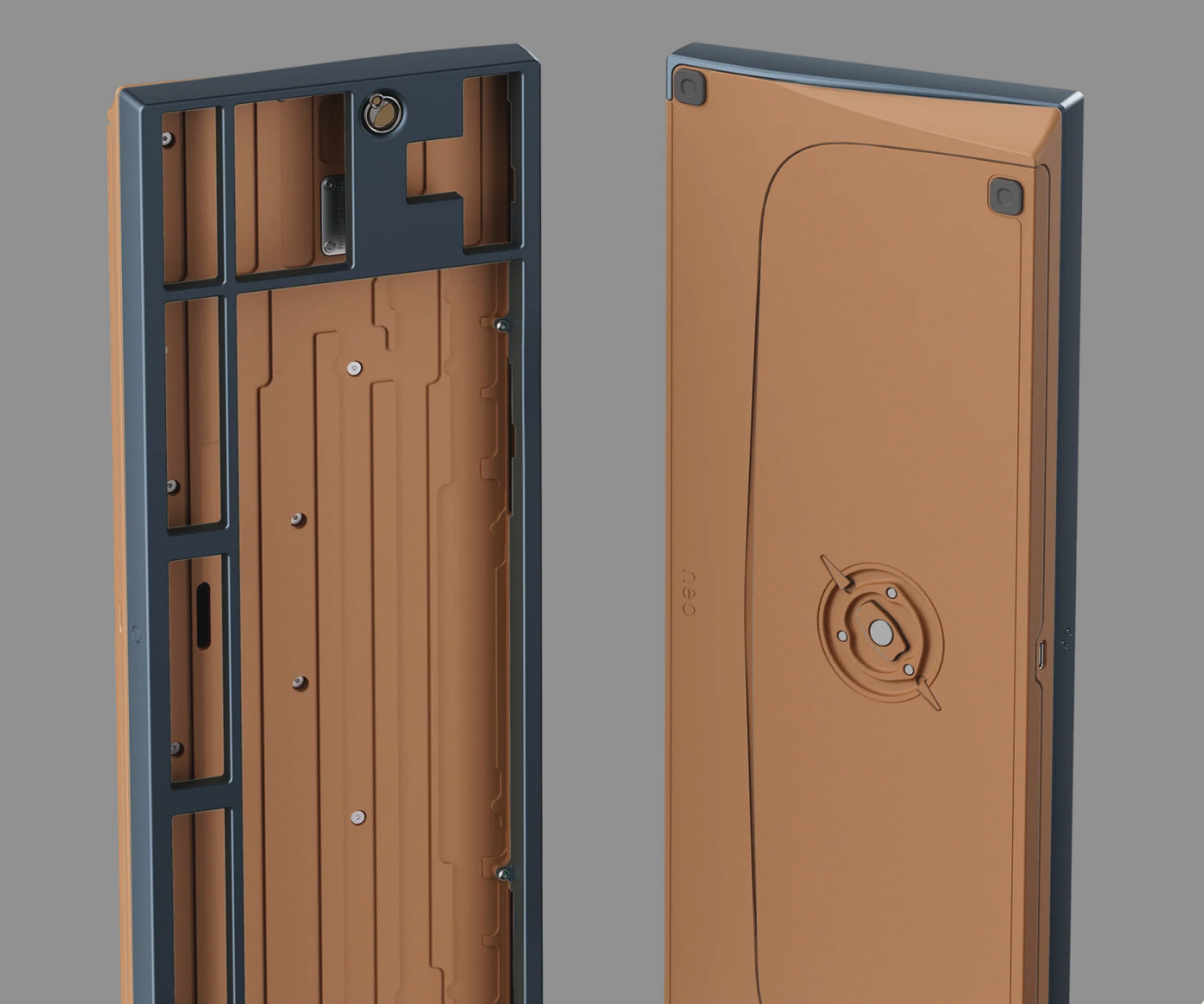

Full Copper & Brass Bottom

Despite its large 80% layout, we've maintained the Cu series's signature all-copper bottom design—bringing the keyboard's total weight to approximately 4.5 kg when fully assembled.

Does Weight Matter? ->

Acoustic Chamber Design with Integrated Forcebreak

Like most Neo keyboards, the bottom case features a partitioned acoustic chamber to minimize hollowness. Forcebreak pads at all contact points reduce vibration and metallic noise, and combined with the copper base, deliver the deep, clean "copper bottom" typing sound that Neo fans love, without any foam.

The Star Ring Accent Light

Inspired by massive celestial bodies, whose gravity warps surrounding space, the Neo80 Cu's top case features a multi-layered "star ring" light that captures the brilliance of a planet against the dark night sky.
The central "planet" features a triple-etched aluminum finish, surrounded by a mirrored stainless-steel ring, creating a striking "floating planet" effect.

Weight Design

On the back, the intersection of the weight and the bottom case features a carefully sculpted slope that softens transitions. The compass-inspired Cu series logo sits in the center, showcasing the iconic symbolism of the Neo brand.

Mounting Structure

Poron Gasket Mount + Silicone Gasket Mount + Top Mount

We've integrated the Poron Gasket structure into the Neo80 Cu. Unlike traditional Poron Gaskets that require gluing to the case, we've designed special grooves in the bottom case to securely hold the Poron Gaskets in place. This innovation allows for hassle-free replacement and ensures exceptional durability over time. Of course, we've also retained the silicone gasket mount structure as an alternative option for those who prefer it.

*Since the top-mount screws are fixed through the plate, choosing a solder PCB with a plateless configuration makes top-mounting unavailable

Neo80 Cu Specificiations

Physical Dimensions
  • Typing angle:8 degree
  • Front height:18 mm
  • Size:80% TKL, 355.5mm * 134 mm
  • Layout: WK/WKL
  • Weight: Around 4.5 kg after assembly
Tri-mode ANSI Hotswap PCB (Non-flex Cut)
  • 1.6mm thick
  • Support USB-C, Bluetooth, and 2.4GHz connection
  • Support only ANSI layout
  • NKRO
  • Polling rate: 1000Hz in wired and 2.4GHz mode; 125Hz in BT mode
  • NO Per-key RGB
Tri-mode ISO Hotswap PCB (Non-flex Cut)
  • 1.6mm thick
  • Support USB-C, Bluetooth, and 2.4GHz connection
  • Support only ISO layout
  • NKRO
  • Polling rate: 1000Hz in wired and 2.4GHz mode; 125Hz in BT mode
  • NO Per-key RGB
Wired Hotswap PCB (Non-flex Cut)
  • 1.6mm thick
  • USB-C connection only
  • Support only ANSI layout
  • NKRO
  • Polling rate: 1000Hz
  • NO Per-key RGB
Solder PCB (Non-flex Cut)
  • 1.6mm thick
  • Mill-max compatible
  • USB-C connection only
  • Support both ANSI and ISO layout
  • NKRO
  • Polling rate: 1000Hz
  • NO Per-key RGB
