Appearance Design

The Neo65 Cu and Neo60 Cu feature the same bezel proportions and rounded corners as the previous Neo65, with an ultra-slim side bezel that seamlessly complements any desk setup and theme.

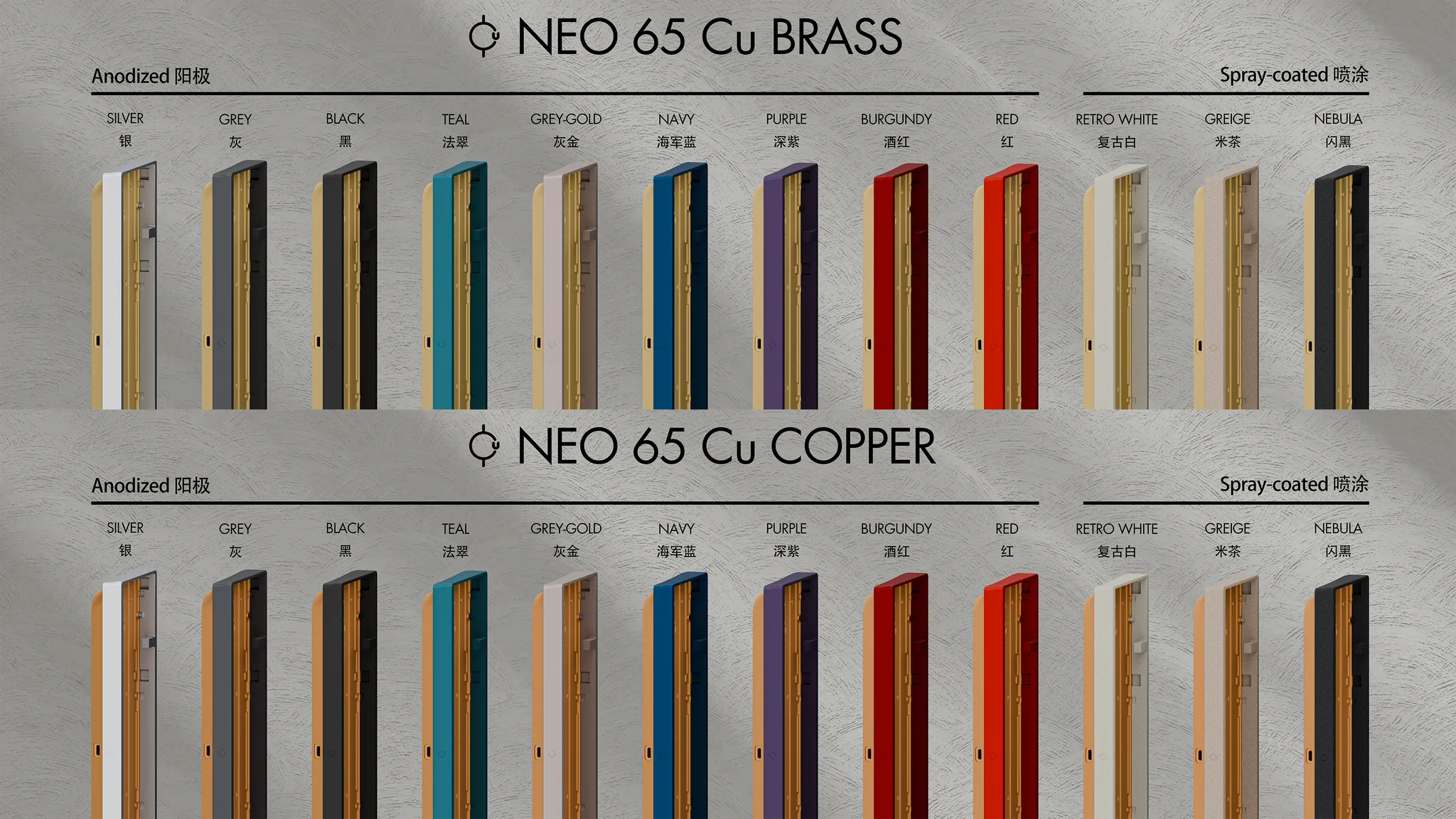

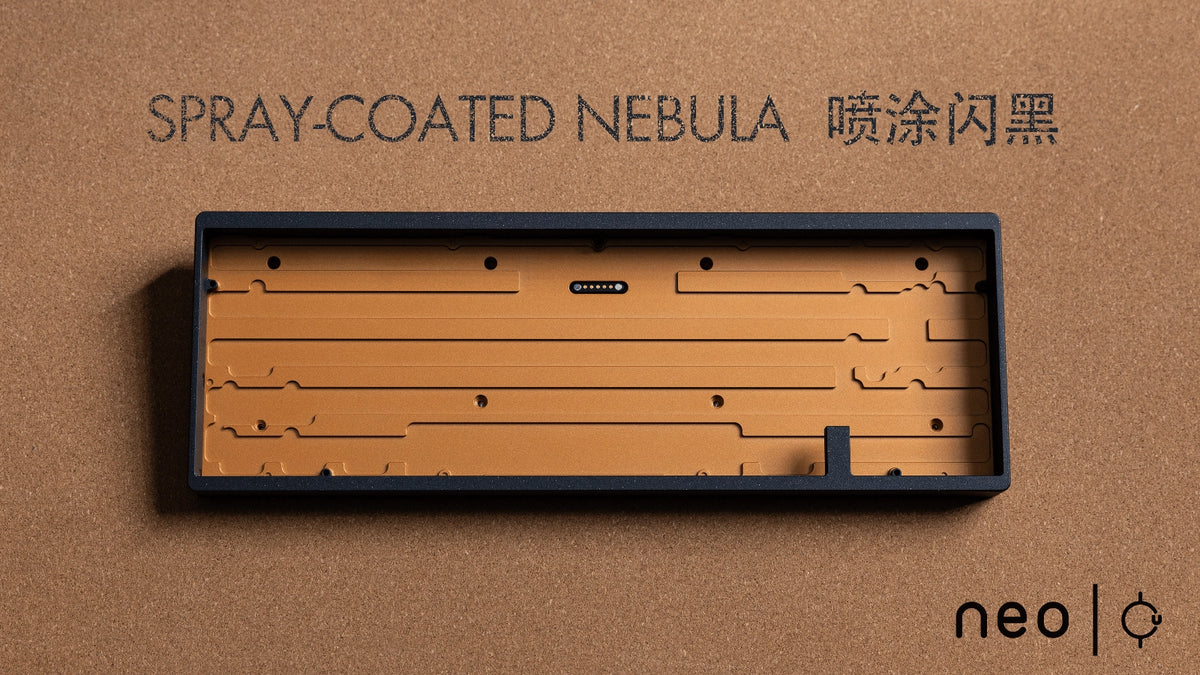

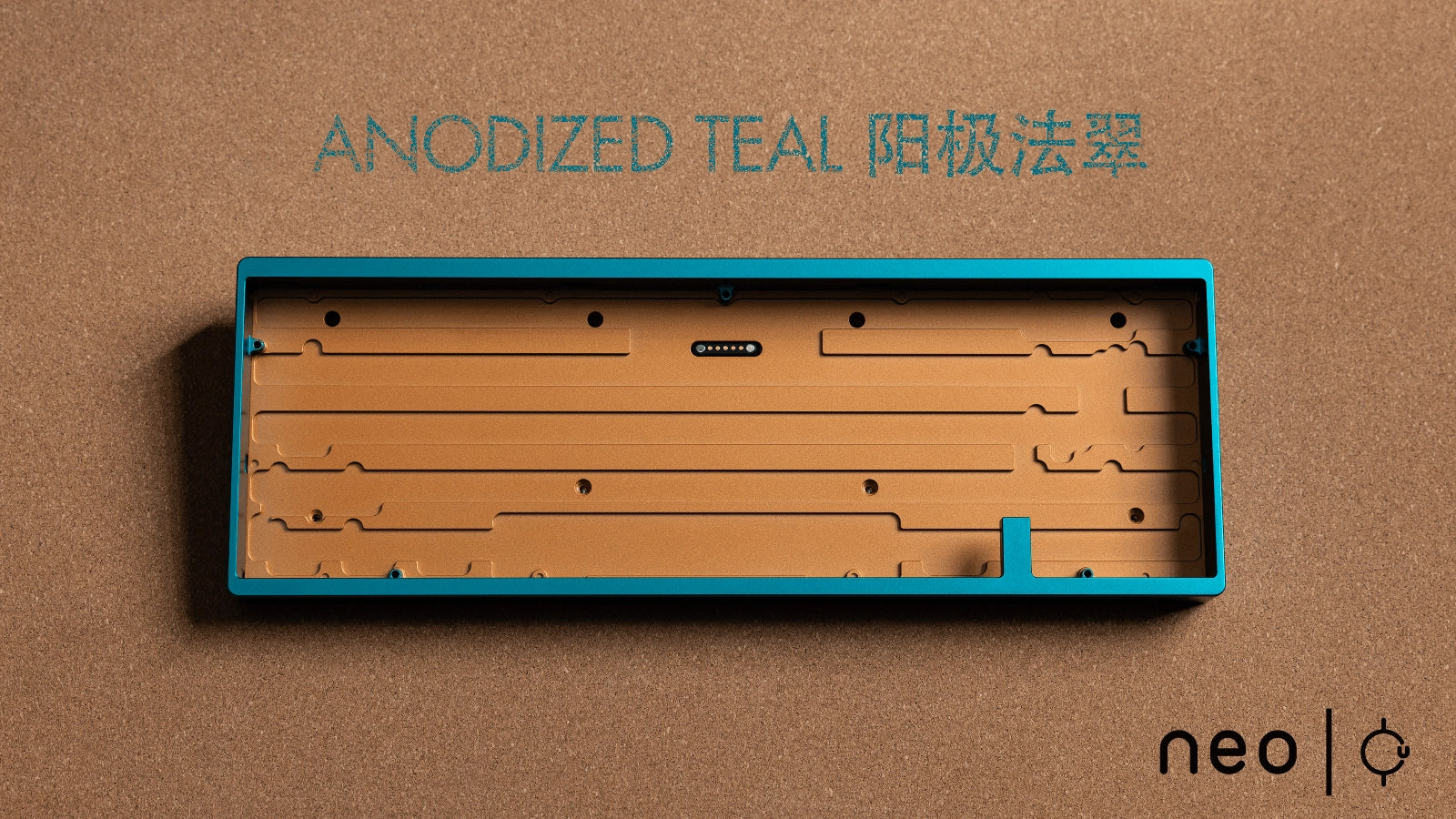

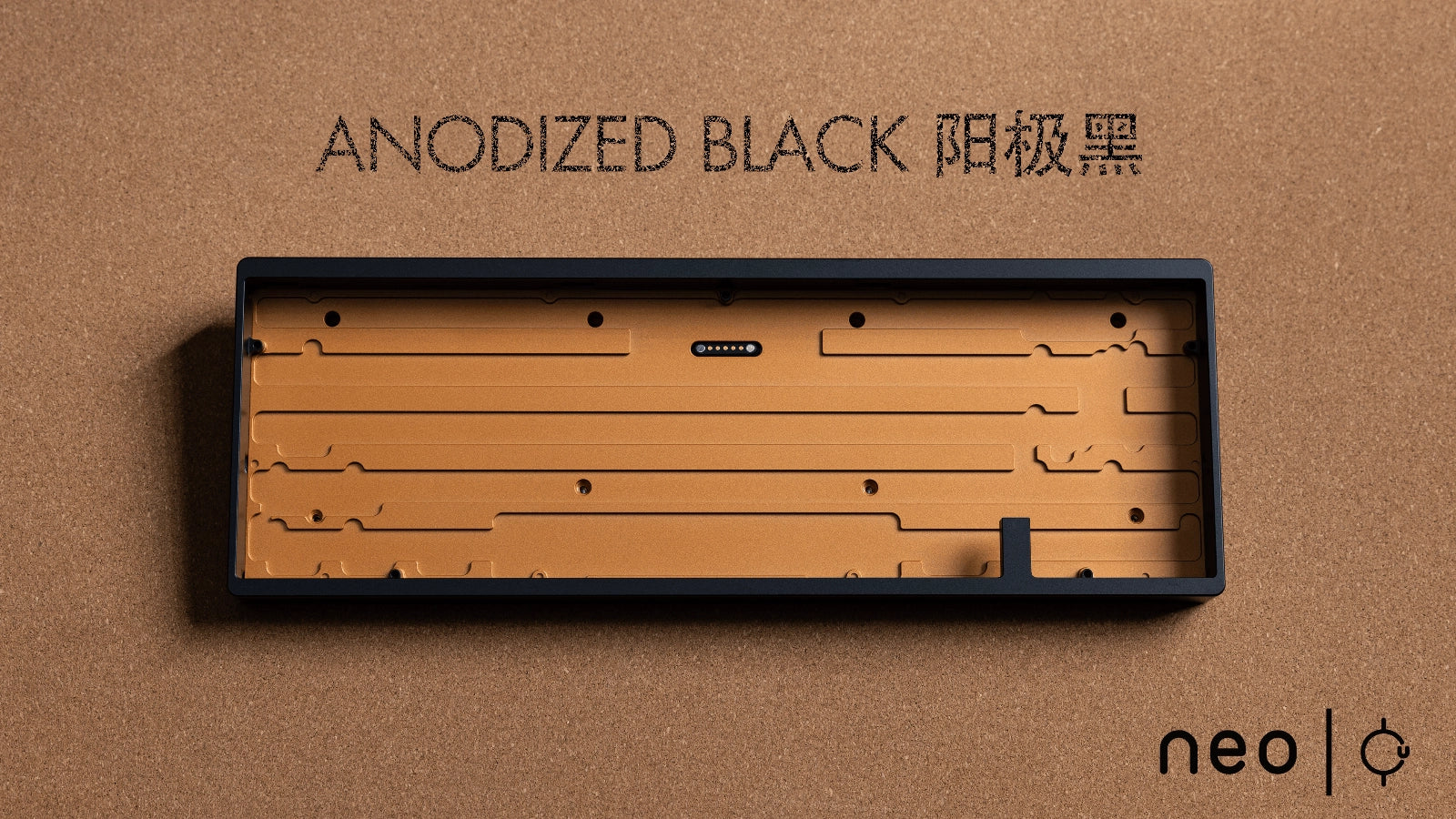

In line with the Cu series theme, we've expanded our color palette to include more vibrant options. These include the highly requested Teal color alongside fan favorites from our previous releases. The combination of the vivid top case with the copper bottom creates a striking, dynamic aesthetic.

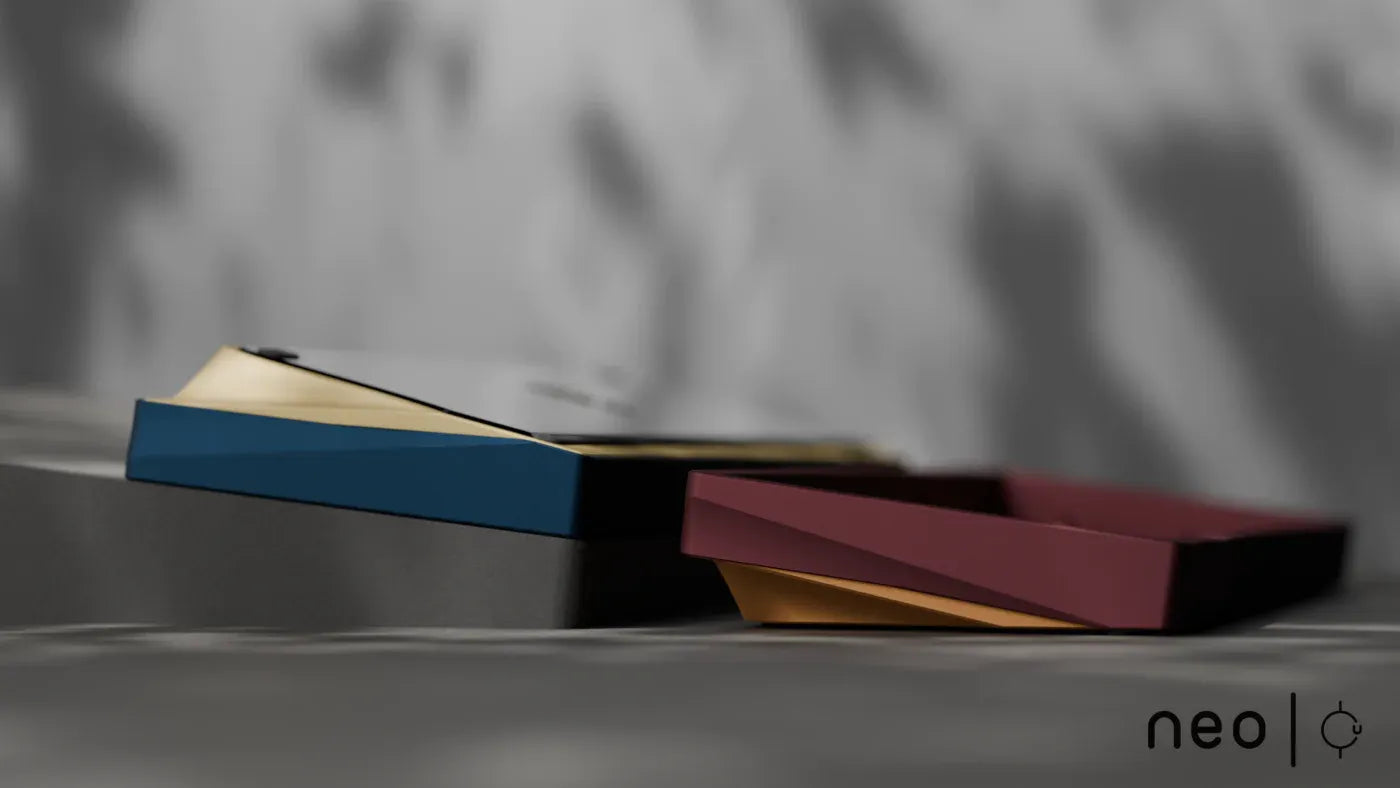

We've also introduced a more layered waistline design that harmonizes beautifully with the copper bottom to enhance the design language of the Cu series. The curved bottom case softens the visual weight of the copper, creating a sleeker and more slender front profile.

Chamber Isolation in Bottom Case

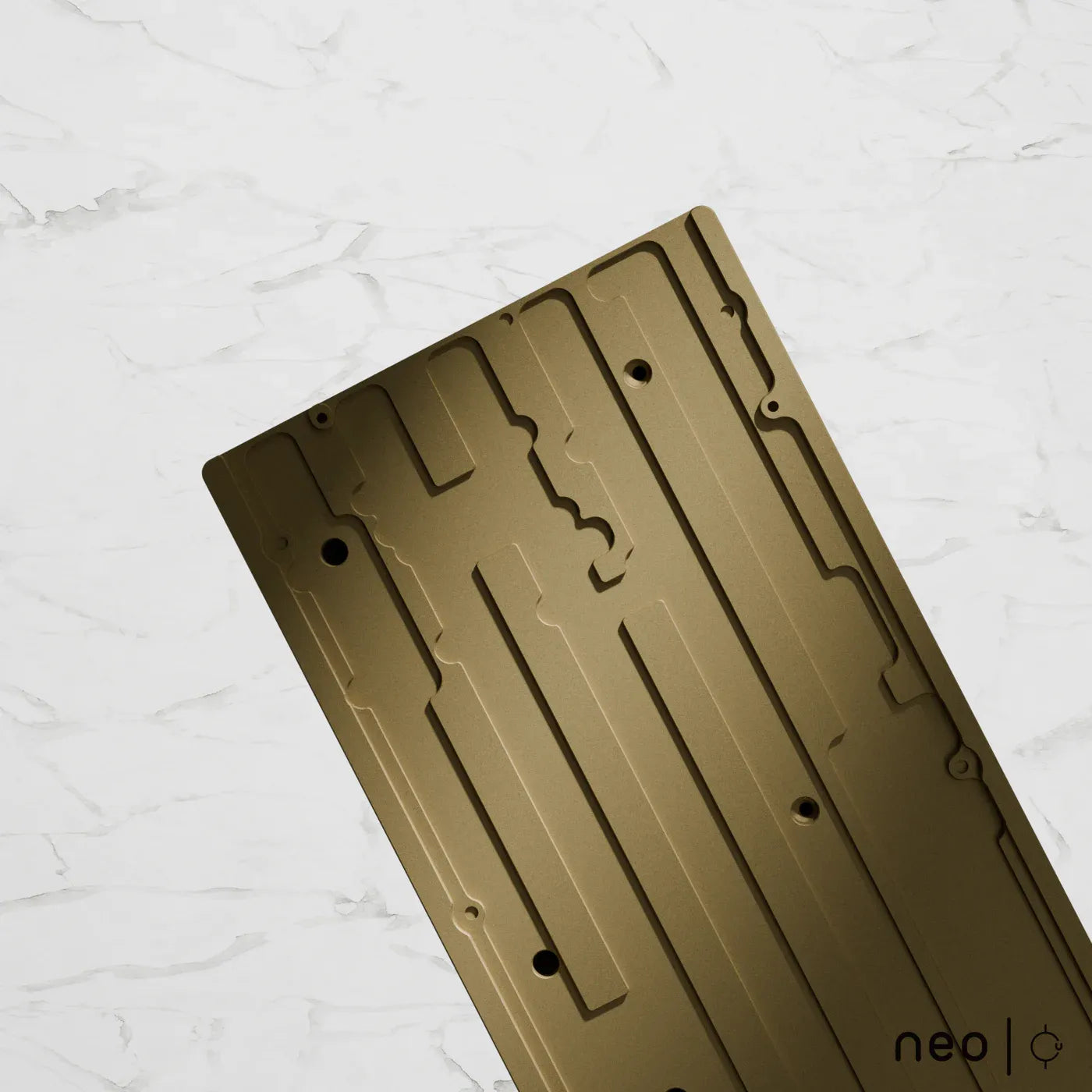

To minimize hollowness, we've designed a sophisticated acoustic chamber for both Neo65 Cu and Neo60 Cu. The bottom case features strategic cutouts that maximize filling between the PCB and bottom case while maintaining sufficient space for typing movement. This design, combined with the material properties of the bottom case, significantly reduces hollow sound without requiring foam fillers.

Internal Locking Structure

We addressed metal contact vibrations between the top and bottom cases by adopting an internal locking structure. While ball-catch mechanisms are convenient, they create unavoidable metal-to-metal contact that causes inconsistent typing sounds around the latches without foam dampening. Therefore, we've implemented internal locking screws to attach the top and bottom cases. With additional buffering around the screw holes, the noise from direct metal contact is nearly eliminated.

Key factors that influence keyboard hollowness include airflow, sealing, space, and material properties. For the Neo65 & 60 Cu, we've made specific structural improvements to enhance sound performance:

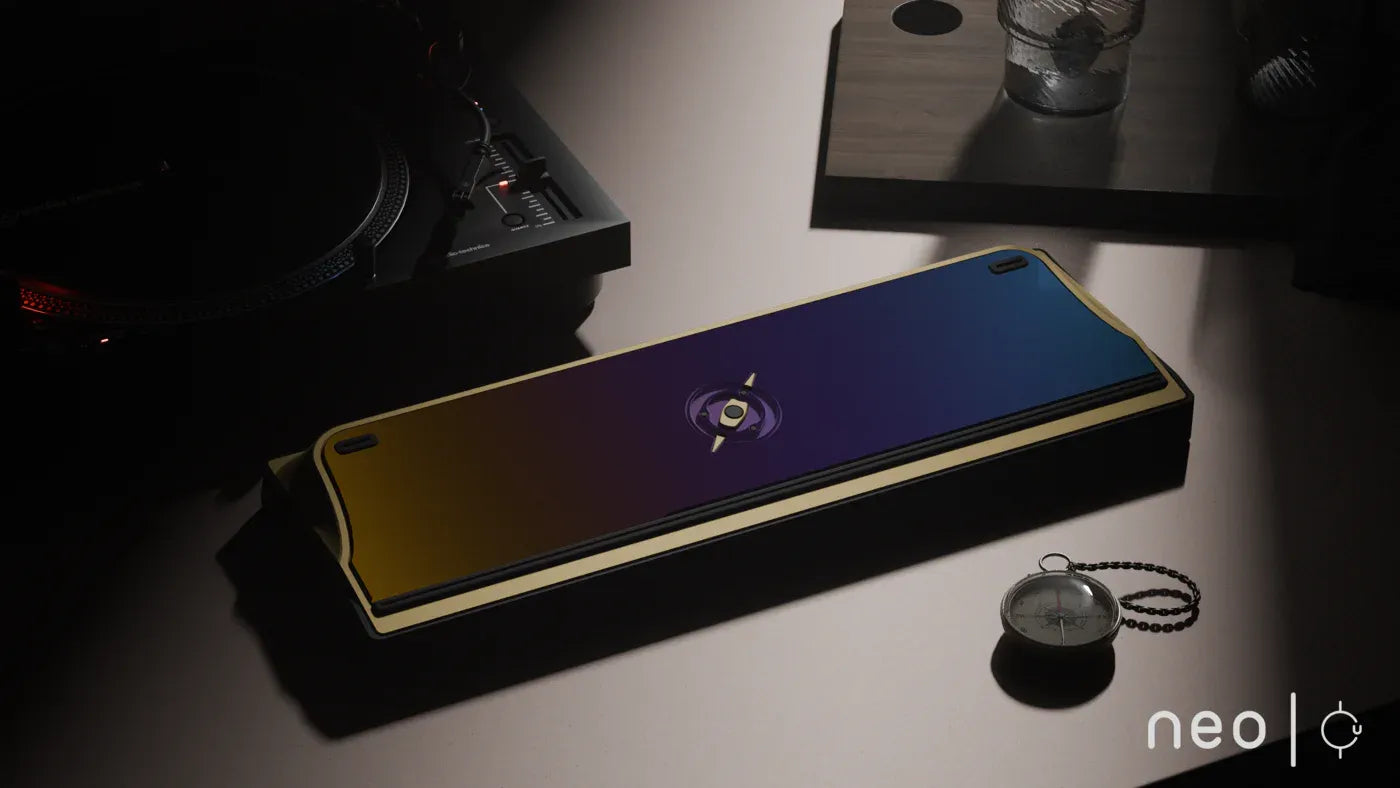

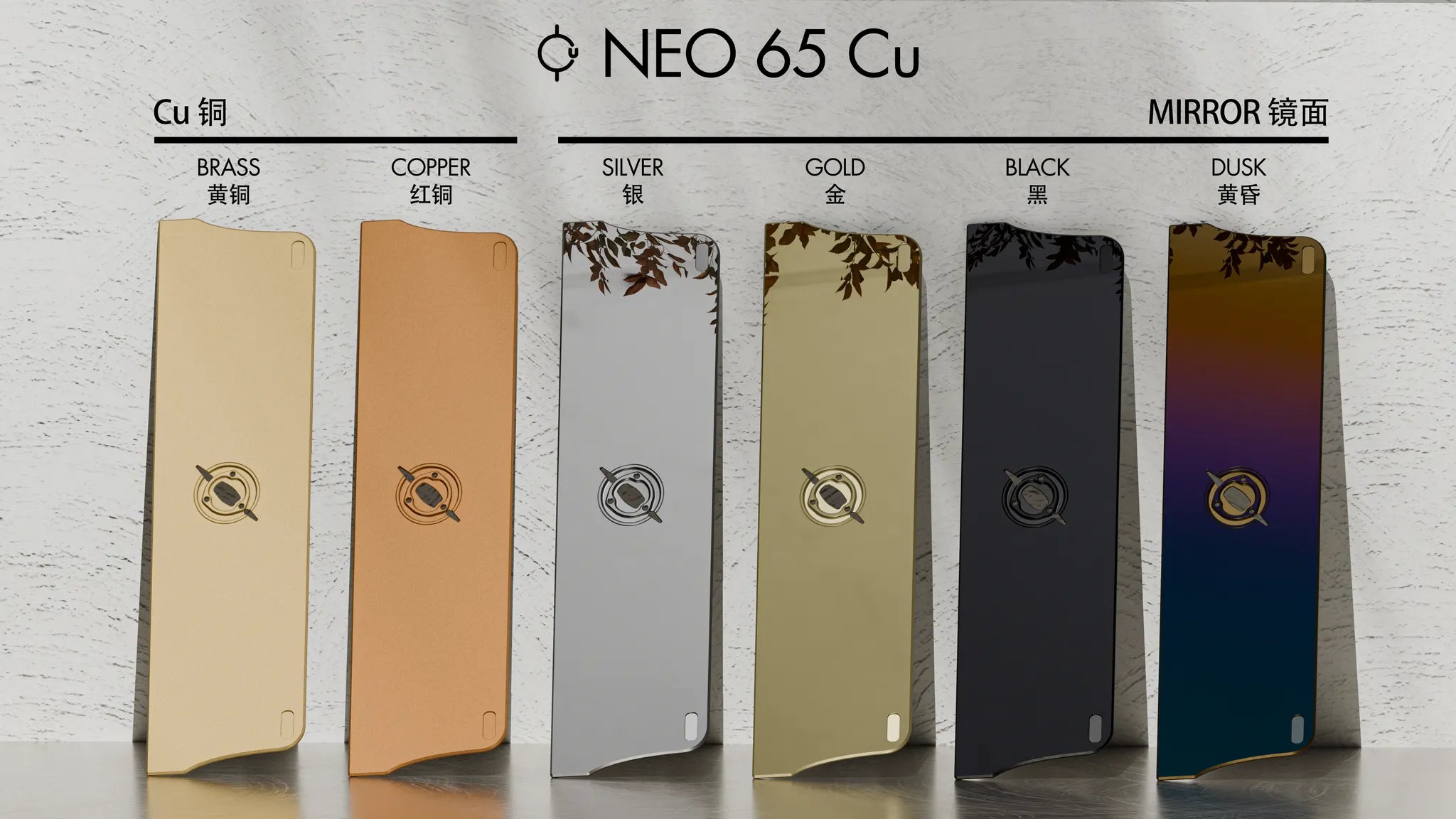

Material Properties: Using dense materials like copper for the bottom case and stainless steel for the large weight.

Space: A chamber isolation system in the bottom case efficiently fills the spaces beneath the PCB.

Sealing: Non-direct metal contact through internal locking structure.

These design choices significantly reduce hollowness and case ping, allowing users to experience the keyboard's true sound signature.

Dual-Mounting System

The Neo65 & 60 Cu supports both PCB gasket mount (carried over from the Neo65) and isolated top mount. In previous designs, our ball-catch structure prevented top mount implementation since the plate/PCB screw holes would conflict with ball-catch components. The Neo65 & 60 Cu's new structure eliminates this limitation, making top mount possible this time.

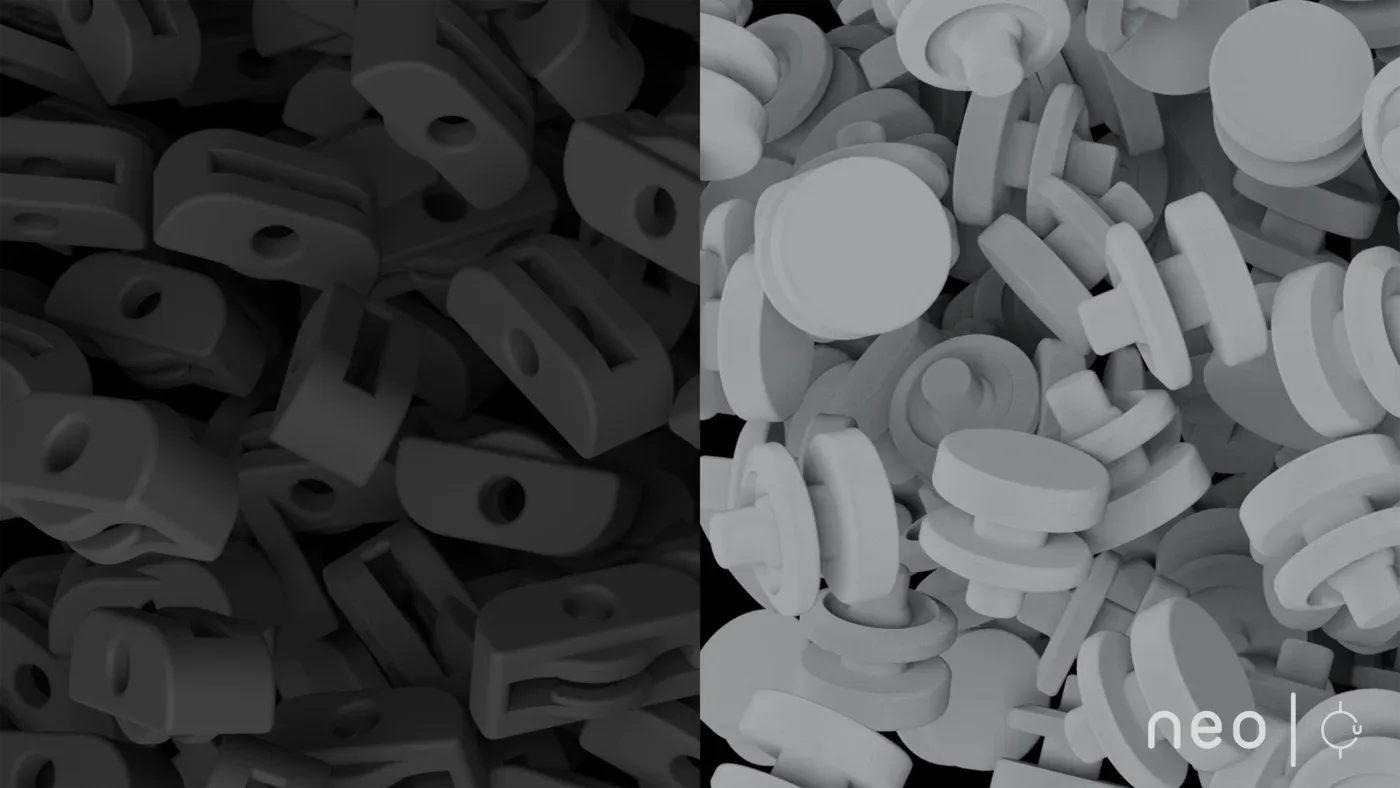

Our isolated top mount design incorporates thick silicone gaskets around the mounting screws. This approach maintains the tactile feedback of a traditional top mount while reducing vibration and eliminating direct metal contact.

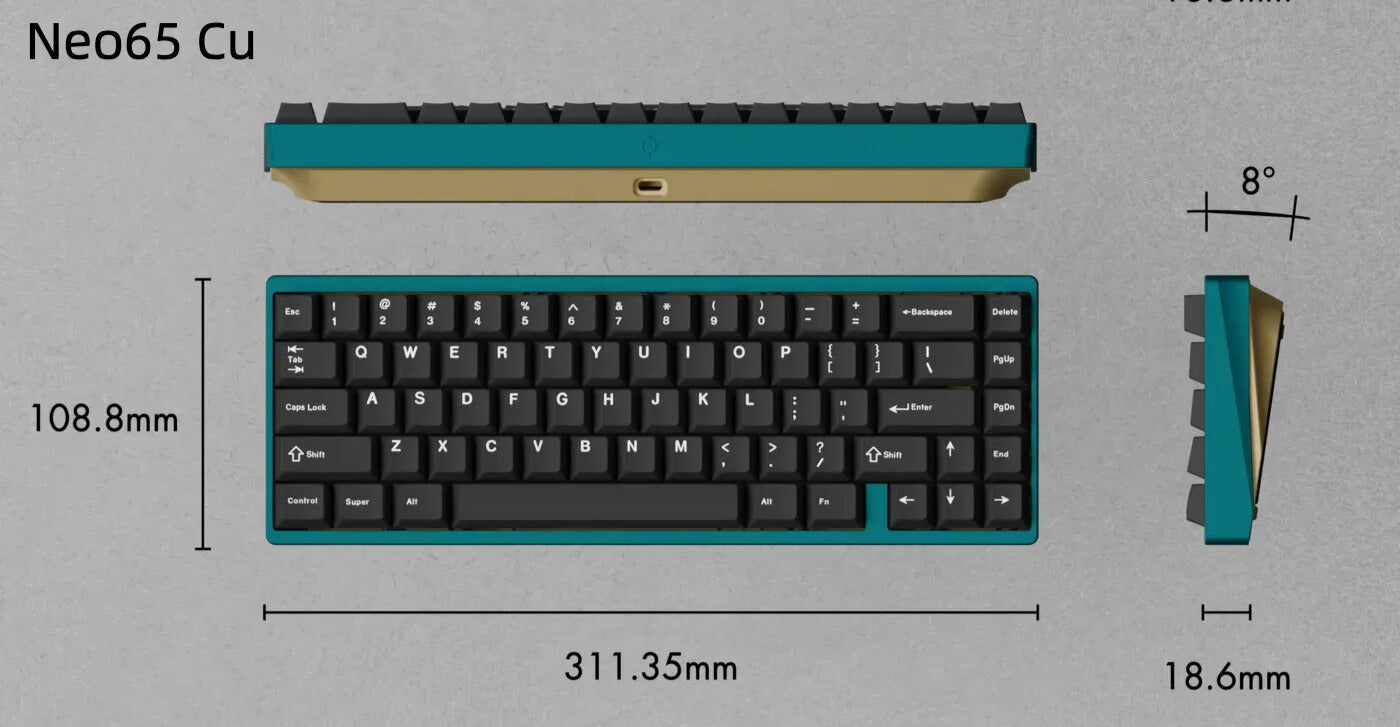

Specfiications

Typing angle：8°
Front height：18.6mm
Dimensions: 108.8mm * 311.35mm
Weight After Build: 2.5kg (with tri-mode PCB), 2.67kg (with wired PCB)

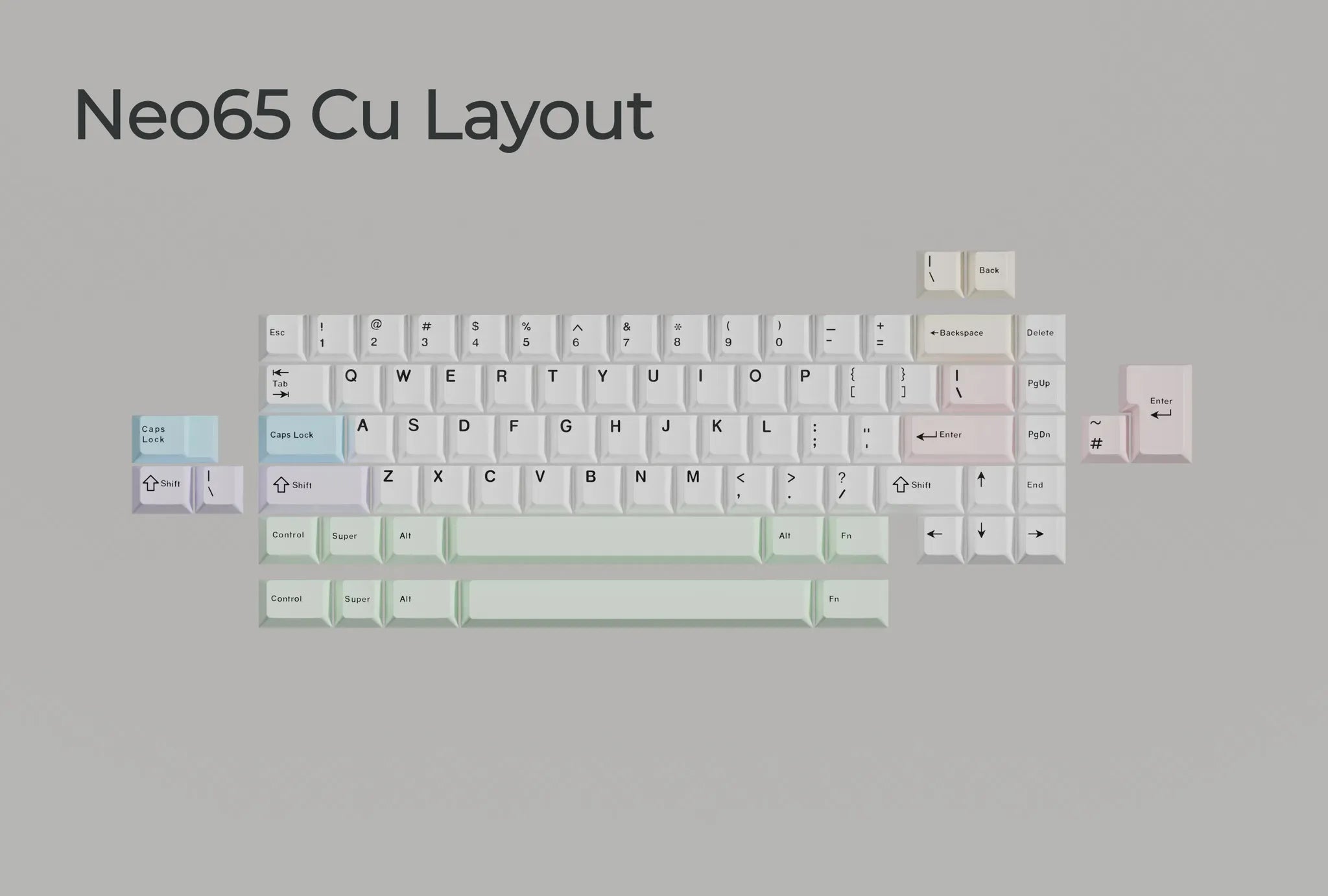

Layout Options: Features 65% Layout with a single blocker;
