New Hotness
JDS Labs

Synapse

SKU: 658414563876614
Only 8 units left
Sale price$97.00 CAD
The Synapse will improve performance with these!

Clean, Next Gen USB Isolation

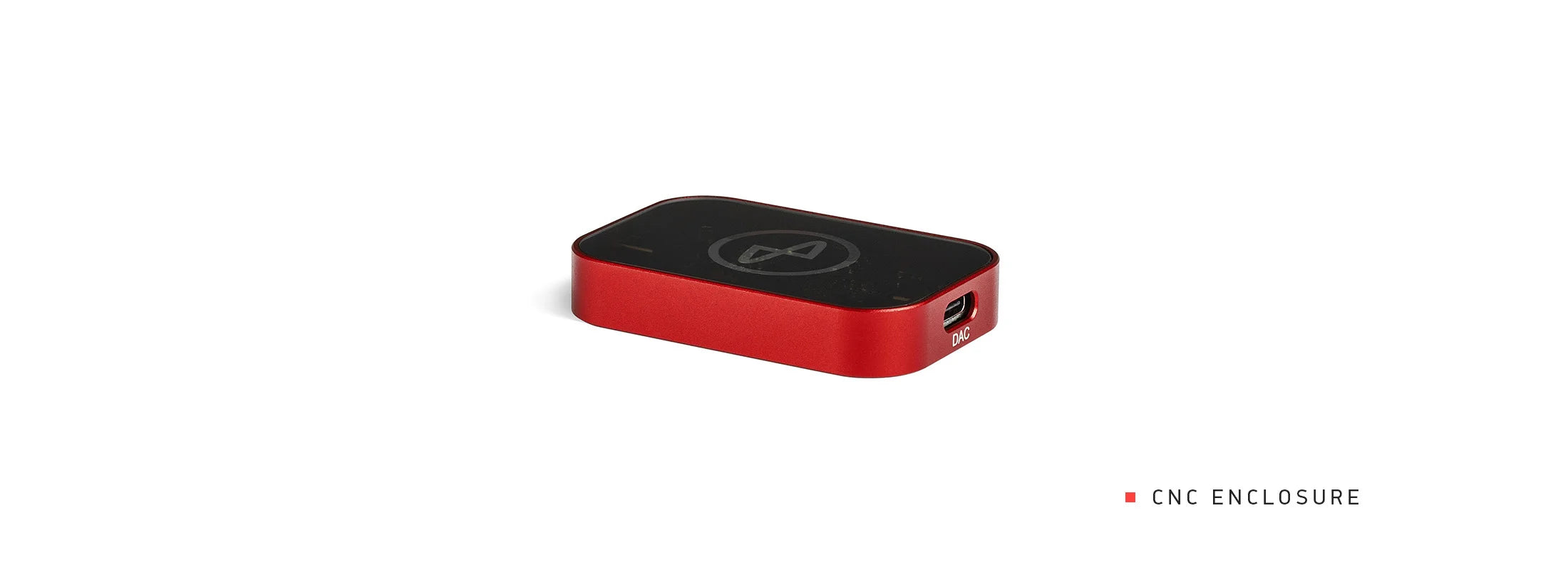

Synapse is a UAC2 compliant galvanic isolator, built to eliminate ground loop noise without compromising USB sampling rates. Its ISOUSB211 enhances performance by cancelling USB signal loss and optimizing the USB timing diagram, while supplying super clean, transformer isolated power to your DAC, mixer, interface, or other UAC2 device. Synapse features USB C inputs and outputs, housed in either a sleek glass-topped, CNC-machined aluminum enclosure or a 3D printed chassis. For your convenience, Synapse includes all accessories you will need to connect to standard USB ports.

480 Mbps USB Rate

Synapse transmits equalized, Hi-Speed USB data at 480 Mbps, fully supporting UAC2 audio devices.

Galvanic Isolation

Synapse fully isolates your audio equipment from your PC, supplying up to 100mA
of USB power through its low noise, transformer isolated LDO.

Eliminates Ground Loop

No optical input? No worries! Synapse effectively eliminates ground loop
noise from peripherals like powered monitors, providing a clean audio
experience.

Compact Enclosure

Designed to save space, Synapse is built in our smallest footprint enclosure
yet, seamlessly fitting inline with your USB device.

Synapse Specifications

Dimensions

Size 59 x 39 x 10 mm
Size 2.3 x 1.5 x 0.4 in
Weight 28 g CNC / 20 g 3D-printed

Configuration

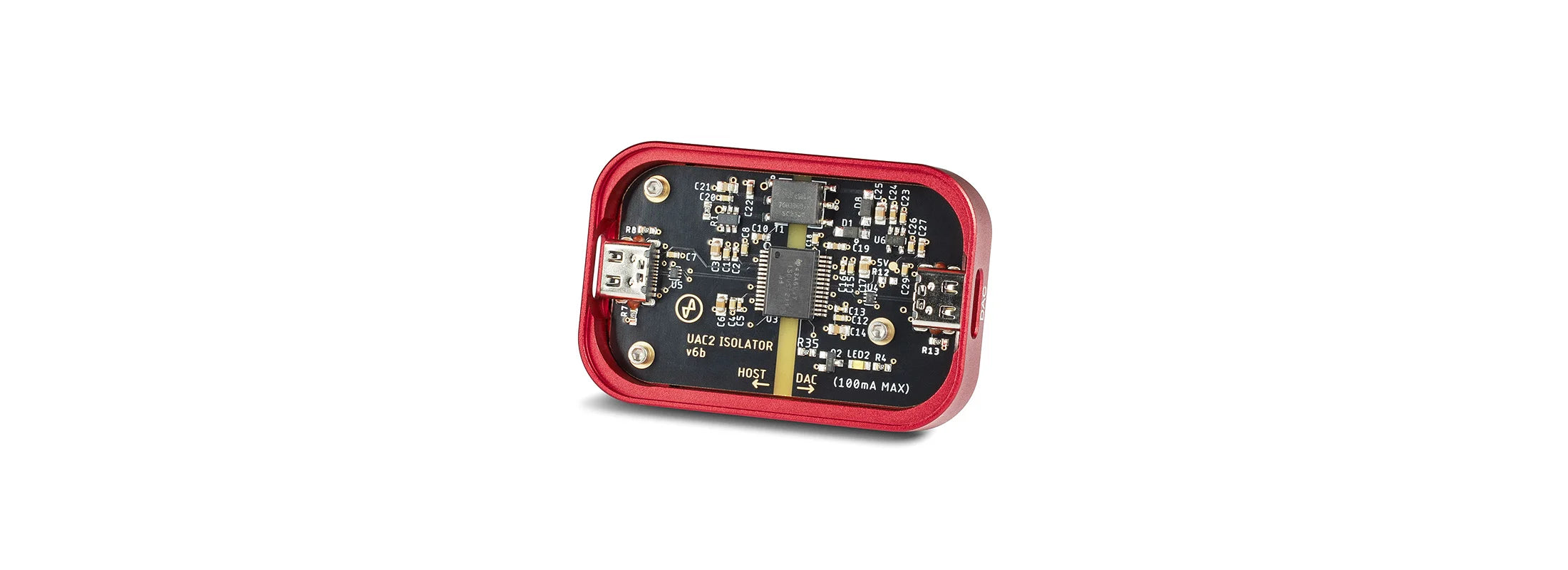

Chipset ISOUSB211
Output Regulator TPS7A 5V LDO
Transformer Isolation 2500 V
ESD Protection +/- 25 kV

Connectivity

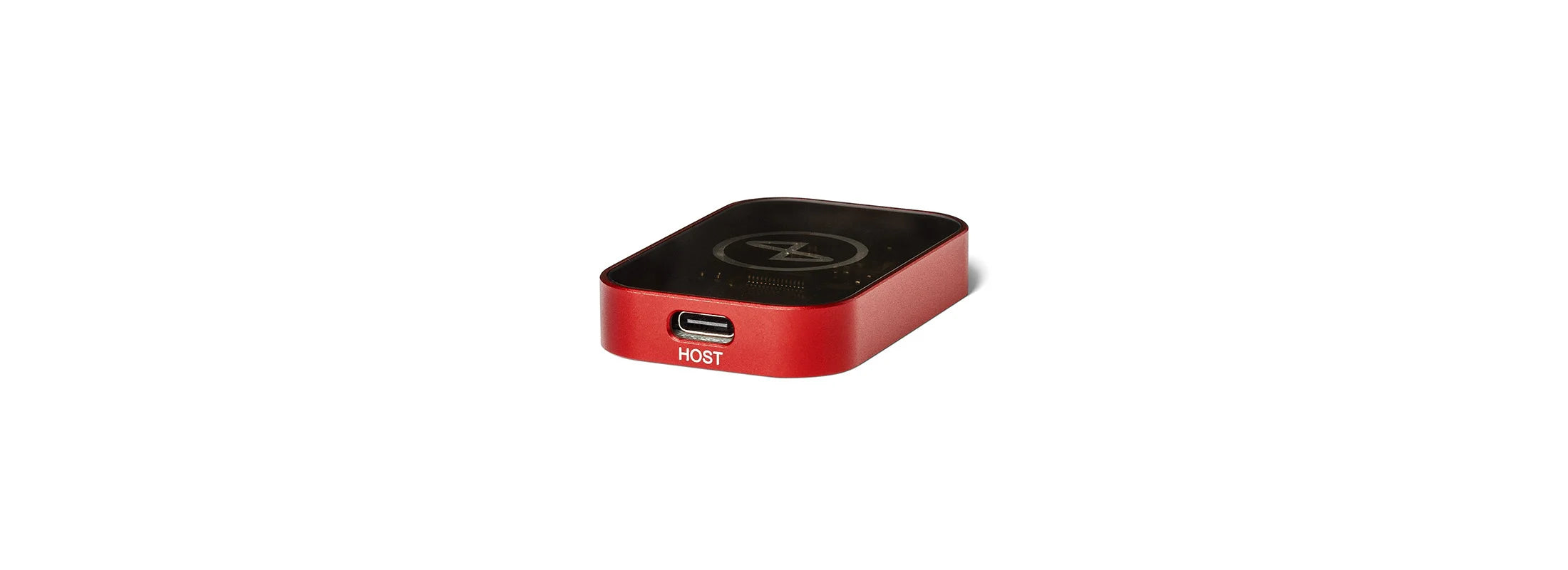

USB Connectors Type C
Max USB Current 100 mA 1.
Max USB Rate Hi-Speed (480 Mbps)

Compact Enclosure

Designed to save space, Synapse is built in our smallest footprint enclosure yet, seamlessly fitting inline with your USB device.
