EL Dac II
SIMPLIFIED AUDIO, RE-ENGINEERED
We designed the Element Line for precision fit and function. EL DAC II furthers the exceptional performance of its predecssor with relay muting, an XMOS based USB Class 2 engine with MEMS oscillator, transformer isolated coaxial input, and higher performance optical input. Stack with EL Amp II for single button switching between headphones and speakers.
|
|
MEMS OSCILLATOREL DAC II's USB engine is clocked by an SiTime MEMS oscillator with ±10ppm frequency stability, delivering pristine jitter. |
 |
RELAY MUTINGMicroprocessor controlled relays are standard in EL DAC II so that power up and input mode changes are free of audible transients. |
 |
USB AUDIO CLASS 2EL DAC II supports up to 32/384kHz PCM over a custom XMOS XU208 based UAC2 engine. While we claim no measurable superiority of high sampling rates, UAC2 and ASIO support satisfy your pursuit of bitperfect listening. |
 |
EXTERNALLY POWEREDEL DAC II is powered by a perfected supply network, with an external AC transformer and 13 regulators that ensure consistent rail voltage and super low ripple. Never be bothered by USB hubs or OS power difficulties again. |
 |
LIGHT RINGEnjoy the presence of your EL DAC II with front and center mode selection via a touch-sensitive light ring. |
 |
DIFFERENTIAL SUMMING OUTPUTDifferential output of a AK4493EQ DAC is summed by a low noise NJR output stage, with DC coupling throughout. Drive any load you wish. |
 |
TRANSFORMER ISOLATED S/PDIFCoaxial S/PDIF input is isolated using a Pulse transformer to minimize the possibility of ground loop noise. |
 |

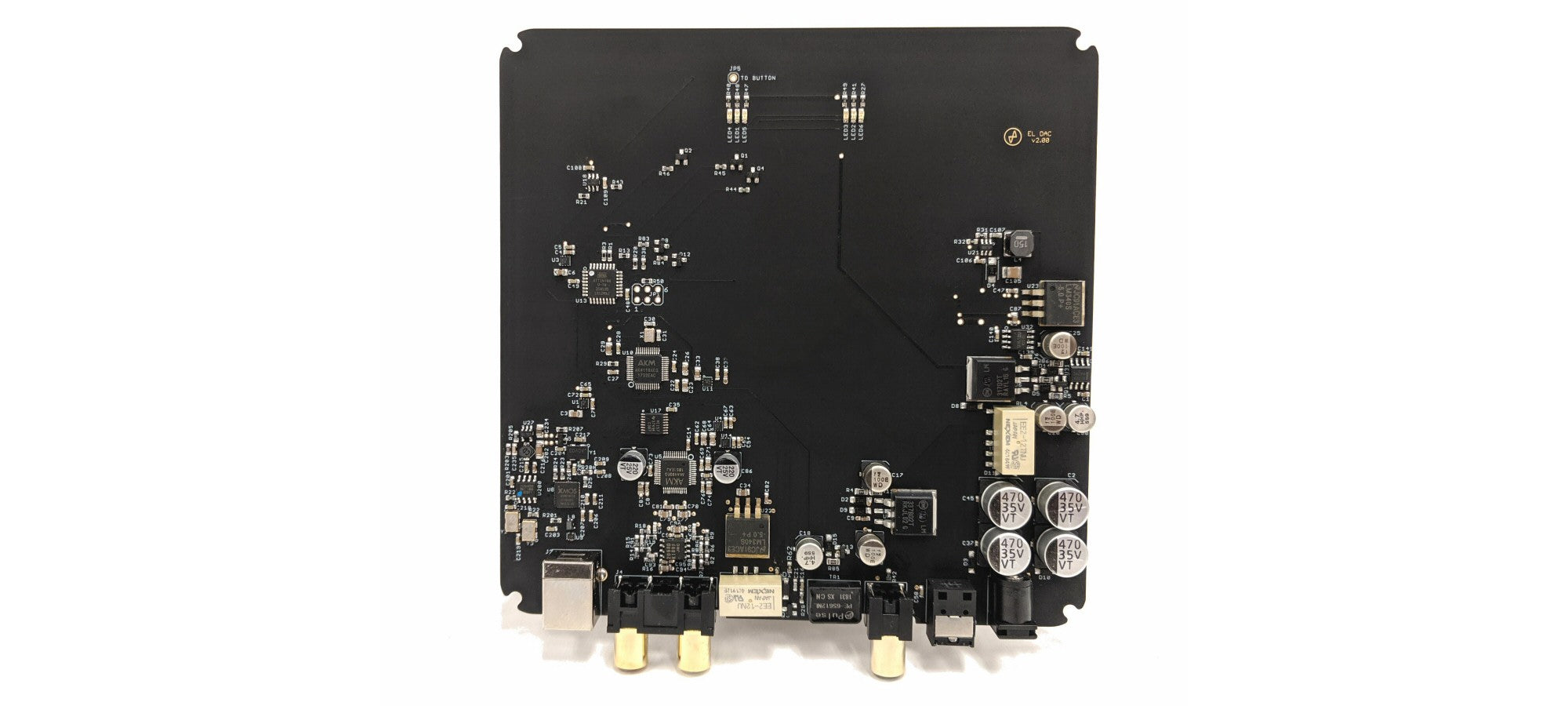

4-LAYER PCBEL DAC II is built an a 4-layer, star grounded printed circuit board with proper 90-ohm characteristic impedance of its USB input. |
 |
UPGRADEABLE FIRMWAREOur custom XMOS based firmware configures and manages EL DAC II's USB input and AK4493, with DFU support for possible future feature additions. |
SPECIFICATIONS
DAC PERFORMANCE
- Frequency Response 10Hz-20kHz+/- 0.13 dB
- THD+N 20Hz-20kHz< 0.0010%
- IMD CCIF 19/20 kHz -6.03 dBFS0.00016%
- IMD SMPTE -6.03 dBFS0.00029%
- Noise (A-Weighted)-110 dBu
- Dynamic Range (A-Weighted)119 dB
- Linearity Error -90 dBFS-0.01 dB
- Crosstalk -10 dBFS 100K RCA-109 dB
- USB Jitter Components 12kHz-126 dB
- PCB Stackup4 Layers
- Maximum DAC Line-Output, 100K2.00 VRMS
DIMENSIONS
- Case Dimensions5.8 x 5.8 x 0.9 in
- Weight13 oz

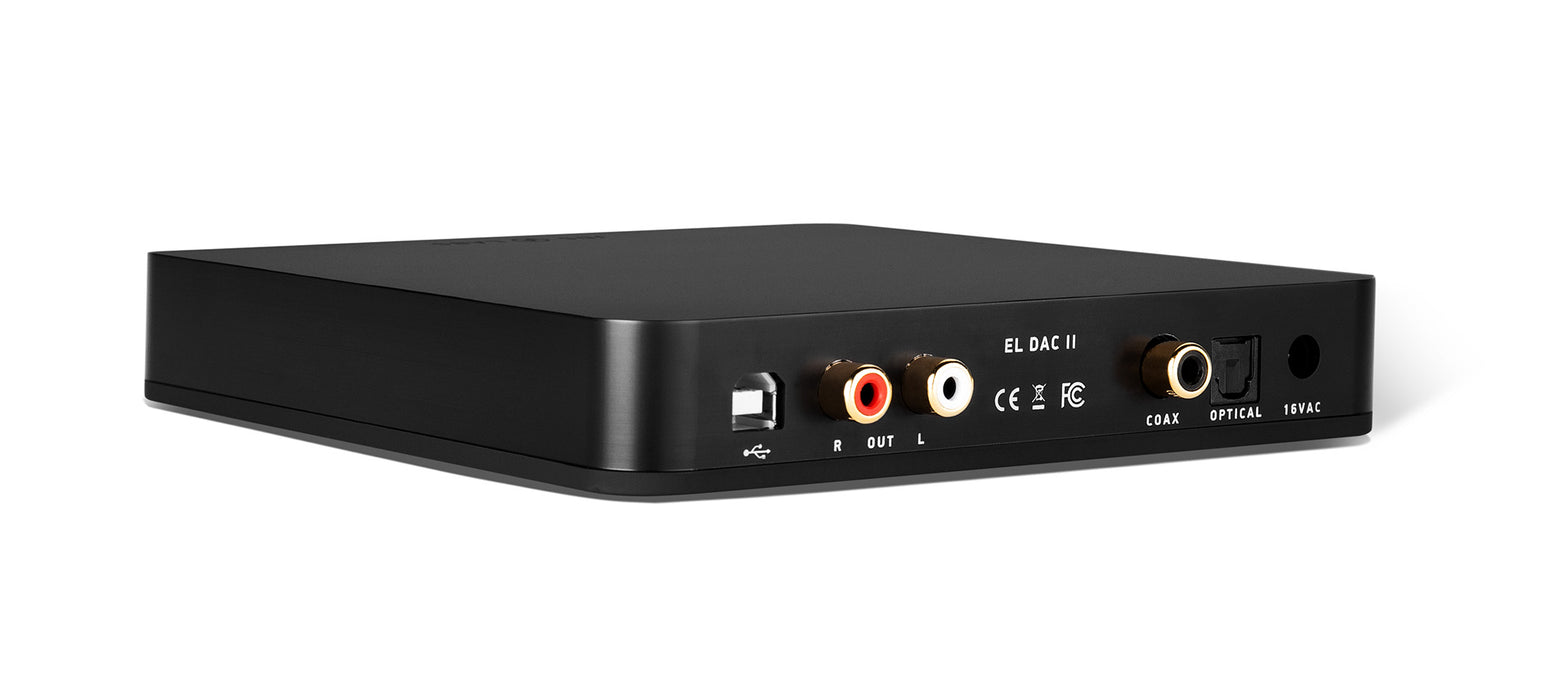

CONNECTIVITY

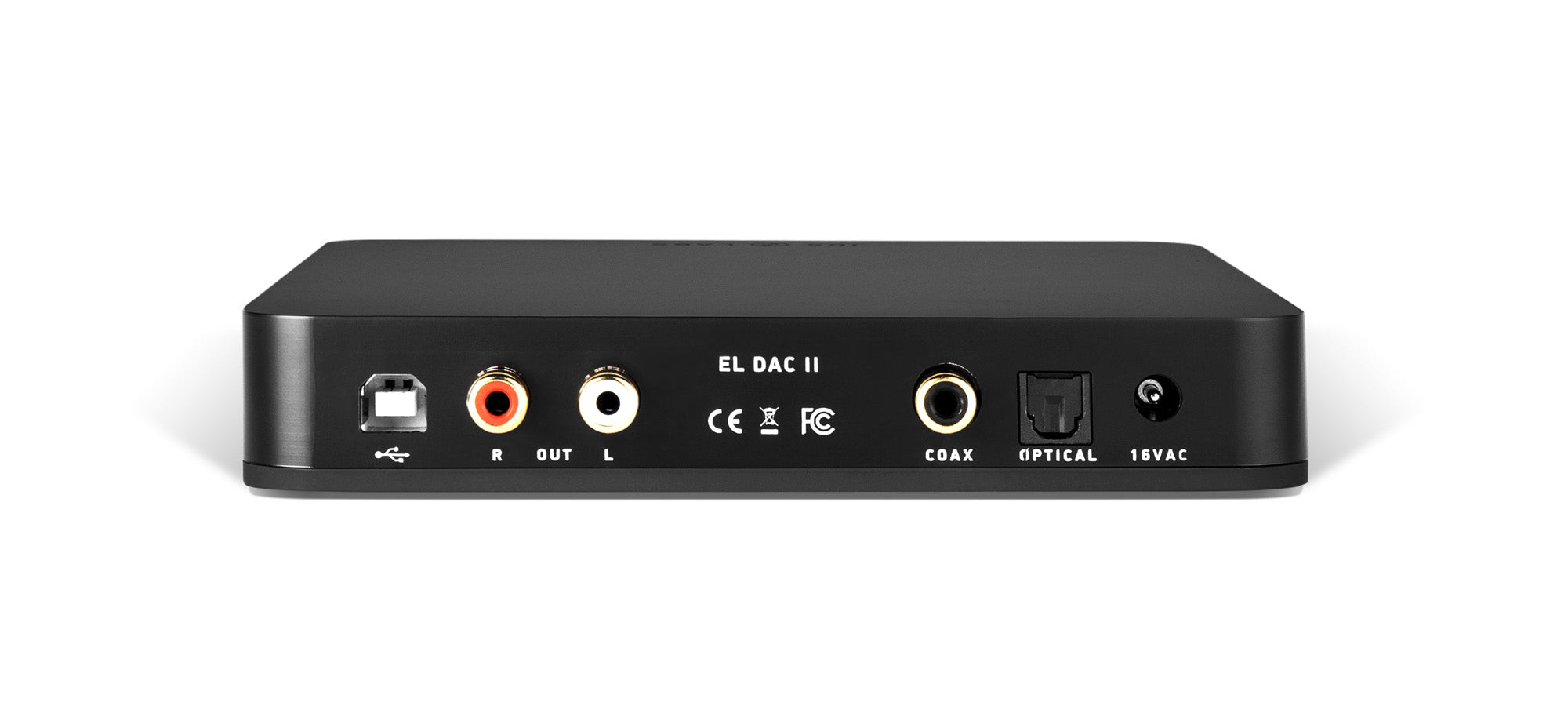

- Digital InputsUSB, TOSLINK, and Coaxial S/PDIF
- DAC Line-OutputRCA
- 1.Windows 10 supports 32/384k; XMOS drivers and other operating systems may limit to 24/192kHz.
- 2.Many sources are unable to reliably transmit at 192kHz.
PACKAGED ITEMS
- EL DAC II
- 16VAC Power Adapter
- 3ft USB Type A to Type B Cable w/Ferrite
- 6ft TOSLINK Cable
