Paper80 Keyboard - Wine [Group Buy]

SKU: KEYBOARD-PAPER80-WINE-AFP-WK-PC-SEA
Sale price$450.00 CAD
Sold out

Finish & Layout: AFP Gunmetal Gray - WK (Winkey)
Plate: Polycarbonate
Import Method: Sea Shipping

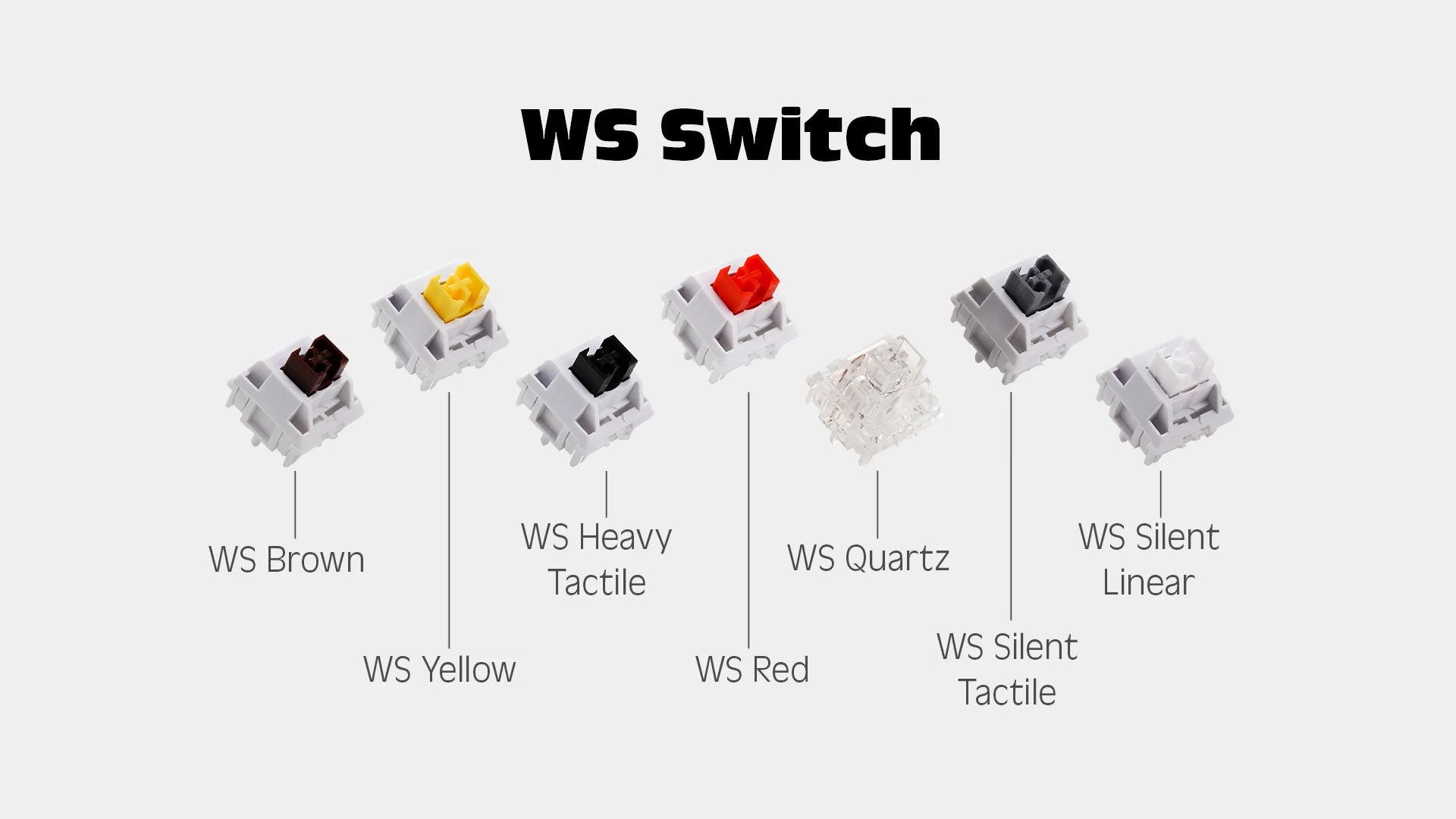

Don't forget these addons!
Early Bird Bonus!
Group Buy Information

Unlimited Group Buy runs from Sept 4th to Sept 19th, 2024.

Estimated Production Completion is late December 2024.

Ocean Freight

Arrives to Canada via a ship. Takes 45-60 days in transit.
All units ordered via Ocean Freight are scheduled to ship out of Meletrix around October, 2024 and should arrive at Deskhero around mid to late February 2025

Air Express
Air Express may be used and should arrive around 4-5 weeks before Ocean Freight, early to mid January 2025.

FIRST 72 HOURS ONLY

FREE TITANIUM SWITCH PULLER

Enjoy one switch puller per keyboard kit. Just check the box the box when adding the Paper80 Keyboard to cart!

PAPER 80 DETAILS

Kit contents

  • Aluminum top case
  • Aluminum bottom case
  • Acrylic middle frame
  • Acrylic diffuser plate
  • Acrylic badge
  • Stainless steel external base weight
  • Stainless steel Airplane weight
  • 1.6mm, Non-flexcut PCB
  • Daughterboard + cable x1
  • Backlight LED + cable x1
  • Plate
  • Plate foam
  • Switch foam
  • PCB foam
  • Silicone feet
  • Screws & gasket silicone plugs

Keycaps, switches, stabilizers and USB cable are not included. The matching wrist rest is sold separately.

Specifications

  • Layout: 80%
  • Case Material: Aluminum
  • Mid-case Material: Acrylic
  • Weight Material: Stainless Steel
  • Mounting Style: Lock-hole Gasket Mount
  • Typing Angle: 7.5°
  • Front Height: 20mm
  • Weight: About 2200g

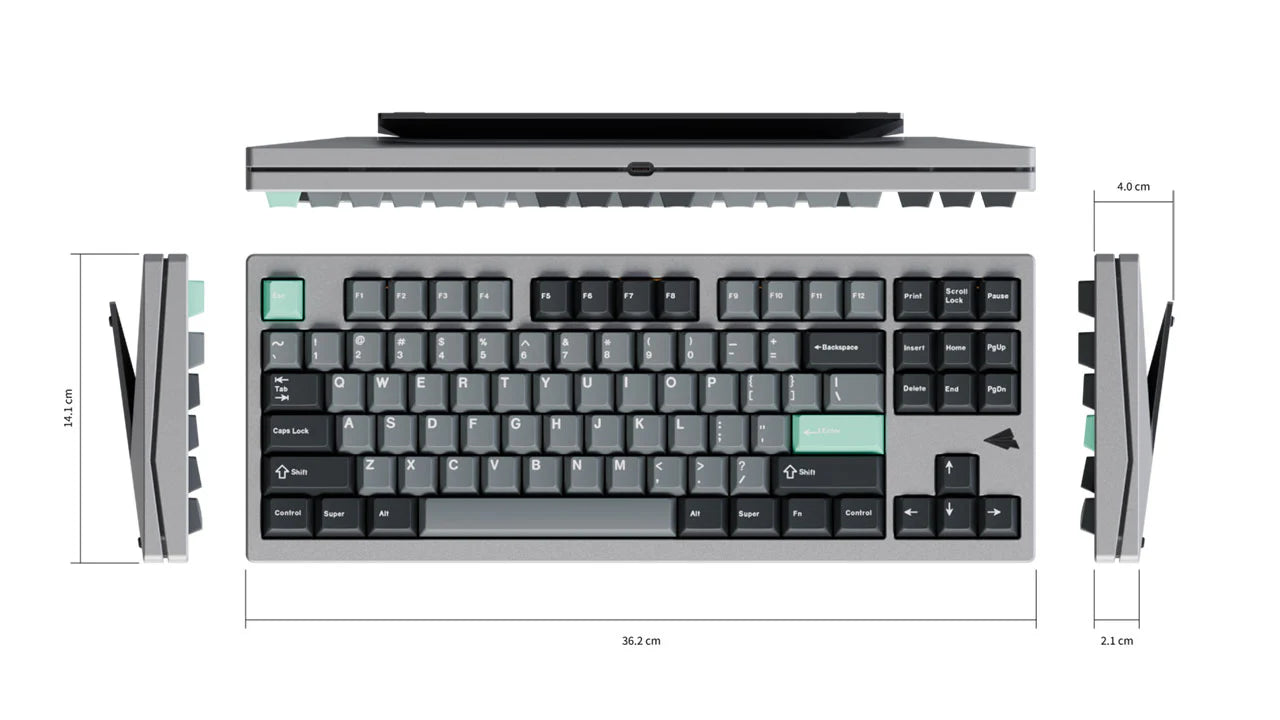

  • Dimensions: 362 x 141 x 40mm
  • Default Plates: Polycarbonate (Non-flexcut) or Aluminum (Non-flexcut)

Case Finish

  • Anodized: Black, Blue, Silver, Titanium Gray, Wine
  • Electro-phoresis: E-White, E-Milk Tea

PCB Specifications

  • PCB: 1.6mm, non-flexcut (default) or 1.2mm, flex-cut (sold separately)
  • Connectivity: Wired only
  • Hot-swap: Yes
  • Layout Support: ISO / ANSI, Stepped / Normal Caps, Standard bottom row (6.25u spacebar), Tsangan bottom row (7u spacebar)
  • Firmware / Software: QMK / VIA
  • Minimum Latency: 0.98ms
  • Reliable Latency: 5ms

TECHNICAL DATA

FEATURES

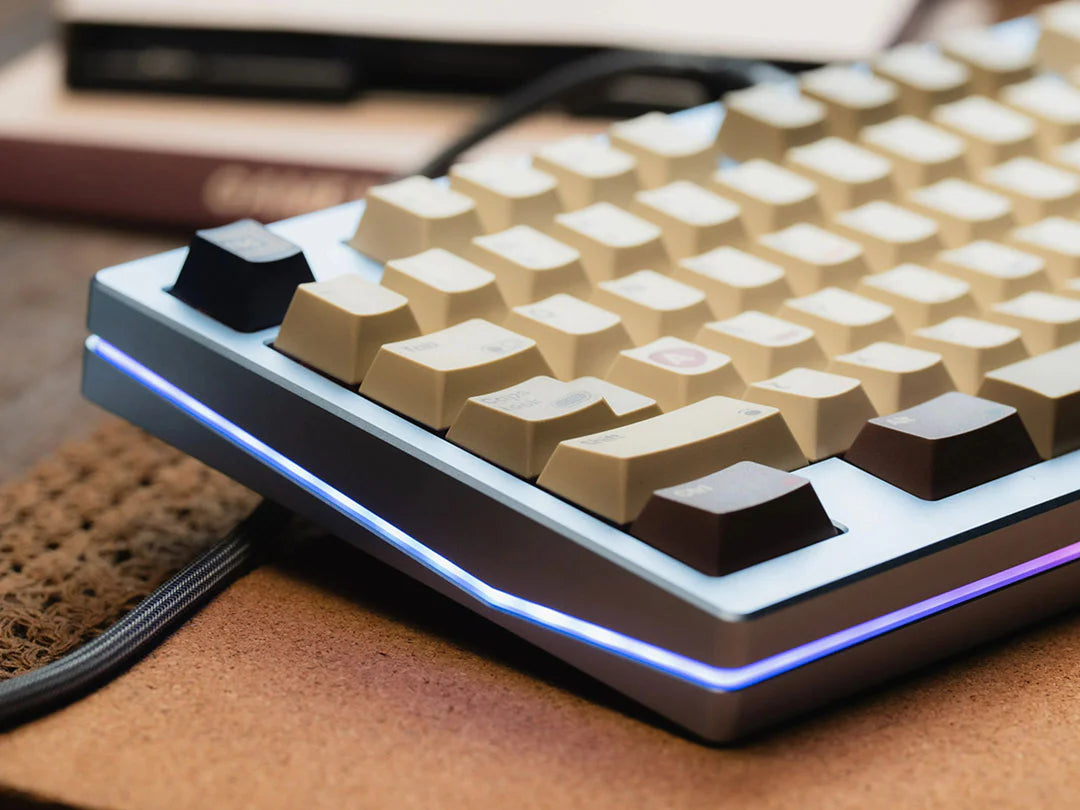

Mid-case Fold Light Design

One of the key features of the PAPER 80 is the Mid-case Fold Light, with folding lines on the sides and back inspired by Paper Airplane. When lit, it projects a calming glow around the entire keyboard.

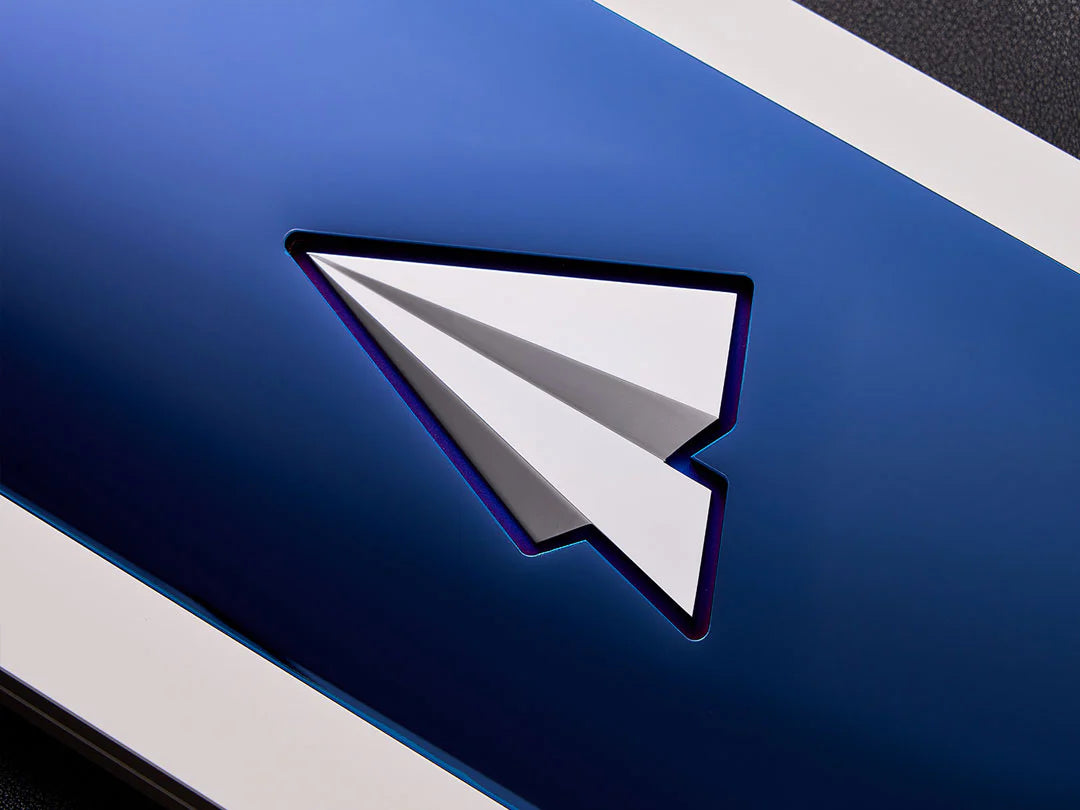

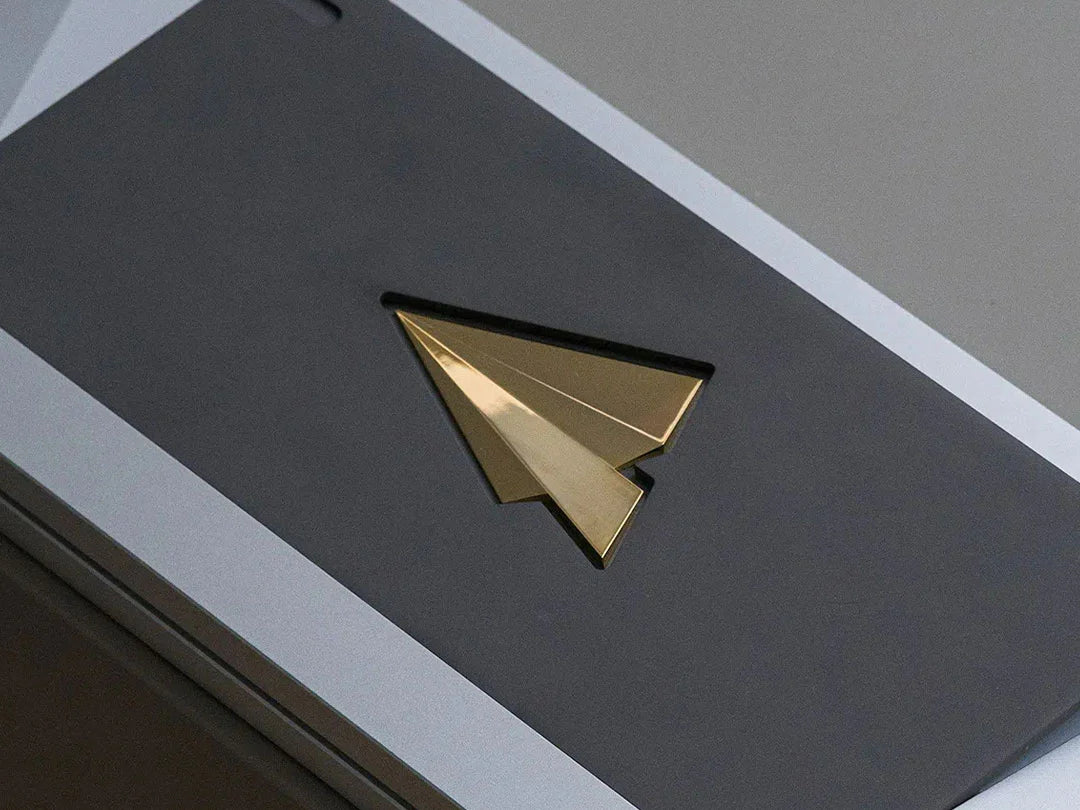

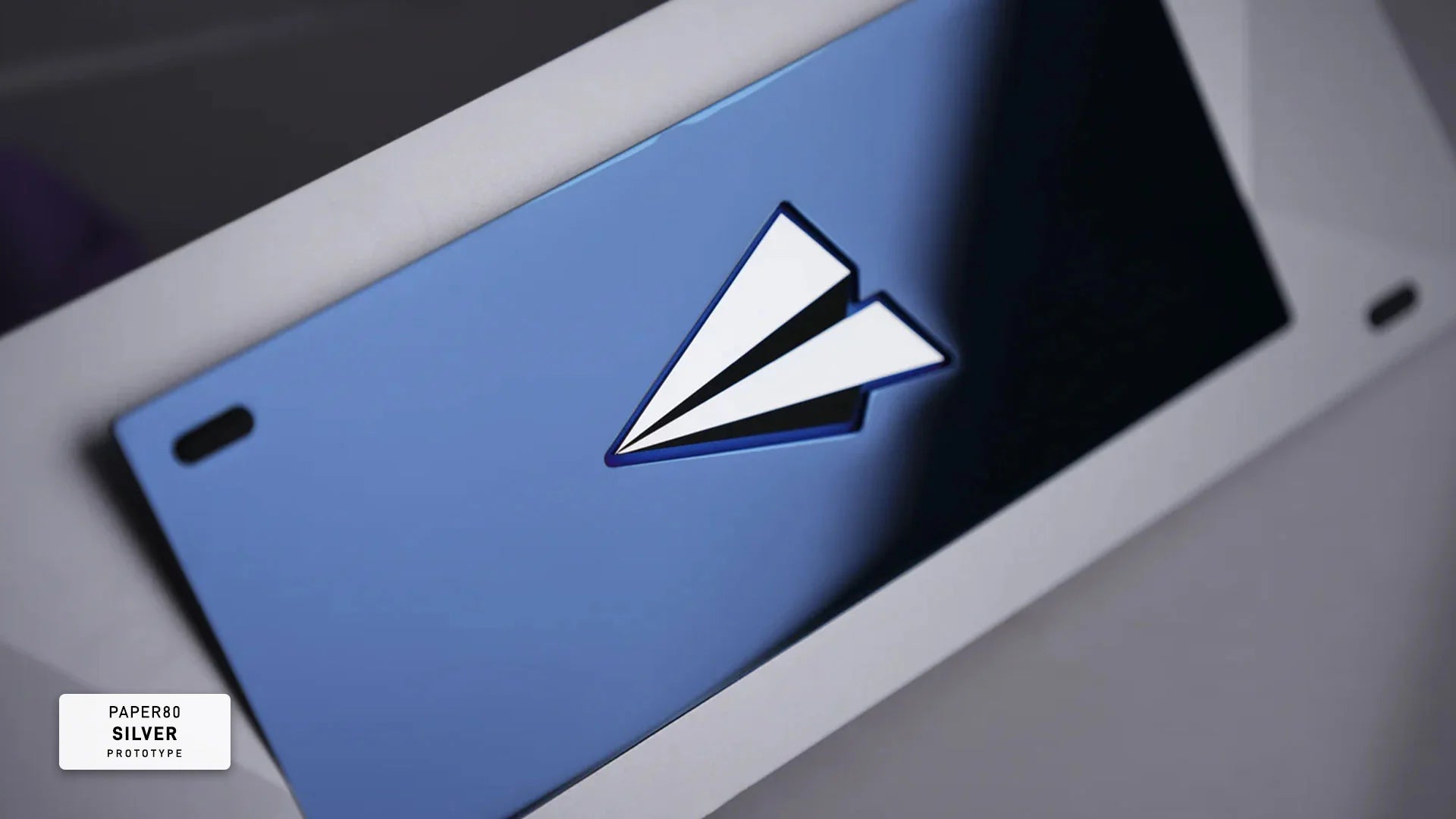

Paper Plane External Weight Logo

A secondary stainless steel weight in the shape of a paper plane sits on the base stainless steel external weight. The design of both weights give an illusion of a 3D effect. Each keyboard kit comes with one, but additional paper plane weights are sold separately.

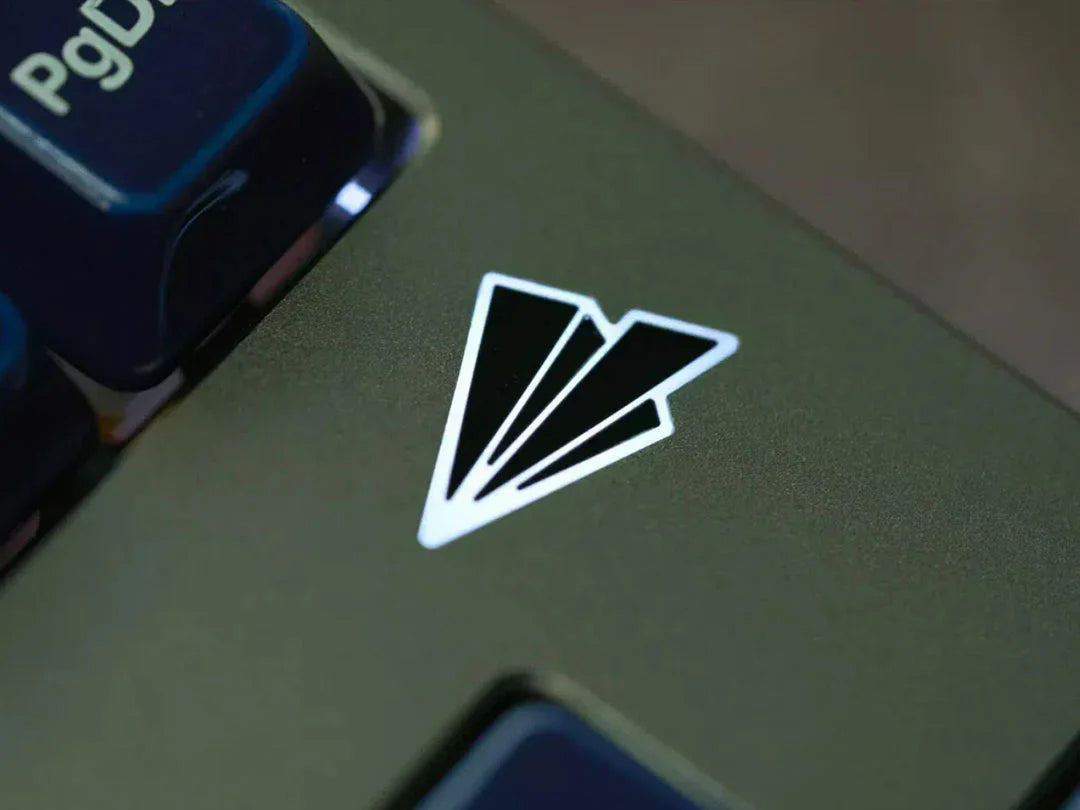

Paper Plane LED Diffuser

An LED diffuser in the shape of a paper airplane sits above the arrow cluster. Created from just four triangles, the LED colors illuminating this paper plane can be customized in VIA

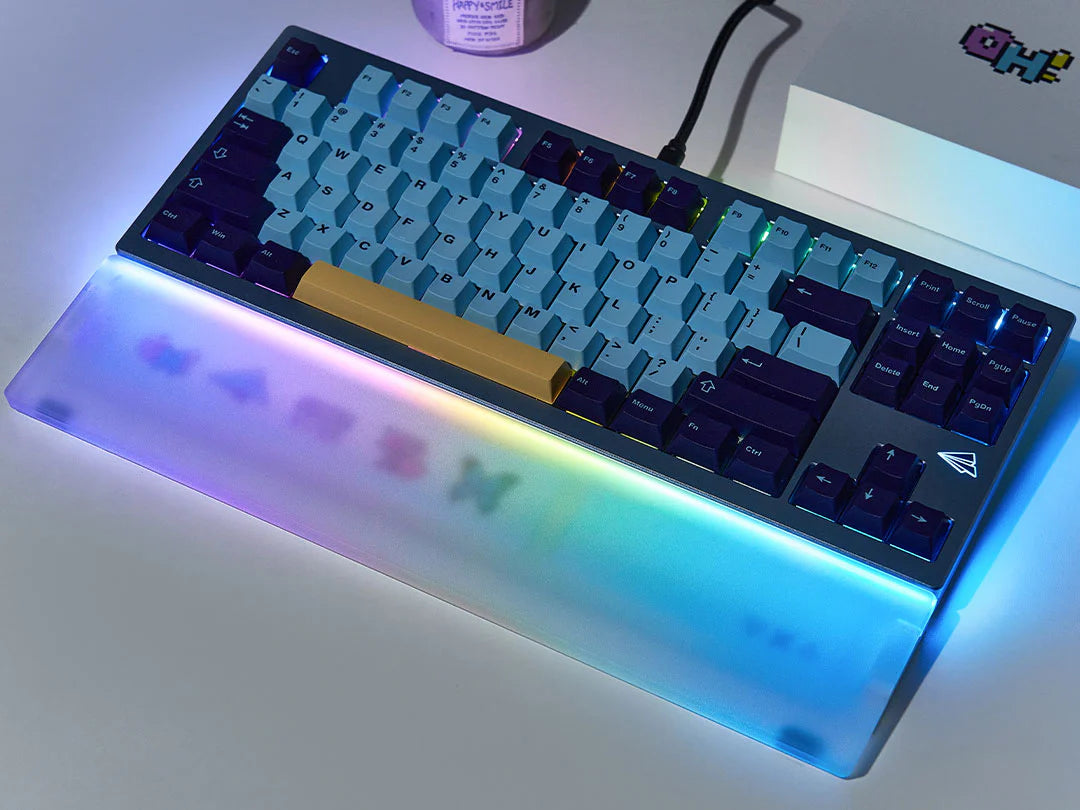

Matching Wrist Rest

A gorgeous wrist rest, made of frosted Polycarbonate and Aluminum is sold separately alongside the keyboard kit. When lined up, the mid-case fold light of the keyboard lights up the wrist rest too with a soft, beautiful glow!

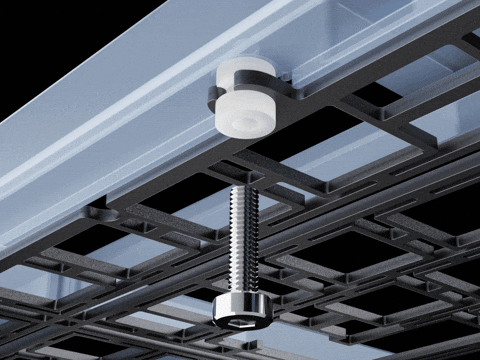

Lock-hole Gasket Mount

Instead of a traditional gasket mounting system, Paper80 uses a new system that strikes a balance between maximizing internal space and offering a consistent typefeel by reducing vibrations as much as possible. The designers created a typing experience that provides adequate feedback and bounce without being overly soft.

AFP (Anti-fingerprint) finish

Each keyboard kit can be ordered with a base stainless steel external weight in PVD Mirror or AFP finish. The AFP finish is a durable, matte finish that helps prevent fingerprint smudges and scratches. This finish offers a soft touch with a smooth, skin-like feel that's warm and comfortable.

GALLERY

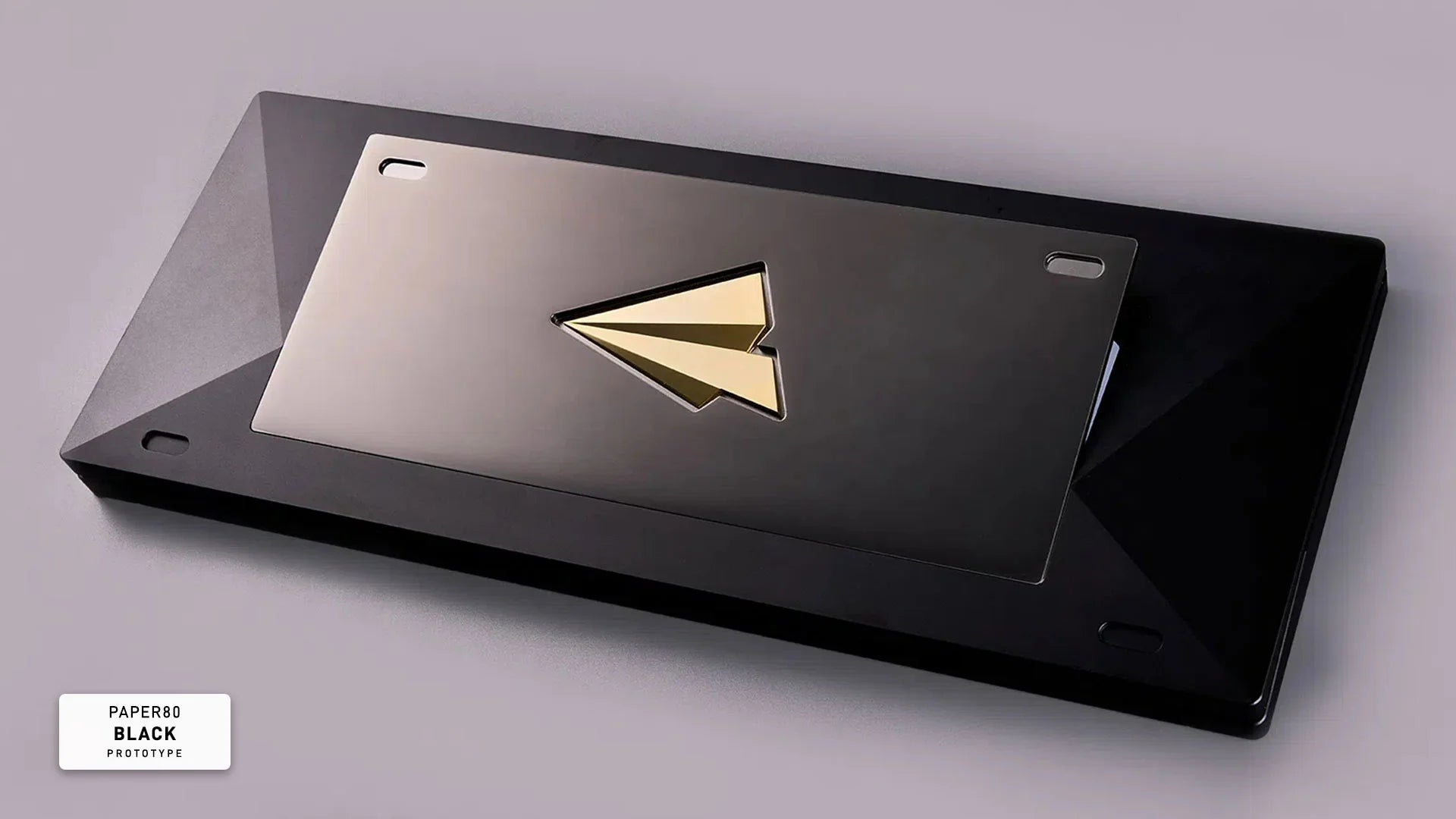

PAPER 80 PROTOTYPE

BLACK

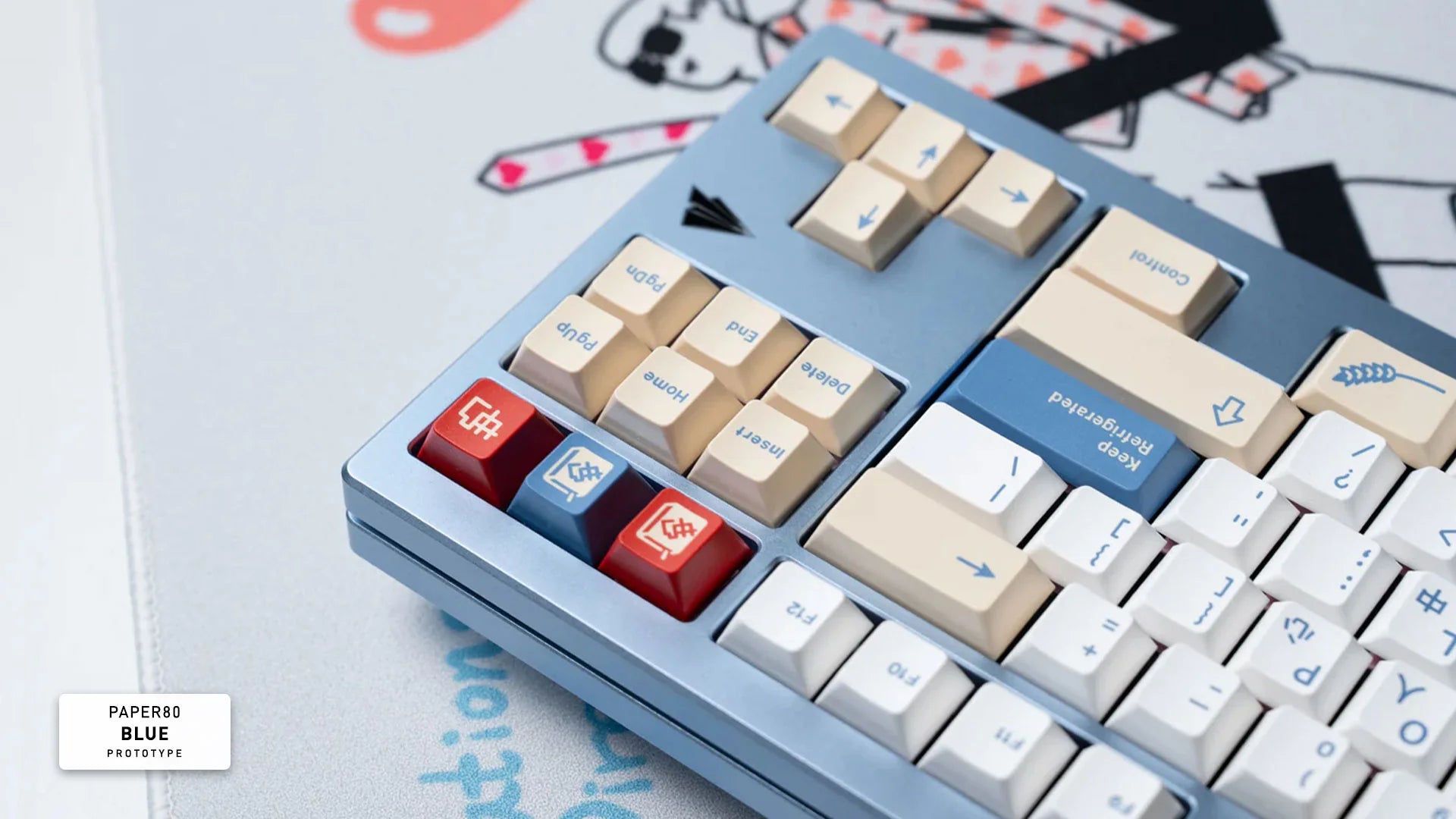

PAPER 80 PROTOTYPE

BLUE

PAPER 80 PROTOTYPE

SILVER

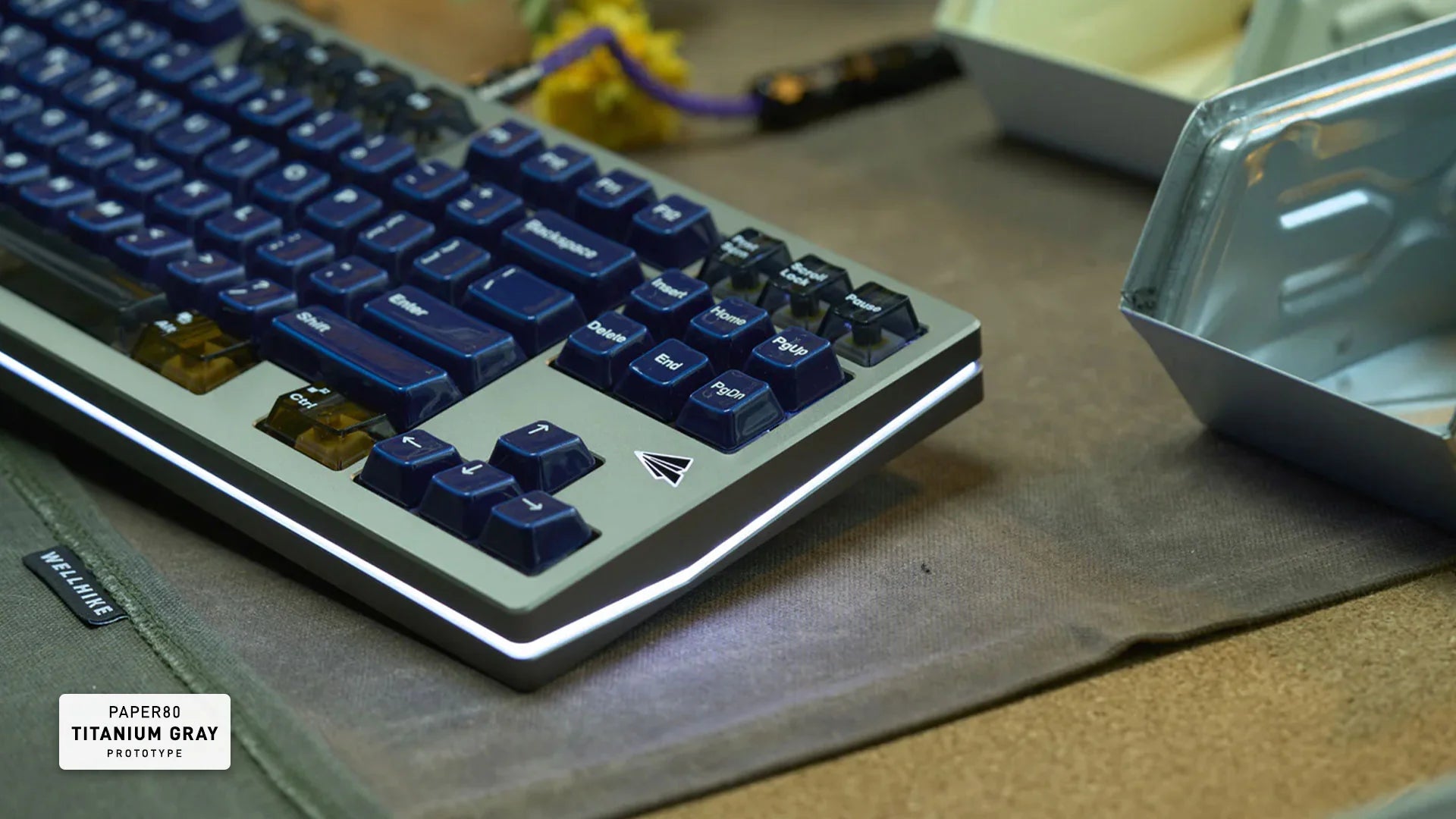

PAPER 80 PROTOTYPE

TITANIUM GRAY

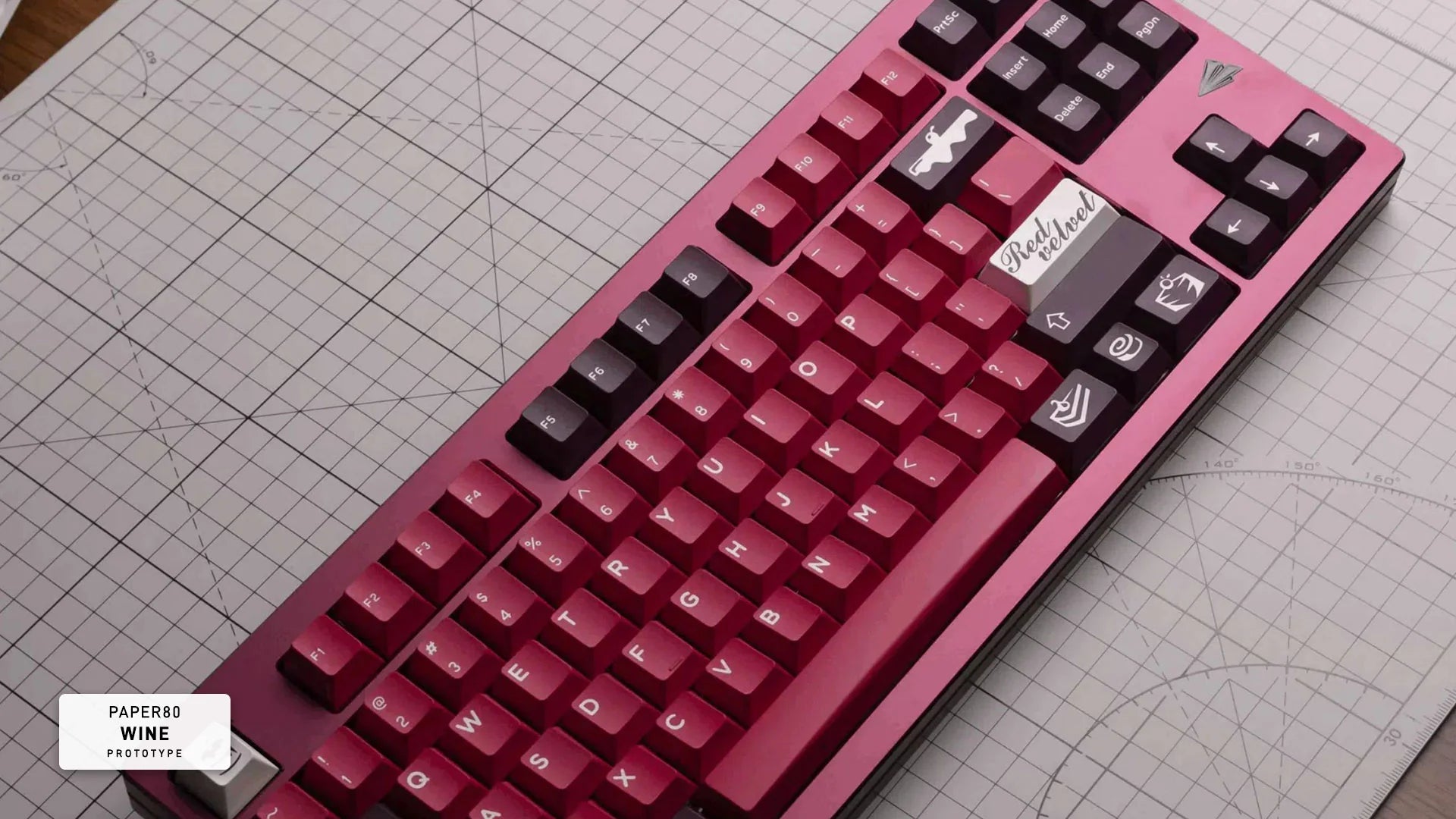

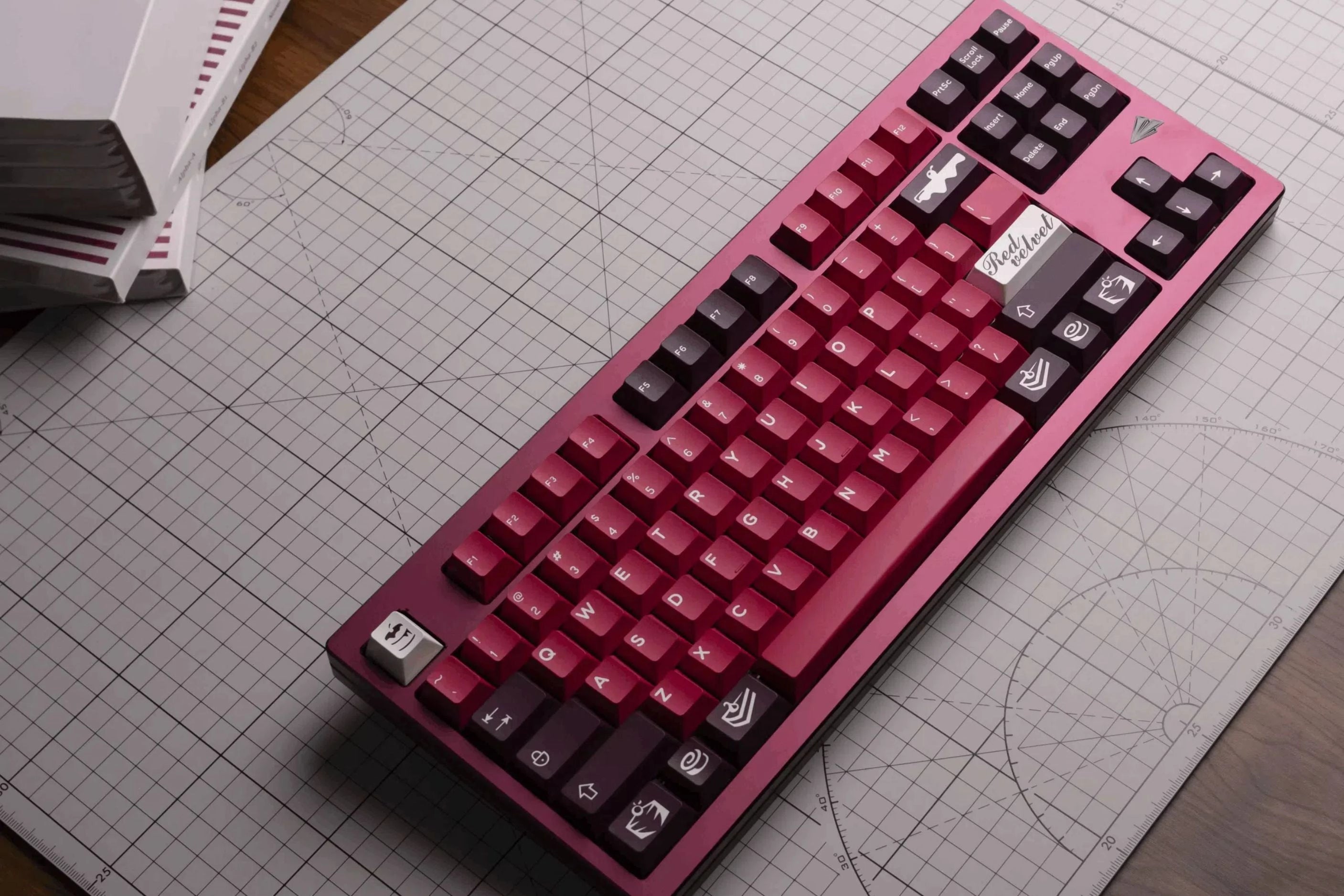

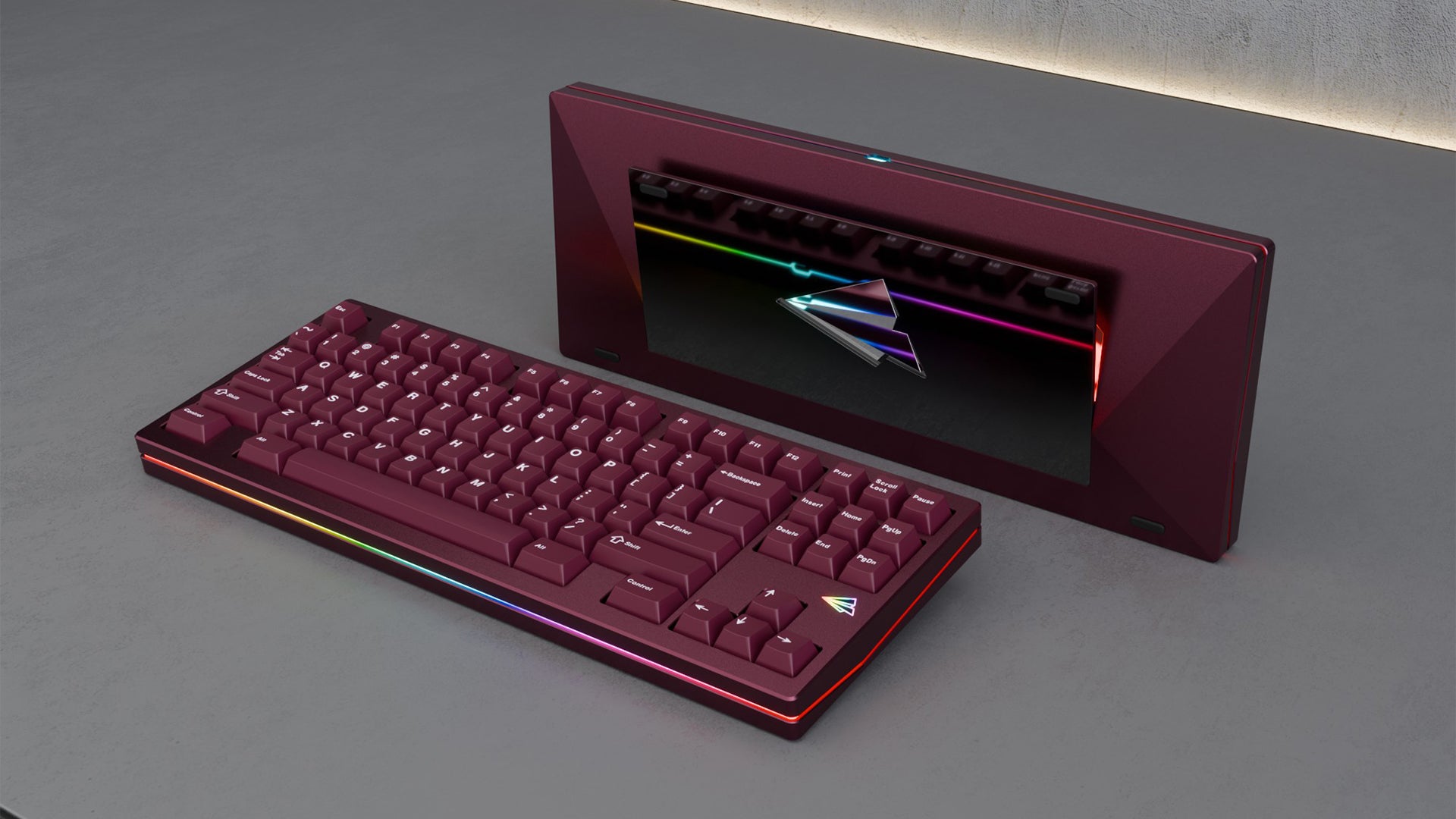

PAPER80 PROTOTYPE

WINE
