Matrix 8XV 3.0 Keyboard Addons

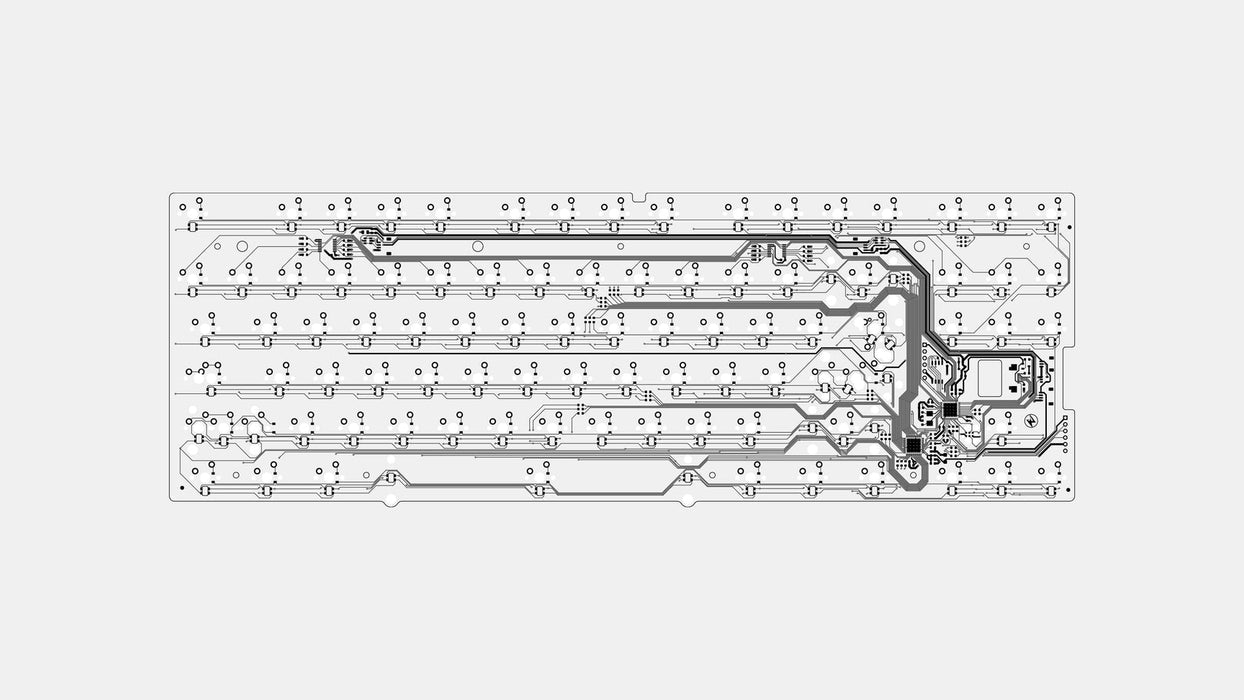

PCB Specifications

• Hot Swap is only compatible with aluminum plate
• Designed and developed by Astro

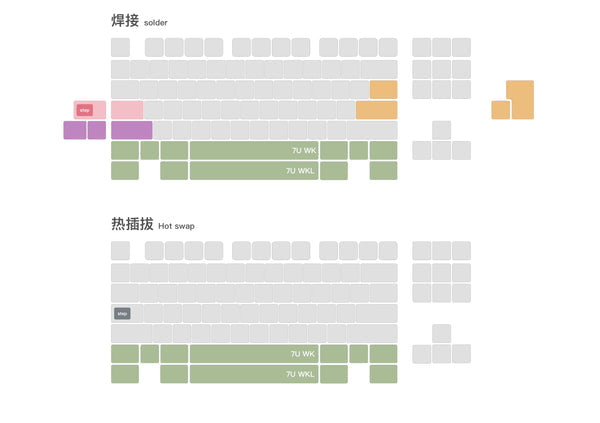

• Solder and hot swap options available
• Full RGB back light

• Progammable by updating the firmware

• Due to the complex functions, Via or Vial are not supported

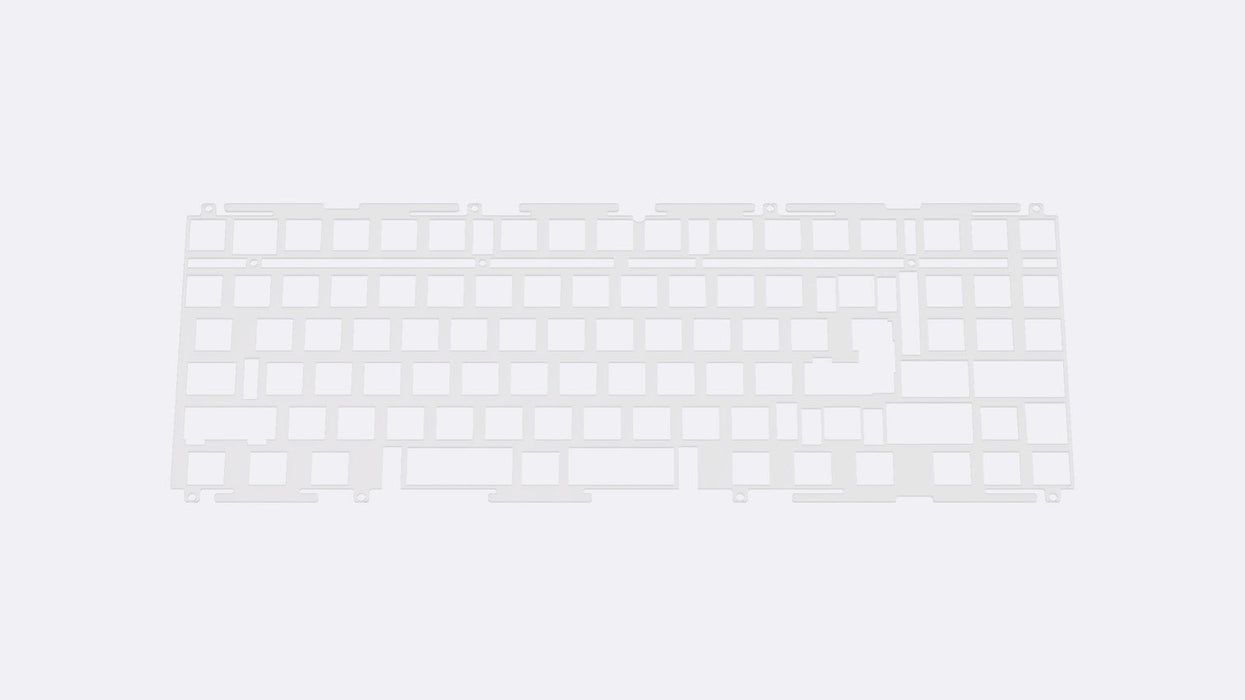

Plate Specifications
This is not flex cut and does not support hotswap. Only the aluminum plate supports hotswap.

• Includes 20 poron gaskets
• Material: Polycarbonate

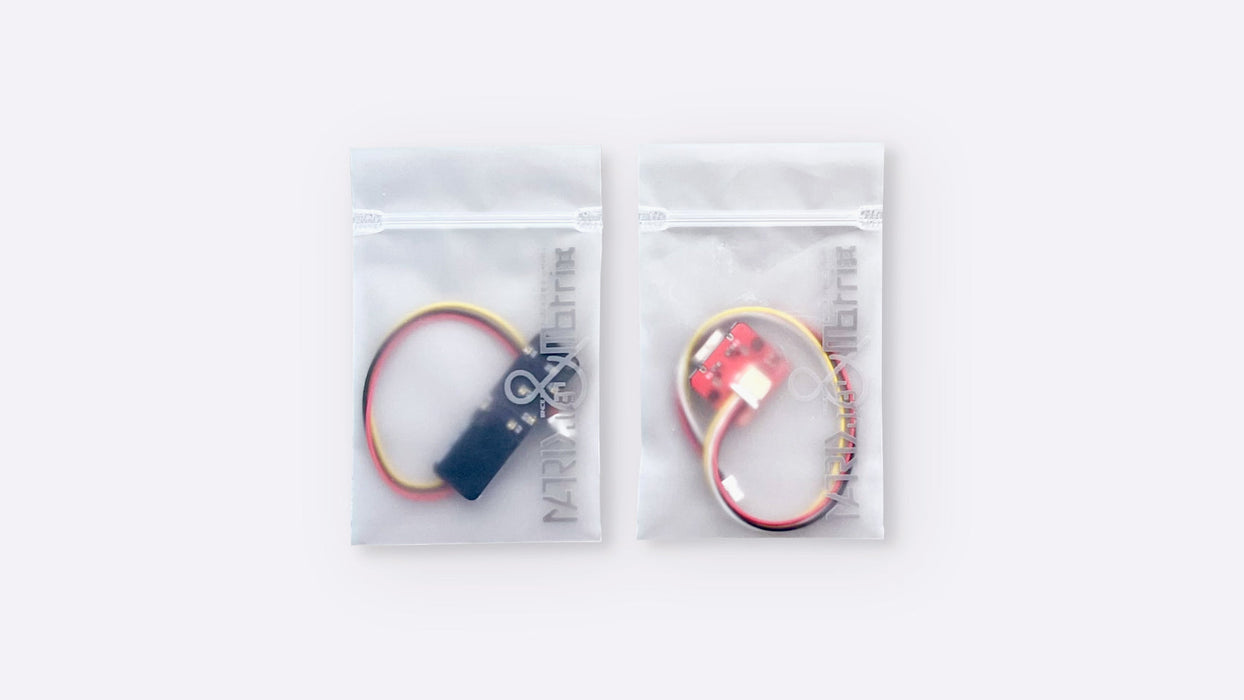

Daughter Board Packs
Includes:

• Type-C daughter board
• 2 JST cables

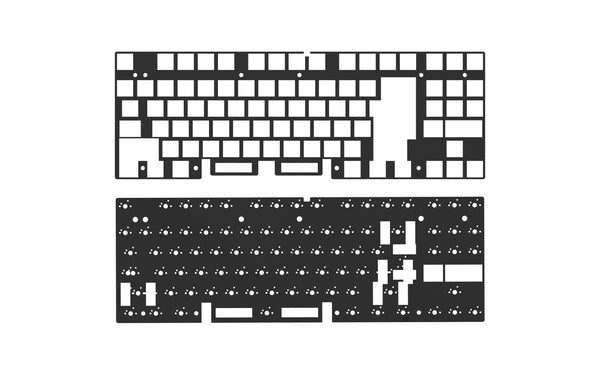

Foam Specifications:
Includes

• 1 3mm Plate Poron Foam
• 1 0.5mm PE Foam
