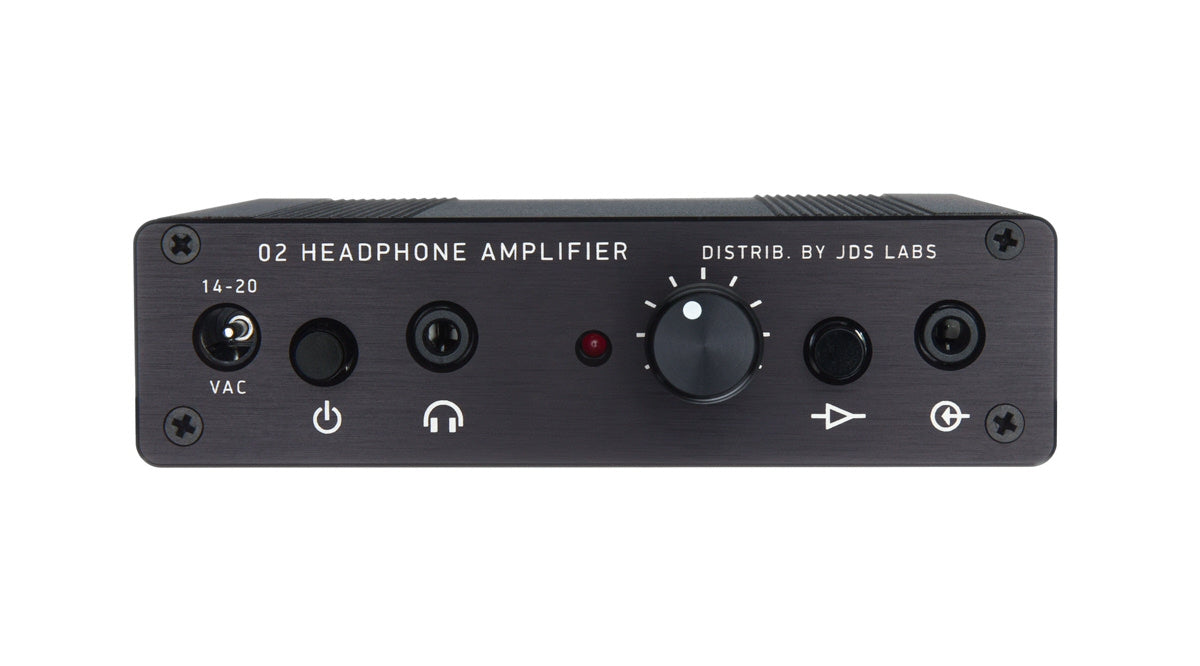

Objective2+ODAC Combo Rev B
Objective2+ODAC Combo Rev B Objective2+ODAC Combo Rev B

Objective2+ODAC Combo Rev B

by JDS Labs
$414.99 CAD - $414.99 CAD
$414.99 CAD
$414.99 CAD
$414.99 CAD - $414.99 CAD
$414.99 CAD
Availability:
Only 3 left
SKU

DESIGNED FOR RAW PERFORMANCE

Objective2+ODAC is an Objective2 headphone amp with integrated ObjectiveDAC. This high performance amp+DAC combo ships fully assembled, tested, and ready to use. Includes USB cable.

REFERENCE GRADE SOUND

Objective2 achieves vanishingly low THD and noise performance for audible perfection.

LOW OUTPUT IMPEDANCE

Objective2's extremely low output impedance ensures transparent frequency response for all headphone loads.

HIGH POWER

At over 600mW, Objective2 provides enough output power to drive all dynamic headphones on the market with authority.



NATURAL FREQUENCY RESPONSE

Both the amplifier and DAC stages of Objective2+ODAC perform within +/- 0.1 dB of ideal frequency response.



LOW JITTER

ODAC's audibly insignificant jitter (-112 dB) proves that reference quality D/A conversion can be affordable!

24-BIT RESOLUTION

You'll enjoy Objective2+ODAC's 24-bit audio. Impressive dynamic range and low noise give perfect clarity.



  • SPECIFICATIONS

    PERFORMANCE

    • Frequency Response 20Hz-20kHz+/-0.1 dB
    • THD 1 Khz 150 Ohms0.0016%
    • IMD CCIF 15 Ohms0.001%
    • IMD SMPTE0.002%
    • Noise, A-Weighted-105 dBu
    • Max Output (33 Ohms)613 mW
    • Max Output (150 Ohms)355 mW
    • Max Output (600 Ohms)88 mW
    • Output Impedance0.54 ohms
    • Crosstalk (15 ohms)-65 dB
    • Channel Balance (50% volume)0.6 dB

    DAC PERFORMANCE

    • Freq. Response 20Hz-20kHz+/- 0.04dB
    • THD+N 100 hz -0.15 dBFS0.0028%
    • THD+N 20 hz -0.15 dBFS0.0015%
    • THD+N 10 Khz -0.15 dBFS0.0024%
    • IMD CCIF 19/20 Khz -6.03 dBFS0.0015%
    • IMD SMPTE -6.03 dBFS0.0015%
    • Noise A-Weighted dBu 24/96-103 dBu
    • Dynamic Range (A-Weighted)> 112 dB
    • Linearity Error -90 dBFS 24/96-0.08 dB
    • Crosstalk -10 dBFS 100K 3.5mmCrosstalk -10 dBFS 100K 3.5mm
    • USB Jitter Components 11025Hz-112.3dB
    • Maximum Output Line Out 100K2.1 VRMS
    • Distortion< 0.005%

    DIMENSIONS

    • Case Dimensions (mm)108.50 x 80.00 x 29.50
    • Case Dimensions (in)4.27 x 3.15 x 1.16
    • Weight11oz

    DATA SUPPORT

    • Audio Formats16/44, 16/48, 16/88.2, 16/96, 24/44, 24/48, 24/96
    • InterfaceUSB, Audio Class
    • Native Driver OS SupportWindows XP & Later, OS X x86, iOS, PS4, Linux

    CONNECTIVITY

    • Analog Output3.5mm or 6.35mm*
    • Analog Input3.5mm
    • Digital InputMini-USB
    • DAC Line Output3.5mm or RCA**
    • Power Input14-20VAC

    PACKAGED ITEMS

    • Objective2+ODAC RevB
    • 15VAC Power Adapter
    • 3ft Mini-USB cable
    • Rubber Feet



    JACK CONFIGURATIONS

    Black and Silver Edition: Default configuration, featuring front mounted 3.5mm (1/8") headphone jack, 3.5mm input jack, and AC power jack. Rear mounted digital USB input.


    Custom Edition: Customize your Objective2+ODAC. Choose a 3.5mm or 6.35mm (1/4") headphone jack, front or rear mounted AC power jack, and optional 3.5mm or RCA DAC line-output. Customized units ship within 1 business day, exclusively in black!



    AC ADAPTERS

    Add Objective2+ODAC to your shopping cart to select your free AC adapter. Please note that Objective2+ODAC is an AC powered device and does not contain batteries. Additional 15VAC power adapters may be purchased separately.
