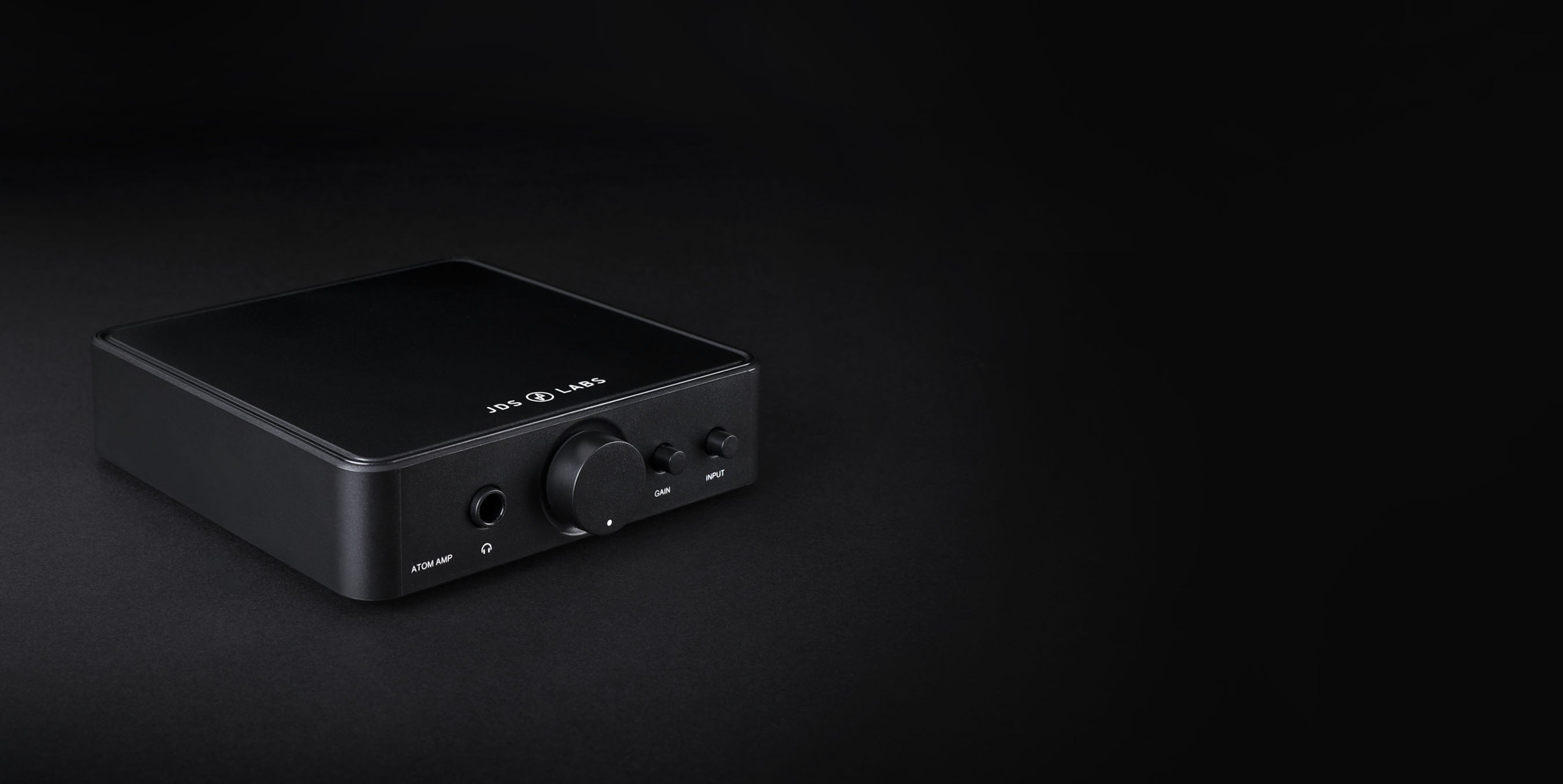

Atom AMP
YOUR NEW FAVORITE AMP + PREAMP

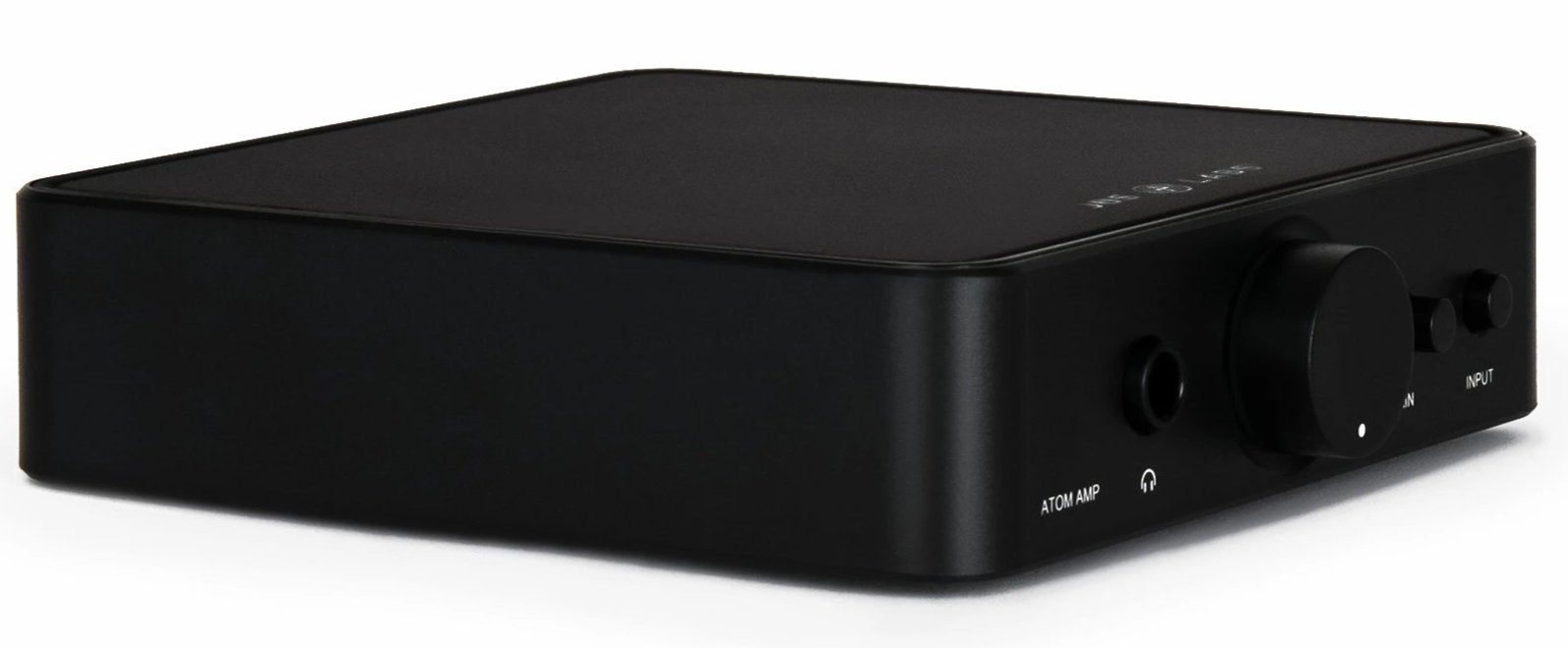

Conceived as the next-generation replacement to Objective2, Atom Amp builds on more than a decade of amplifier design evolution at JDS Labs. We've streamlined the amp to include everything our customers have requested without additional configuration or cost. Atom Amp comes fully loaded with a smooth 1/4" headphone jack, gold-plated preamp RCA outputs, and both 3.5mm and RCA inputs. More power. No noise. Front-mounted controls. Atom Amp, our new standard for performance and value in a headphone amp.
|
PREAMP OUTPUTSUnplug your headphones and Atom Amp's knob adjusts volume of its RCA preamp outputs, so that you can control volume of your powered speakers. |
|
DUAL INPUTSAtom Amp consolidates the need for a separate amp and preamp. Connect up to two sources and select between 3.5mm and RCA input with the push of a button. |
ULTRA HIGH POWERWhile most headphone listening demands only milliwatts, Atom Amp uses the same output buffers as our flagship Element Line, pushing 1W of clean audio per channel. |
|
|
SMART LOGICDesigned for desktop listening, Atom Amp's relay muting eliminates pops and thumps during startup. |
DUAL GAINLow gain of 1.0x is well suited to driving efficient IEMs, while high gain easily powers demanding full size sets when paired with a 2VRMS DAC. |
|
|

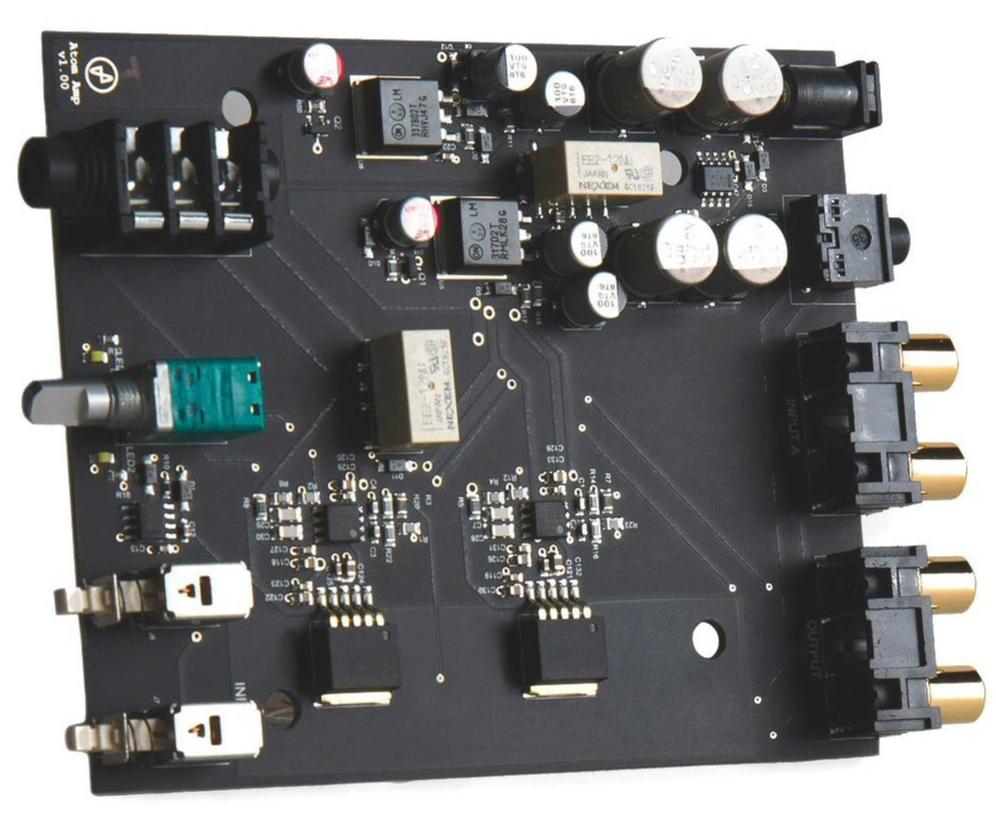

TOP PERFORMANCEAtom Amp is our most advanced analog amplifier to date, achieving top performance from its 4-layer, star grounded layout. |
SPECIFICATIONS
PERFORMANCE
- Frequency Response, 20Hz-20kHz+/- 0.01dB
- THD+N, 1kHz, 32 Ω0.0008%
- THD+N, 20Hz-20kHz, 32 Ω0.0012%
- IMD CCIF 19/20kHz 32 Ω0.0002%
- IMD SMPTE 32Ω0.0005%
- Noise, A-Weighted-114 dBu
- Crosstalk @ 150 Ω-87 dB
- Input Impedance10k Ω
- Output Impedance0.1 Ω
- Channel Balance< 0.6 dB
- Max Output @ 600Ω125mW (8.68 VRMS)
- Max Output @ 150Ω502 mW (8.66 VRMS)
- Max Output @ 32Ω1 Watt (5.66 VRMS)
DIMENSIONS
- Case Dimensions5.0 x 5.5 x 1.4 in
- Weight9.3 oz
CONNECTIVITY
- Headphone Output6.35mm (1/4")
- Analog InputsRCA and 3.5mm
- Preamp-OutputRCA
CONFIGURATION
- Dual Gain1.0x and 4.5x
- Volume Potentiometer TaperAlps 15A
PACKAGED ITEMS
- Atom Amp
- 16VAC Power Adapter
