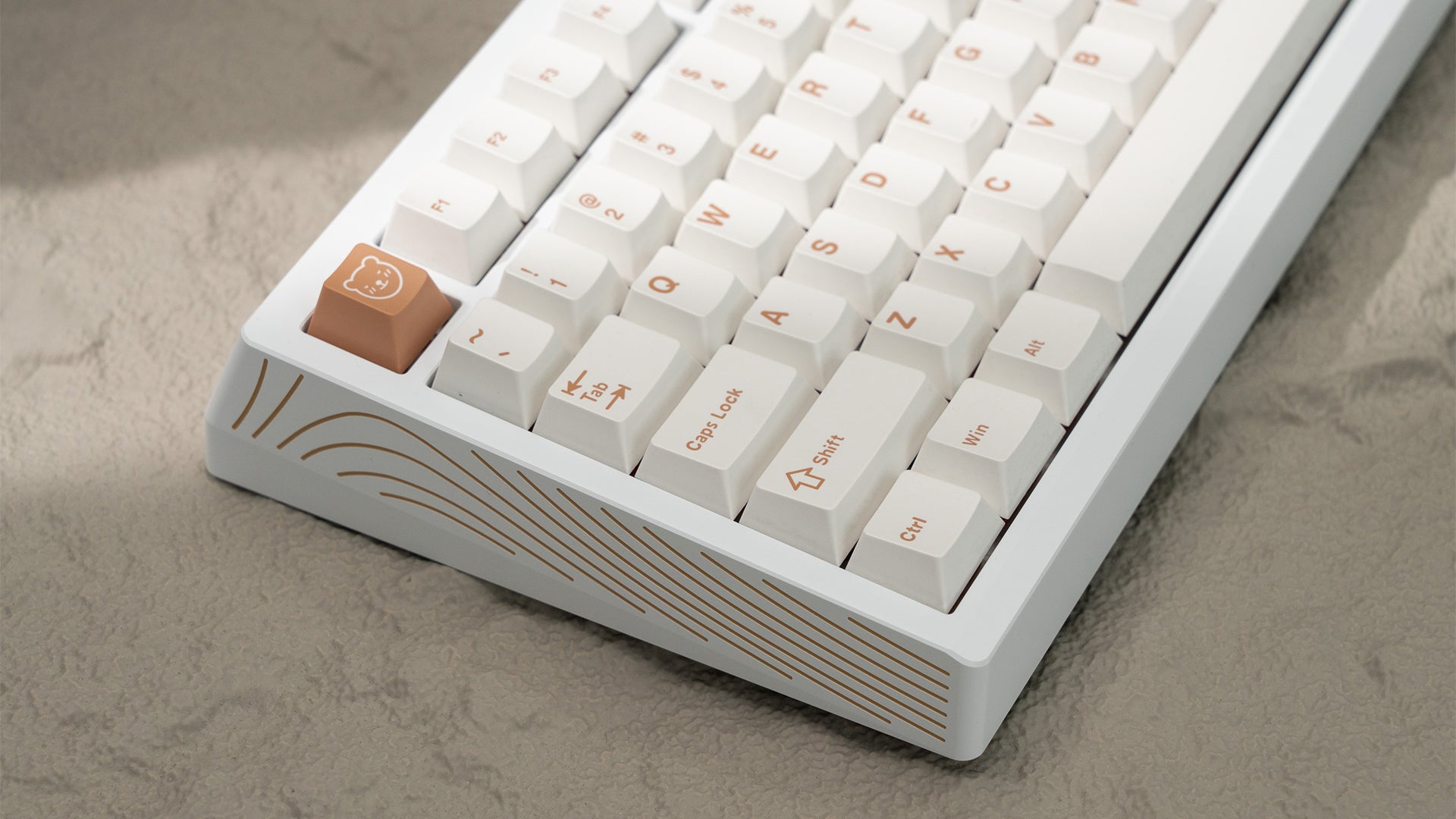

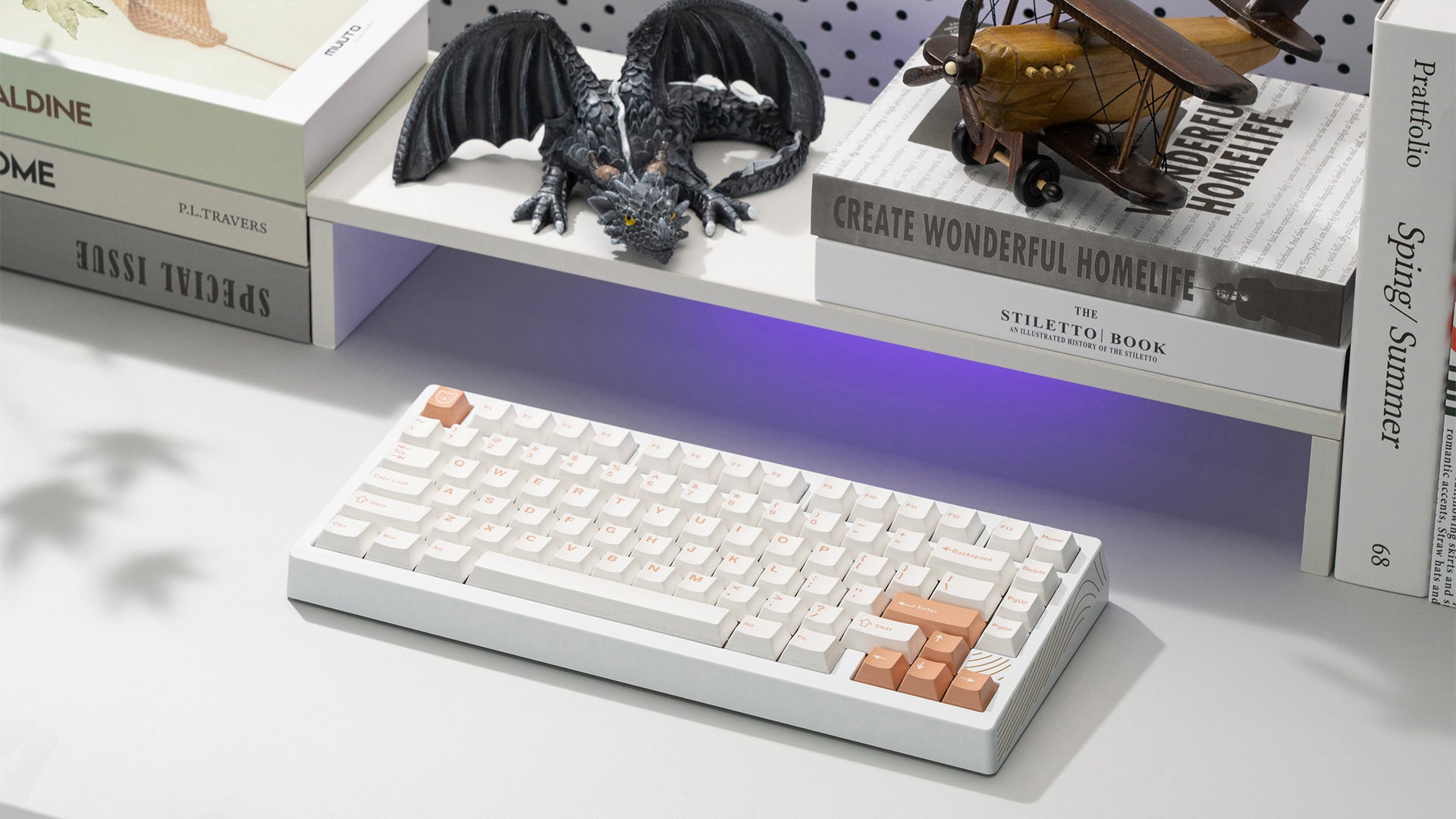

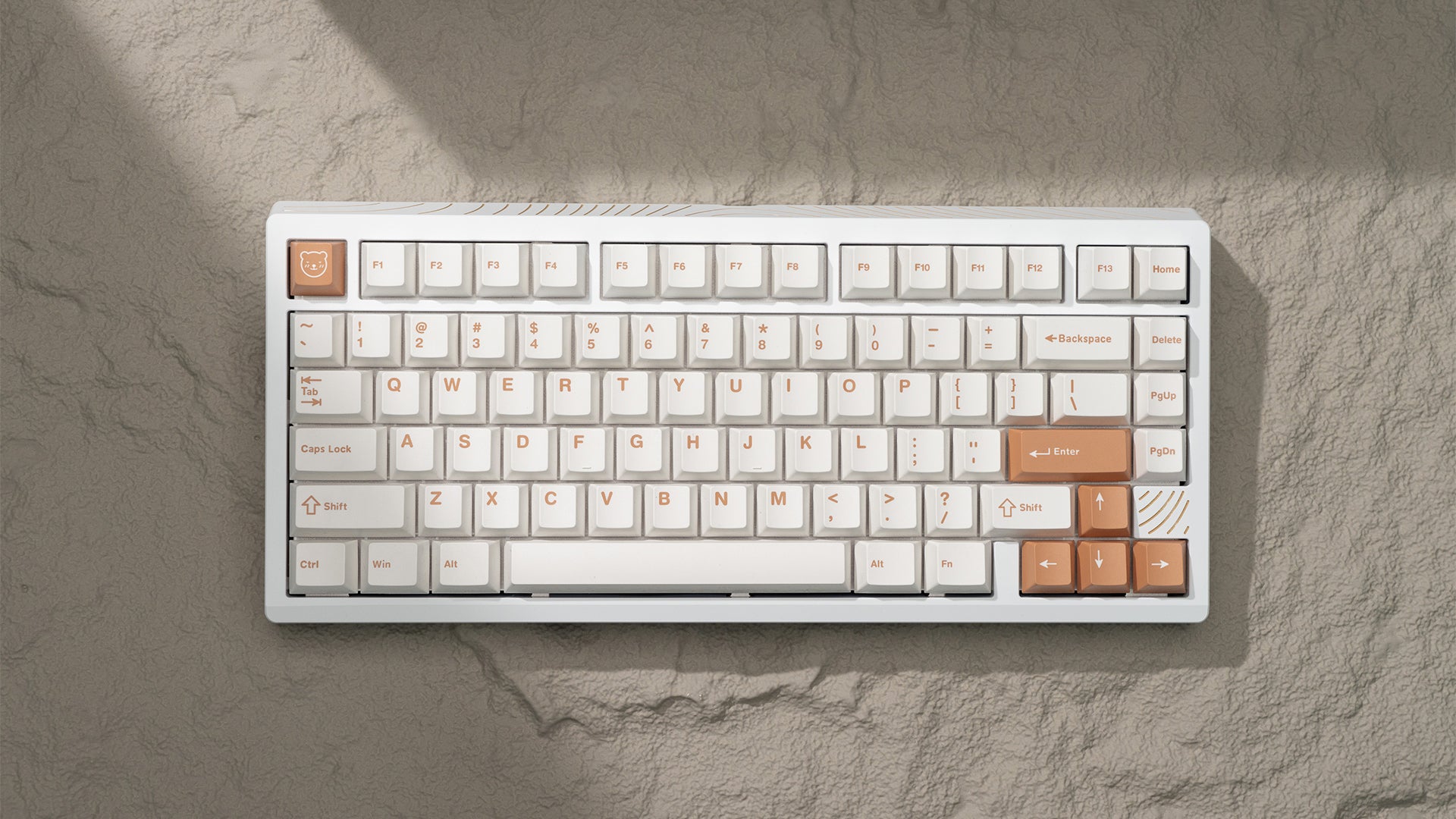

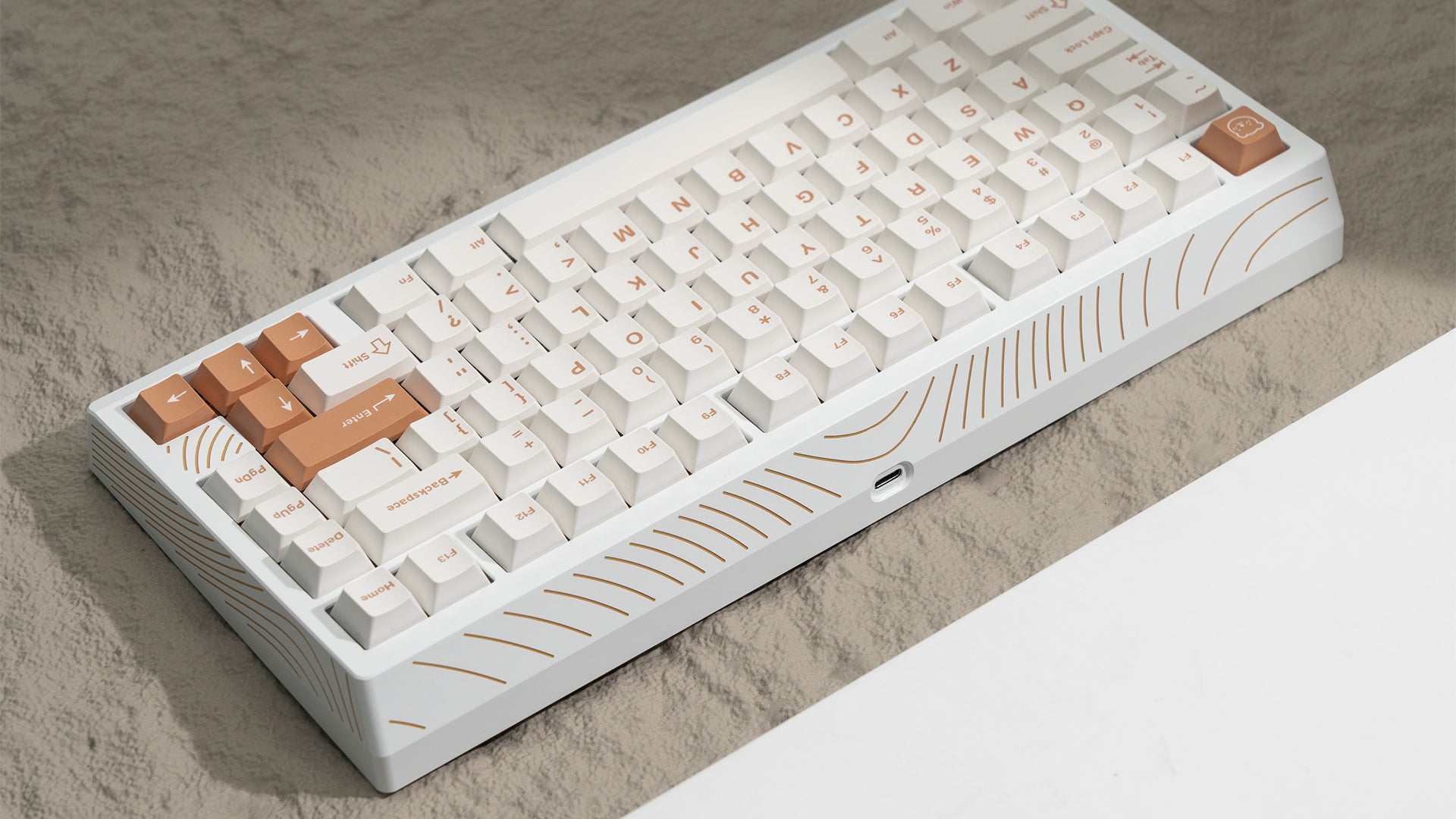

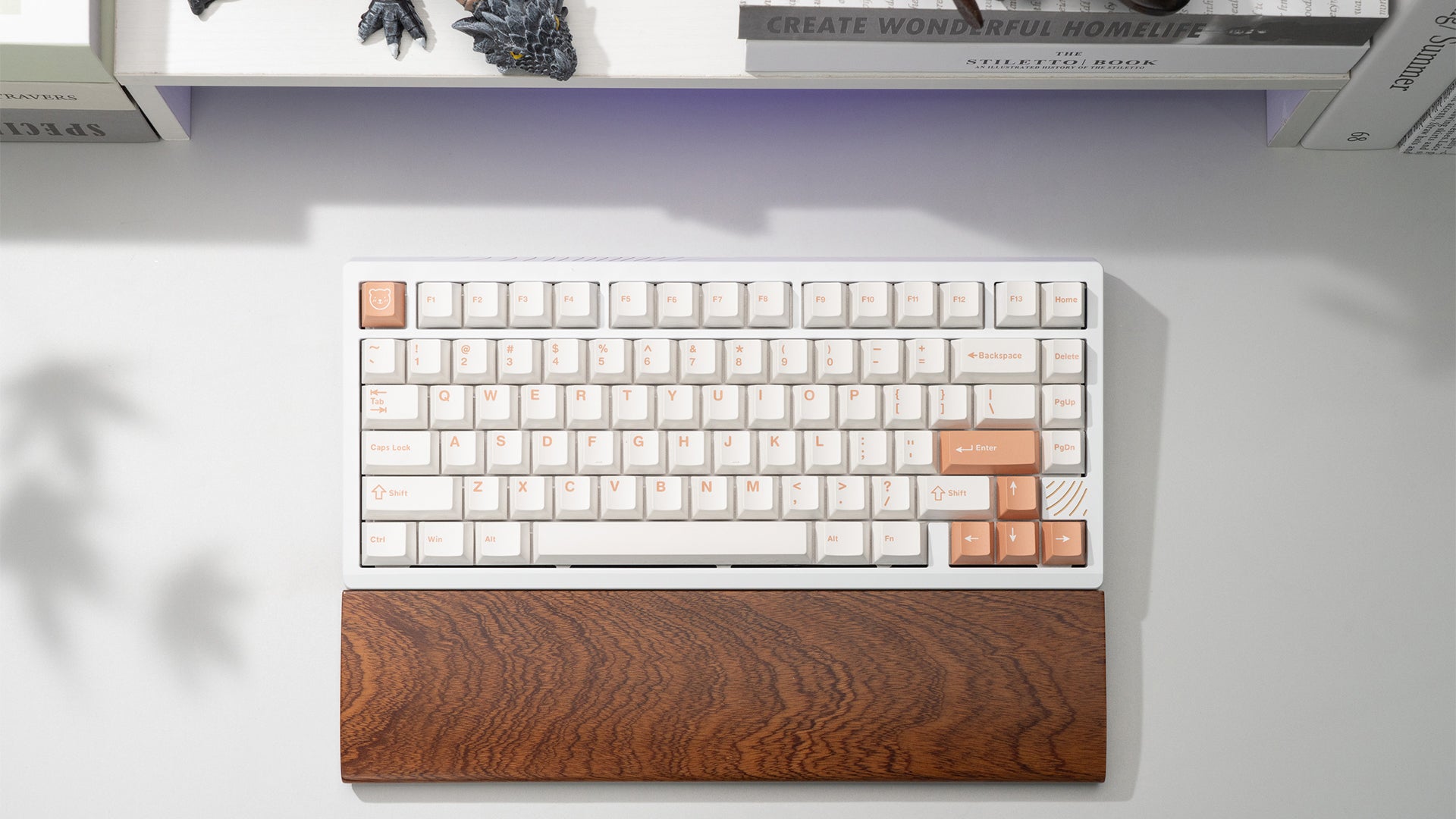

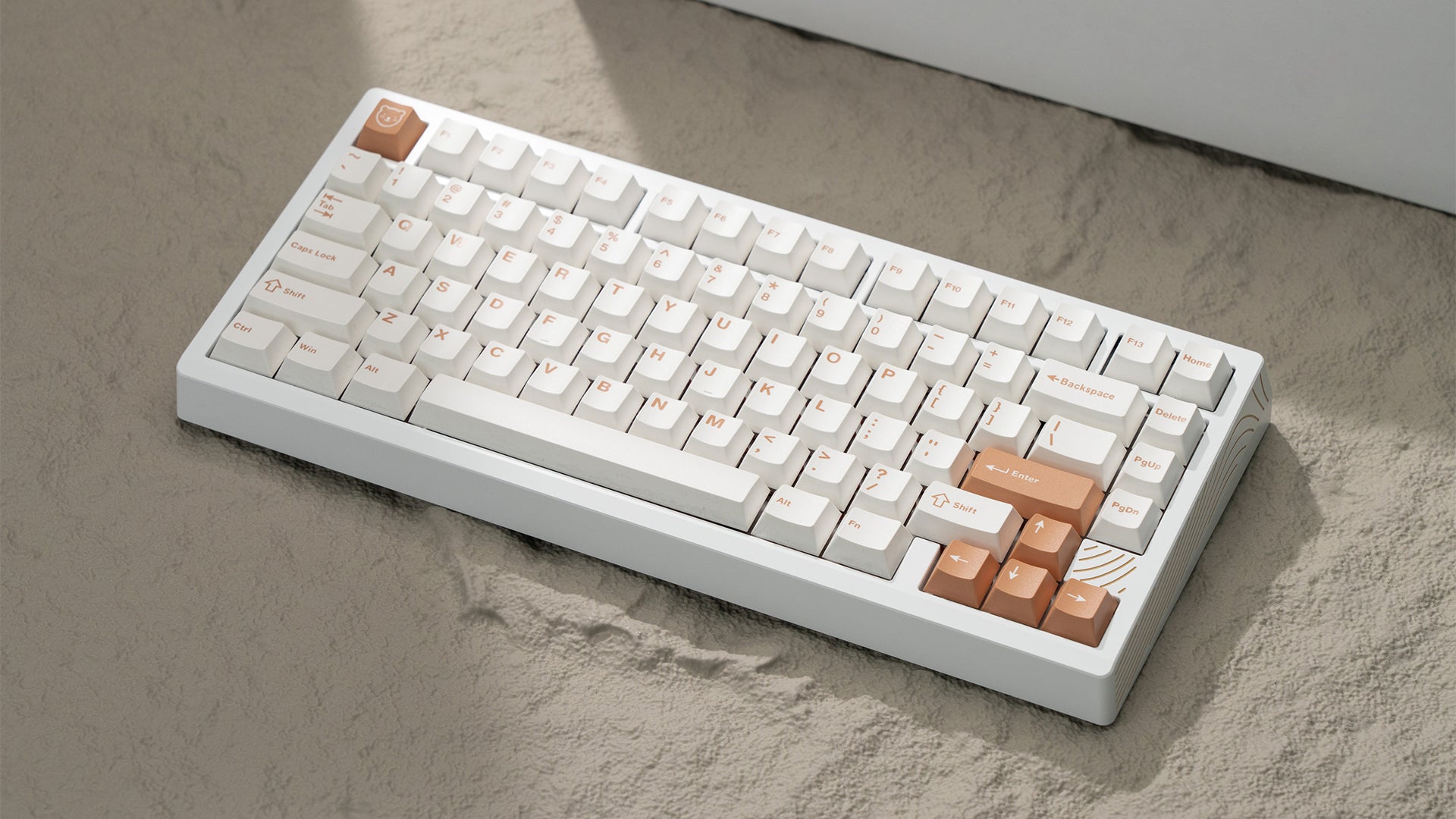

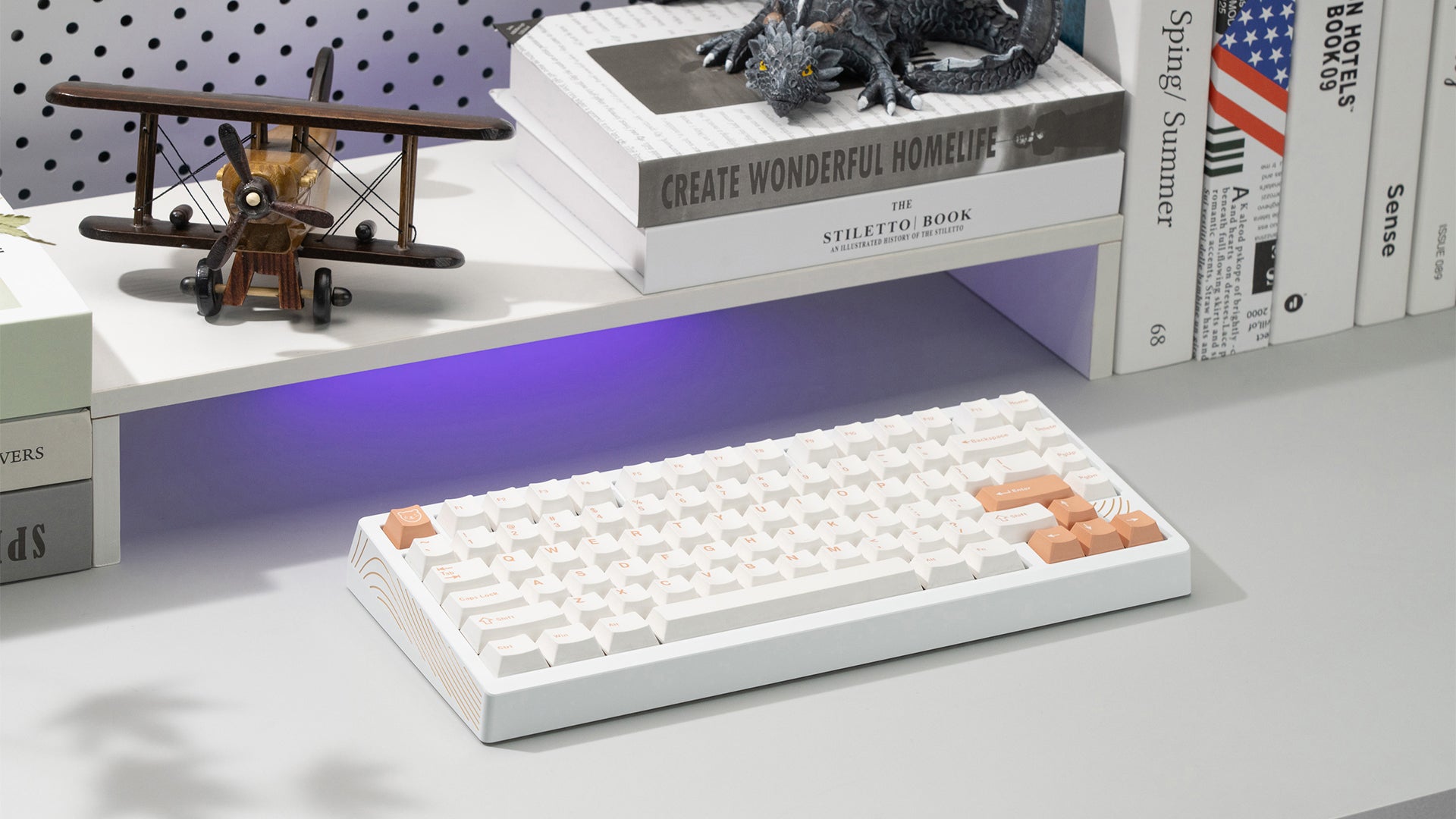

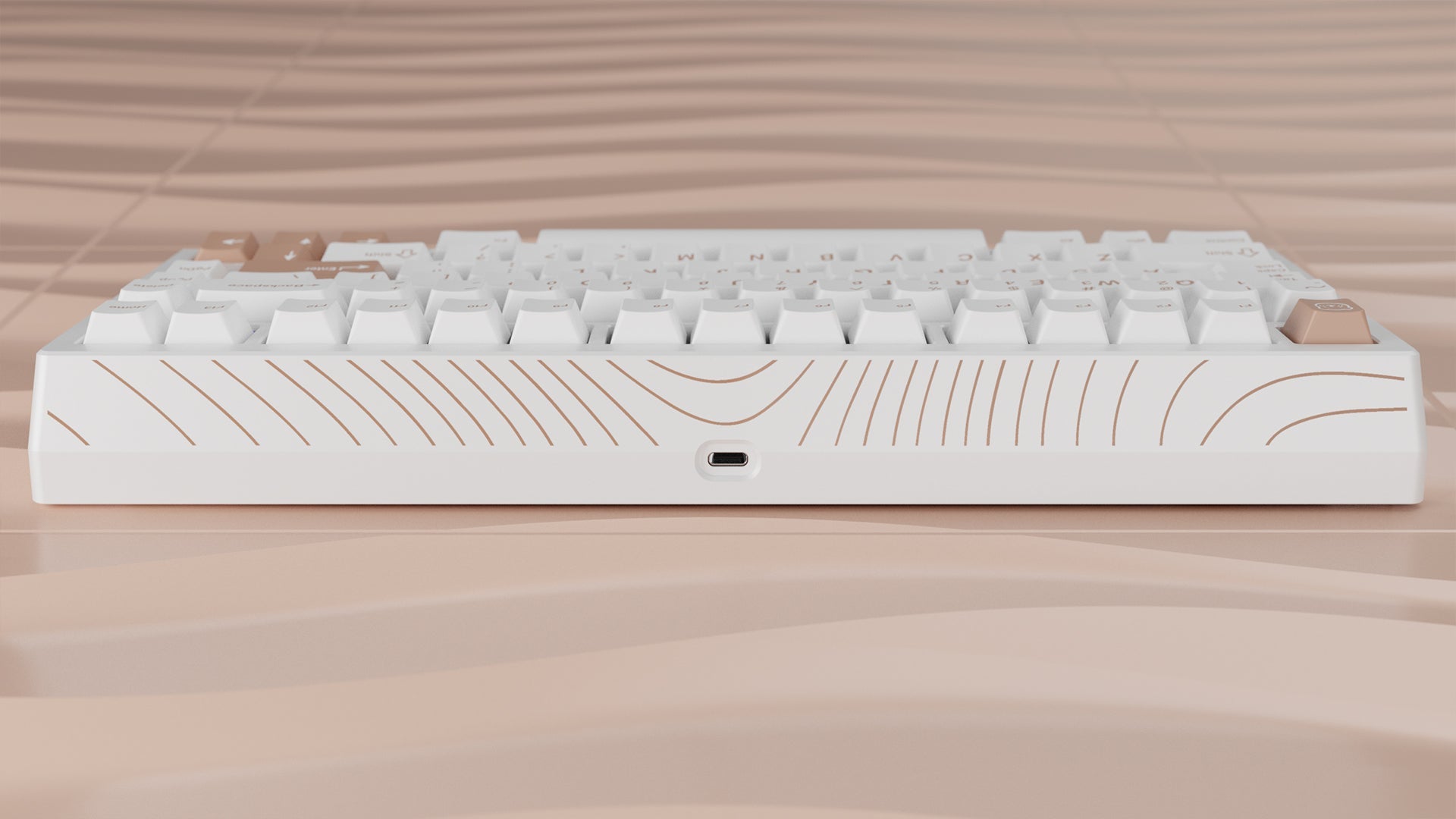

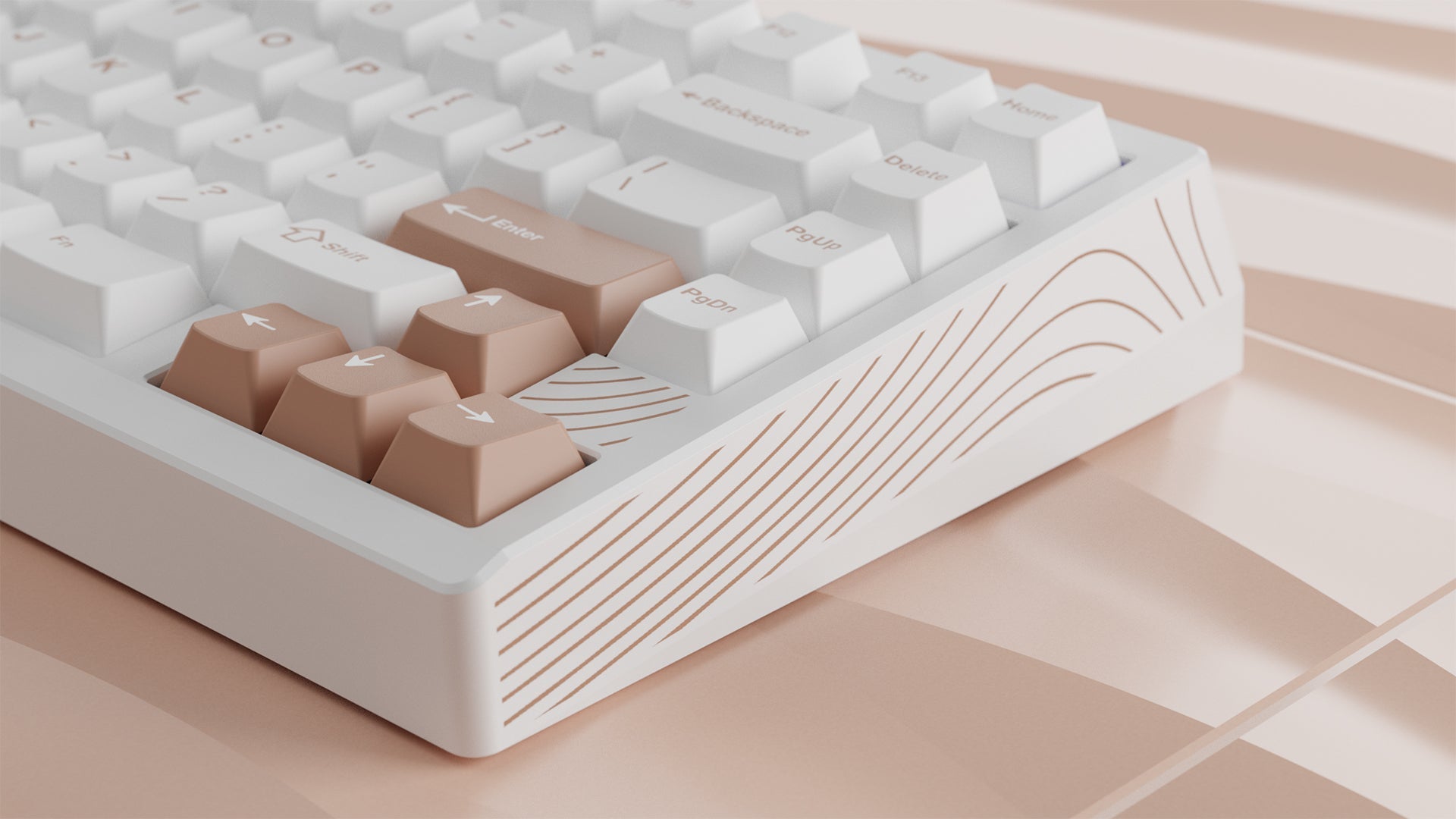

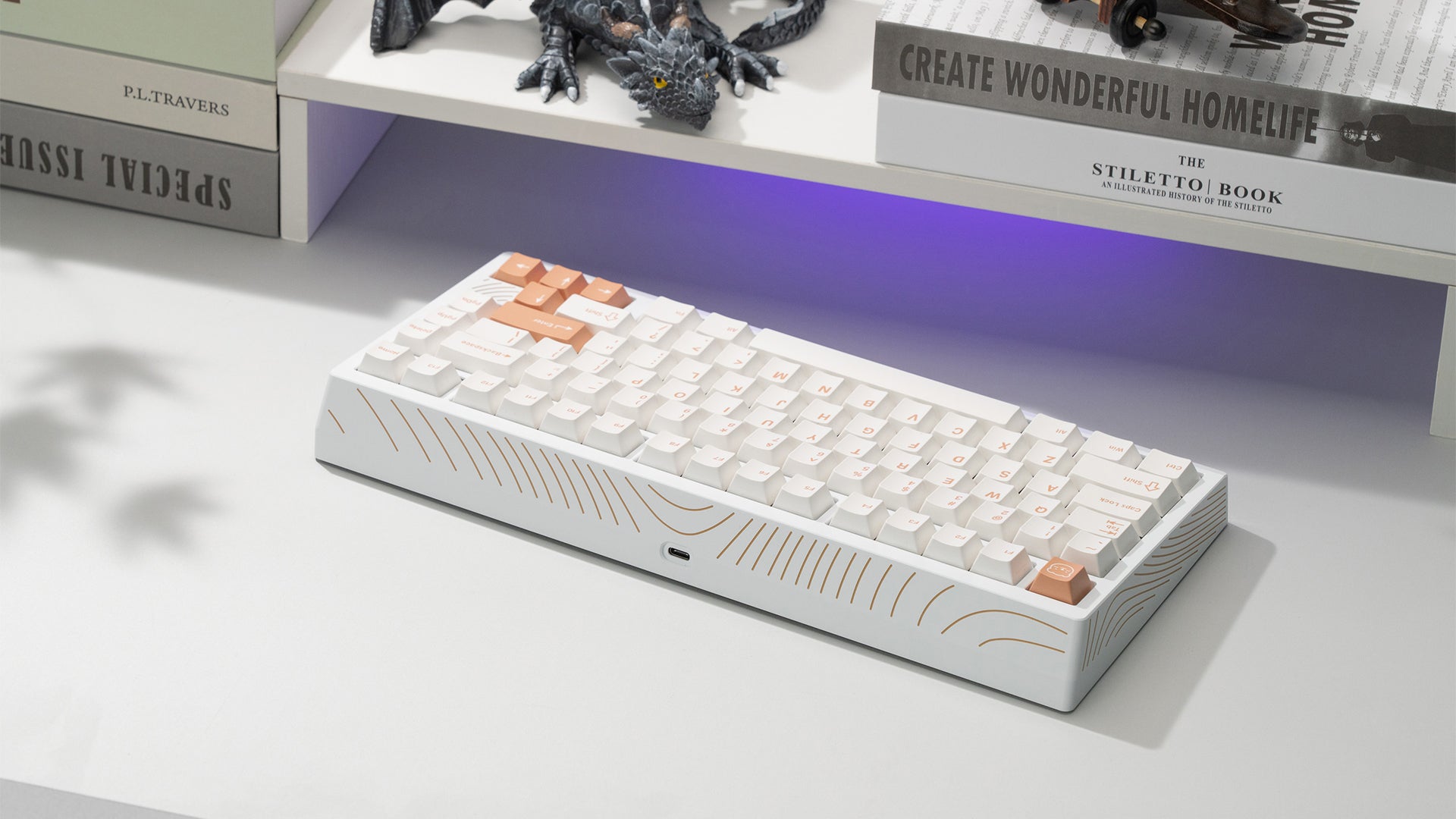

BOOG75 Hall Effect Keyboard

SKU: KB-WUQUE-BOOG75-PREBUILT-BLACK

$355.00 CAD

Sold out

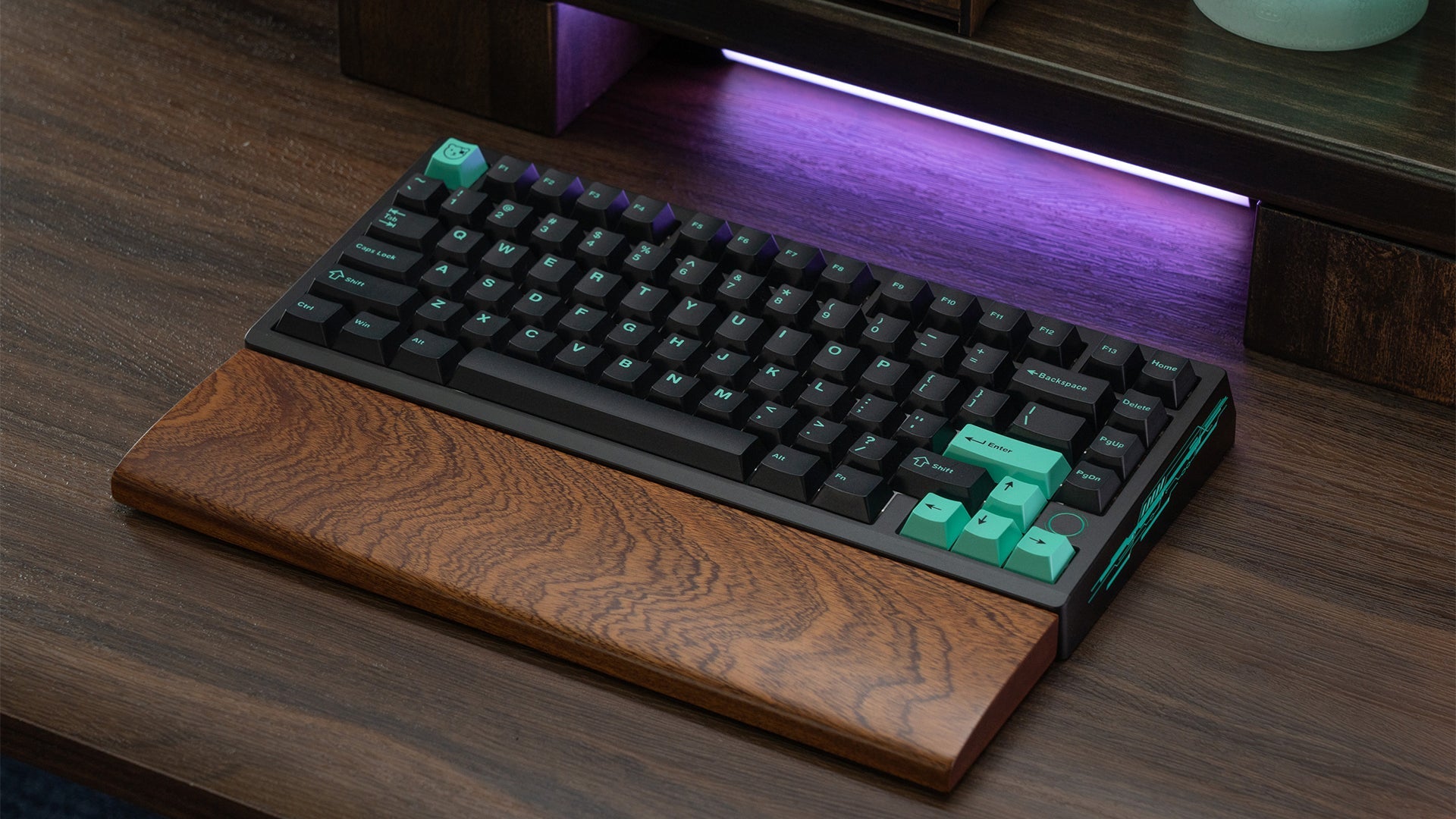

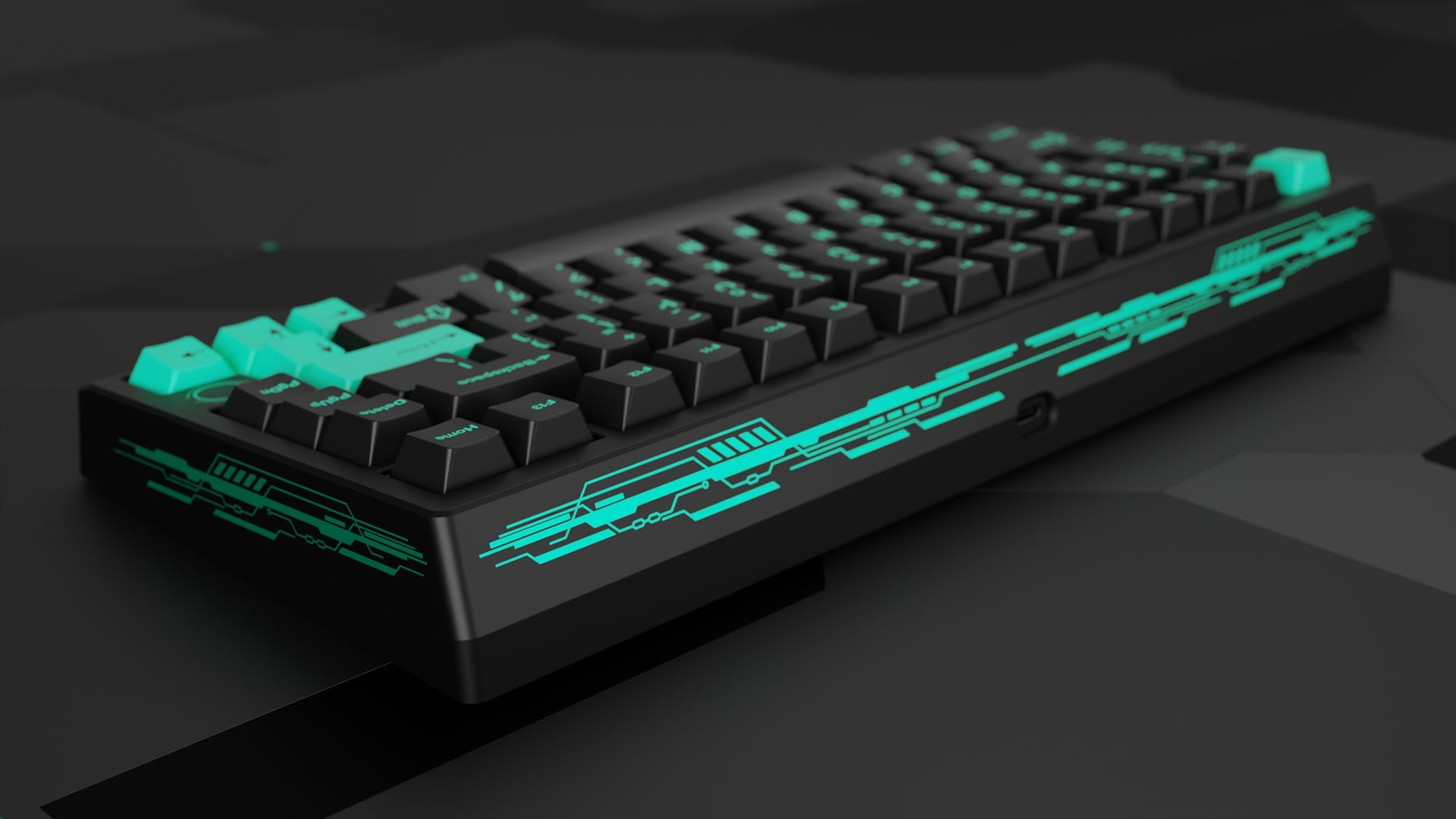

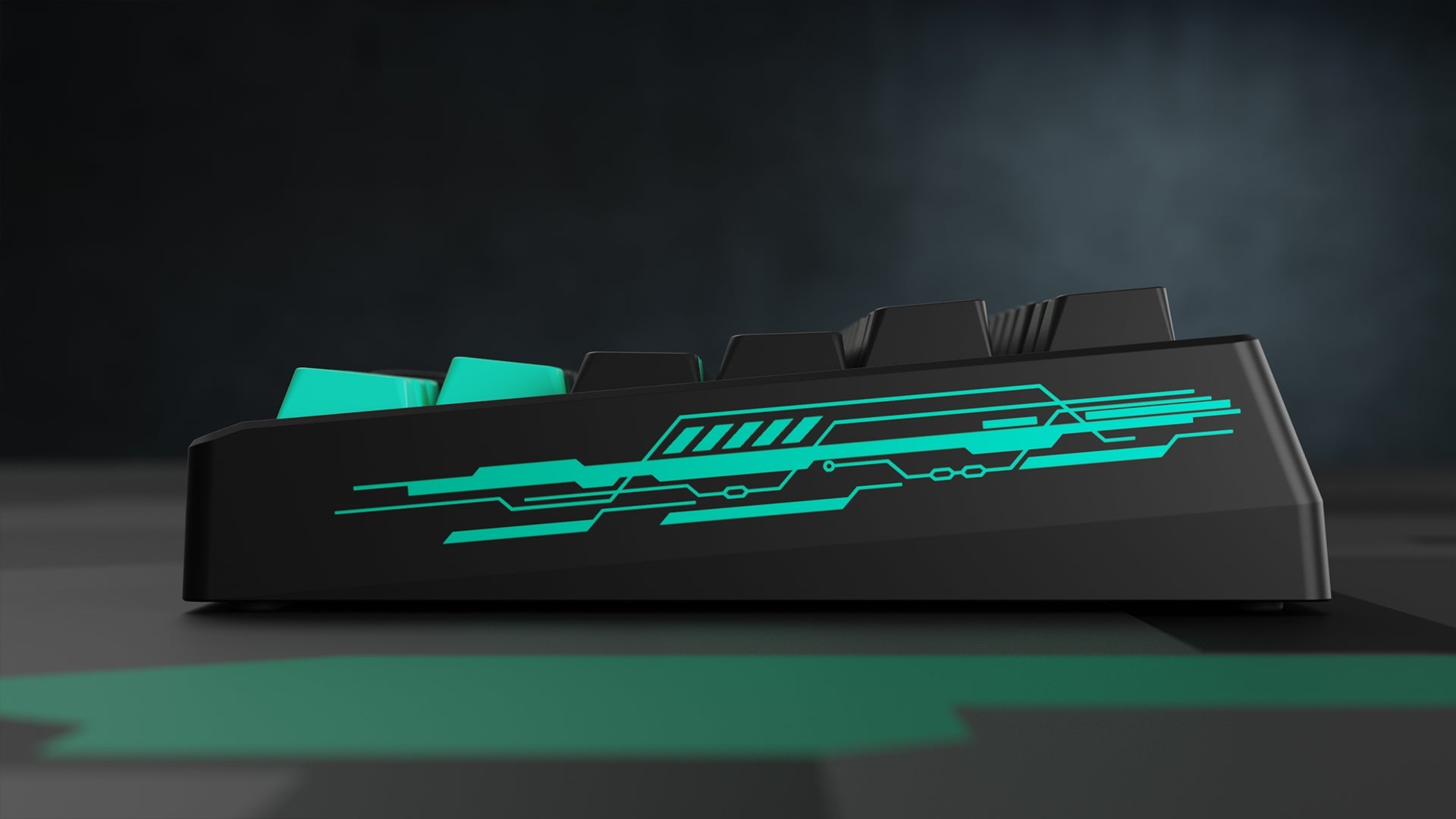

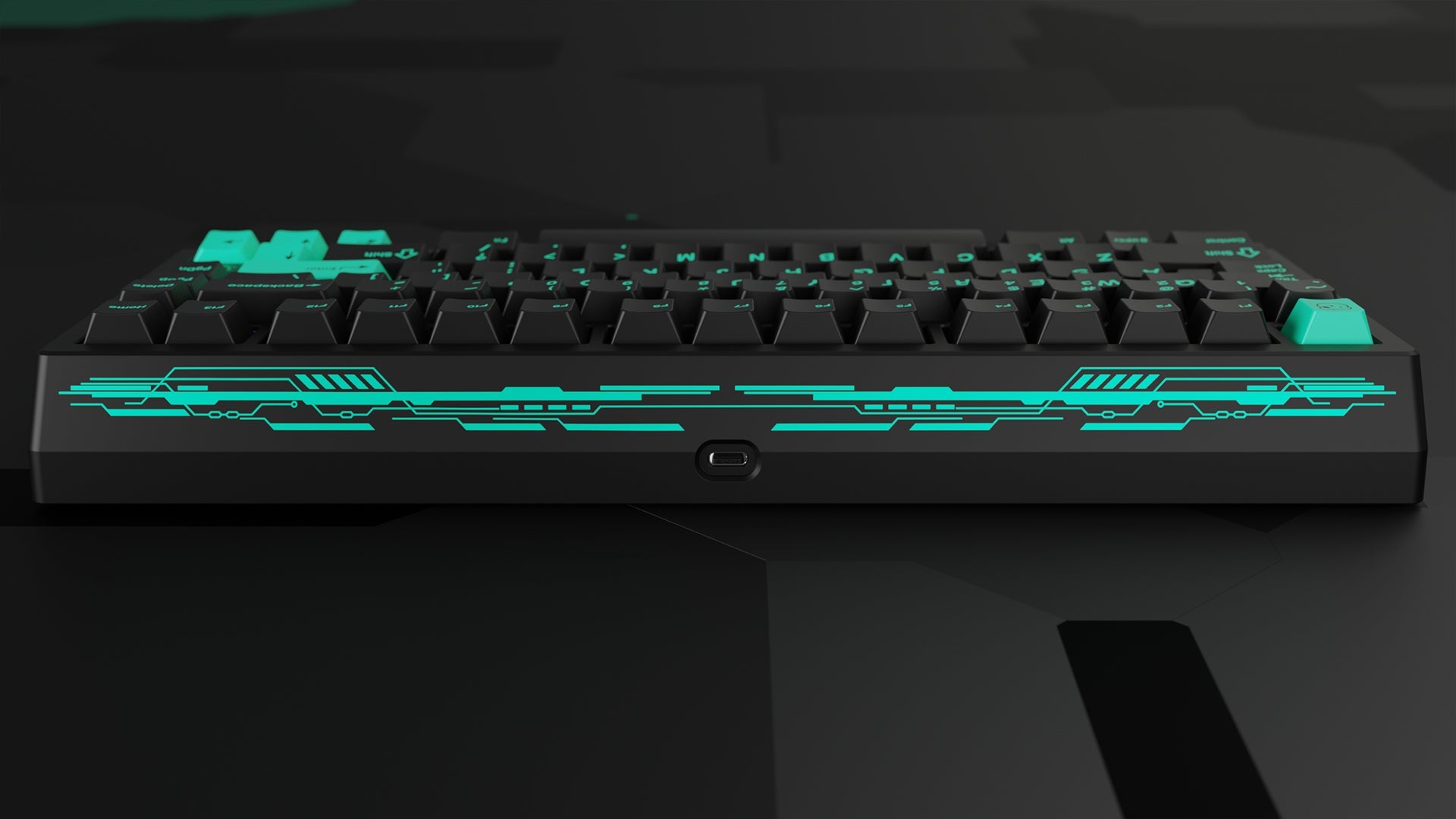

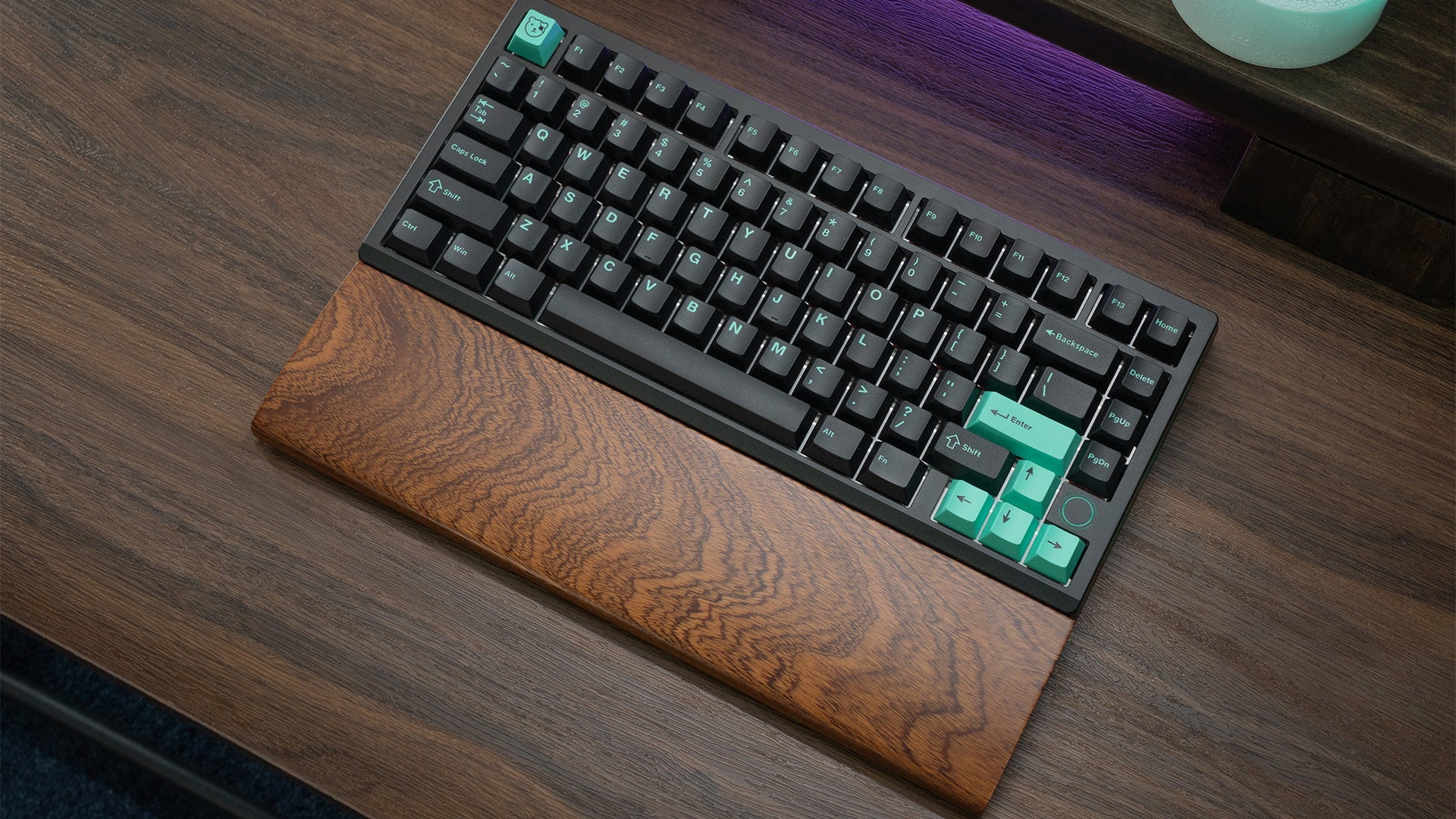

Color: Shockwave (Black)

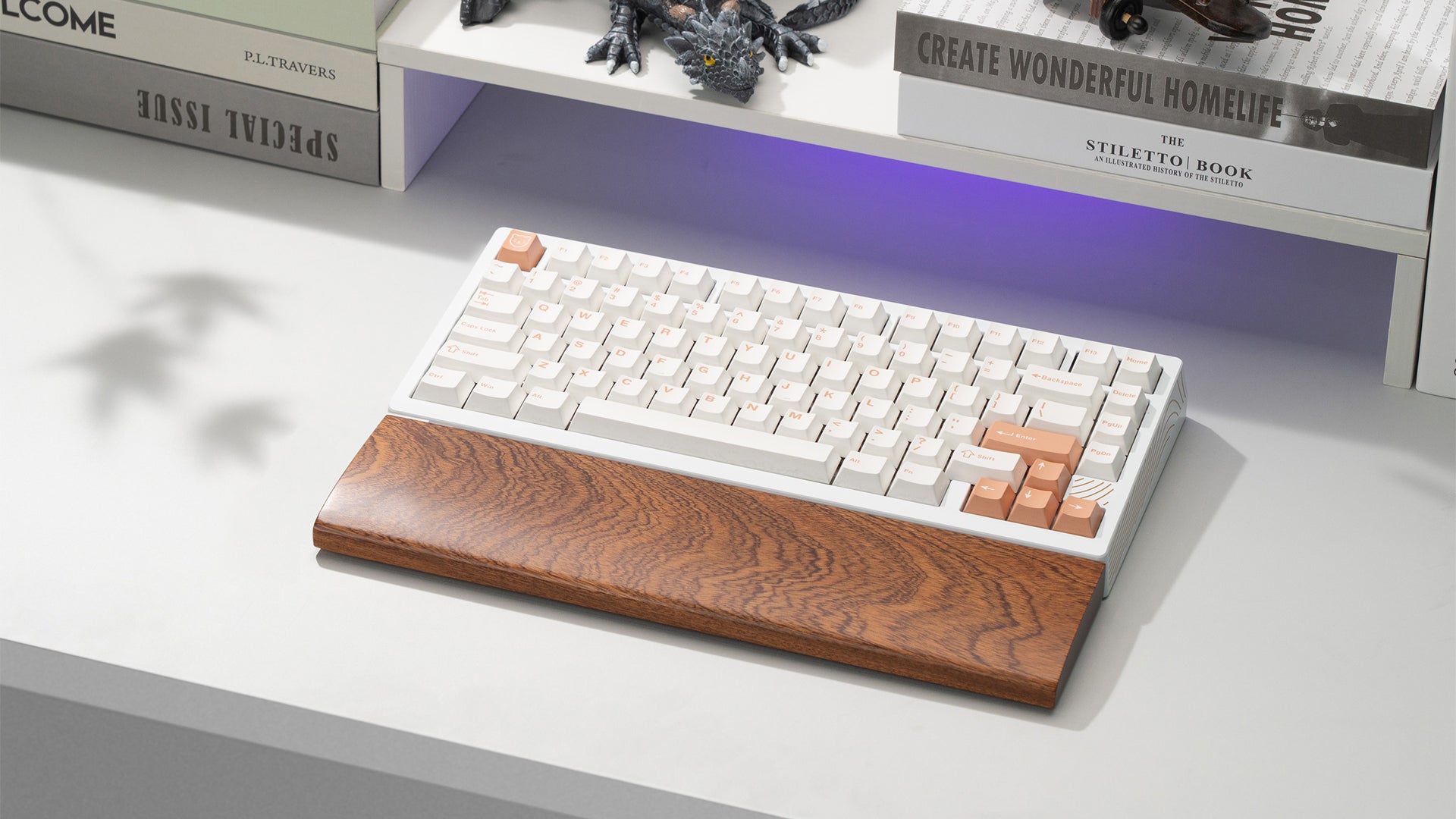

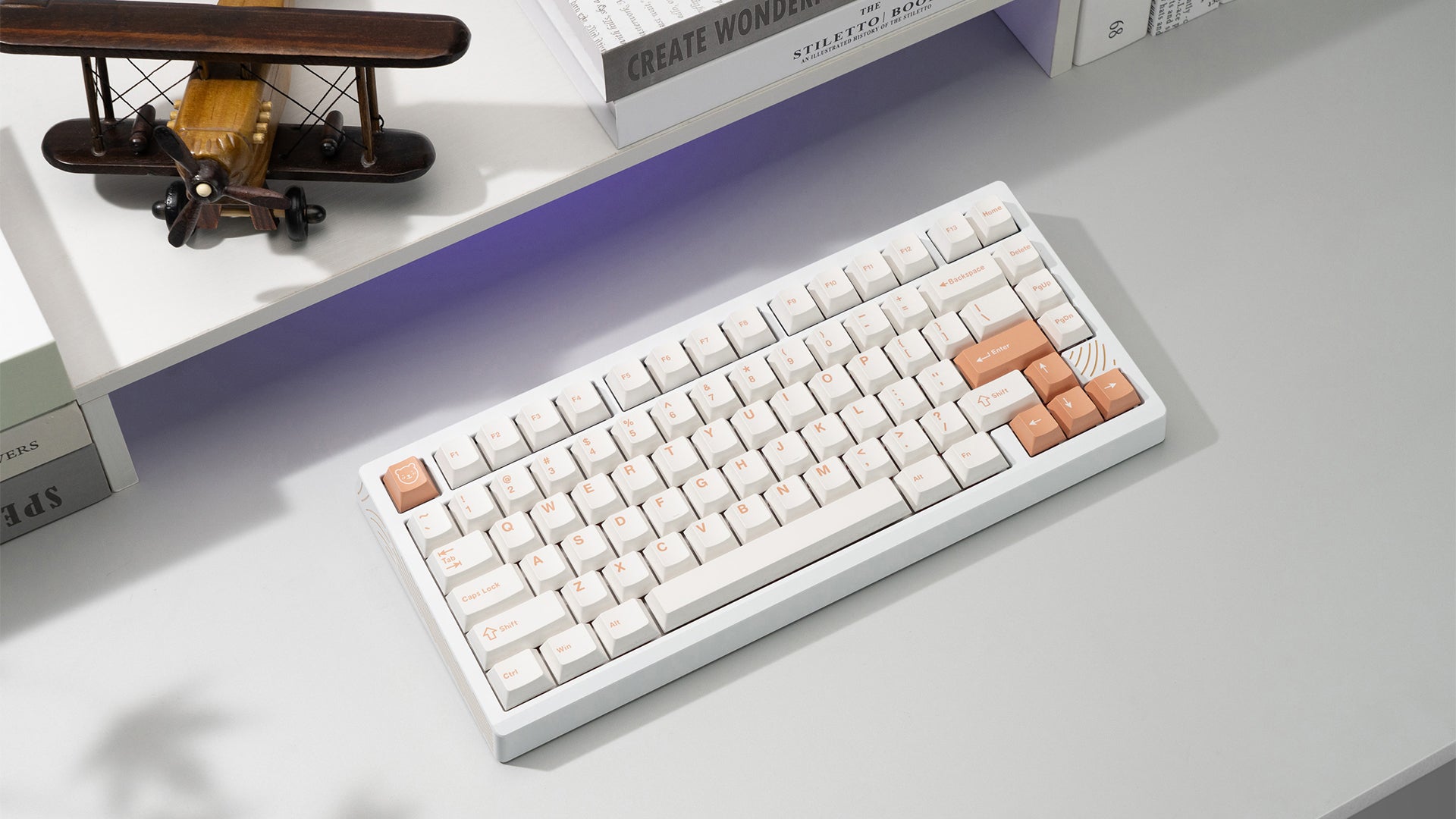

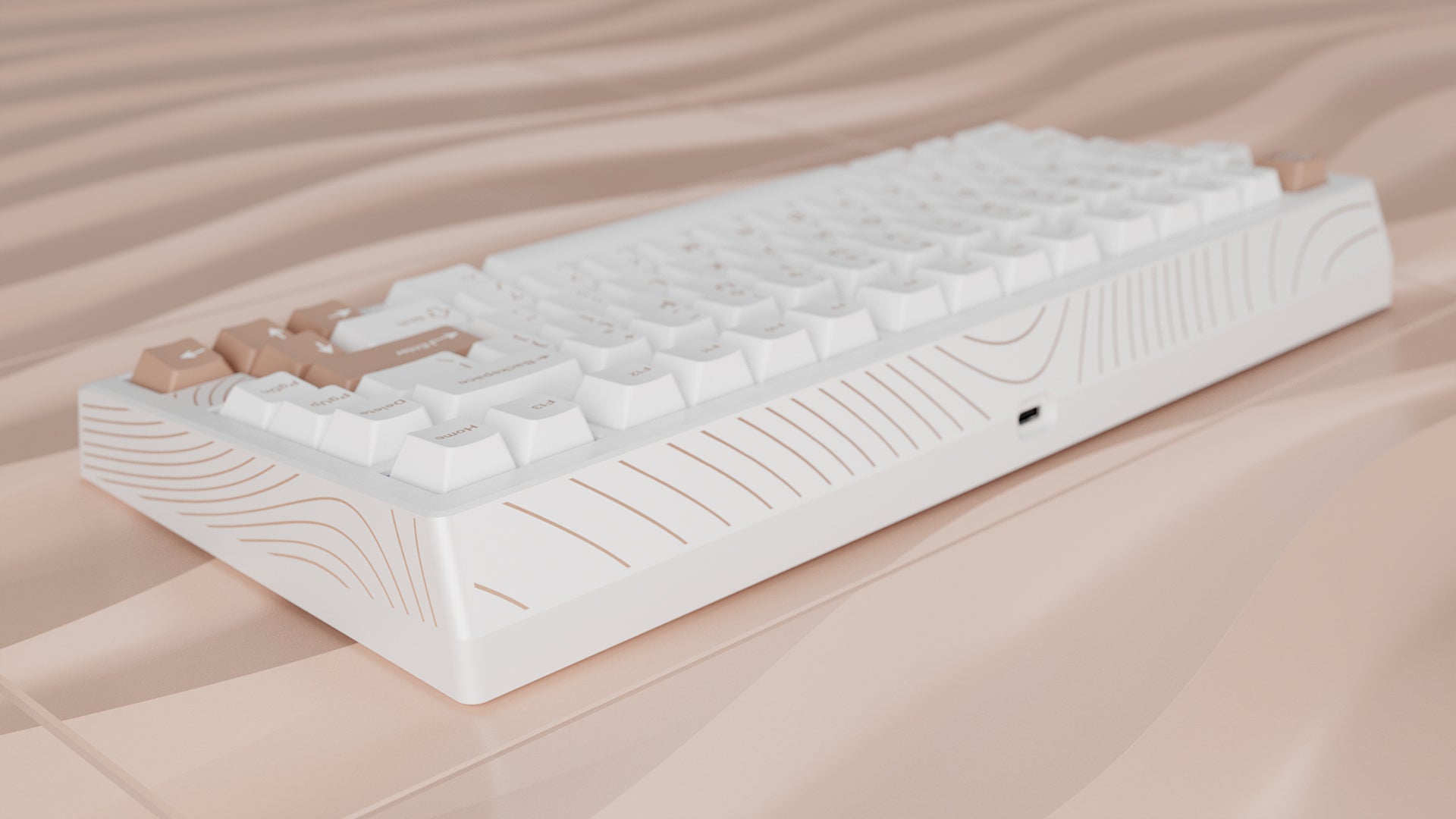

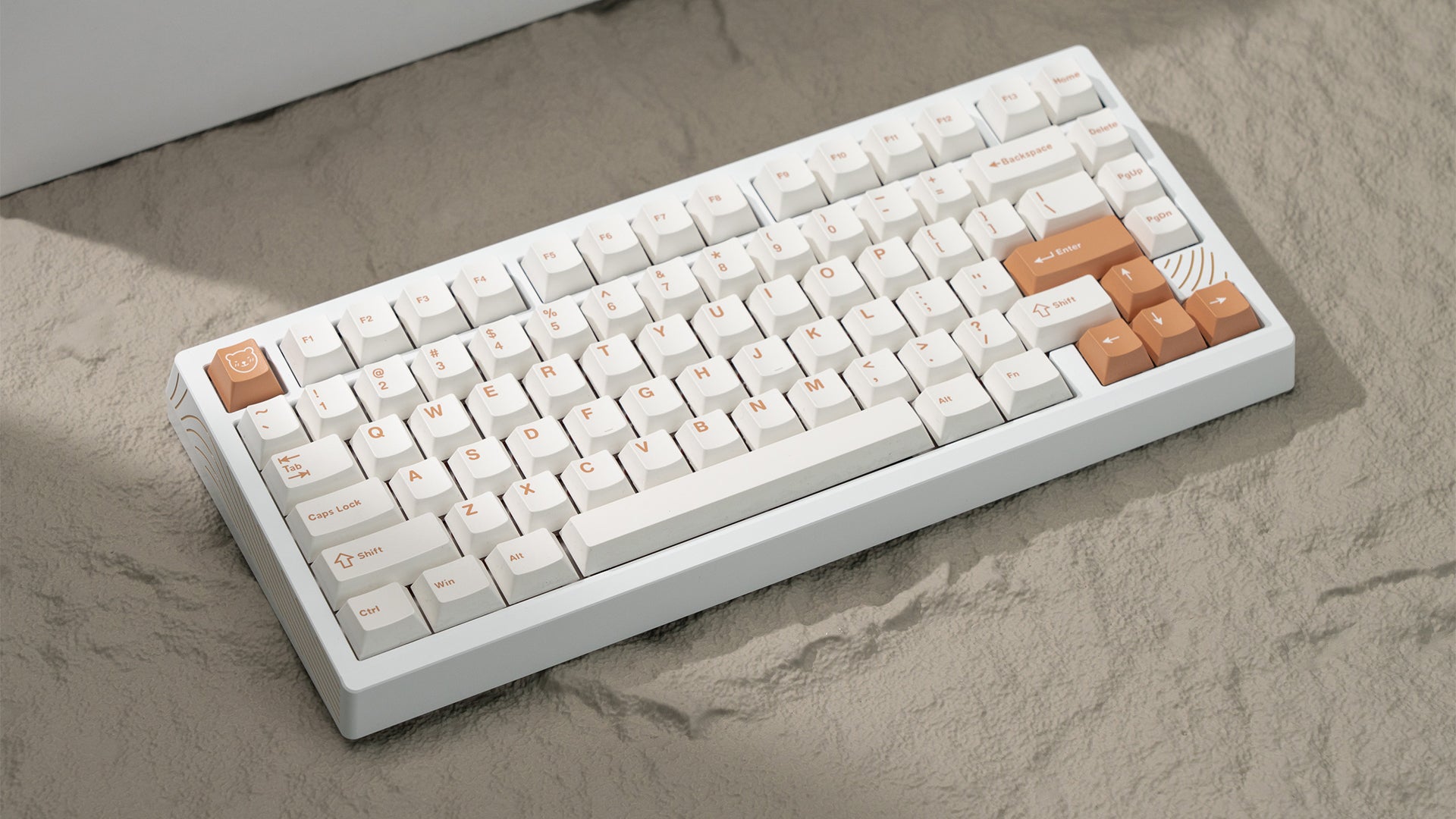

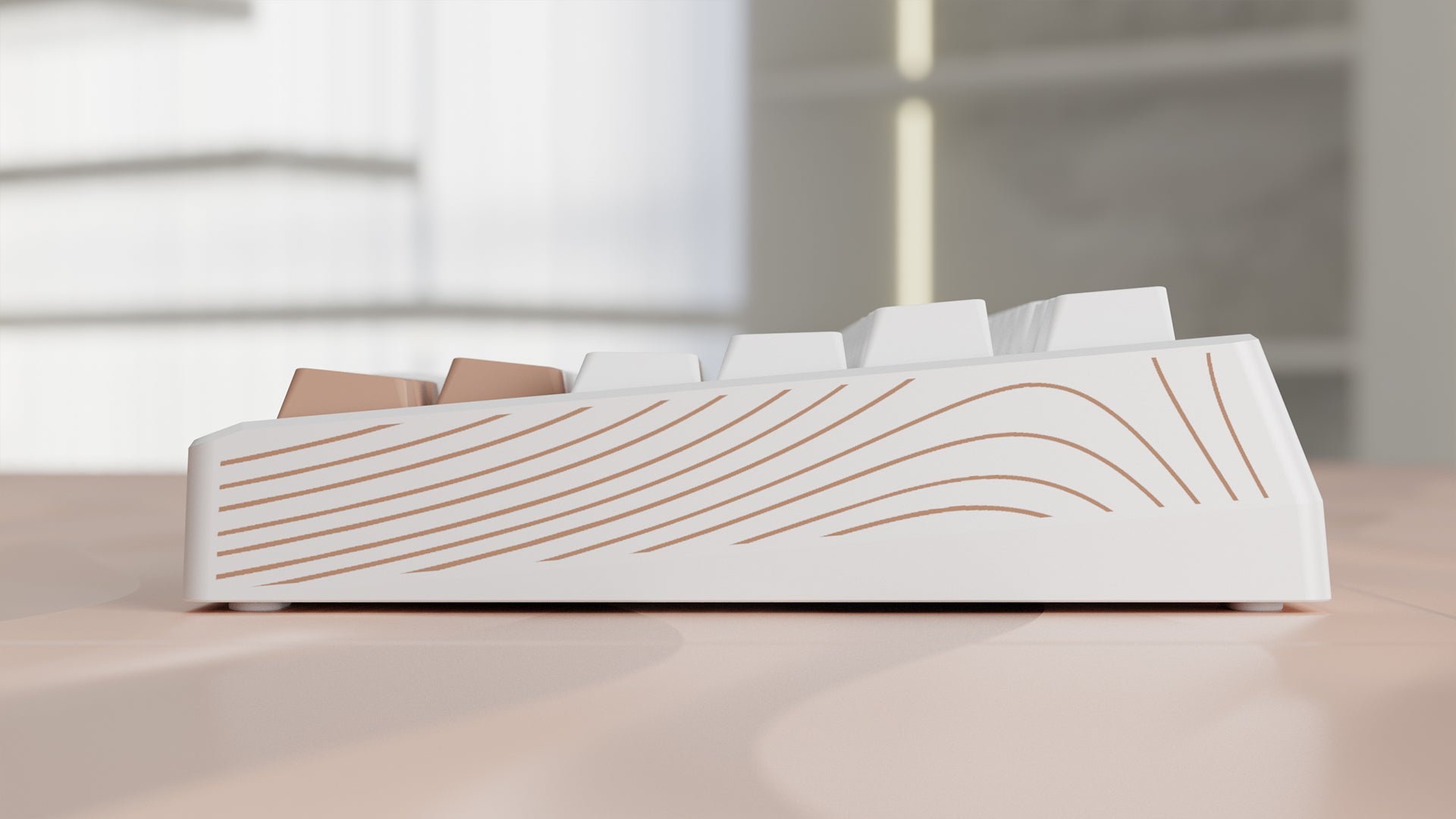

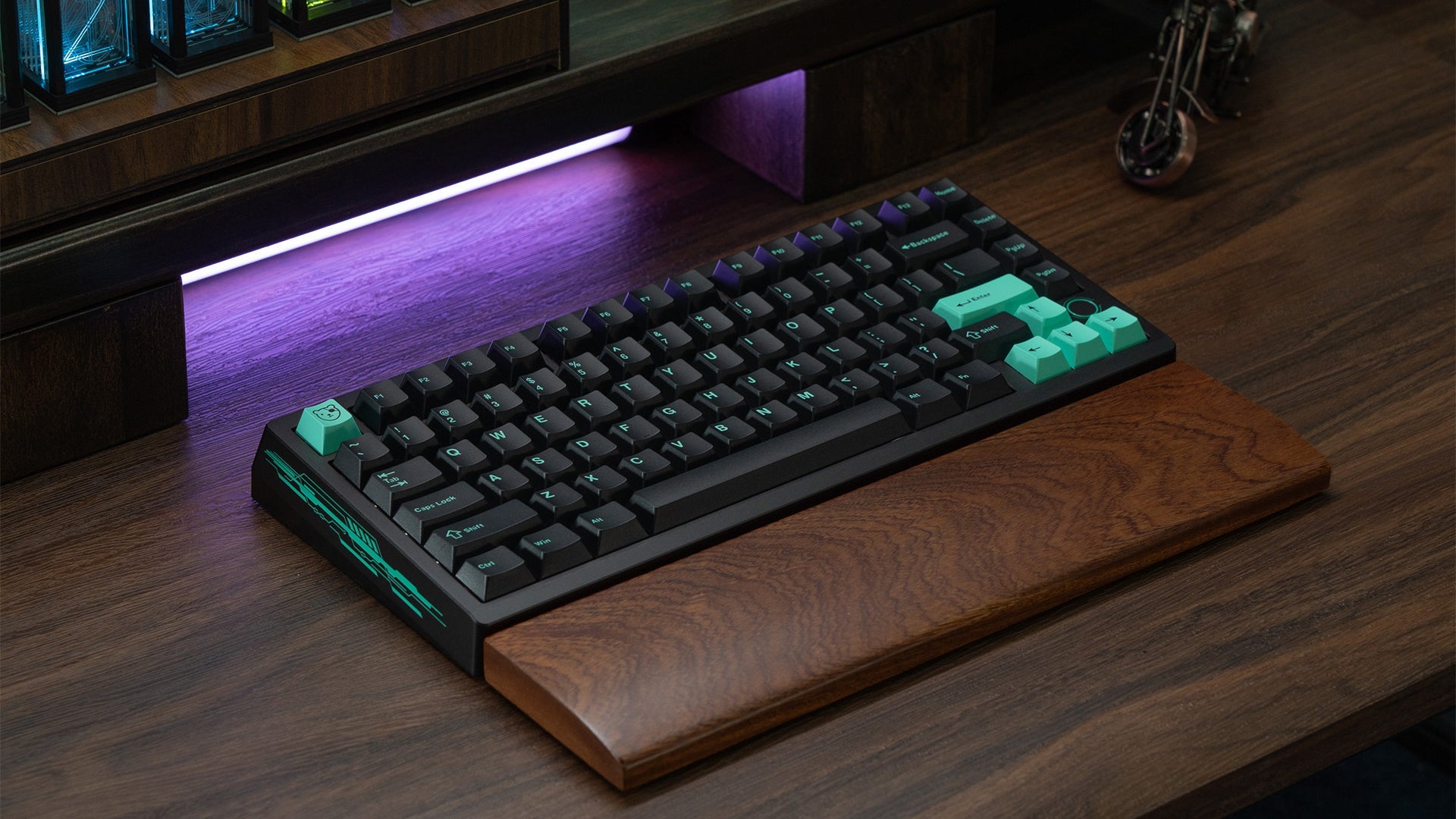

Shockwave (Black) Induction Coil (White)

Specifications

Keyboard Specifications

Gasket Mount Design

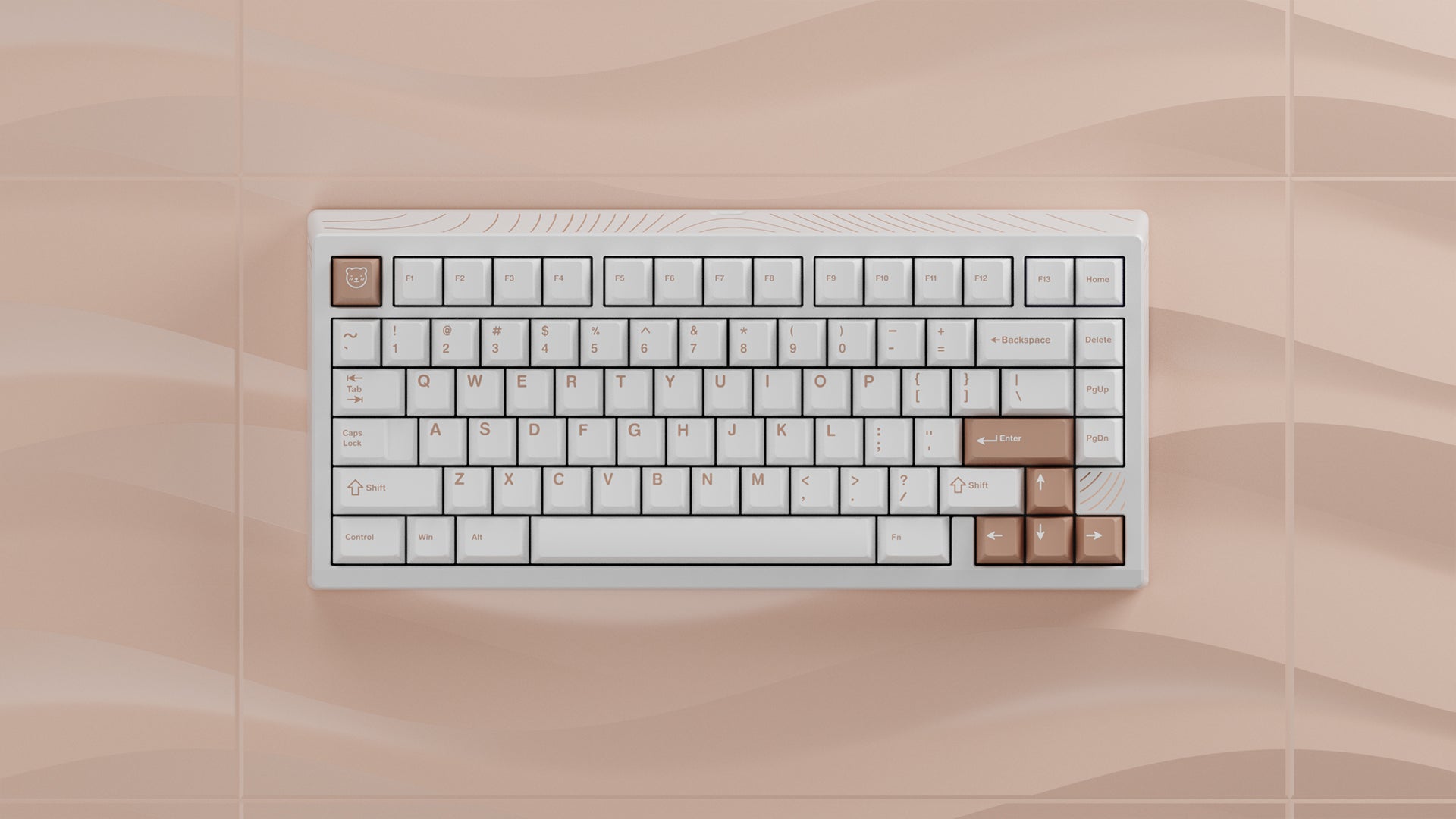

75% Layout
PCB: 1.6mm, with Ai03 DB
5° Typing angle
22.14 mm front height
Dimension: 323.6 x 145.78 x 34.73 (mm)
Default plate: Alu
Case Material: 6063 Aluminum
Case Finish: Anodized+Infill (No Sparkles, No Chamfer)

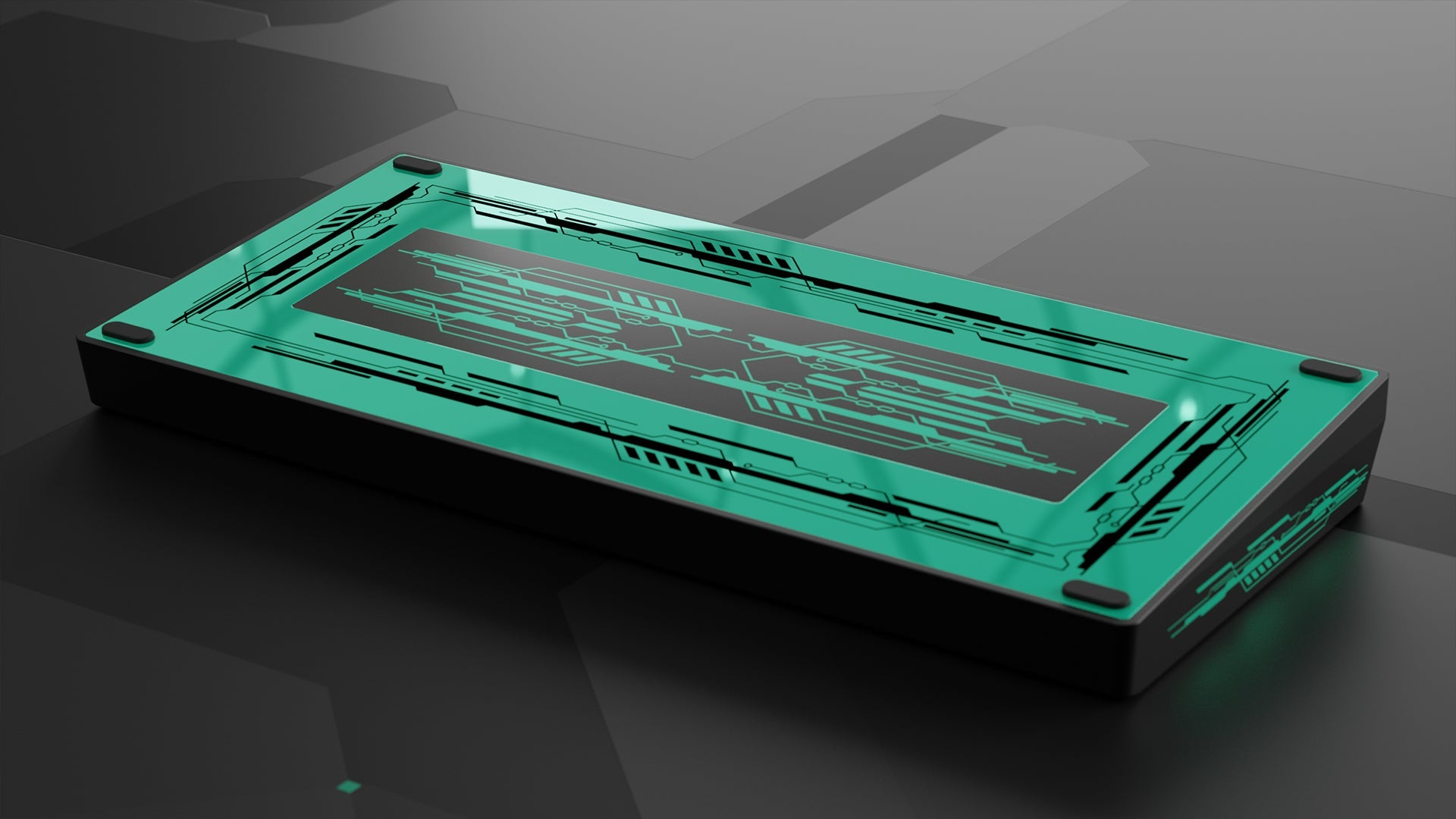

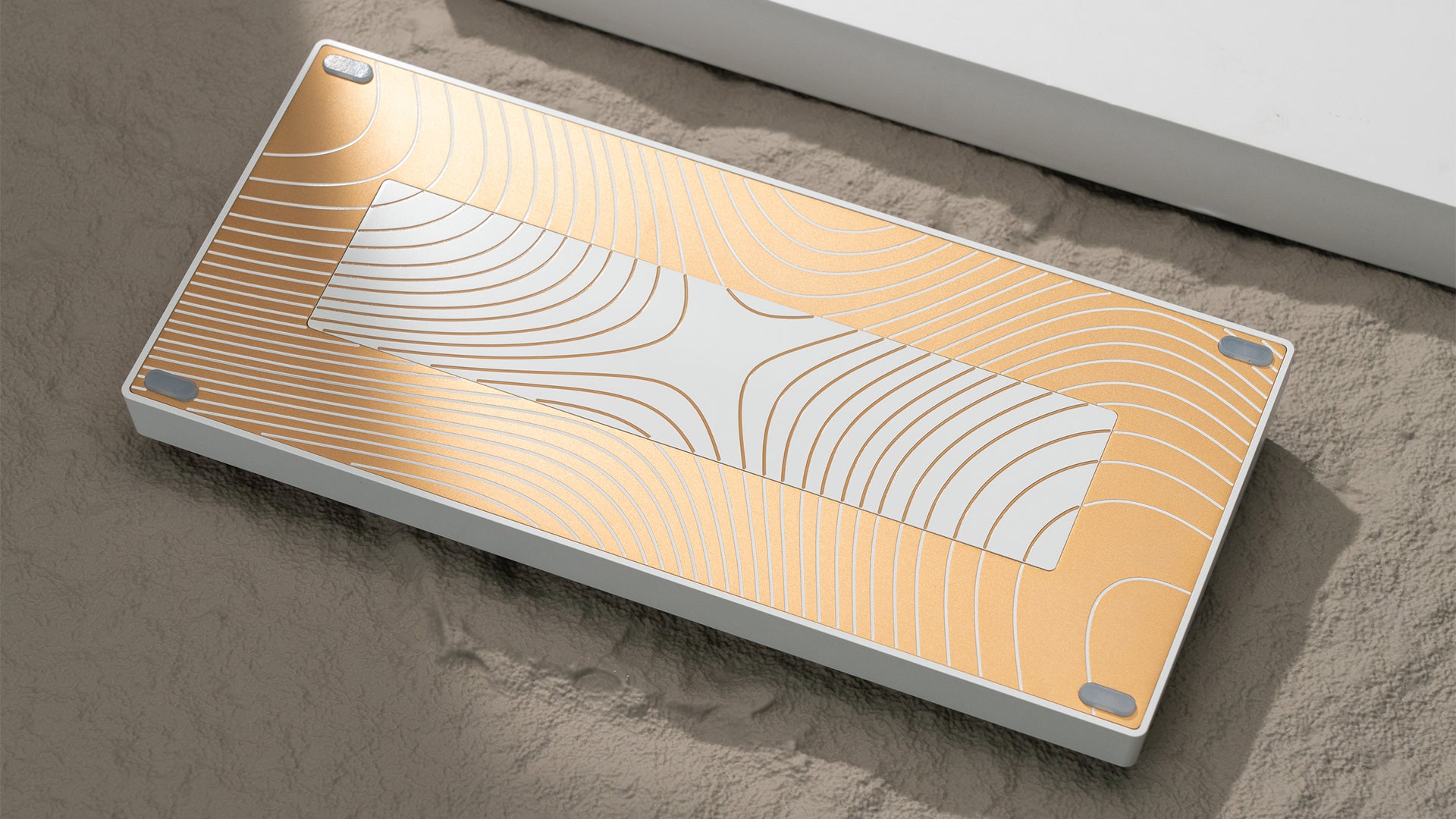

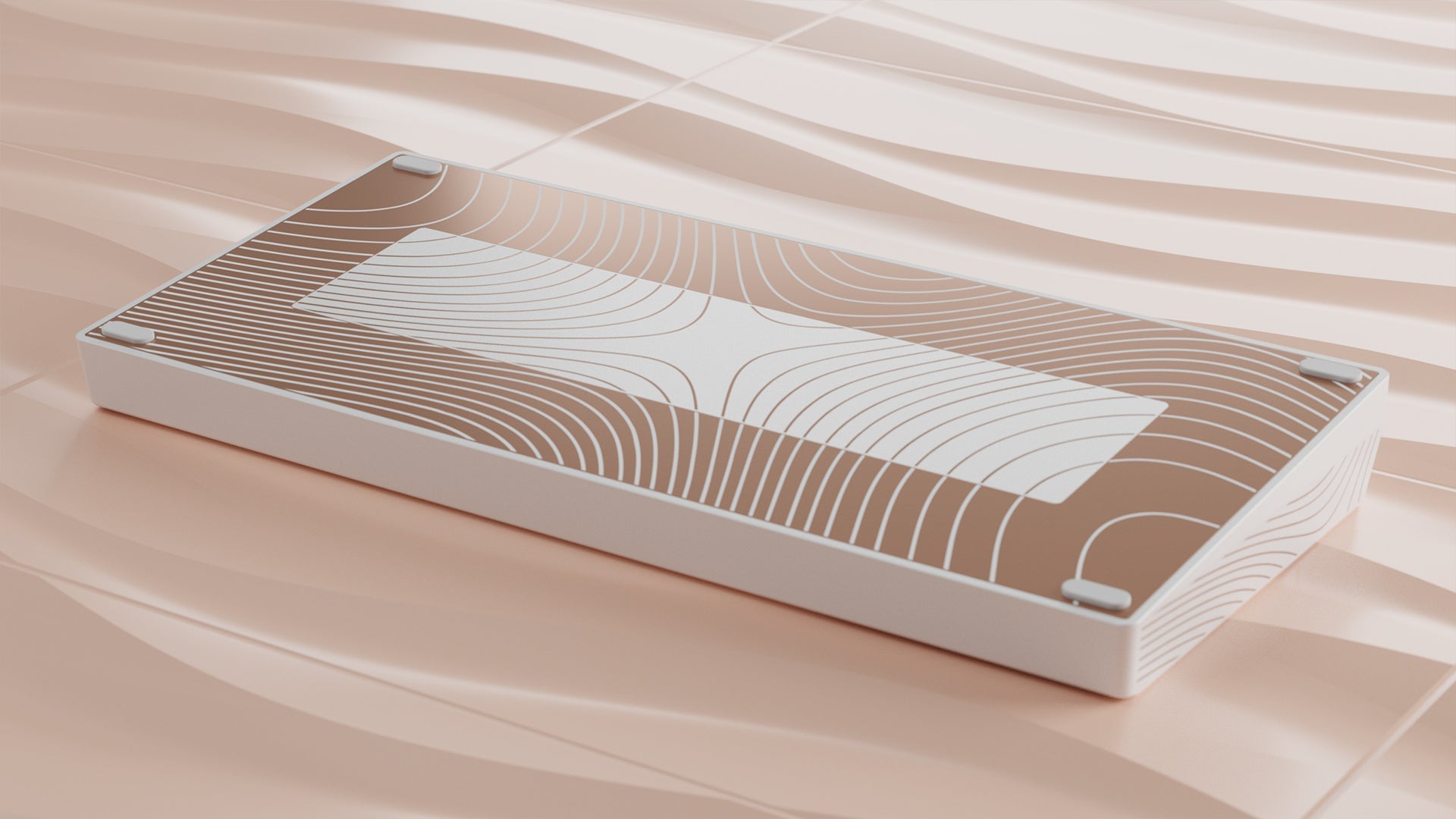

Backplate and External Weight: Anodized+Infill
Switches Type: Gateron KS37B
The Orientation of the Switches: North Facing
No SS Internal Weight
Boog 75 Wired Polling Rate: 1000hz
QMK or VIA Support: No, customization requires to use of our independent driver.
Total weight: About 3kg

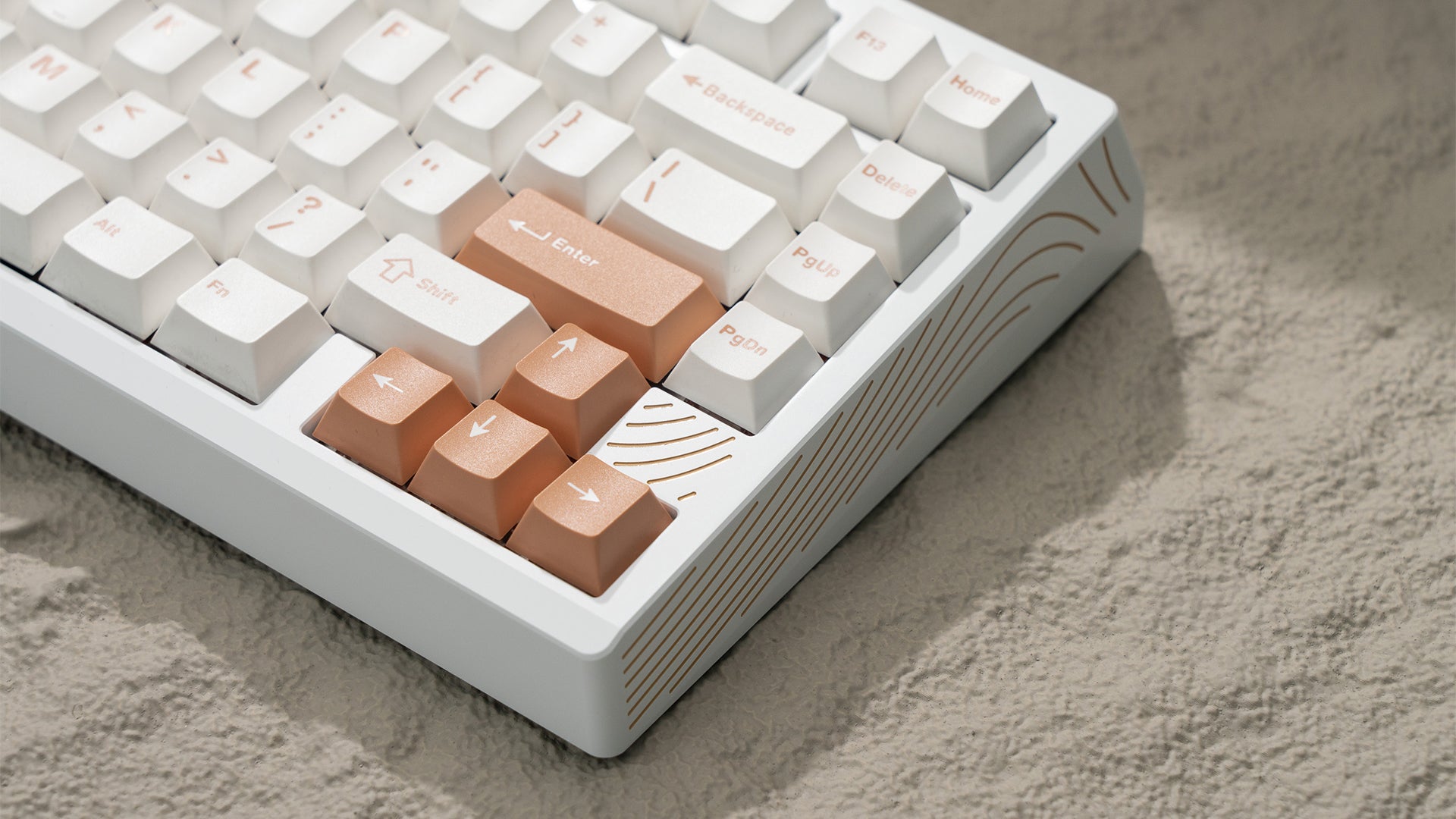

Keycap Specifications:

Manufacturer: WS PBT
Keycap Material: Doubleshot PBT
Keycap Thickness: 1.6mm
Keycap Profile: Cherry
Keys QTY: 81 keys

Switch Specifications:

Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
Initial Force:30±10gf.
Total travel:4.0±0.2mm.
Operation Lifetime:150,000,000 Cycles.
Bottom Force: 50±10gf.
Top Housing Material: Thermoplastic, Transparent
Bottom Housing Material: Thermoplastic, Red
Stem Material: Thermoplastic, Red
Spring Material: Stainless steel

Highlights

Dual-rail structure for stability.
Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
Extending the stem for better switch stability.
Integrated spotlight lens design, enhancing light guidance.
Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

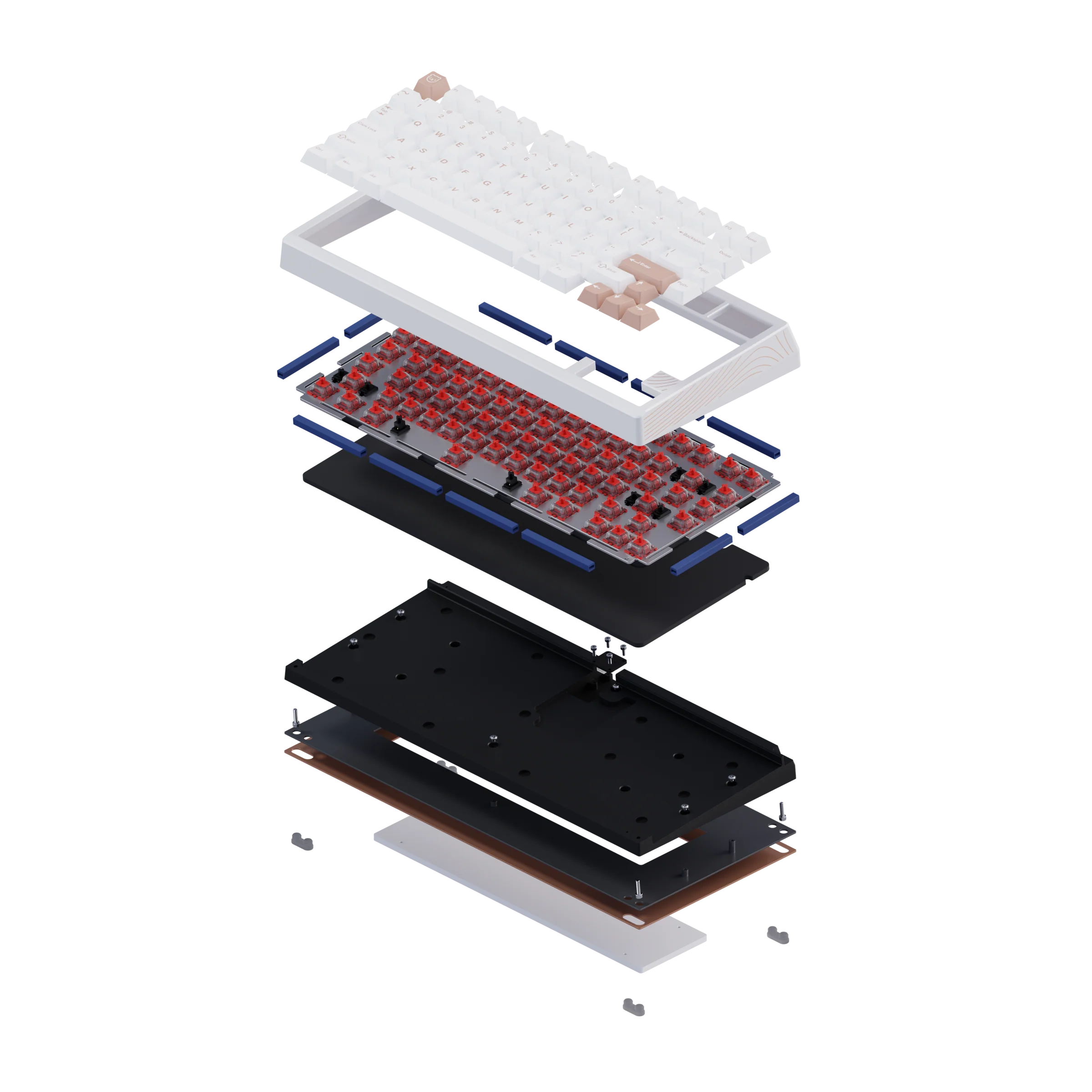

What's in the box?

Top and bottom cases
HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
Case foam
The themed keycaps
Tool accessories

Boog75 – The Enthusiasts' Gaming Keyboard

BOOM+GAME

Utilize BOOG75 for precise control in every gaming situation

BOOG75, a magnetic switches variant of our popular ZOOM75. We now offer prebuilt keyboards in four colors for your, with Shockwave and Induction Coil being the default colors for the BOOG75. Additionally, we now offer White and Black colors ZOOM75(Wired) with the HE Module to be chosen.

Perfect for FPS enthusiasts, BOOG75 ensures precision and style for every gaming situation.

Share some content to your customers about your products.

FAQ

Is the PCB only compatible with Zoom 75?

Yes

Will it support Zoom 75 LCD Module or Knob Module?

It depends on where you are. Orders processed here will take 5-7 business days to arrive. Overseas deliveries can take anywhere from 7-16 days. Delivery details will be provided in your confirmation email.

What switches are included?

Gateron KS37B

Does the PCB have wireless capability?

You can contact us through our contact page! We will be happy to assist you.

Can the case be used for the wireless variant of the Zoom 75?

Write content to answer to common questions your customers may have about your products, shipping policies..

Does the sensitivity setting have to be as low as possible?

Write content to answer to common questions your customers may have about your products, shipping policies..

What is the orientation of the switches?

North Facing

1ms

faster input for every keystroke

01

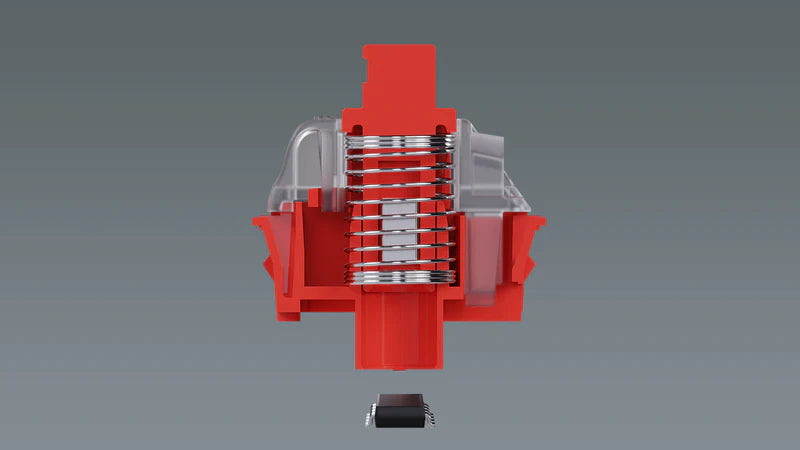

Magnetic Switch

Traditional mechanical keyboards require pressing the switch and reaching the actuation point to activate a key. In contrast, magnetic switches operate differently. They comprise a bottom Hall sensor and an upper magnet. When a key is pressed, changes in the distance within the sensing magnetic field lead to a fluctuation in current. Activation is determined by evaluating the strength of the induced current.

Additionally, automatic calibration via the Baseline Calibration algorithm ensures no abnormal functions due to temperature, humidity, magnetic differences, etc.

02

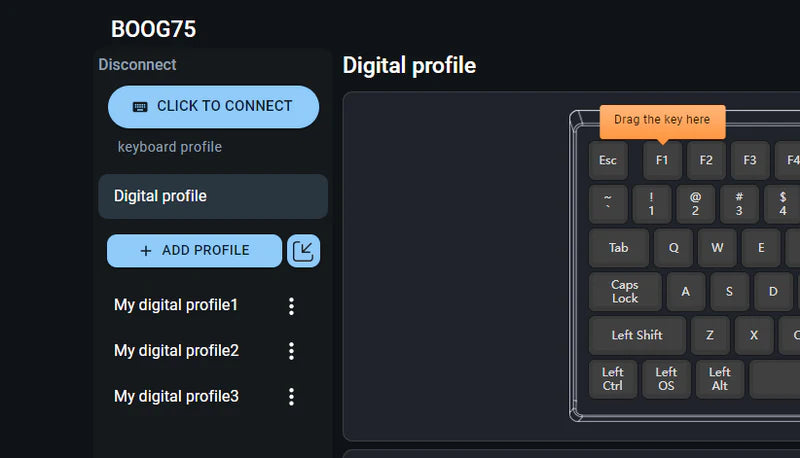

Therefore, owing to the unique structure of magnetic switches, with the use of our driver software, you have the freedom to adjust sensitivity according to your preferences. This feature enhances your customized gaming keyboard experience, providing you with the ability to fine-tune sensitivity levels and elevate your gaming performance.

01

Magnetic Switch

Traditional mechanical keyboards require pressing the switch and reaching the actuation point to activate a key. In contrast, magnetic switches operate differently. They comprise a bottom Hall sensor and an upper magnet. When a key is pressed, changes in the distance within the sensing magnetic field lead to a fluctuation in current. Activation is determined by evaluating the strength of the induced current.

Additionally, automatic calibration via the Baseline Calibration algorithm ensures no abnormal functions due to temperature, humidity, magnetic differences, etc.

02

Therefore, owing to the unique structure of magnetic switches, with the use of our driver software, you have the freedom to adjust sensitivity according to your preferences. This feature enhances your customized gaming keyboard experience, providing you with the ability to fine-tune sensitivity levels and elevate your gaming performance.

0.1mm

Adjustable activation point for each key from 0.1 mm - 4.0 mm with an accuracy of 0.1 mm

Adjustable Activation Point

Boog75 magnetic enables you to gain the upper hand in game.

Our Boog75 enables key activation at distances as short as 0.1mm. You can customize the activation point for each key, ranging from 0.1mm to 4.0mm. Find the ideal key travel distance that suits
you best.

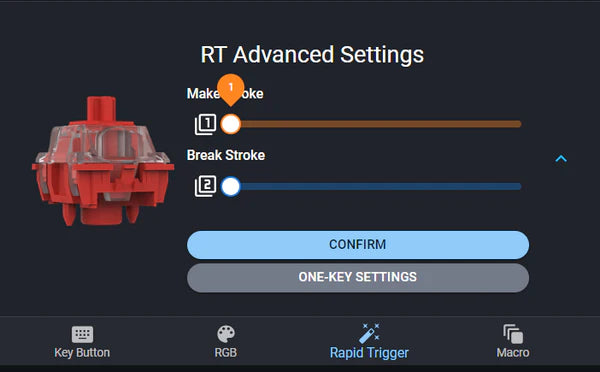

Rapid trigger

Utilizing the unique traits of magnetic switches, key activation and reset are determined by the distance traveled rather than fixed points. This precision enables keys to activate upon pressing and reset upon release, facilitating seamless consecutive key presses. This capability empowers you to swiftly execute a series of actions during gaming.
