EL AMP II
SIMPLIFIED AUDIO, RE-ENGINEERED

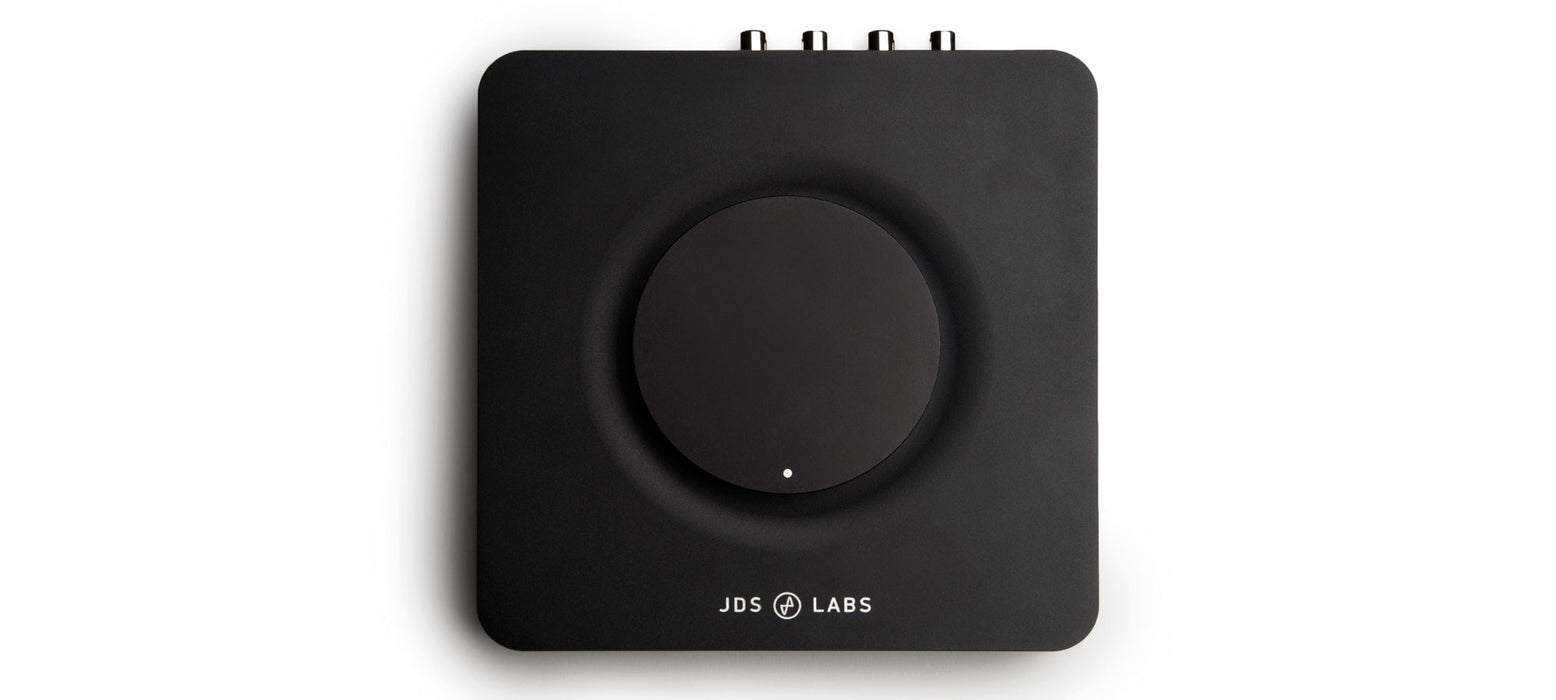

We redesigned EL Amp to maximize your desktop audio experience. EL Amp II packs the performance you expect from JDS Labs into a precision machined aluminum chassis, with higher maximum power, and button activated preamp RCA outputs. Enjoy the comfortable knob and seamless transitions between your powered speakers and headphones!
|

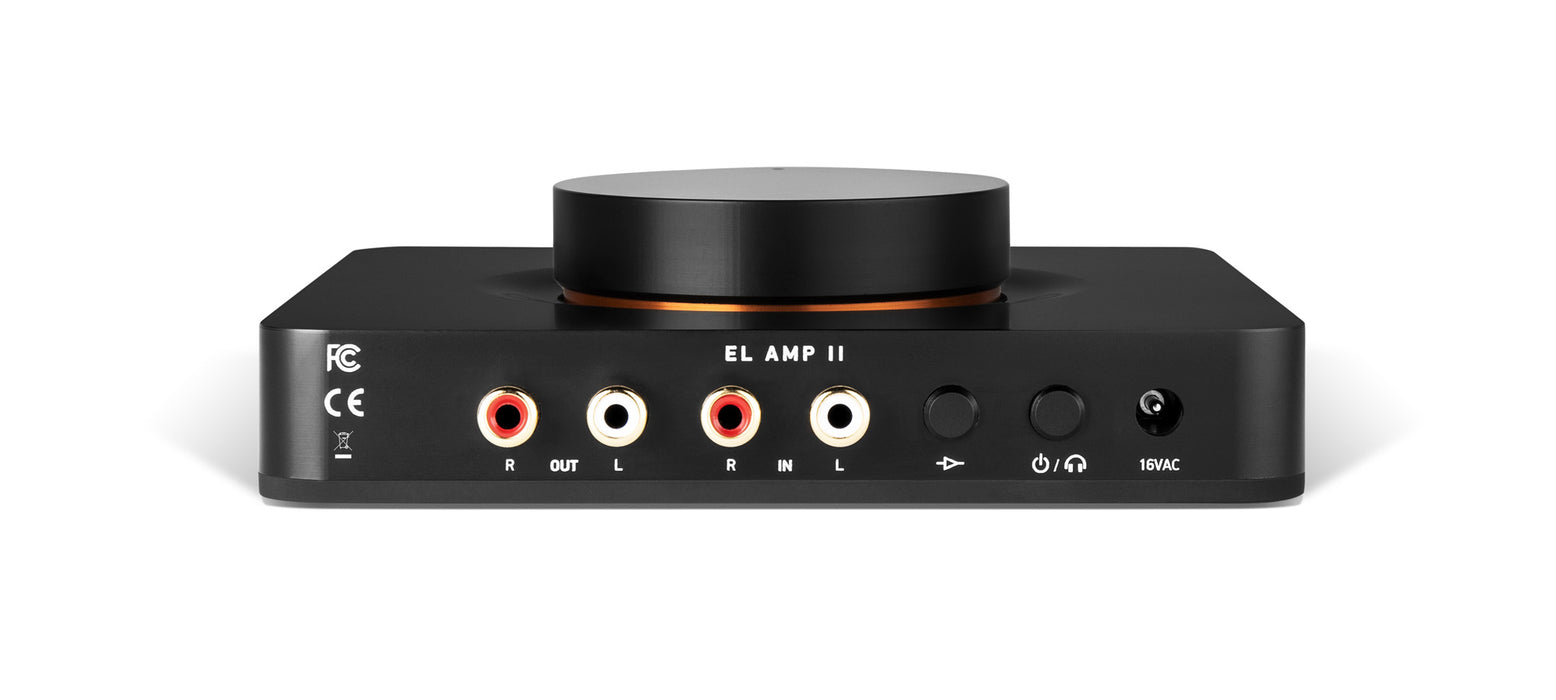

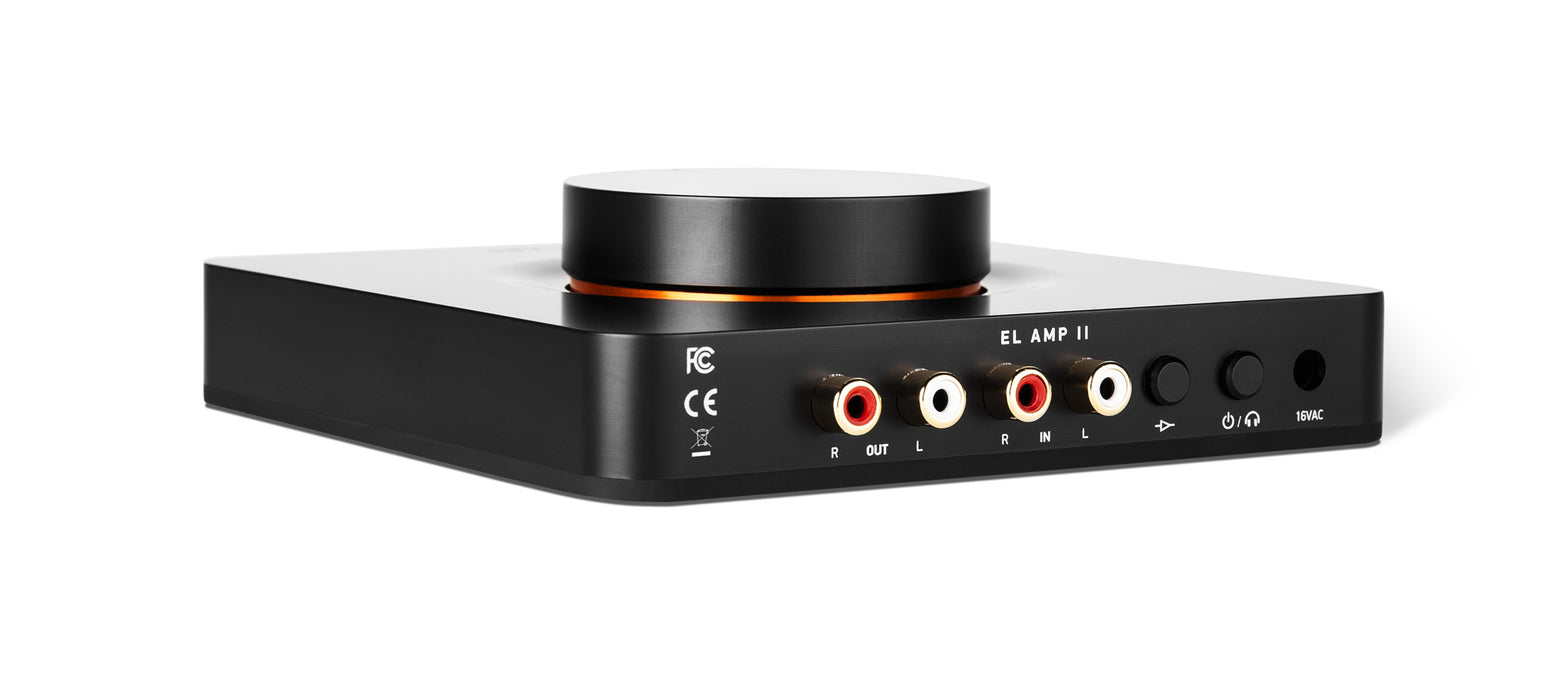

PREAMP OUTPUTSEL Amp II provides preamp RCA outputs, so that you can control volume of your powered speakers. |
![]() |
OUTPUT SELECTIONThe Mode button allows you to toggle between headphones and powered speakers. No need to disconnect cables! |
![]() |
ULTRA HIGH POWERWith +/-15VDC rails and continuous max power of 1.3W, EL Amp II drives all headphones on the market to extroardinary levels, from balanced armatures to planar magnetics. |
![]() |

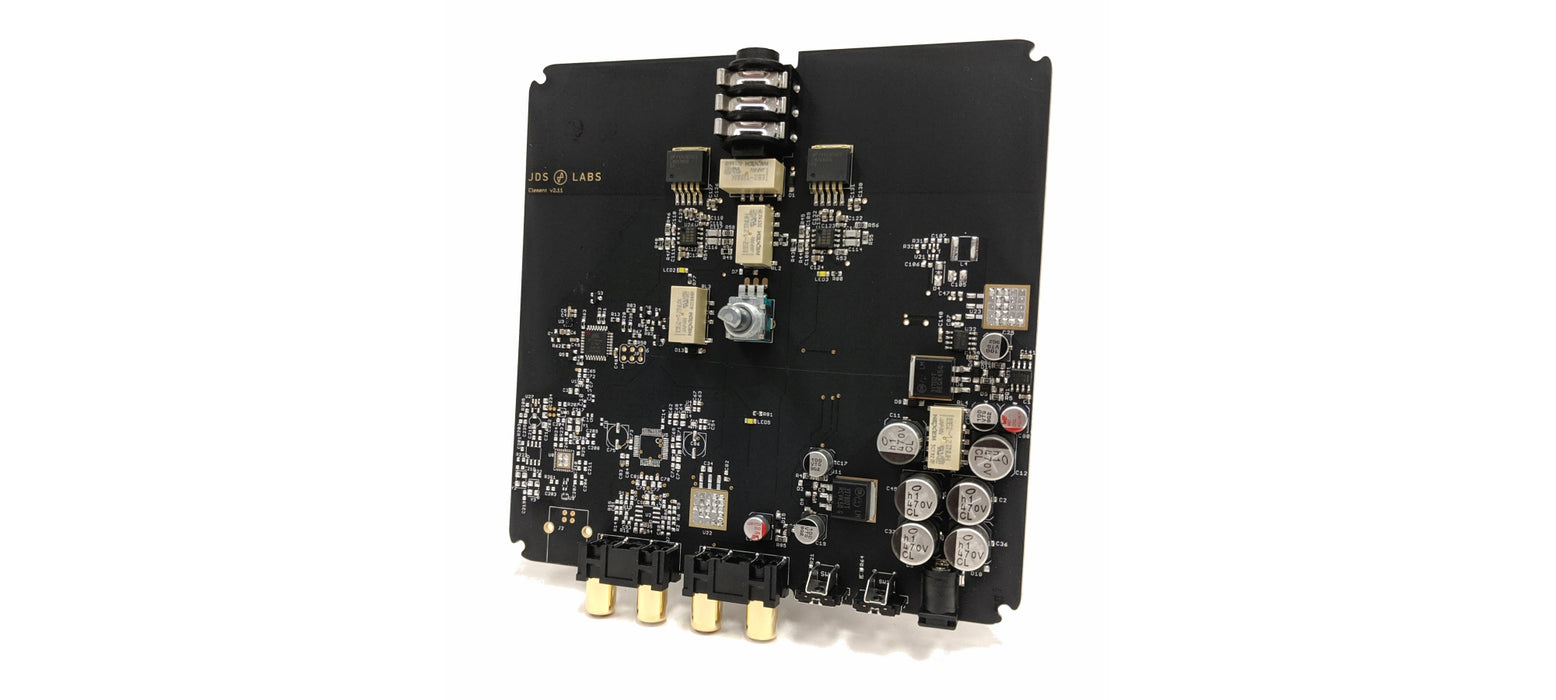

TOP PERFORMANCEEL Amp II is our flagship amplifier, achieving top performance from its 4-layer, star grounded layout. |
![]() |
DUAL GAIN Low gain of 1.0x is well suited to driving efficient IEMs, while High gain easily powers demanding full size sets. |
![]() |
RELAY MUTINGDesigned for desktop listening, EL Amp II's full relay muting eliminates pops and thumps during startup through both its headphone and preamp outputs. |
SPECIFICATIONS
AMP PERFORMANCE
- Frequency Response 10Hz-20kHz+/- 0.02 dB
- THD+N 1Khz, 150 Ω 0.0008%
- THD+N 20Hz-20kHz< 0.001%
- IMD CCIF 19/20 kHz -6.03 dBF S0.0001%
- IMD SMPTE -6.03 dBFS 0.0005%
- Noise (A-Weighted) -115 dBu
- Crosstalk -10 dBFS 100K RCA -88 dB
- Output Impedance 0.1 Ω
- Channel Balance+/- 0.56 dB
- Max Continuous Power, 600 Ω165 mW (9.9 VRMS)
- Max Continuous Power, 150 Ω656 mW (9.9 VRMS)
- Max Continuous Power, 32 Ω1.3 W (6.53 VRMS)
DIMENSIONS
- Case Dimensions 5.8 x 5.8 x 1.6 in
- Weight 17 oz
CONNECTIVITY
- Headphone Output6.35mm (1/4")
- Analog Input RCA
- Preamp-Output RCA
CONFIGURATION
- Dual Gain 1.0x and 4.73x
- Volume Potentiometer Taper Alps 15A
PACKAGED ITEMS
- EL Amp II
- 16VAC Power Adapter
