CKW80 - TKL/WKL Mechanical Keyboard [Group Buy]
Groupbuy Timeline
Start: Feb 7th 2023
End: Mar 7th 2023
Estimated Arrival to Retailers: July 2023
Qualifies for $13.99 shipping in NA
Click here for Updates
Design Concept

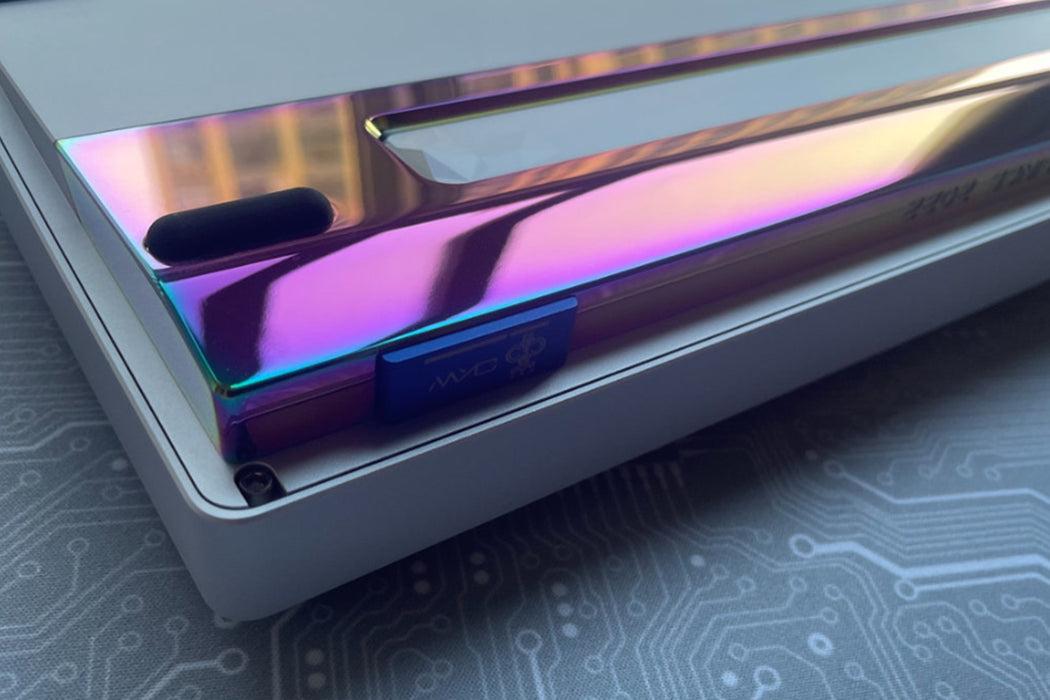

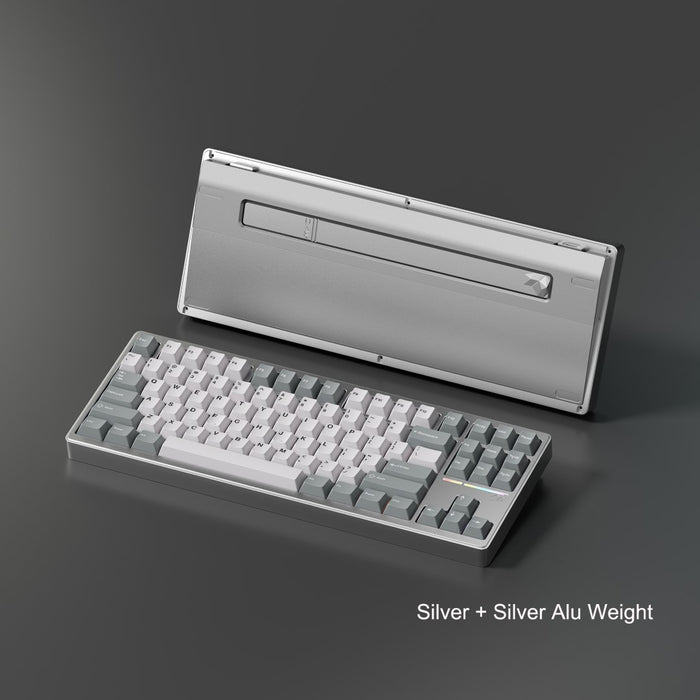

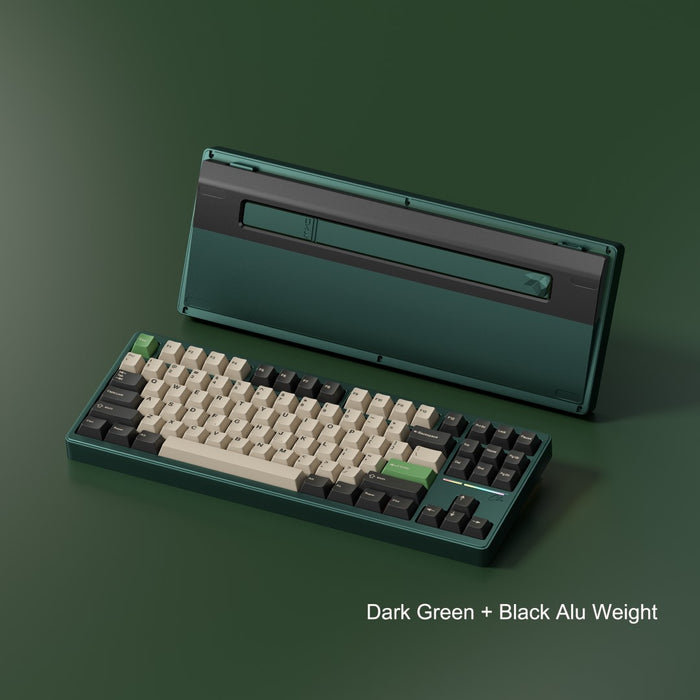

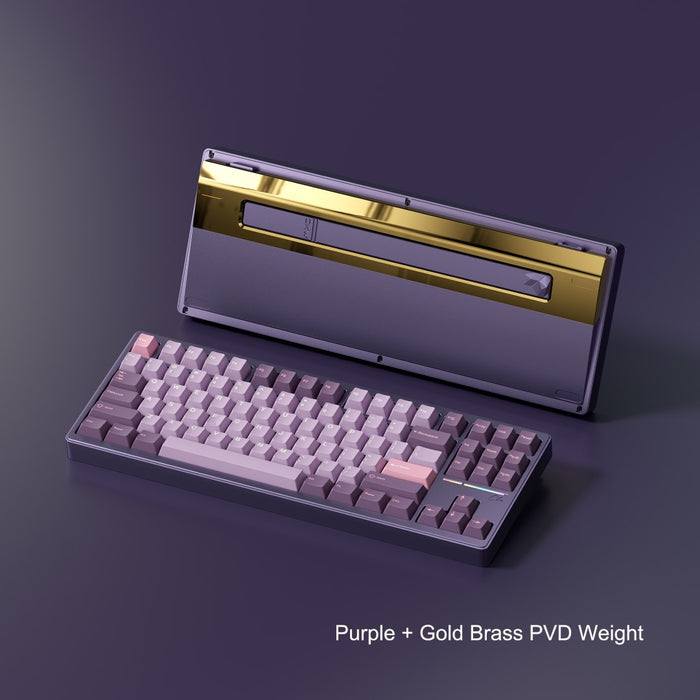

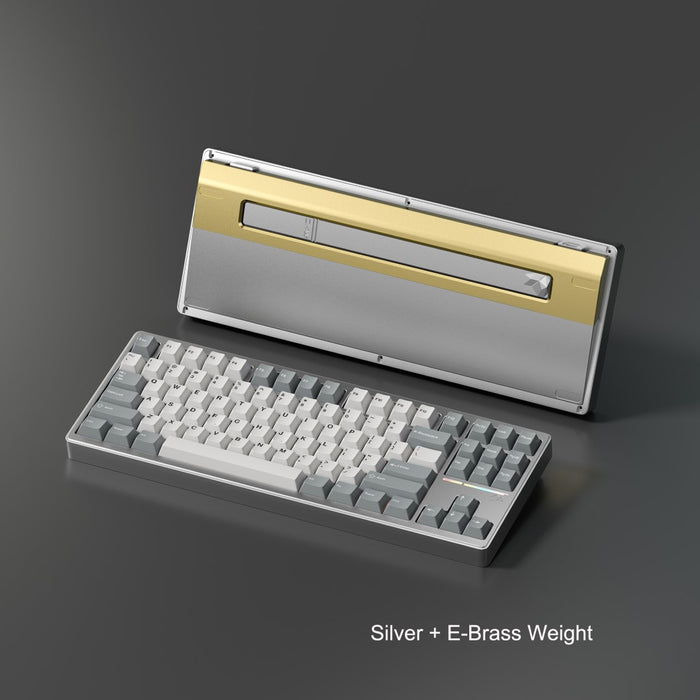

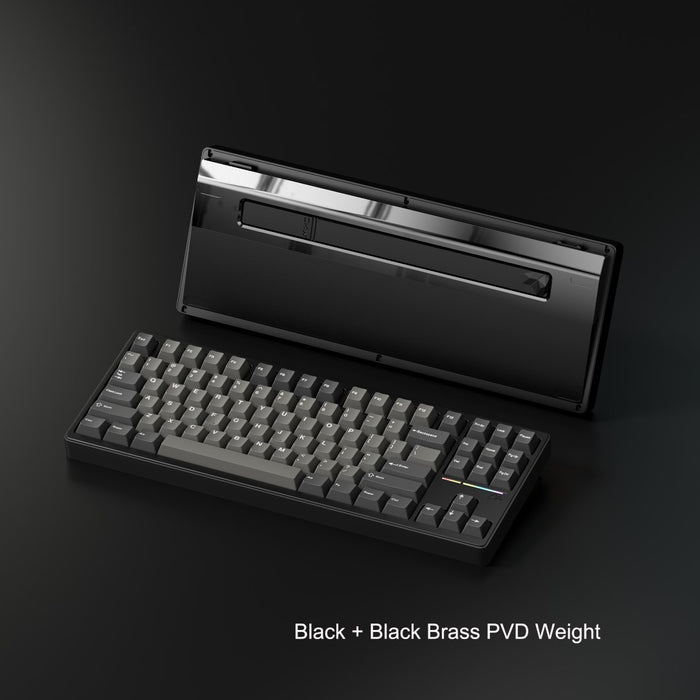

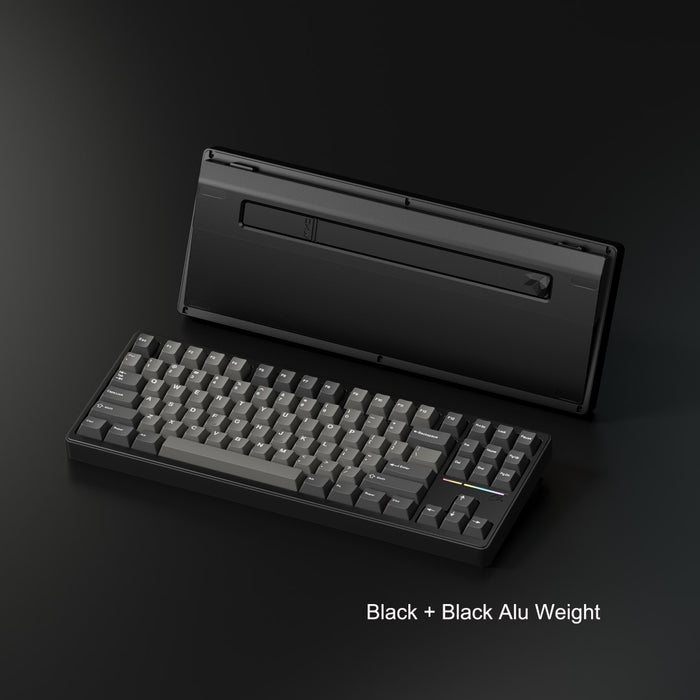

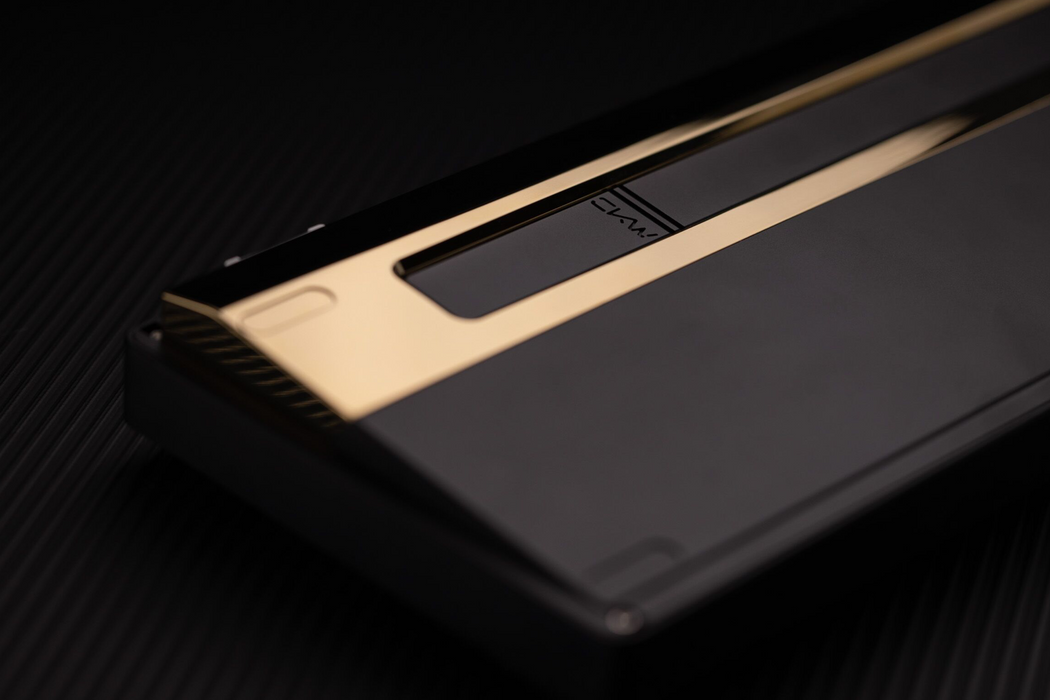

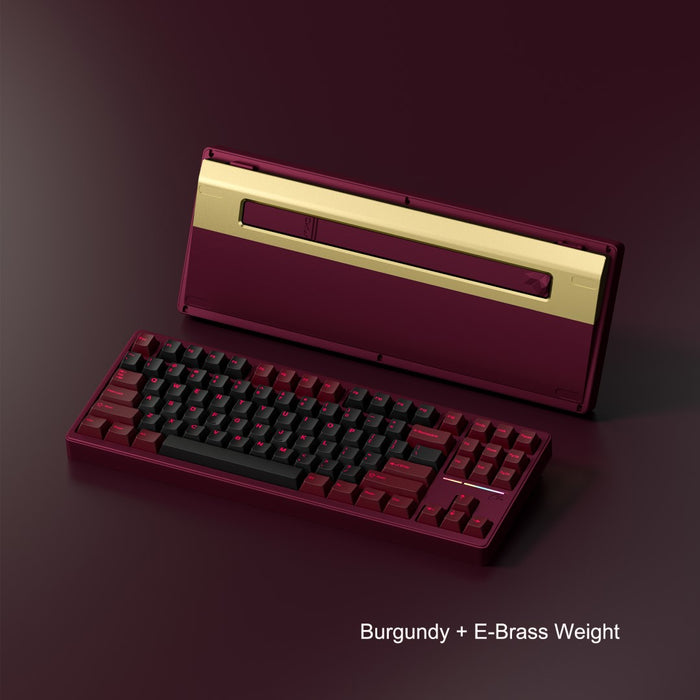

As the studio manager's name is Chain Smoker, we add some cigarette elements to it. There are some cigarette elements on the back, and we use diamond cut to indicate a lit cigarette.

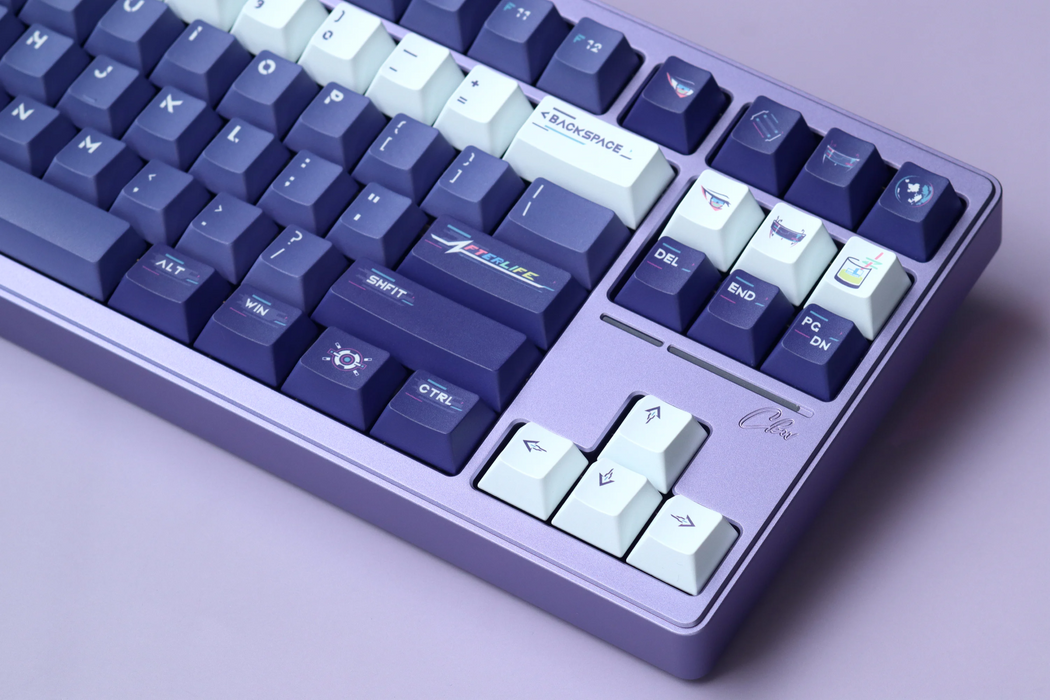

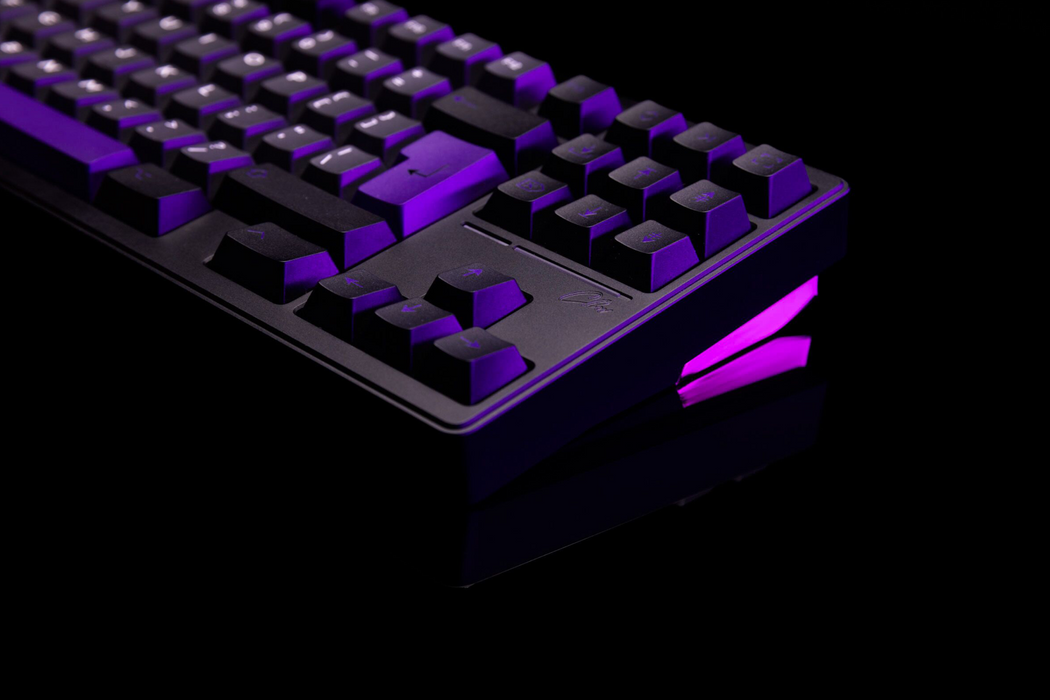

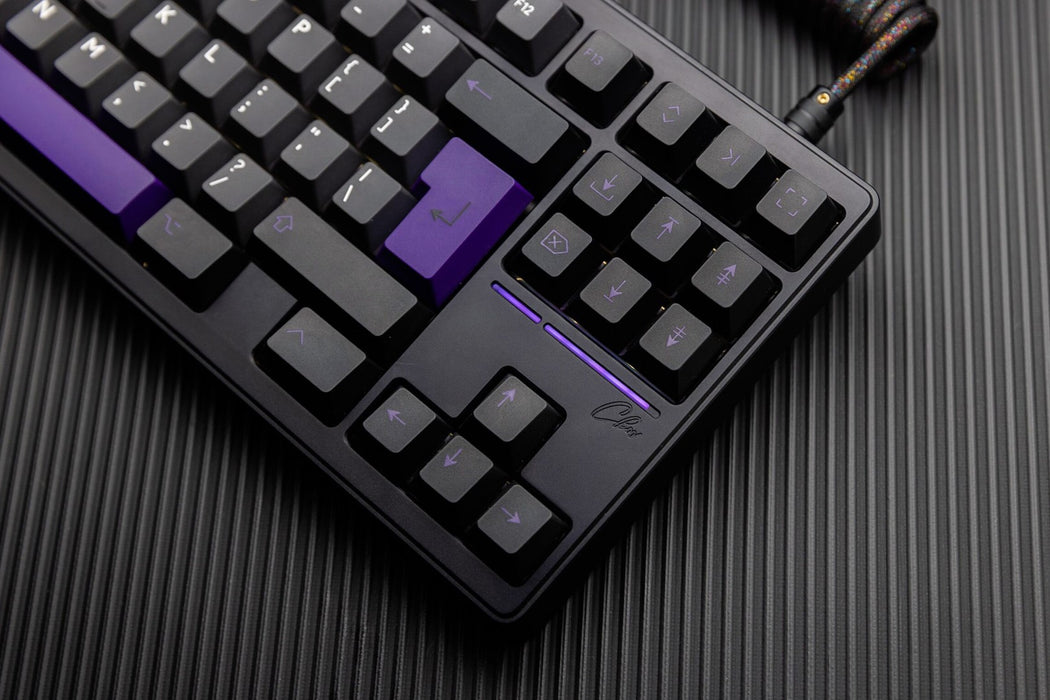

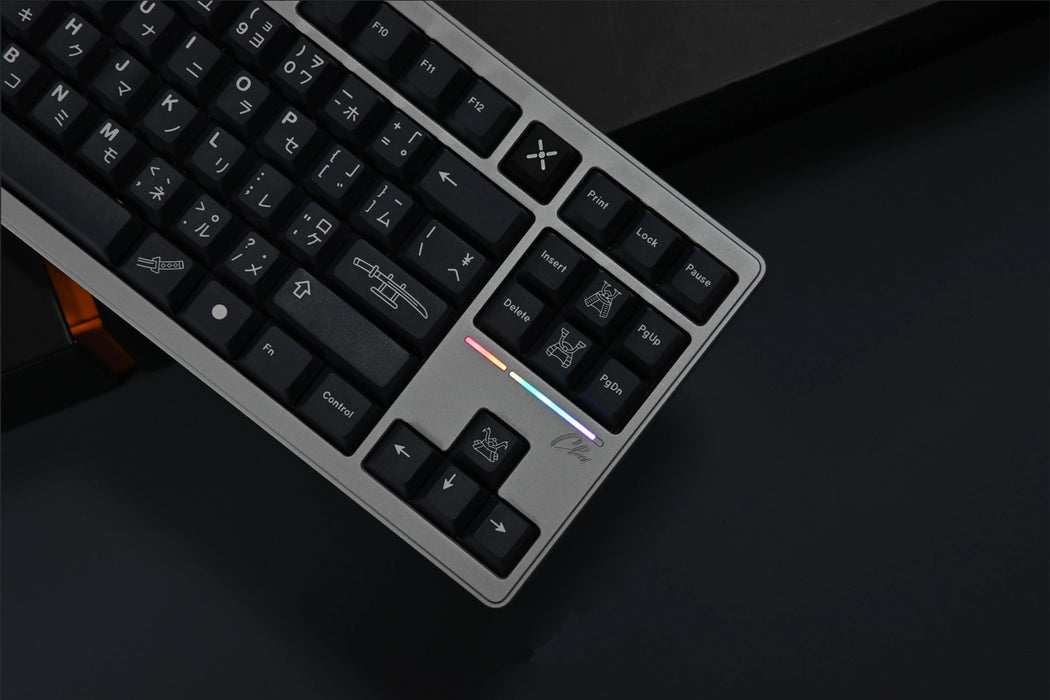

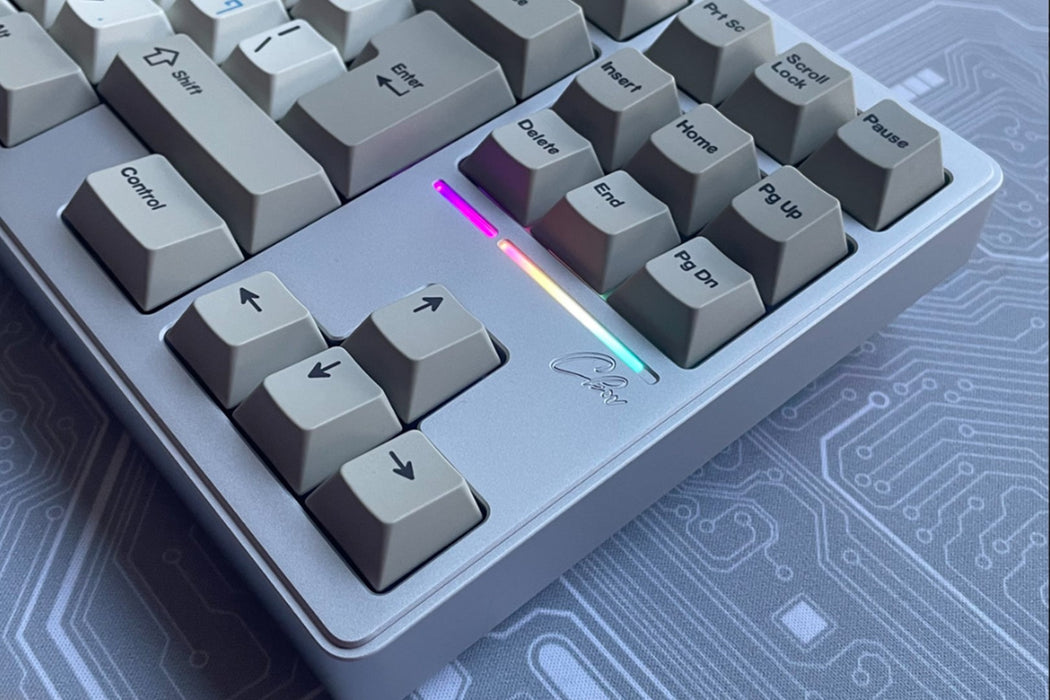

We add the "CKW" letters on the top case to light bar which resembles a cigarette. What's more, in order to keep consistent with the lit cigarette on the back, we made a sinking treatment on the light bar top to imitate the ash after igniting.
Although we used some cigarette elements, we do not encourage smoking, so we engraved “ Smoking is harmful to health” inside the bottom case for reminding.- Velocifire
Don't forget to grab extra Addons & Accessories here!
Interchangeable Type C
Type-c connector can be placed left or right as you like, which enables you to design your desk layout freer.
Multiple Typing Feels
Turn over the middle frame, and remove PCB or plate ear, we are able to switch among PCB gasket (Plateless without plate), gasket and top mount.
PCB Gasket
Gasket
Top
Hotswap PCB with ANSI/ISO
- Hotswap PCB supports ANSI/ISO layout, both support WK/WKL
- Recommend to buy solder PCB for plateless
- Leave the F13 key solder place for knob
- Support VIA
- Upgrade to black core PCB which is better in quality than the ordinary PCB
Bluetooth 5.1
- Able to connect two Bluetooth device at the same time, can switch connection targets anytime
- Independent Bluetooth Antenna: Enhanced signal, extremely low delay for desktop use
- Support windows/android/mac OS/ios
Kit Content
- Top and bottom case *1

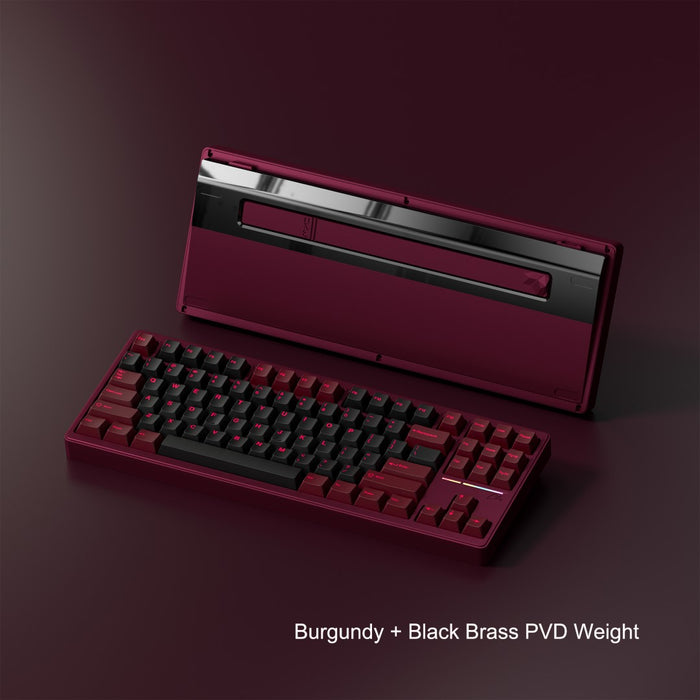

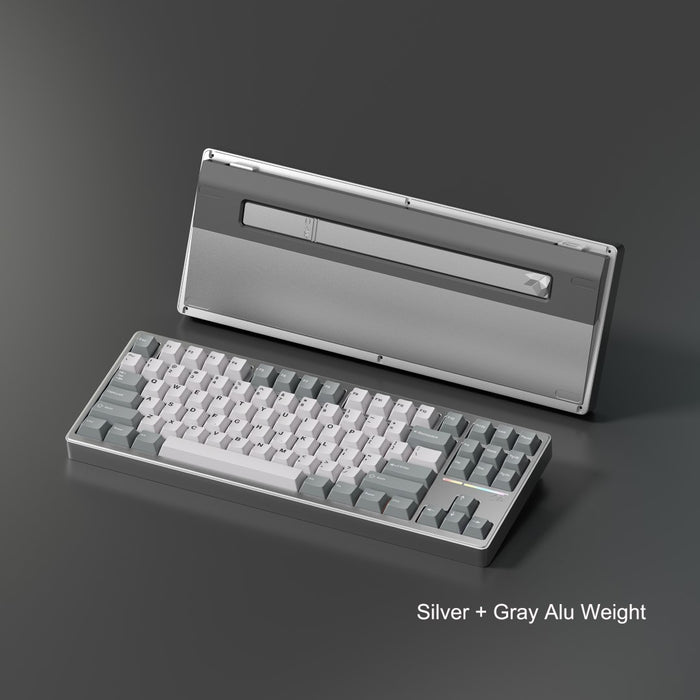

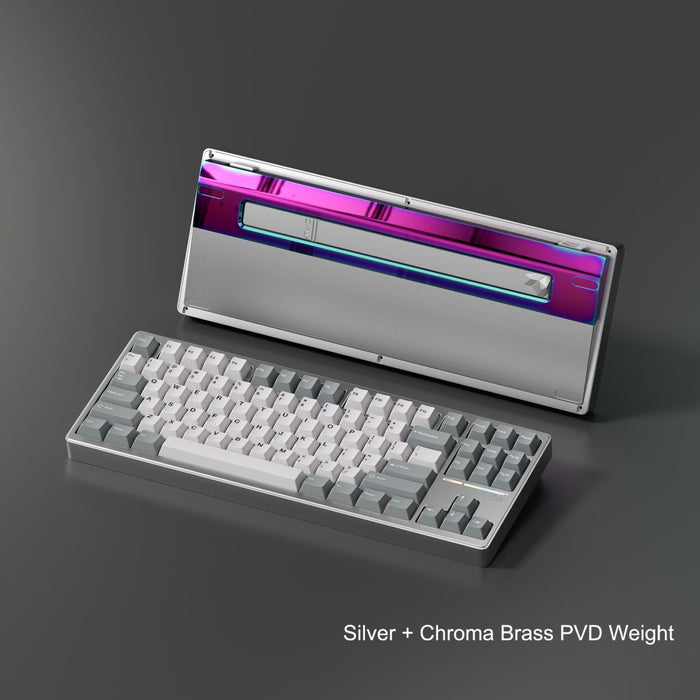

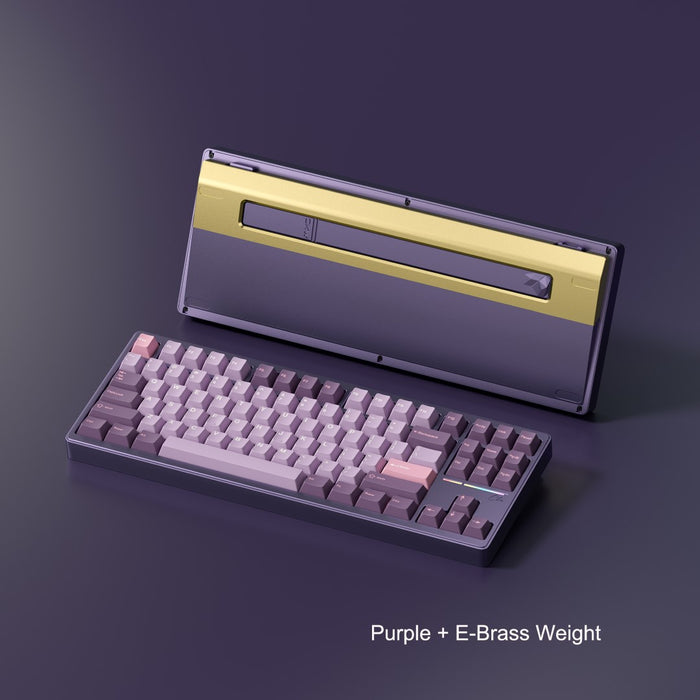

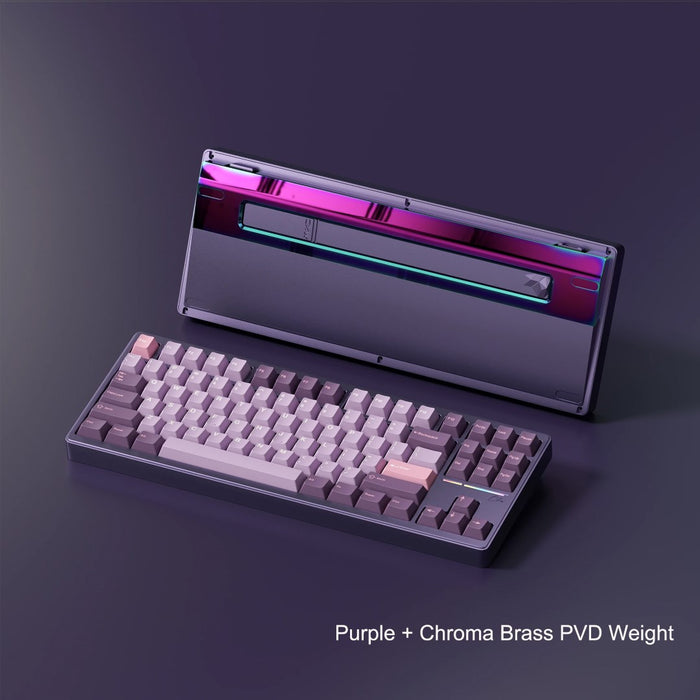

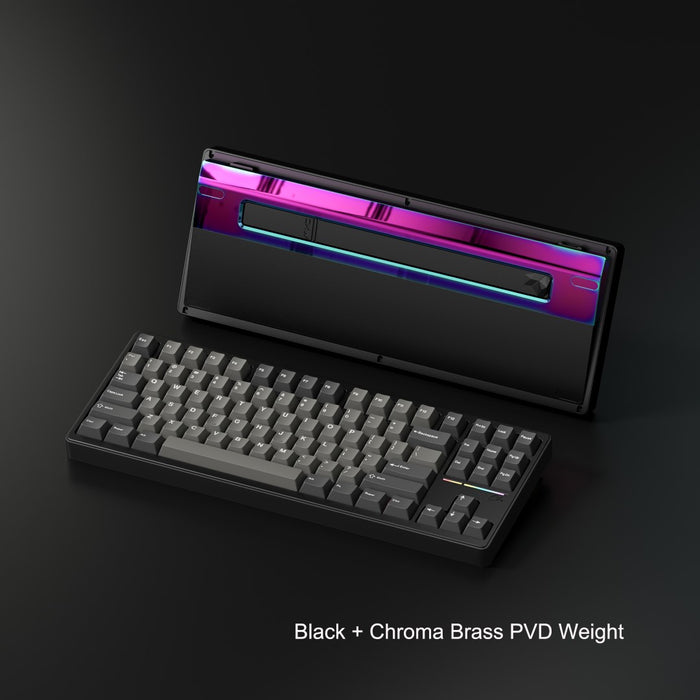

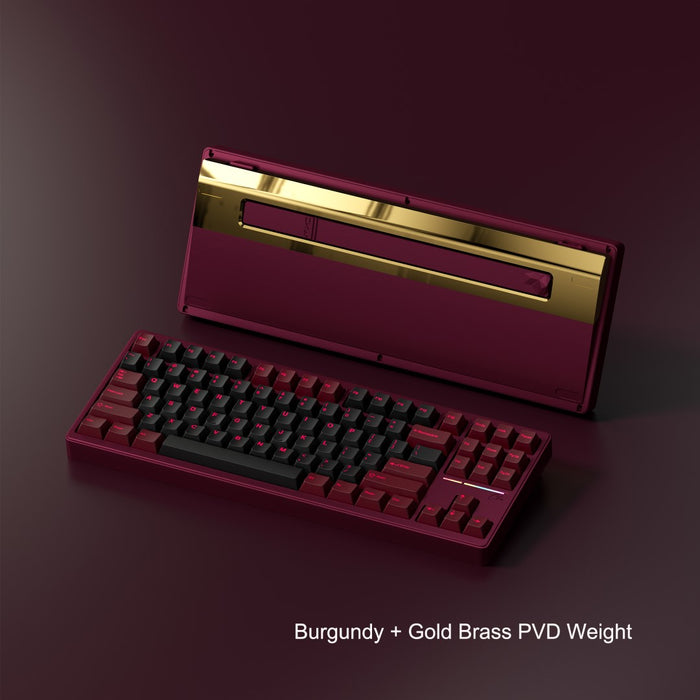

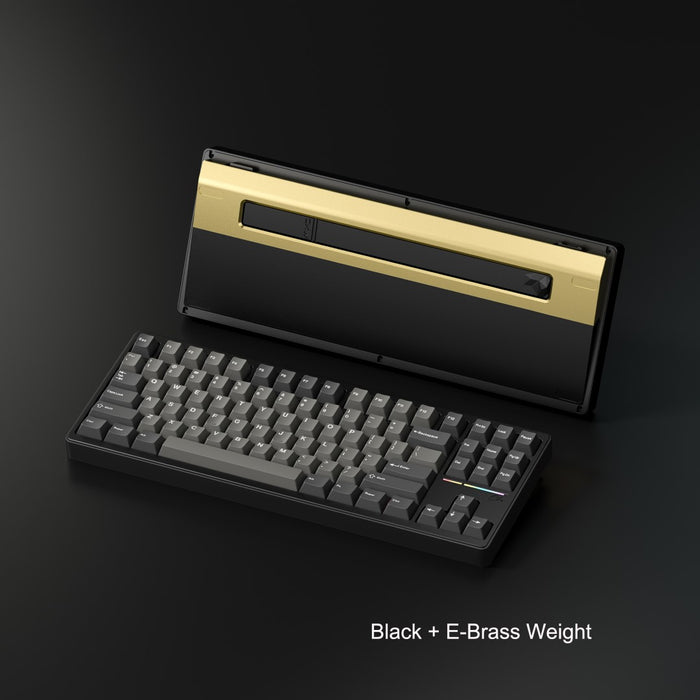

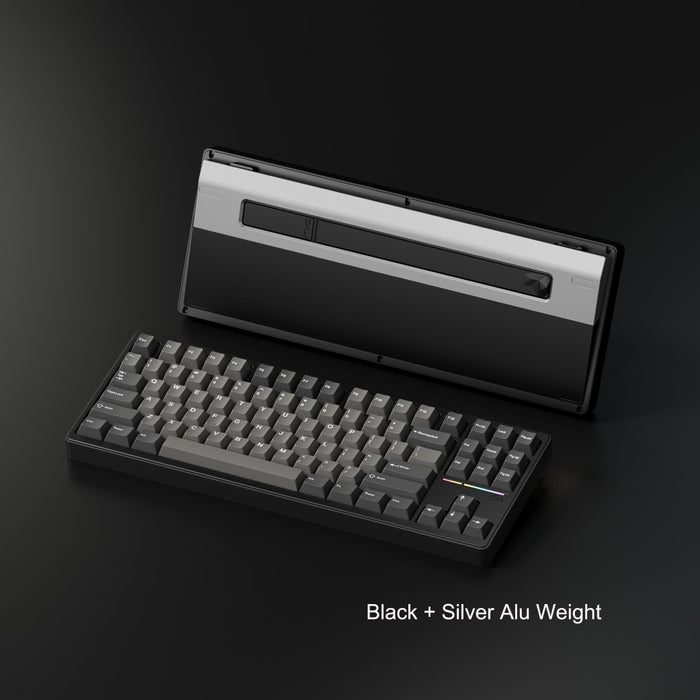

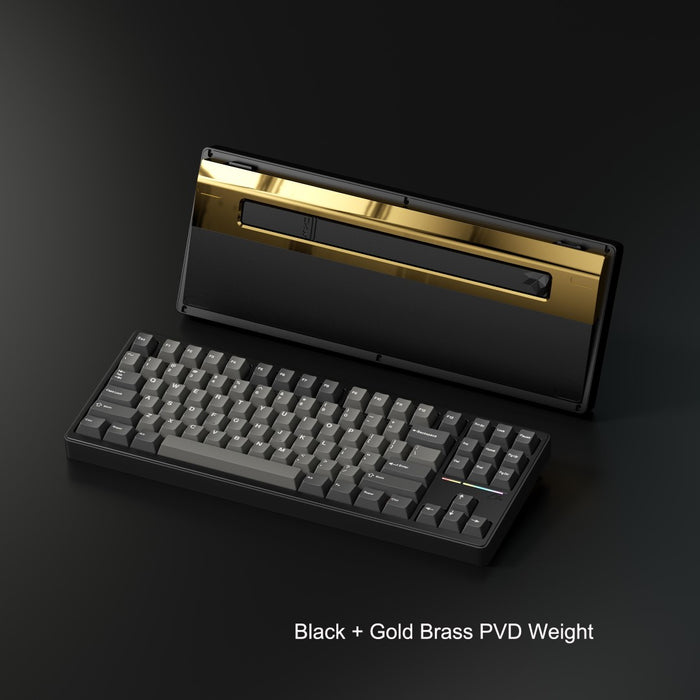

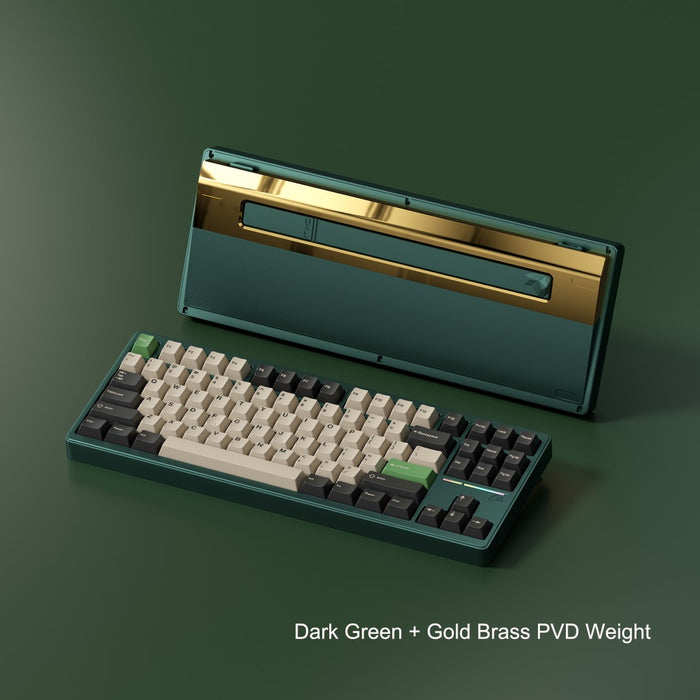

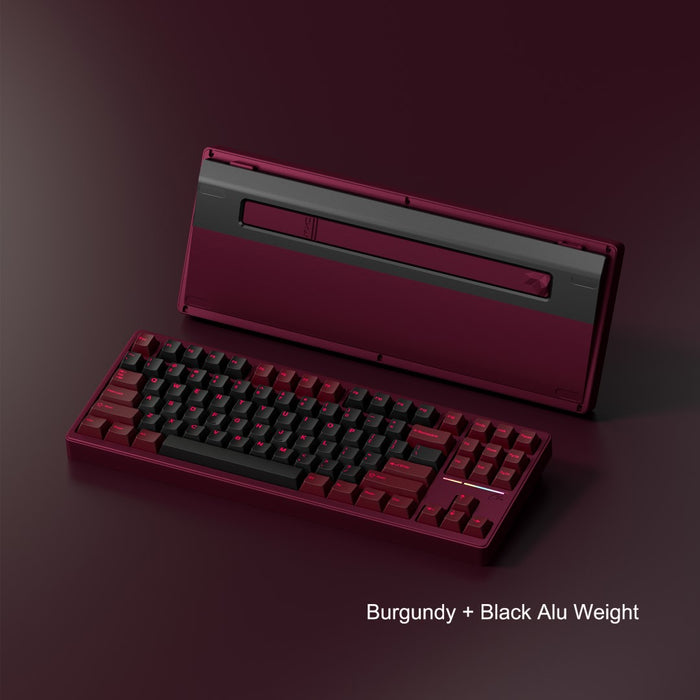

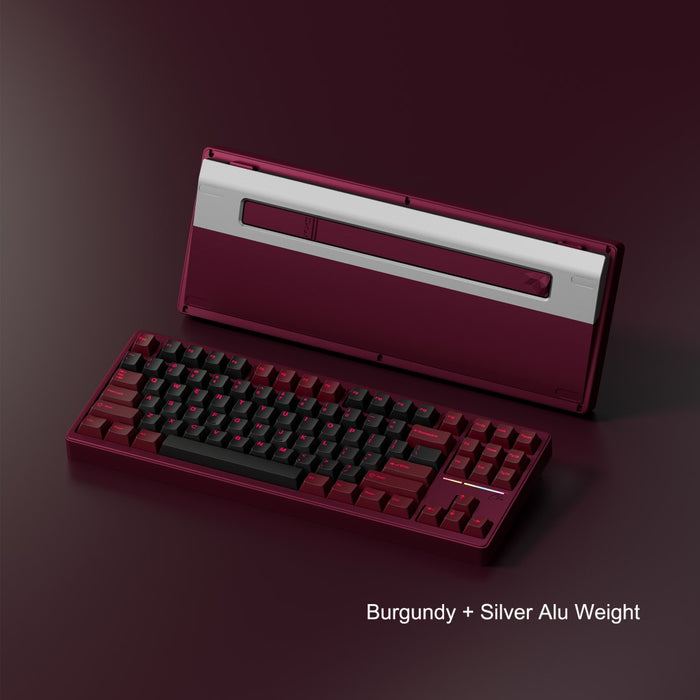

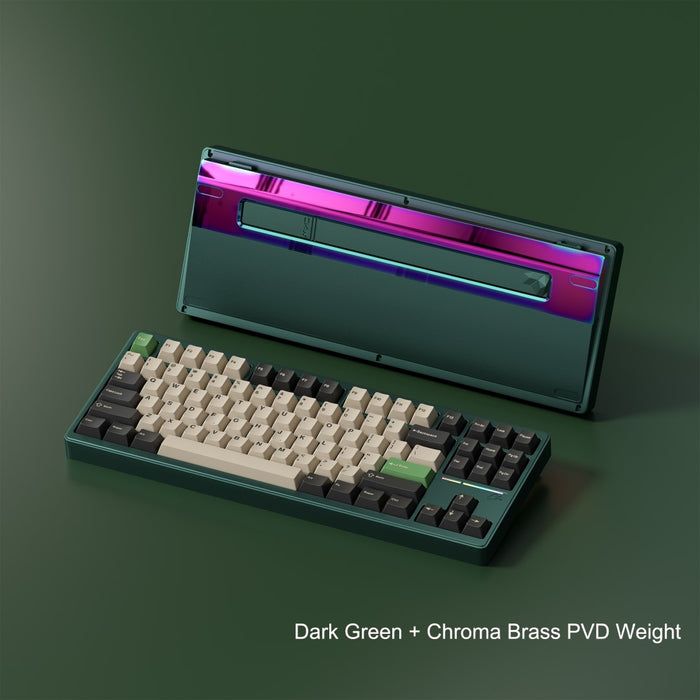

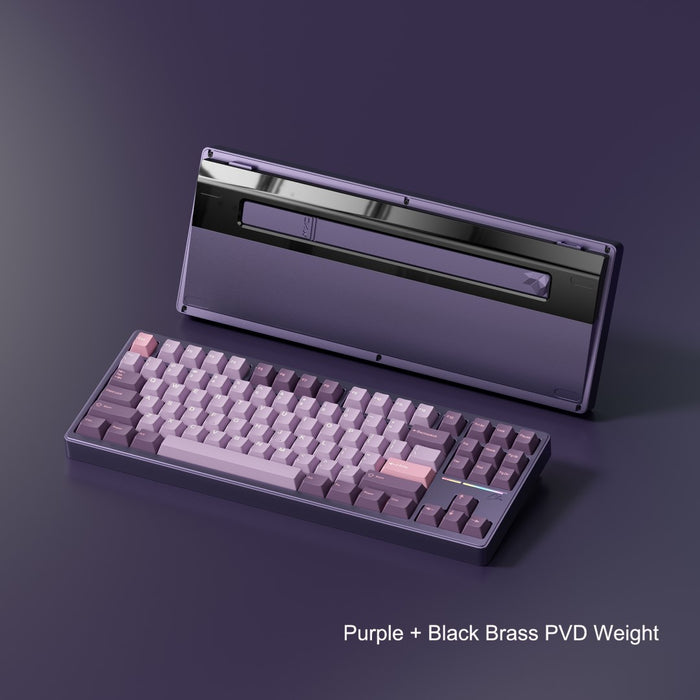

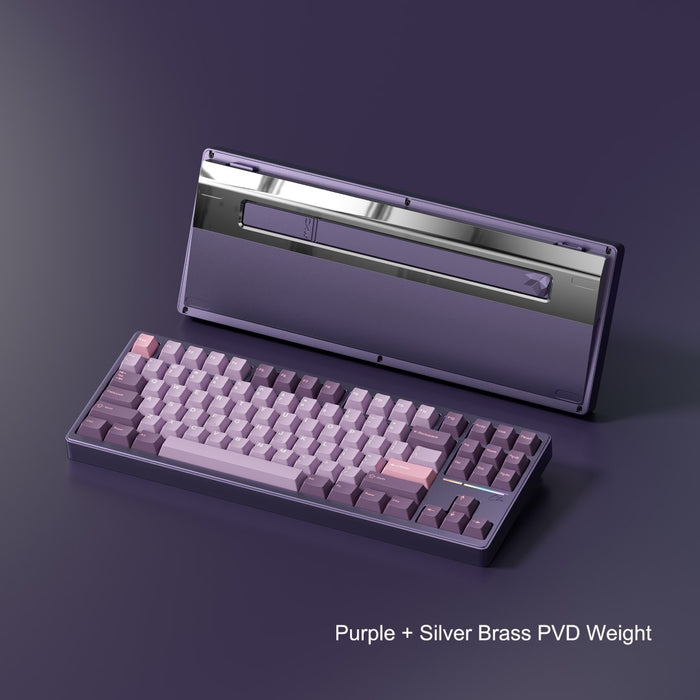

- Alu/Brass weight *1
- Type C connector and decoration *1
- Middle frame *1
- Hotswap PCB *1 (Add on option: Solder PCB)
- FR4 plate with removable ear *1
(Add on options: PC/POM/ALu[with ear]; PC/POM/ALu [without ear]) - Daughter board *1
- Poron light shading foam *1
- Poron bottom foam *1
- IXPE switch pad *1
- Poron Plate foam *1
- Battery *1
- Battery foam *2
- Acrylic jackets kit for top mount *1
- Poron gaskets kit for gasket mount *1
- Screw pack *1
- Leather bag *1
Specification
- Full CNC 6063 Aluminum top and bottom case
- Full assembled with alu weight: about 2kg;
Full assembled with brass weight: about 2.6kg; - Typing angle:7°
- Front Height: 20mm
- Size: 360*140mm
- Support PCB stabilizers, offer plate files for plate stabilizers
Gift
- PVD keycap with CKW logo *1
- Tweezers with CKW logo *1
- Screwdriver with CKW logo *1
- H1.5 screwdriver set head *1
- H2.0 screwdriver set head *1
Purchase Disclaimer from Velocifire
- CKW80 keyboard is a GB item. Estimated delivery in July is our best guess. Delays and setbacks may occur. You agree to these terms by default when purchasing.
- There will be a 6.4% + 0.3 Paypal process fee on order cancellations and refunds after placing an order.
- The shipping fee doesn't include import tax fee.
- No refunds or cancellations after the GB ends.
- The final product color may be different from the rendering, but it is an acceptable range. It mainly refers to the actual product.
Quality Disclaimer
- Appearance QC standards (including Stainless steel PVD weight, Alu anodized weight) are as follows: According to GB QC standard, our QC is in the light conditions are normal, and keep the distance between 20-25 cm to check the keyboard‘s appearance. If there is no defect then the QC check is passed. If the keyboard has problems such as dirt/spot/trachoma, as long as the dirt/spot/trachoma is less than 0.8-2.0 mm² (check with a film caliper), the QC check will pass. You can view the table of QC standards for dirt/spot/trachoma.
- Plating marks caused by hanging holes inside during keyboard production are normal phenomena during production.
- Due to the special material properties of PVD, there may be slight, unavoidable dust on the mirror surface during production. These are normal phenomena and within our quality approval range.
Are DIY and Customs Items like Keyboards covered under warranty?
- DIY items and custom items with manufacturer's defects are ONLY eligible for a refund if they are:
1) Reported within 30 days,
2) Inspected by manufacturer and proven to have a manufacturer's defect (not user damage or improper use), and
3) Returned in unused condition with manufacturer's original carton and must include all components and other items originally packaged with the product (i.e. cables, manuals, etc.). - Items that fall into this category can include PCBs, LEDs, diodes, keyswitches, lubricant, and similar parts sold for keyboard repair or modding. These items do not have a warranty from the manufacturer, and we cannot be held liable for damage including, but not limited to, damage from improper use, stripped screws, installation, or modification.
- Keyboard Lubing can damage your keyboard, and will void the warranty if used.
- Please contact our Deskhero Support Team prior to returning your item to discuss the best available options.
Please do not combine with other group buys. Your order may be cancelled.
Group Buys
- What is a group buy? Group Buys are a method of sale similar to a pre-order. Payments are collected ahead of time in order to submit a bulk order to a manufacturer for production. Due to this, there is often an extended timeline from the order date to when the product is shipped out, with these timelines ranging from a couple weeks to several months. In all Group Buys posted here on the site I will include on the order page an estimated timeline for production and shipment.
- You missed your estimated timeline. What's going on? We provide weekly updates for all group buys, so that customers can stay informed and up to date on the progress. Many times unforeseen issues can occur, which can cause delays.
- Can I get a refund for my Group Buy purchase? I changed my mind. The nature of the GB process means that funds for refunds are not available after submission of the group payment to the manufacturer. Refunds may not be available after submission of your Group Buy order. Refunds will not be available after bulk order submission to the vendor. Refunds may be made available on a case-by-case basis at our discretion.
